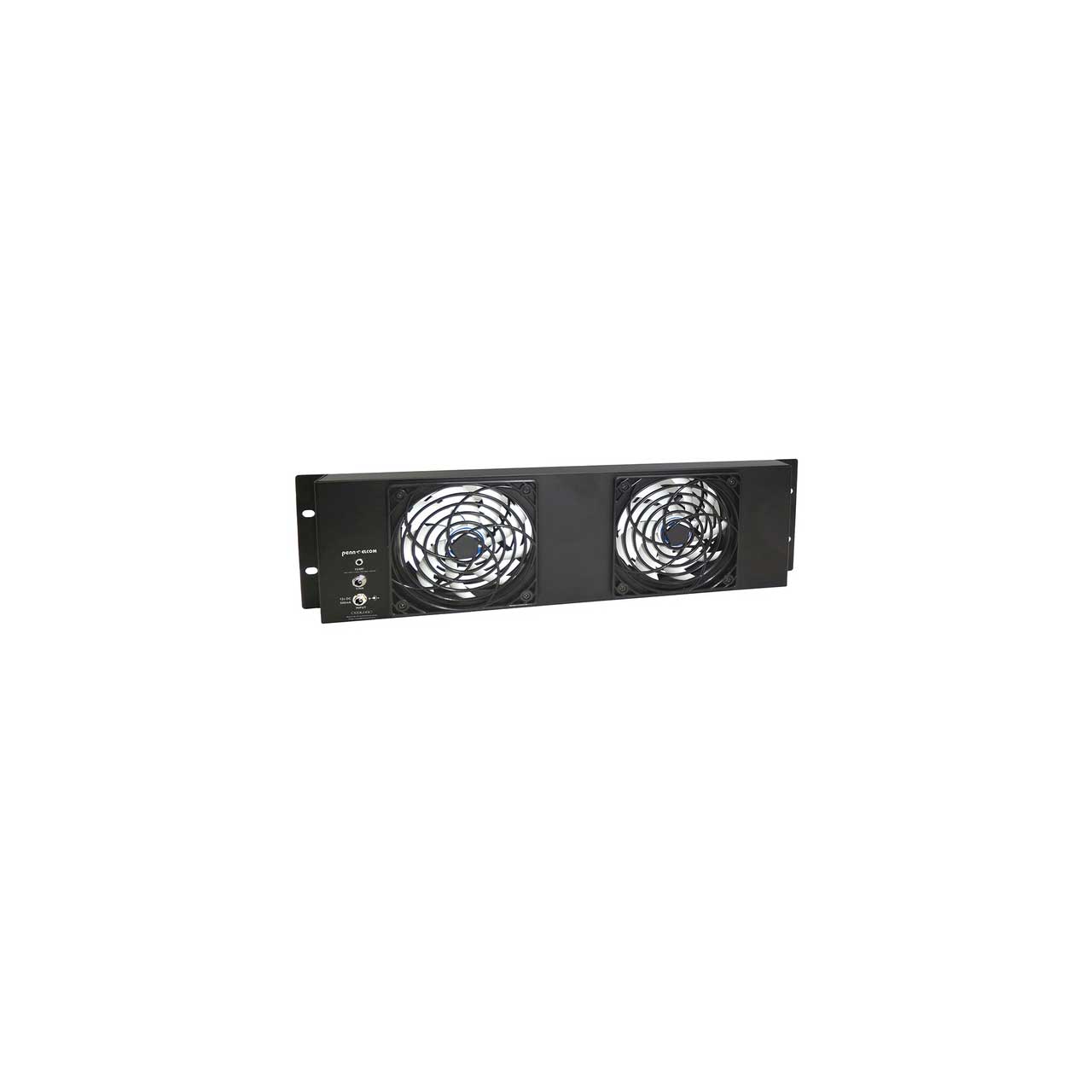

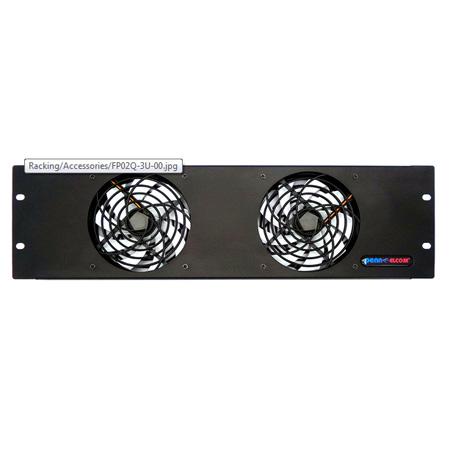

Penn Elcom FP02-Q-3U 3U Heat Extraction Panel

Manufacturer: Penn Elcom Inc

Item #: PENN-FP02-Q-3U   •   MFG #: FP02-Q-3U


List Price:$158.00
Our Price:$129.99

free ship
Availability: Usually ships in 3-10 business days
This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.


    California Residents:
    Cancer and Reproductive Harm -


    Low noise 3U Heat Extraction Units are designed to be fitted into the front or back of a 19-inch rack to suck hot air out of an enclosure. As hot air rises, the best results will be achieved by mounting them at the top of the cabinet.

    A DC-DC link socket is provided, so two or more units can be linked together; a higher power PSU must be used.

    Each extractor can also be controlled by a CRC-TEMP thermal sensor.

    • Specifications

      • Low Noise 22.5dBA (0.3 Sone)
      • 200CFM (336m3/h) @1,350RPM
      • High Static Pressure
      • 2 x 9 Bladed 120mm Fans
      • 12V DC - 500mA
      • 2 x DC In/Out Sockets
      • Temperature Sensor Socket
      • DC in/out sockets
      • 500mA world wide universal PSU supplied
      • Mounting Holes align with EMS enclosure range
      • Dimensions (OD): 483mm x 133.4mm x 55mm / 19.02" x 5.25" x 2.17"
      • Fluid Bearings: 2 Year Limited Warranty
    • Item Includes

      • Universal PSU
    • Warranty

      • 2 Year
