    Platinum Tools 100048C ezEX38 Shielded RJ45 Connectors Cat 5/5e and POE - Pack 25pcs

    Manufacturer: Platinum Tools, Inc.

    Item #: PLAT-100048C   •   MFG #: 100048C



    List Price:$54.40
    Our Price:$46.24

    free ship


    Availability: Usually ships in 3-10 business days
    i
    This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.



      California Residents:
      8pt-triangleWARNING:
      Cancer and Reproductive Harm - www.P65Warnings.ca.gov

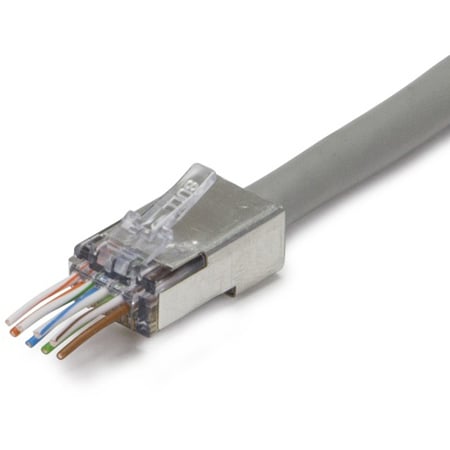

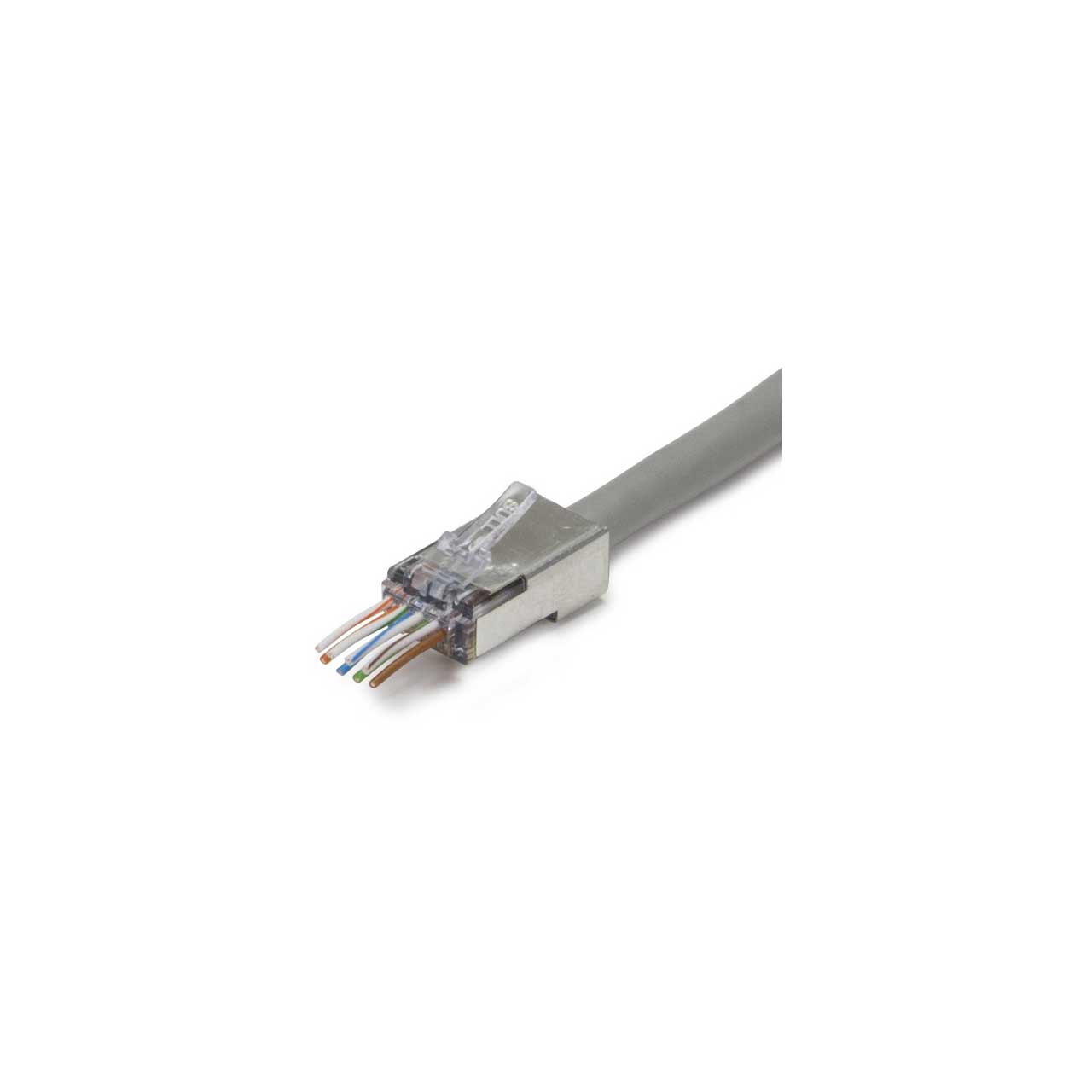

      The Platinum Tools 100048C ezEX38 connectors feature a unique integrated Hi-Lo stagger load bar and allows big' conductors to pass through the front end of the connector making it easy to verify the wiring sequence before terminating. These connectors are used with Cat5e (Sm. Cat6) cabling and is recommended for PoE/PoE+ and Data applications. These connectors are also available in shielded (STP) internal ground style. The termination tool for these connectors is the EXO Crimp Frame and EXO-EX Die (100061C).


      • Features

        • Rated for POE/POE+
        • Hi-Lo stagger to isolate each conductor
        • Simple one piece/pass through design, no bars or liners
        • Insulation Diameter (Conductor) Size range: .033" - .038" (0.84 -0.97mm)
        • Max Outer Diameter: .305" (7.75mm)
        • 50 micron gold plated contacts
        • 5e/6/6A compliant
        • Solid or Stranded 24-22 AWG
        • TIA, TAA, RoHS, UL & FCC compliant
        • Typically used with Cat5e (Sm. 6)
        • Made in the USA

      • Specifications

        • Hi-Lo stagger to isolate each conductor
        • Simple one piece/pass through design, no bars or liners
        • 50 micron gold plated contacts
        • Insulation Diameter (Conductor):
          Size range ezEX 38: 0.033" - 0.038" (0.84 - .97mm)
          Max. Outer Diameter:
          Shielded: 0.280" (7.1mm)
        • Solid or Stranded 24 thru 22 AWG
        • Compliance: RoHS, UL, TIA, TAA, & FCC

      • GTIN:

        0849160011248
