Platinum Tools T130K4 VDV MapMaster 3.0 Network & Coax Cable Field Tester Kit

ITEM #: PLAT-T130K4 MFG #: T130K4

  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
free ship

List Price:


Our Price:


Availability: Typically Ships in 3-10 Days
iAvailability Description Popup

    T130K4 - Overview

    The Platinum Tools T130K4 VDV MapMaster 3.0 Field Kit combines comprehensive test functions cable mapping, tone generation and length measurement capabilities into one compact, portable test set. Easy to use for commercial or residential installation troubleshooting and maintenance on telco, network or coax cables. Fast, intuitive 3.0 tester tests to T568A/B configurations and detects and displays opens, shorts, miswires, reverses and split pairs on an easy to read backlit LCD screen with large icons. Capable of single end testing for shorts or split pairs and measures cable length in feet or rmeters. Functions include ability to flash Port Link Light and audible tone generator with 4 selectable cadences. Whether your jobs are commercial or residential, the versatility and added features of the VDV MapMaster 3.0 Field Kit makes it a best value cable verifier for the professional installer!

    • Features:

      • Tests to T568A/B wiremap configuration: shorts, opens, miswires, reverses and split pairs
      • Single-ended Testing for Shorts & Split Pairs
      • Measures Length in Feet/Meters

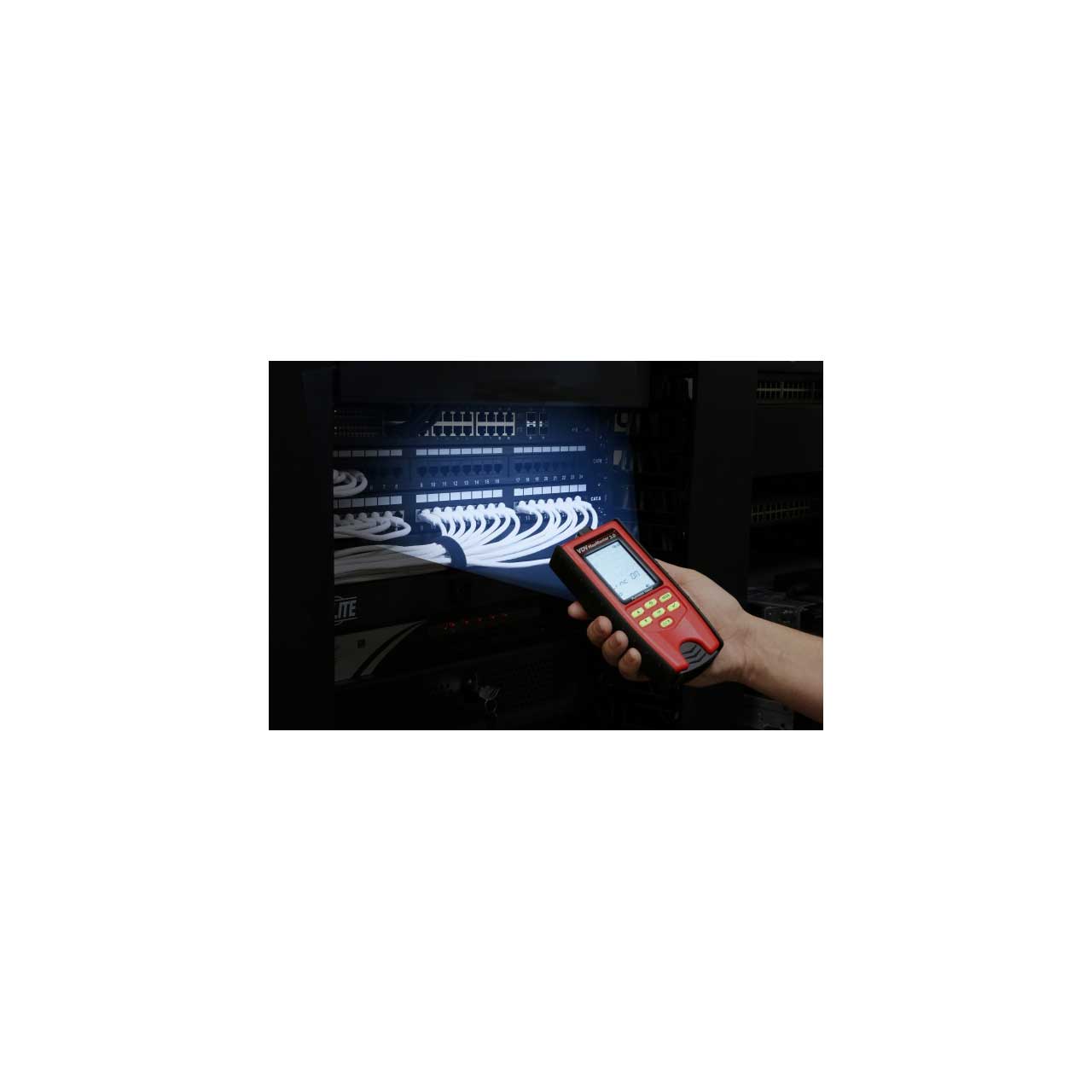

      • Identifies cable location on active ports using flashing Port Link Light

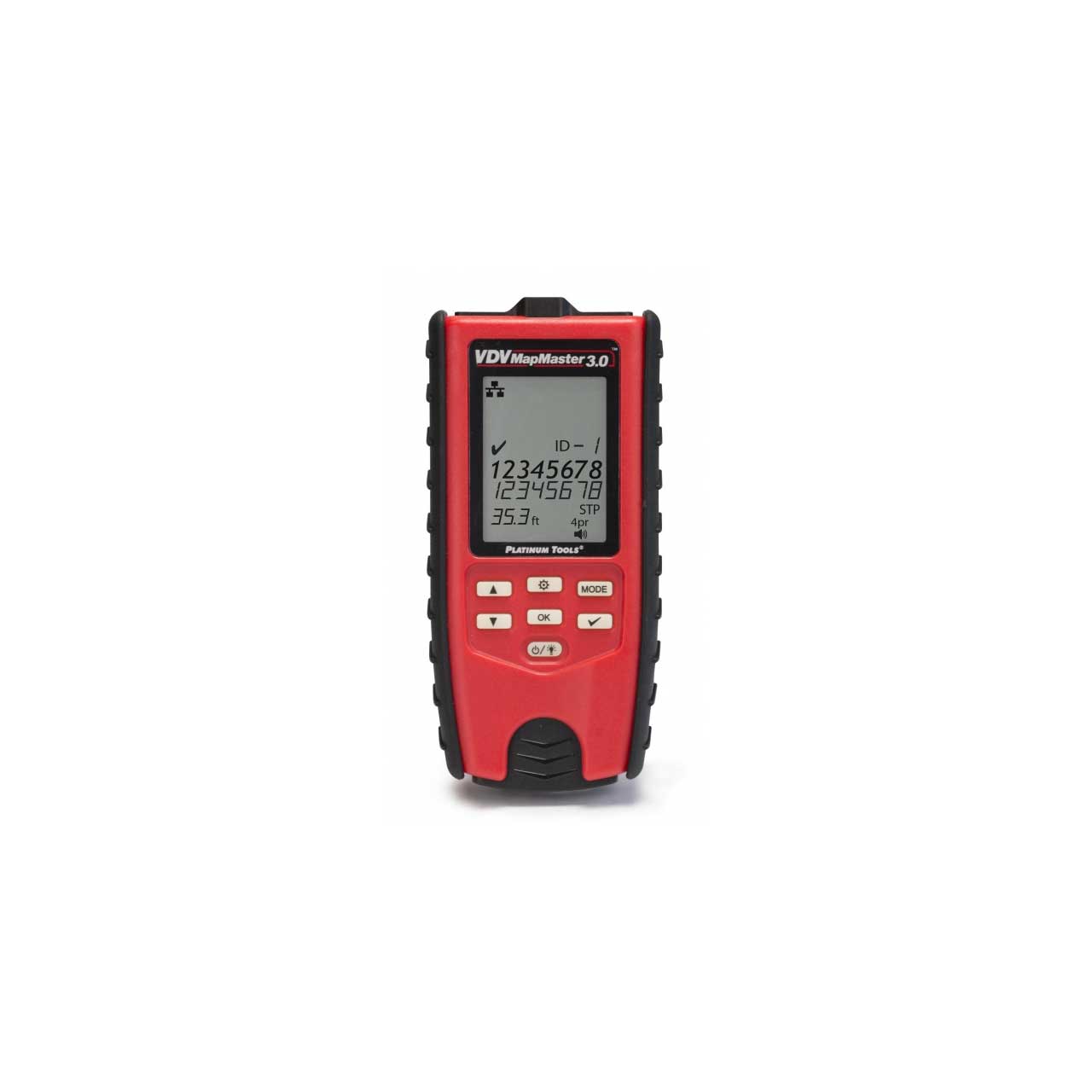

      • Easy to read, backlit LCD screen with large icons, glow-in-thedark keypad and built-in LED flashlight for use in dark areas
      • Identify up to 20 network or coax cable runs at a time
      • Audible Tone Generator, 4 selectable cadences
      • Tests Voice (6 wire), Data (8 wire) and Video (coax)
      • Works with Cable Tester Smart Remotes (#1 - 8)
      • Made in USA with global components
    • Specifications:

      • General Specifications
      • Display: Large 2.75" Backlit Monochrome LCD
      • Dimensions: 6.8" x 3.2" x 1.4"
      • Weight: 10.8oz, with battery and remote
      • Operating Temperature: 32°F - 122°F
      • Storage Temperature: -4°F - 140°F
      • Humidity: 10% to 90%, non-condensing
      • Maximum Voltage between any two connector pins without damage: RJ12/RJ45/F: 50V DC or AC
      • Battery Life: 9V alkaline battery typical; Standby: 4 years; Active: 425 hours
      • Cable Types: Shielded or Unshielded; CAT7, CAT6A, CAT5e,
      • CAT5, CAT4, CAT3, Coax
      • Maximum RJ Cable Length Testing: 0 to 1,000ft
      • Minimum Cable Length for Split Pair Detection: 1.5ft
      • Maximum Coax Cable Length: Varies depending on cable resistance varies
      • Low Battery: Icon flashes when battery voltage falls below 6V
      • Measurement Technology: Capacitance testing
      • Length Accuracy Without Length Constant: ±3% plus + 1ft
      • Default Length Constant (Restored with power on reset): Voice (Twisted pair): 17.4pF/ft; Video (Coax): 16.5pF/ft; Data (Twisted pair): 15pF/ft

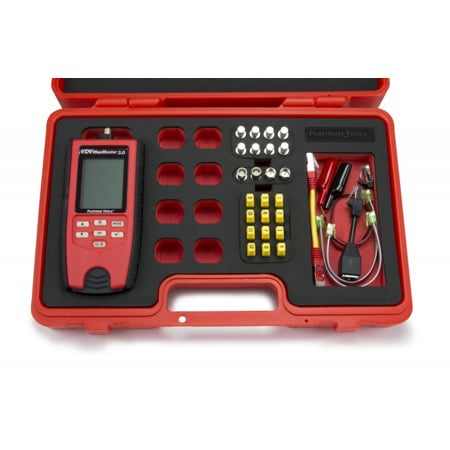

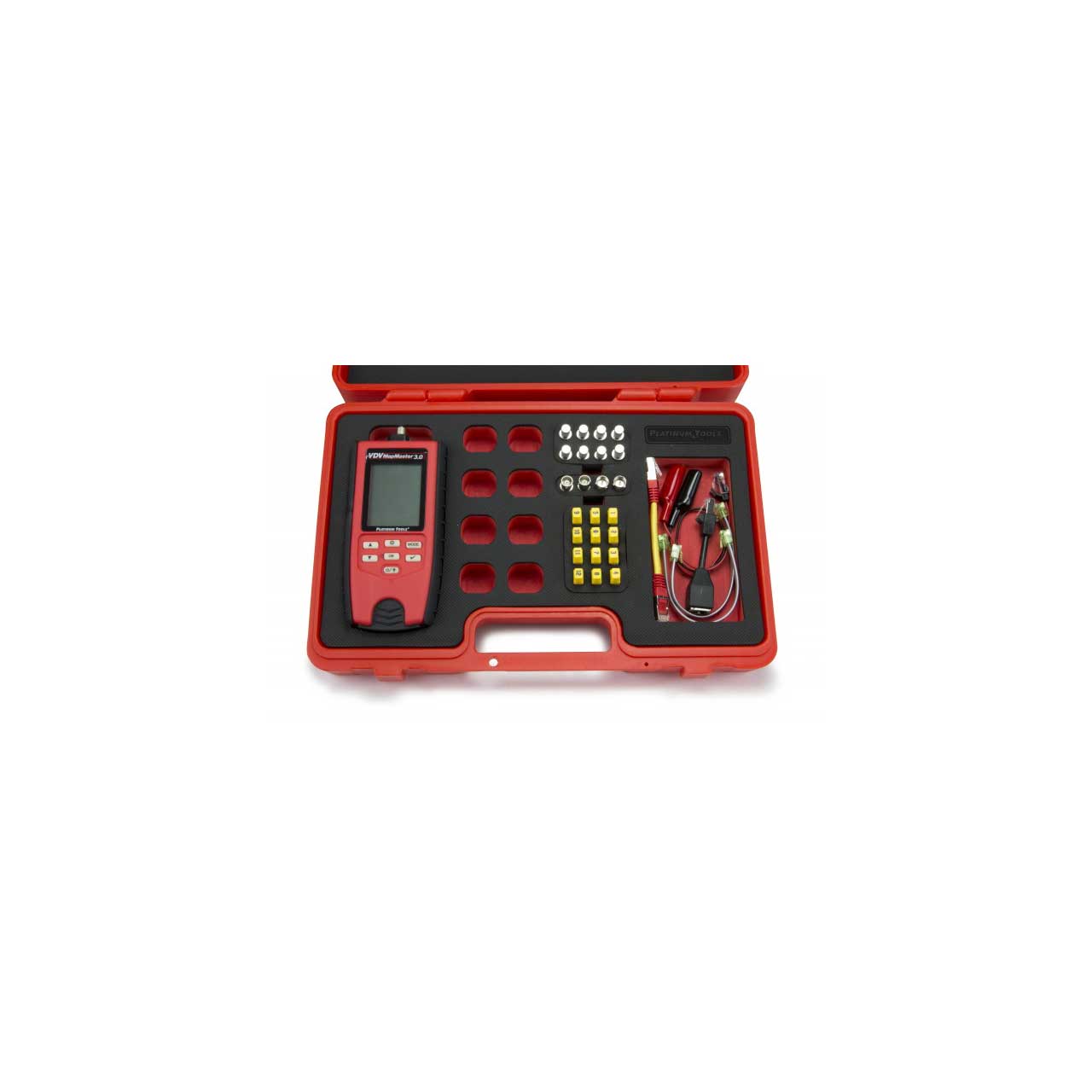

    • Item Includes:

      • T130 VDV MapMaster Tester
      • 9pc numbered Coax ID remotes
      • 12pc numbered RJ45 ID Remotes
      • RJ45 to Alligator Clip Adapter
      • 4pc Coax Adapters
      • 5" Cat 6 jumper cable
      • Two RJ12 no fault jumper cables
      • Port saver testing adapter
      • Hard case, custom fit compartments
    • Warranty:

      • 1 year
    • GTIN:
