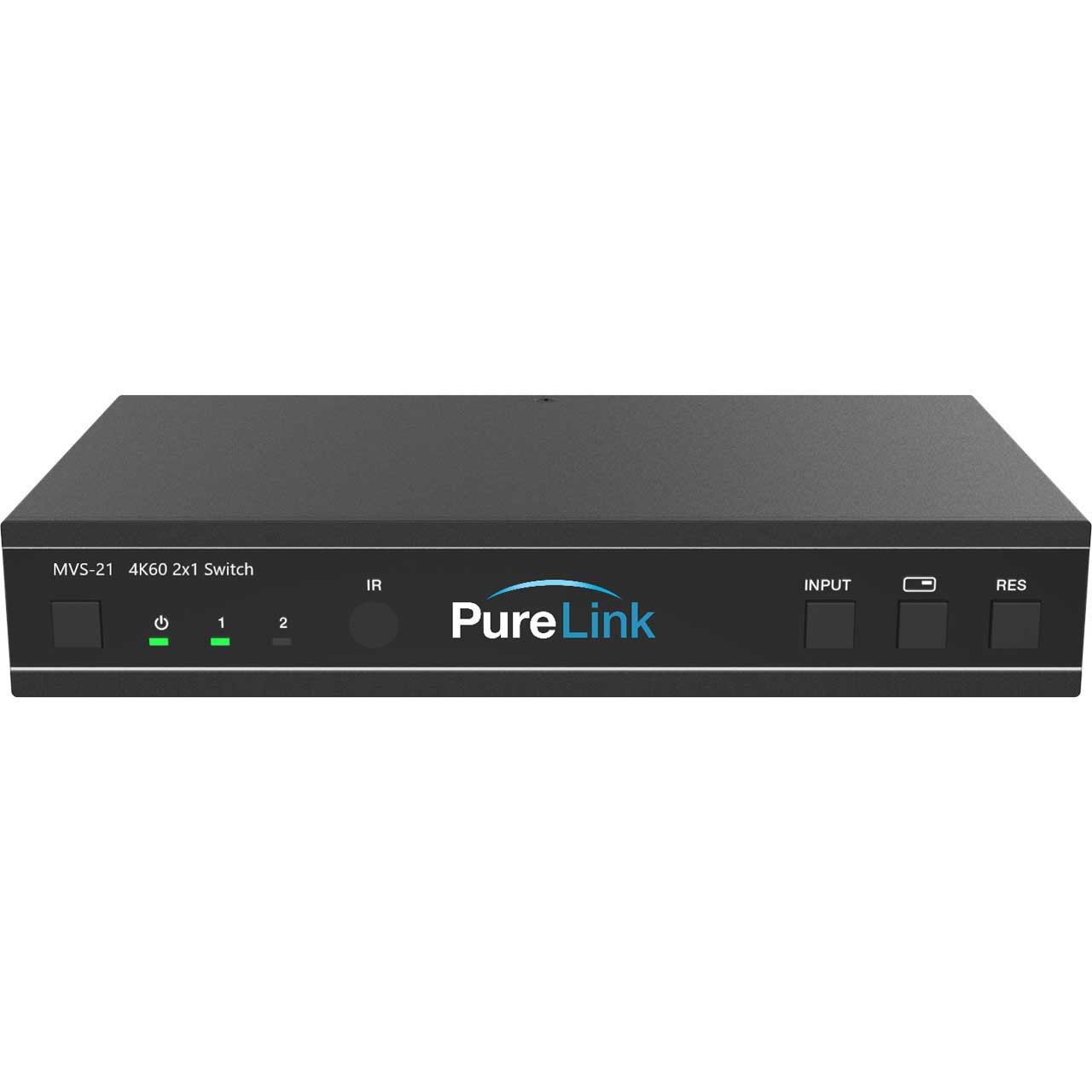

PureLink MVS-21 HDTools 2x1 UHD 4K60 4:4:4 HDMI 2.0b - HDCP 2.2 Switcher with Scaling/Multiview Output/Audio Extraction

ITEM #: PLK-MVS-21 MFG #: MVS-21

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

Our Price:

$589.99

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    MVS-21 - Overview

    The PureLink HDTools™ MVS-21 provides Don't Blink Seamless switching via the industry renowned Motore scaling engine. Fourteen different output resolutions can be easily set from either the front panel controls, or the RS232 API. The MVS-21 also features de-embedding of balanced stereo analog audio and SPDIF, seventeen (17) preloaded EDID tables with display EDID acquisition, and a number of Multiview layouts for displaying both inputs simultaneously.

    The MVS-21 is HDCP 1.n and 2.2 compliant, and includes an infrared remote control with IR extender

    The MVS-21 is perfect for:
    Conference Rooms
    Hospitality and Convention Halls
    Corporate
    Entertainment
    Retail
    Home Theater
    and much more..

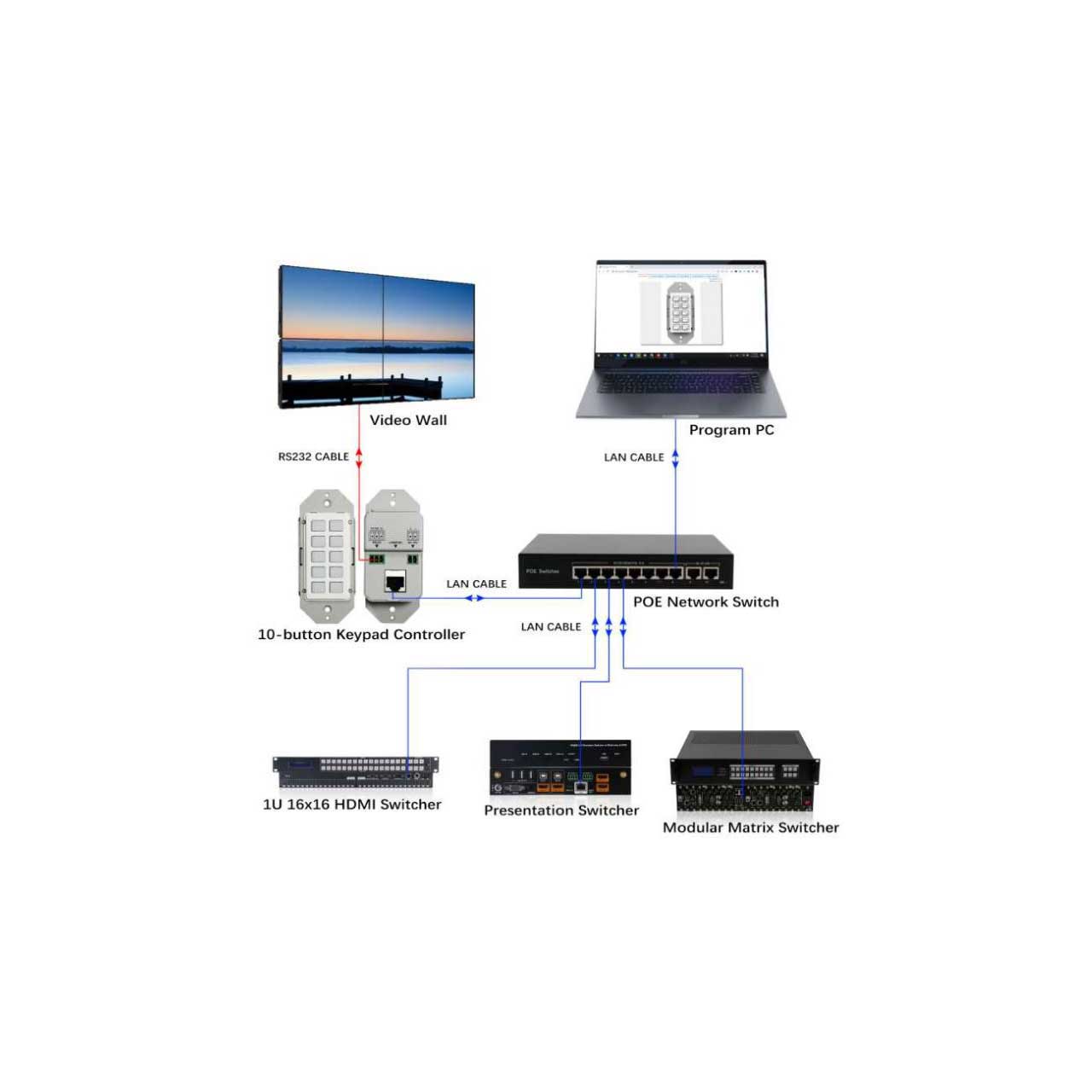

    Couple the MVS-21 with PureLink's iCON-10W 10 button controller for easy implementation of switching, layouts, and control of other devices in your application.

    The MVS-21 can easily be controlled by other third party control devices from Crestron and QSC and more.

    • Features:

      • HDMI 2.0b 4K60, 4K2K60 4:4:4 (18Gbps), HDCP 2.2, HDCP 1.n
      • (2) HDMI inputs, (1) HDMI output
      • Instant/seamless switching with Motore 4K up/down scaling engine
      • Single image, Side by Side (2 modes), and PIP with adjust size/position
      • Fourteen (14) scaling engine resolution settings: up/down scaling
      • Seventeen (17) built in EDID tables plus display EDID acquisition
      • Audio De-embedding, Stereo Analog, and SPIDF
      • Control via on-panel Buttons, IR remote control, and RS-232 API
      • Third Party control ready such as Crestron, QSC and more
      • EDID Management: 17 selectable EDID, 1 display EDID

    • Specifications:

      • Hardware
      • Input Signal Type(s): HDMI
      • Output Signal Type(s): HDMI

        Performance
      • Supported Resolutions: 4K60/4K2K60 4:4:4
      • Supported Digital Audio Formats: 5.1/7.1CH, Dolby Digital/Plus, DTS, DTS High Res
      • Supported Audio Formats: PCM 2.0
      • HDCP Compliance: 2.2, 1.n
      • Compliance: HDMI 2.0b
      • Data Transfer Rate: 18 Gbps
      • Supported HDMI Audio Formats: LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X
      • Control Options: Front panel; IR remote, RS232 API
      • Power Consumption: 85 Watts (max)
      • Power Supply: 100-240VAC 50/60Hz
      • Operating Temperature: 32° ~ 104 F (0° to 40° C)
      • Storage Temperature: -4° ~ 140° F (-20° to 60° C)
      • Relative Humidity: 20 ~ 90% non-condensing

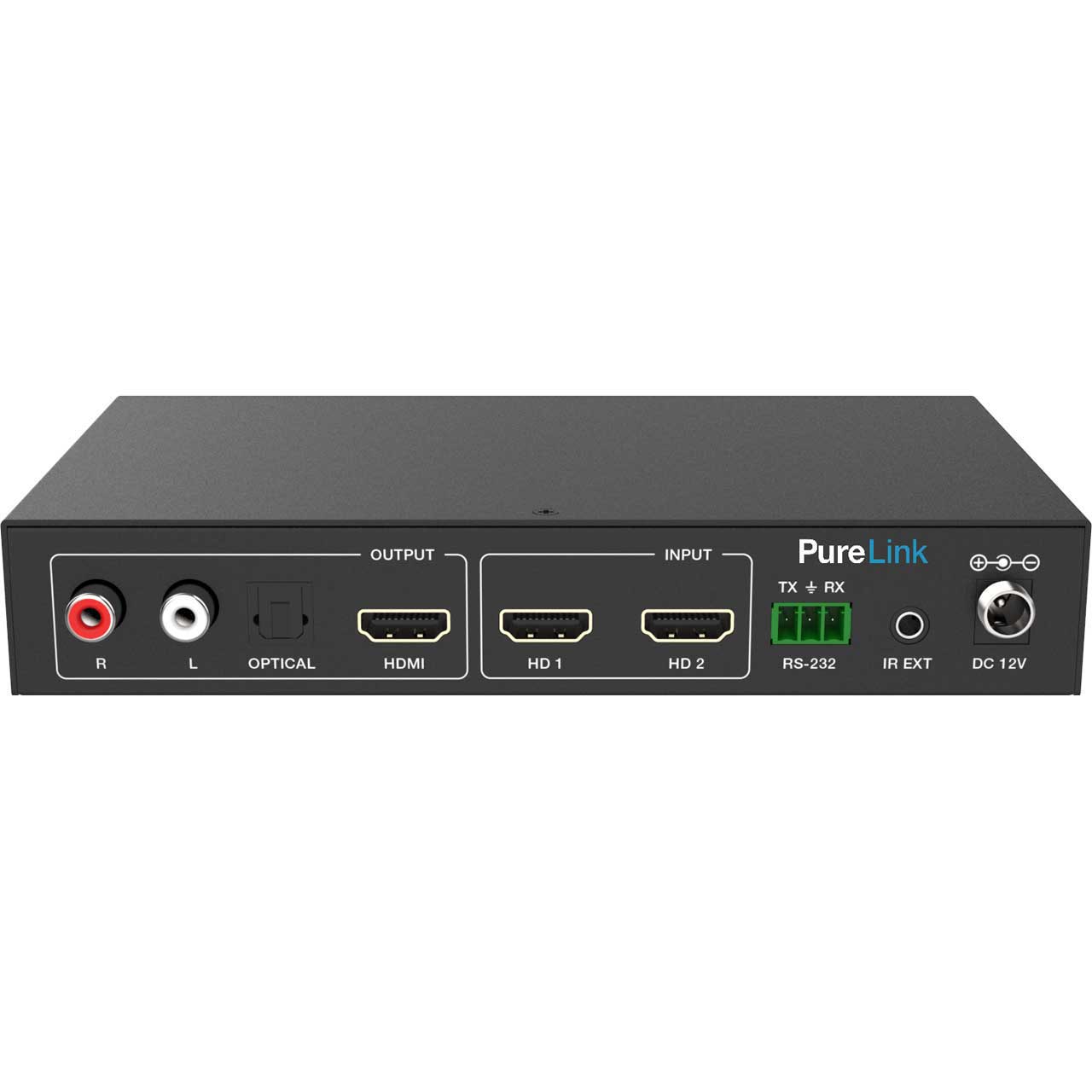

        Connections
      • Input Type(s): (2) HDMI Type A [19-pin female]
      • Output Type(s): (1) HDMI Type A [19-pin female], L/R Audio Out [2x RCA], SPDIF Toslink

        Enclosure
      • Enclosure Type: All metal, black powder coat finish
      • Product Dimensions: 6.9" x 3.9" x 1.2"
      • Product Weight: 1.1 lbs.

    • Item Includes:

      • 1x PureLink MVS-21 HDTools 2x1 UHD 4K60 4:4:4 HDMI 2.0b - HDCP 2.2 Switcher with Scaling/Multiview Output/Audio Extraction

    • Warranty:

      • Limited Warranty (3-Years)
