BZBGEAR BG-8K-HS21A 2x1 8K60fps UHD HDMI 2.1 Switcher with Audio De-embedder - 4K120Hz/VRR/FVA/ALLM Support

ITEM #: BG-8K-HS21A MFG #: BG-8K-HS21A

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$99.00

Our Price:

$79.20

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


BG-8K-HS21A - Overview

Elevate your multimedia experience with the BZBGEAR BG-8K-HS21A 48Gbps 2x1 HDMI Switcher. This high-performance device seamlessly switches between two HDMI sources to one HDMI display, supporting video resolutions up to 8K@60Hz 4:2:0. Perfect for a variety of applications including home entertainment, gaming, and multimedia, this versatile switcher features advanced EDID management and an audio de-embedding function, making it an ideal solution for any large-screen display scenario.

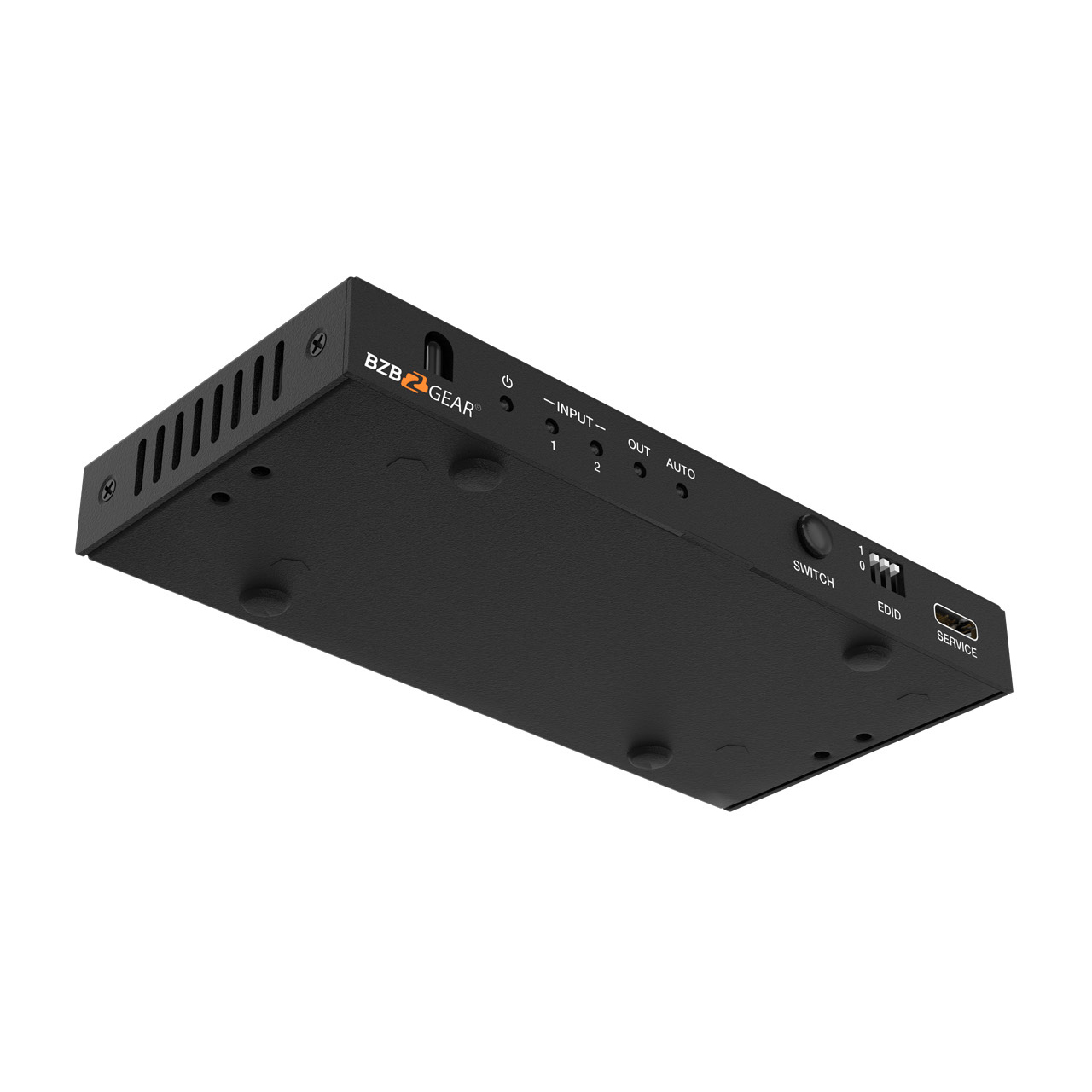

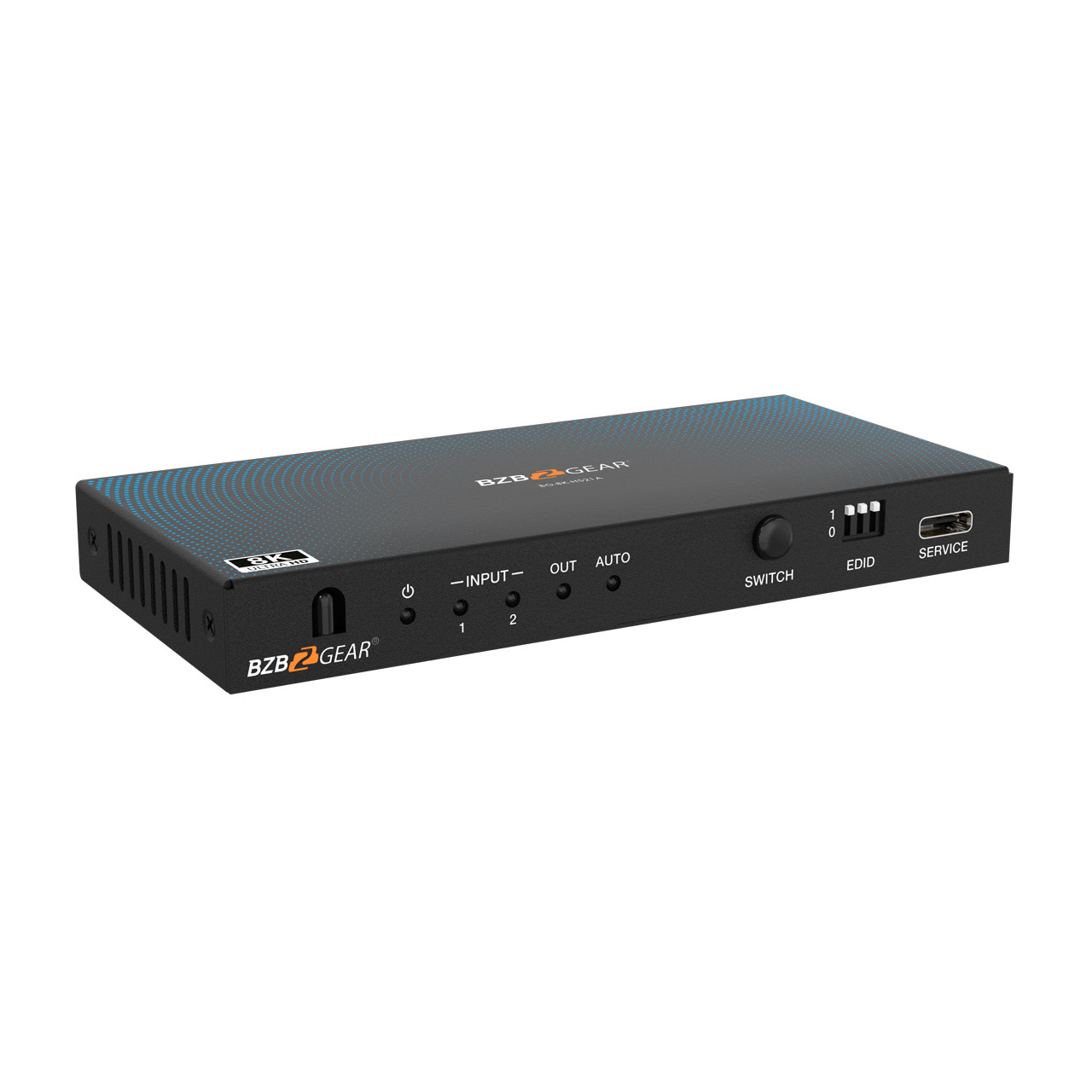

Front Panel and Remote
The BG-8K-HS21A provides versatile control options, enabling effortless input switching via the front panel button or the included IR remote controller. For added convenience, this unit features advanced auto-switching technology, ensuring a seamless user experience.

Wide Device Compatibility
The BG-8K-HS21A boasts extensive compatibility, effortlessly supporting HD, 4K, 4K@120Hz, and 8K resolutions. Whether you're connecting gaming consoles, PCs, or 8K TVs, this unit ensures seamless integration and optimal performance across all your devices. The EDID dip switches also enable users to set the image and audio formats.

Advanced Audio Support
The BG-8K-HS21A offers flexible audio output options, including optical fiber and analog audio outputs. With its audio de-embedding function, you can effortlessly extract audio from HDMI sources and output it through the optical and analog ports.

  • Features:

    • HDCP 2.3 Compliant: Ensures secure and uninterrupted signal transmission
    • High-Resolution Support: Supports video resolutions up to 8K@60Hz YCbCr 4:2:0 12bit, 4K@120Hz RGB/YCbCr 4:4:4 12bit, as specified in HDMI 2.1
    • Video Enhancements: Supports VRR (Variable Refresh Rate), FVA (Future Video Architecture), and ALLM (Auto Low Latency Mode) for smooth and responsive video playback
    • Audio Support: Compatible with HDMI audio formats including LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, and DSD
    • Advanced EDID: Simplifies setup and ensures compatibility with a wide range of display devices
    • User-Friendly Control: Easily switch sources using the IR remote control or front panel buttons
    • 48Gbps Video Bandwidth: Delivers superior video quality and performance
    • Built-In Equalizer, Retiming, and Driver Ensures optimal signal quality and stability
    • Audio De-Embedding Function: Extracts audio from HDMI sources and outputs through optical and analog ports
    • HDR Compatibility: Supports HDR, HDR10, HDR10+, Dolby Vision, ALLM, and VRR pass-through for vivid and lifelike image quality

  • Specifications:

      Technical
    • HDMI Compliance: HDMI 2.1
    • HDCP Compliance: HDCP 2.3
    • Video Bandwidth: 48Gbps
    • Video Resolution:
      - Up to 8K@60Hz YCbCr 4:2:0 12bit
      - 4K@120Hz RGB/YCbCr 4:4:4 12bit
    • Color Depth: 8/10/12bit
    • Color Space: RGB, YCbCr 4:4:4 / 4:2:2 / 4:2:0
    • Audio Formats:
      - HDMI Input/Output: LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
    • Audio De-embedding Output:
      - Optical: LPCM/Dolby/DTS 5.1CH
      - Analog: LPCM 2CH
    • ESD Protection: IEC 61000-4-2: ±8kV (Air-gap discharge) & ±4kV (Contact discharge)

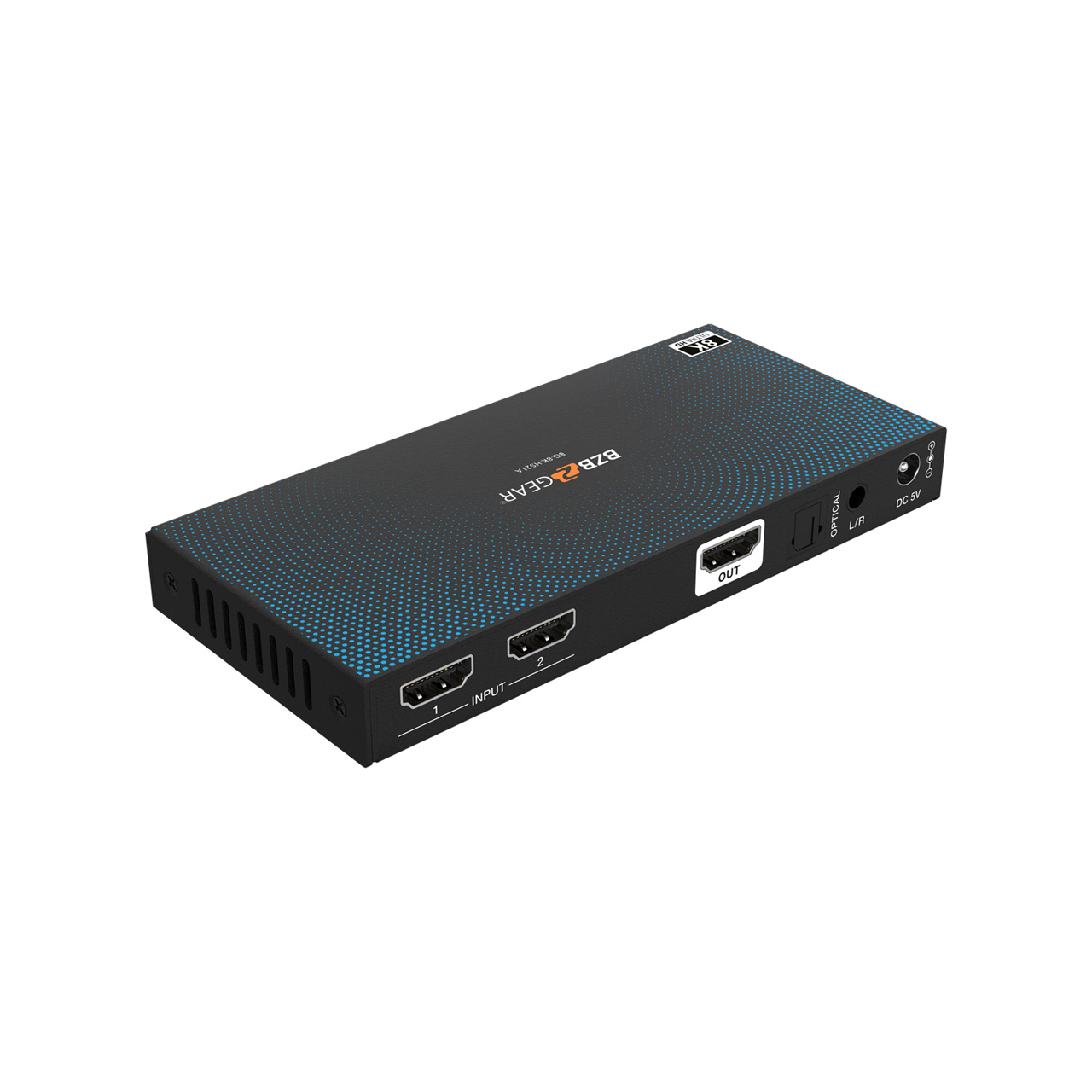

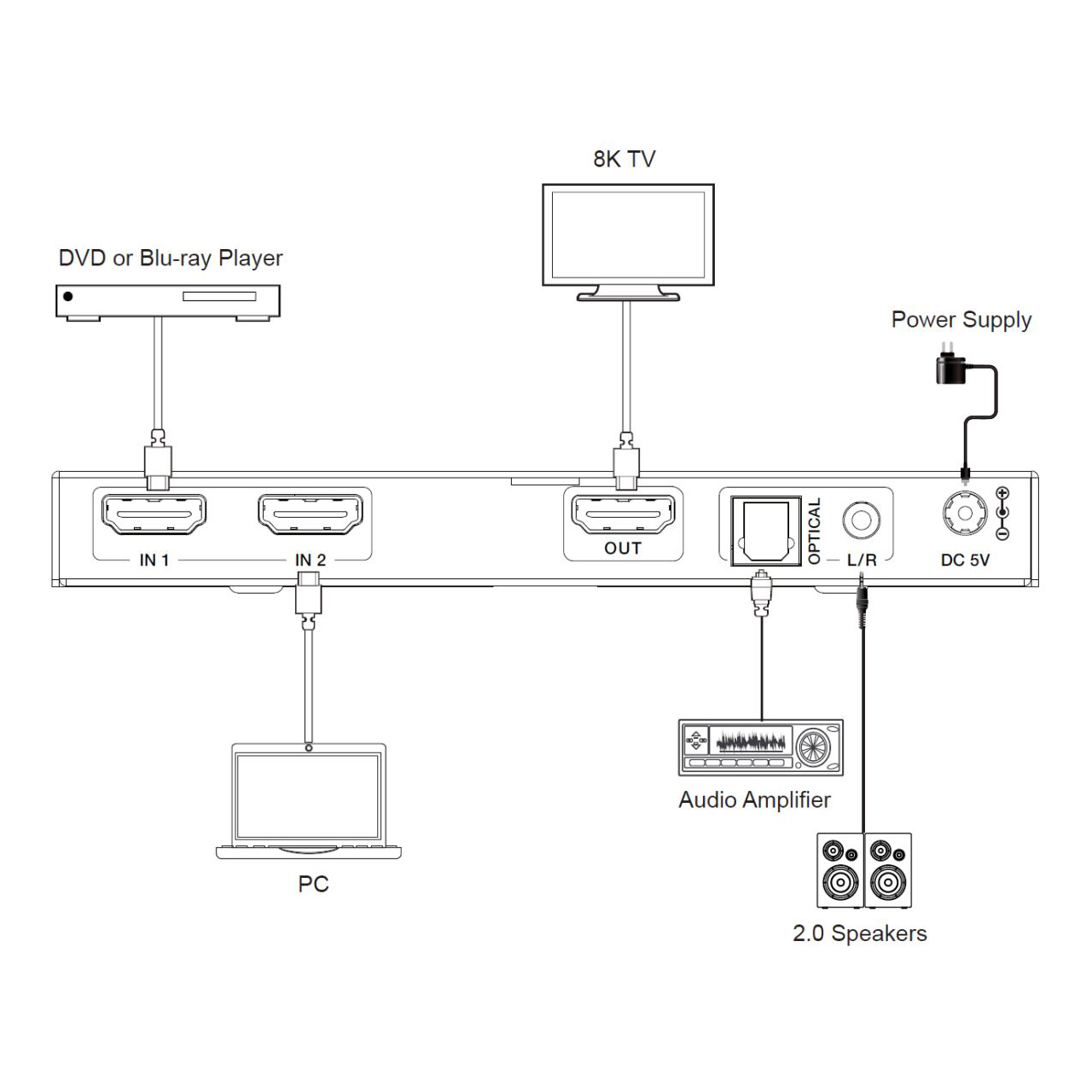

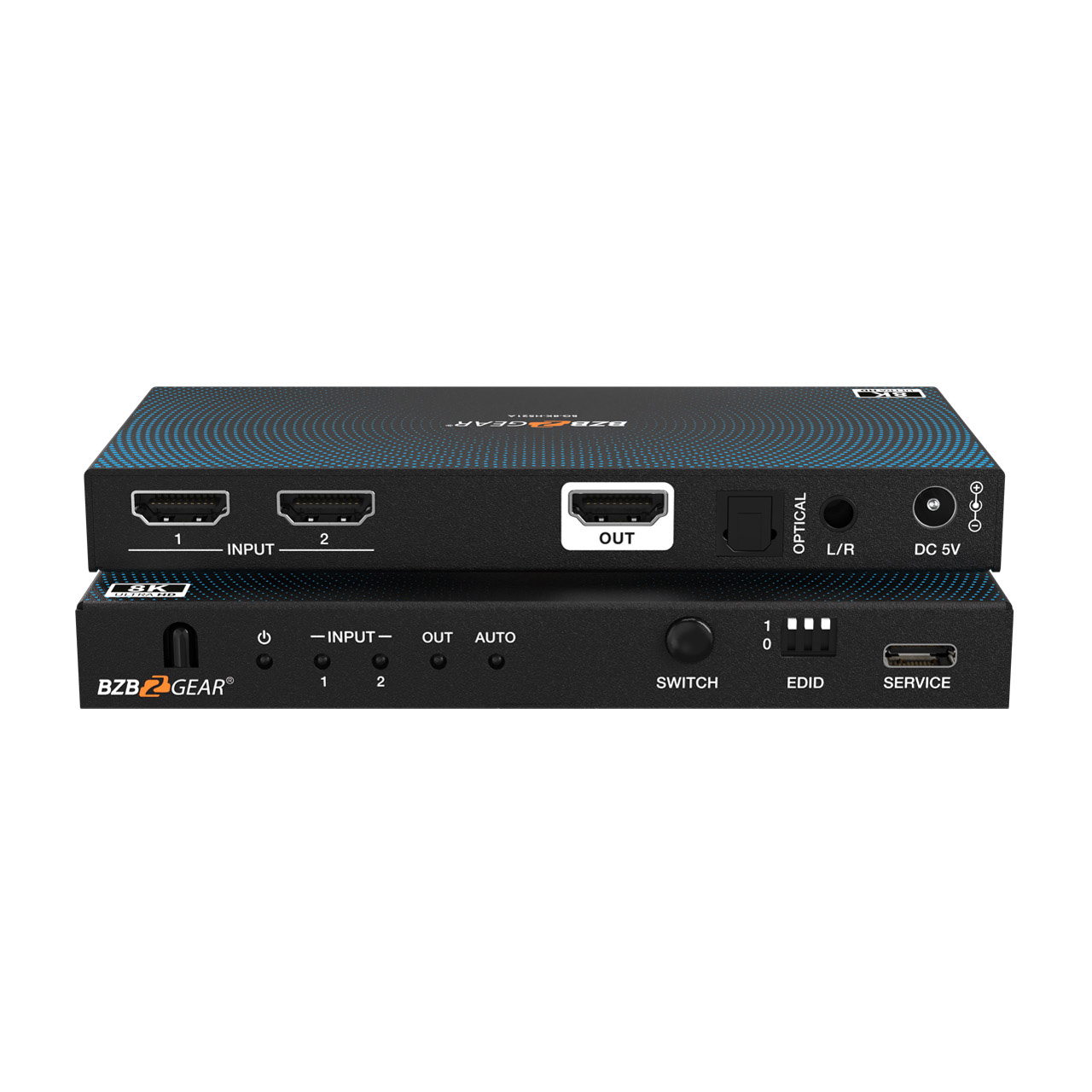

      Connection
    • Input: 2x HDMI IN [Type A, 19-pin female]
    • Output:
      - 1x HDMI OUT [Type A, 19-pin female]
      - 1x OPTICAL [S/PDIF]
      - 1x L/R [3.5mm Stereo Mini-jack]
    • Control: 1x SERVICE [USB Type C, Update port]

      Mechanical
    • Housing: Metal Enclosure
    • Color: Black
    • Dimensions (WxDxH): 5.7" x 2.7" x 0.71" (145mm x 68mm x 18mm)
    • Weight: 0.57lbs (258g)
    • Power Supply:
      - Input: AC 100V - 240V 50/60Hz
      - Output: DC 5V/1A (US/EU standards, CE/FCC/UL certified)
    • Power Consumption: 3W (Max)
    • Operation Temperature: 32°F - 104°F (0°C - 40°C)
    • Storage Temperature: -4°F - 140°F (-20°C - 60°C)
    • Relative Humidity: 20% - 90% RH (non-condensing)

      Recommended Video Resolution / Cable Lengths
    • 8K: 6.6ft (2m) (Ultra HDMI 2.1)
    • 4K60: 26ft (8m)
    • 4K24: 39ft (12m)
    • 1080P: 49ft (15m)
      *The use of "Premium High Speed HDMI" cables is highly recommended.

  • Item Includes:

    • 1x 48Gbps 2x1 Switcher
    • 1x IR Remote
    • 1x 5V/1A Multinational Power Supply
    • 1x User Manual
