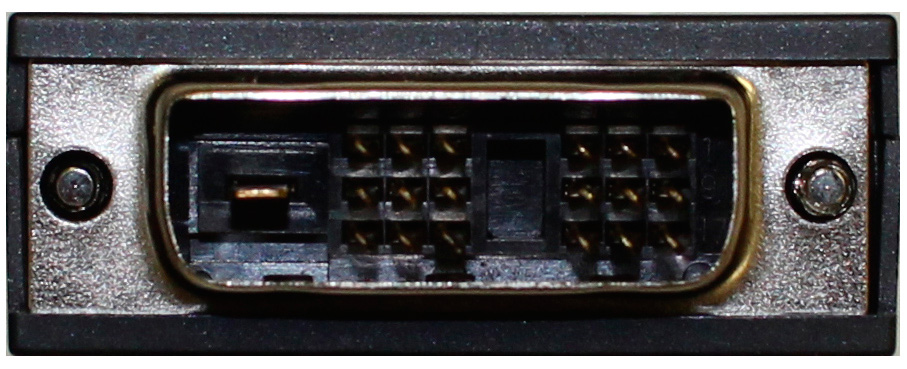

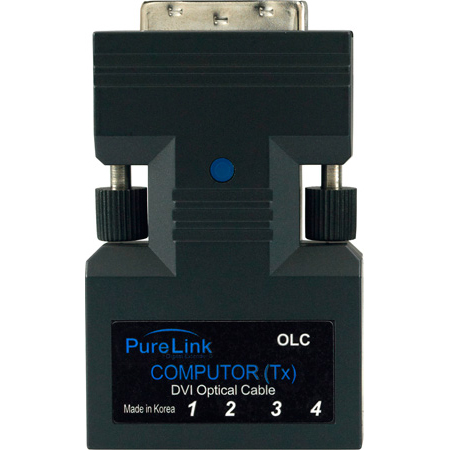

PureLink OLC Tx/Rx DVI to 4 LC Fiber Transmitter/Receiver Kit

Manufacturer: PureLink

Item #: PLK-OLC-TX-RX   •   MFG #: OLC TX/RX


Our Price:$519.99

free ship
Availability: Direct Ship From Manufacturer
Item ships directly from the manufacturer. Normal delivery time is 2-7 business days and is subject to manufacturer availability. Need it sooner? Call 800-522-2025, or email Customer Service for expedited delivery options.
  • 2 - 7 Day Normal Delivery Time - Faster Shipping Options at Checkout or Call Us.



PureLink's OLC DVI Pure Fiber Optic Extension Modules extend 1080p HD content up to 5000 feet over 4 strand multi-mode cable. Featuring PureLink’s unique Auto-EDID feature, a separate DDC connection is no longer necessary. This simplifies cable management and ensures rapid communications between devices.
The transmitter and receiver are detachable and housed in exceedingly compact DVI enclosures. Since it is a detachable type, the LC fiber cable can be run through small conduits and other tight spaces without extender set. There is no special mounting needed for OLC II. Simply, the transmitter and receiver units connect directly to video source and monitor.
The OLC II is ideal for a waide rangeof applications requiring long distance transmission of HD video content. Since it only uses fiber, transmission of content is highly secure and immune to outside interference. It is an ideal product for government, military, school and medical environments. When it comes to moving DVI content over large areas, nothing beats a PureLink.

  • Features

    • Plug and Play
    • EDID Management
    • Fully compatible with DDWG DVI Standard
    • PC application only (non-HDCP compliant)
    • Extends up to 5000ft
  • Specifications

    • Fiber optical cabling between transmitter and Receiver
    • Type / Number of fiber : 4 Strand fiber optic cable, 50/125 µm or 62.5/125 µm multimode
    • Connector : 4 Female LC connectors
    • Operating distance : Up to 1650 ft (500m)
    • NOTE: Operating distance is approximate. This is a typical distance. The maximum distance may be greater than these typical numbers depending on factors such as fiber type, bandwidth, connector splicing, losss, bend radius and environmental factors.
    • Nominal peak wavelength : 850 nm (Multimode)
    • Transmission power Multimode : -5 dBM, typical
    • Maximum receiver sensitivity Multimode : -11 dBm, typical
    • Optical loss budget Multimode : 8 dB, Max
    • Video
    • Maximum Channel Data Rate : 1.65 Gbps per color
    • Pixel clock : 165 MHzz
    • Supported resolution : Up to 1920 x 1200 / 1080p @ 60Hz single link (up to 5,000ft)
    • Up to 1280 x 1024 / 1080i @ 60Hz single link (up to 1,650ft)
    • Formats : RGB & YCbCr digital
    • Standard : DVI 1.0
    • Video connector - Transmitter & Receiver
    • Signal Type : Single link DVI
    • Connector : Female DVI-D
    • General Information
    • Power supply : This specific product will be powered by RF6 main frame (12V 1A, 5 watts max)
    • NOTE: Both transmitter and receiver extender need to be powered locally by provided external power supply adapter.
    • Power consumption : 1 watts
    • Cooling : Convection
    • Dimension (W x D x H) : 1.6'' x 0.4'' x 2.8'' (40 x 10 x 71 mm)
    • Weight : 0.33 lbs (0.15 kg)
    • NOTE: All nominal levels are at ± 9%
    • NOTE: Specifications are subject to change with or without notice.
  • Item Includes

    • OLC Transmitter Module : 1 EA
    • OLC Receiver Module : 1 EA
    • DC 5V, 1A Power Adapter : 2 EA
    • User's Manual : 1 EA
