PureLink PushGO VAIL Pre-Programmed 6 Person Meeting Room Solution w/ PS-610 4K60 Switcher & HUDDLE-CAM-500 PTZ Camera

PUSH-GO-VAIL - Overview

• Features:

  • Pre-Programmed: Ready to use out of the box, eliminating installation complexity
  • Complete Solution: Includes all essential components for a a fully functional meeting space
  • Plug-and-Play: Deploy in minutes with no technical expertise required
  • Built-In Compatibility: Works seamlessly with Zoom, Teams, Webex and more
  • Scalable: Adapts to any room type, from small huddle rooms to large presentation environments


• Specifications:

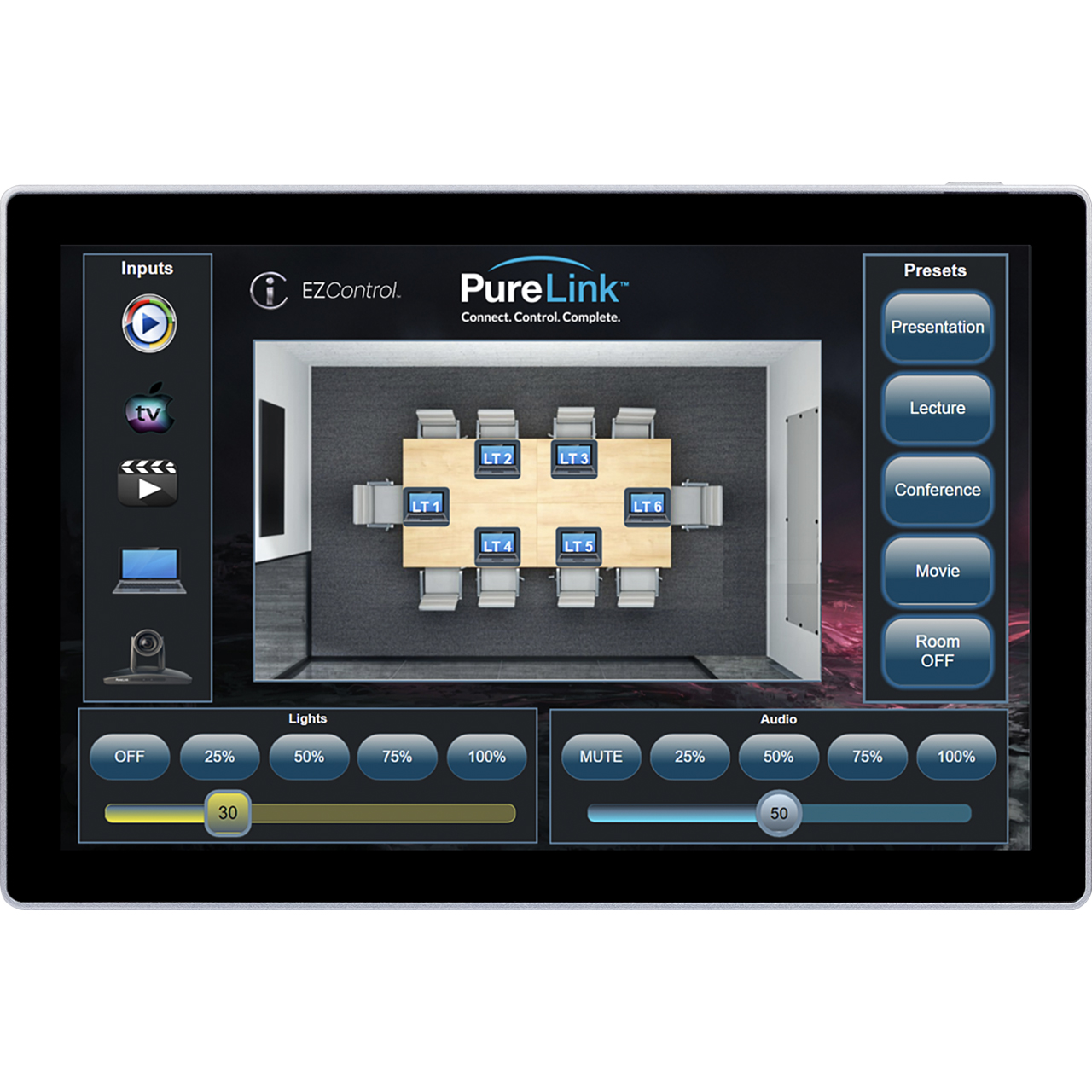

  iCON-T10 Touch Screen Controller
  • Power Supply: 100VAC - 240VAC, 50/60Hz
  • Power Supply Output: PoE 802.3af
  • Operating Temperature: 32°F - 117°F (0°C - 47°C)
  • Storage Temperature: 40°F - 158°F (-40°C - 70°C)
  • Relative Humidity: 0% - 90% non-condensing

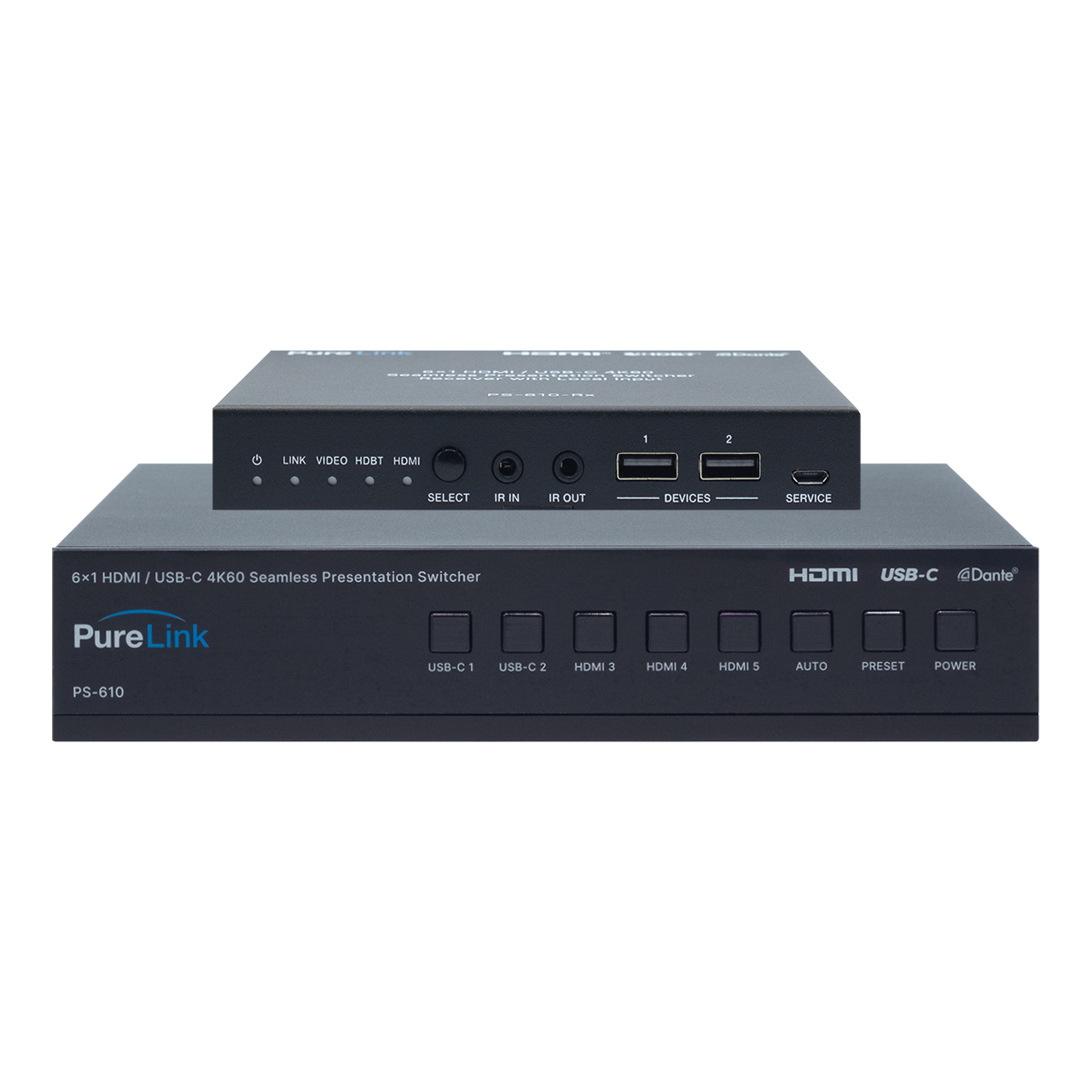

    PS-610 Seamless Presentation Switcher with Dante
  • Inputs:
    - 4x HDMI
    - 1x Display Port (Type-A)
    - 1x VGA (15-pin female)
    - 1x USB-C (Type-C USB 3.0)
  • Outputs:
    - 2x HDMI
    - 1x HDBaseT (RJ45)
  • Control Ports:
    - 1x RS232 (3-pin terminal block)
    - 2x Relay (3-pin terminal blocks)
    - 1x IR Eye (3.5mm jack)
    - 2x IR in (3.5mm jacks)
    - 1x IR out (3.5mm jack)
    - 1x TCP/IP (RJ45)
    - 1x Firmware (Type-A USB)
  • Audio Input Type(s):
    - 1x External balanced audio (L+R) for 1-HDBT input port (5-pin terminal block)
    - 1x External balanced audio (L+R) for 2-HDBT input port (5-pin terminal block)
    - 1x External balanced audio (L+R) for 3-HDBT input port (5-pin terminal block)
    - 1x Stereo auxiliary audio for 6-VGA input port (3.5mm jack)
    - 1x Balanced MIX audio (5-pin terminal block)
  • Audio Output Type(s):
    - 1x Balanced audio (L+R) for 1-HDMI output audio de-embedding (5-pin terminal block)
    - 1x Digital SPDIF audio (L+R) for 1-HDMI output audio de-embedding (Toslink connector)
    - 1x Balanced audio (L+R) for 2-HDBT output audio de-embedding (5-pin terminal block)
    - 1x Digital SPDIF audio (L+R) for 2-HDBT output audio de-embedding (Toslink connector)
  • Operating Temperature: 32°F - 117°F (0°C - 47°C)
  • Storage Temperature: - 40°F - 158°F (-40°C - 70°C)
  • Enclosure Type: All metal, black powder coat finish
  • Product Dimensions:
    - TX: 2" x 8.66" x5.91" (44mm x 220mm x 150mm)
    - RX: 1" x 5.51" x4.13" (21.5mm x 140mm x 105mm)

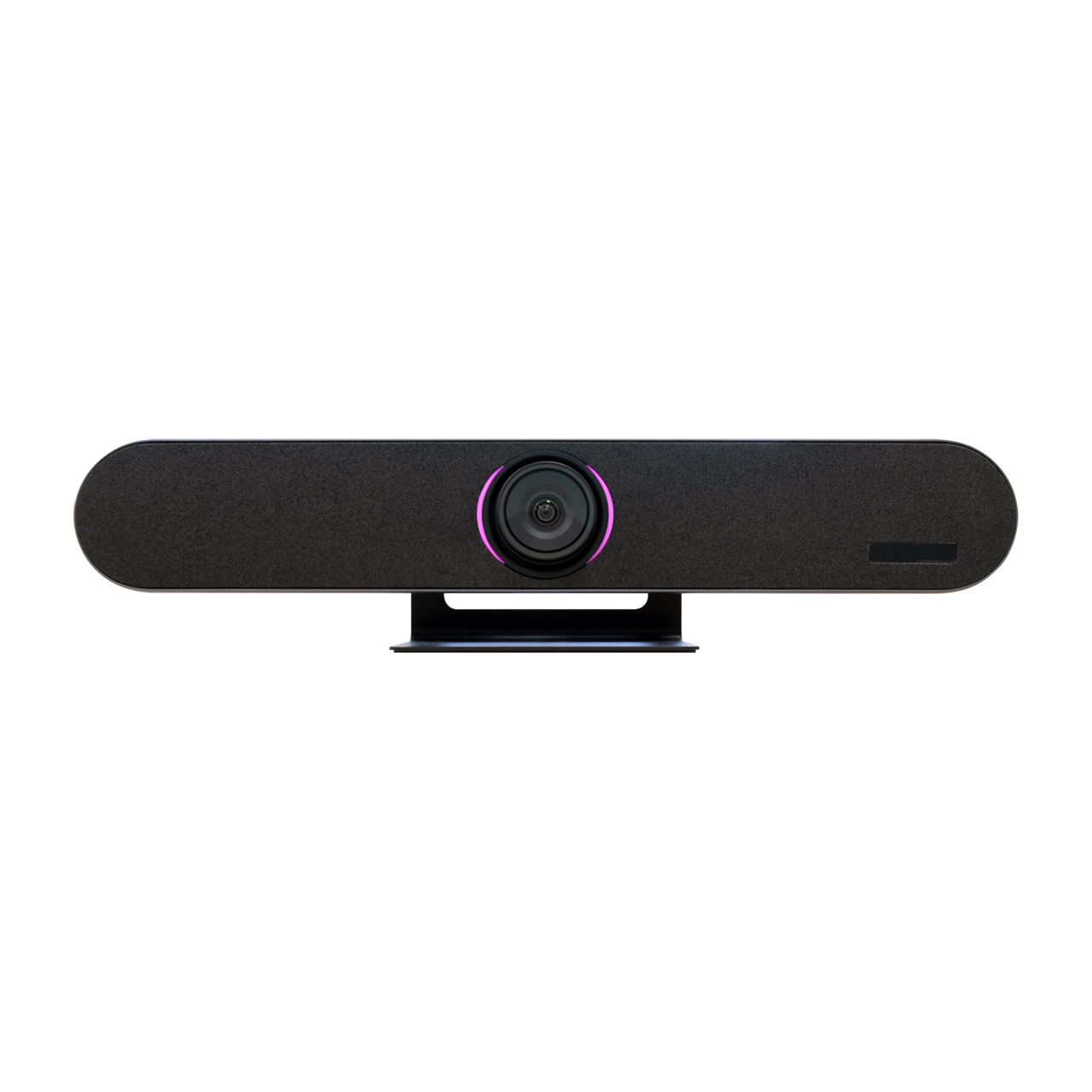

    HUDDLE-CAM-500
  • Video Output: USB-C and HDMI
  • Control Interface: IR Remote Control, and HTTP API
  • Field of View: 105°
  • Compatibility: Teams, Zoom, GoToMeeting and more
  • Pan/Tilt/Zoom: 5x E-Zoom Movement and High Quality Optics

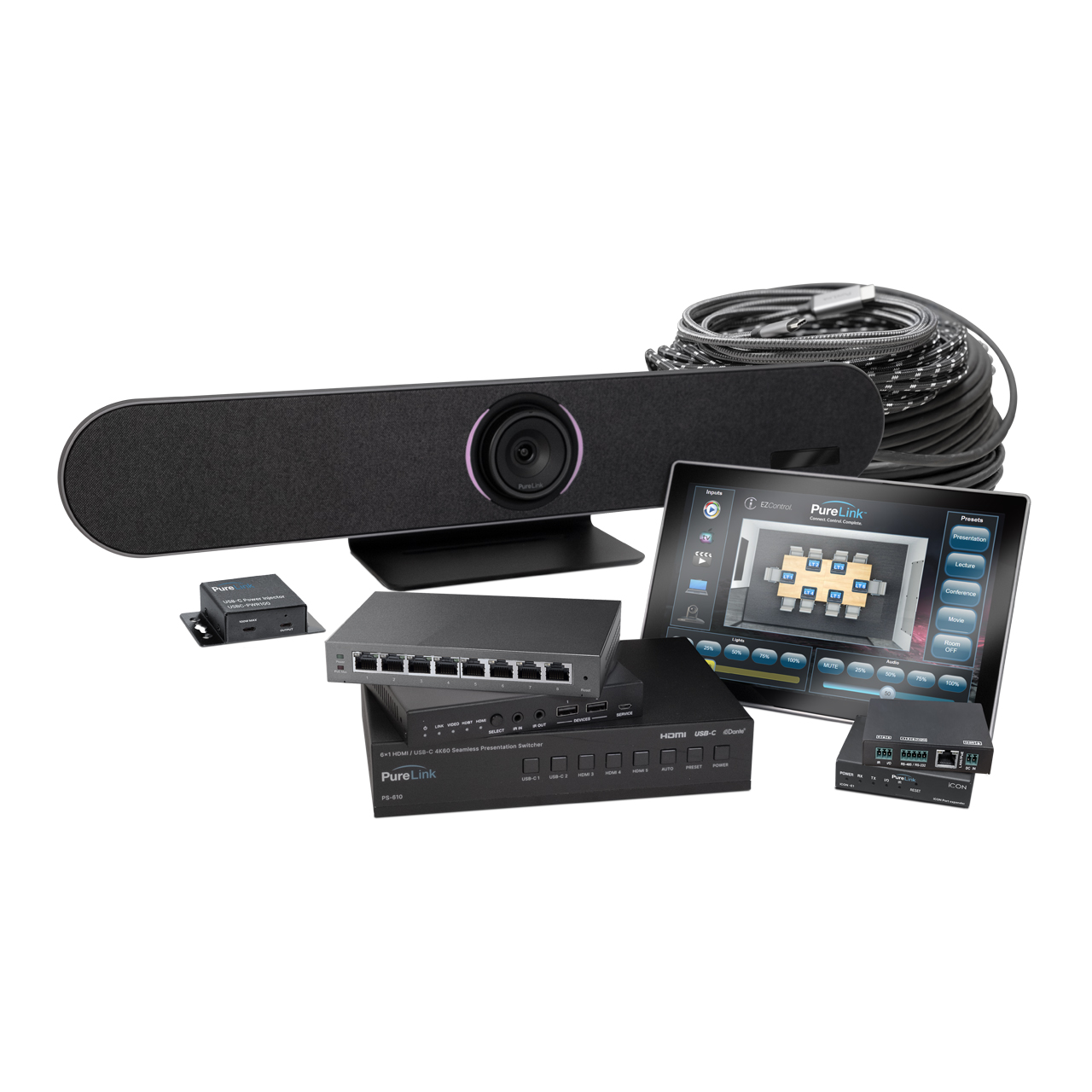

• Item Includes:

  • 1x iCON-T10 Touch Screen Controller
  • 1x iCON-E1 Control Port Expander
  • 1x 16 Port PoE Network Switch
  • 1x 16 Port PoE Network Switch Power Supply
  • 1x PS-610 4K60 Seamless Presentation Switcher with Dante
  • 1x PS-610 Receiver
  • 1x PS-610 Power Supply
  • 1x HUDDLE-CAM-500 4K Auto Tracking PTZ Camera / Soundbar / Microphone All In One with Smart Gallery
  • 1x HUDDLE-CAM-500 (Powered PoE) Power Supply (Optional)
  • 1x USB-C Power Injector
  • 1x USB-C Power Injector Power Supply
  • 6x 3 Meter HDMI to HDMI Cable
  • 1x 15 Meter Mini Phoenix RS-232 Cable
  • 7x 10 Meter Ethernet Cable
  • 3x 3 Meter USB-C to HDMI Cable
  • 4x 3 Meter USB-C to USB-C Cable
  • 2x 3 Meter USB-A to USB-B Cable
  • 2x 7.6 Meter Mini Phoenix to 3.5mm Female Cable
  • 2x 10 Meter 3.5mm to IR Blaster Cable


• Warranty:

  • 5 Year Warranty
