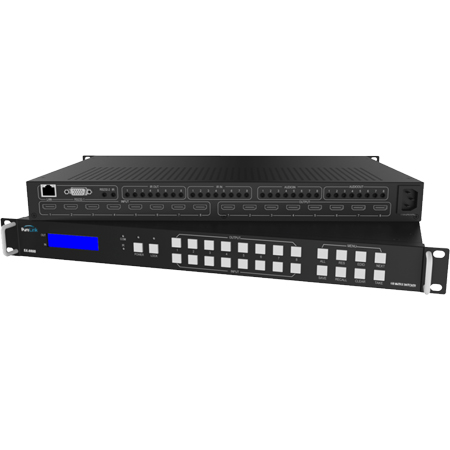

PureLink SX-8800 8x8 HDMI 2.0 - 4K/60 4:4:4 - HDCP 2.2 Integrated Seamless Matrix Switcher with Scaling - Videowall

ITEM #: PLK-SX-8800 MFG #: SX-8800

Primary Image
Free Shipping with $49 Minimum Order

Our Price:

$7,149.99

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


    SX-8800 - Overview

    PureLink SX-8800 provides Don't Blink™ seamless switching of up to (8) HDMI 2.0b inputs and outputs and incorporates the latest technologies available to the market including HDR and HDCP 2.2 compliance. The SX-8800 matrix switchers also feature a built-in web page interface/software allowing convenient set-up, user access, control, and operation. It also features audio extraction as well as audio insertion. Together with video wall function/advanced EDID management and added security features, the SX series delivers a true, first-in-class Ultra HD multi-zone signal distribution solution ideal for corporate conferencing, education, and hospitality environments and more.

    • Features:

      • HDMI 2.0b / HDCP 2.2 / 18Gbps
      • (8) HDMI inputs, (8) HDMI outputs
      • Don’t Blink™ Seamless Switching
      • Scaling up to 4K/60 4:4:4
      • Videowall Processing
      • 3.5mm Stereo Audio Embedding / De-Embedding
      • Auto EDID management
      • Front panel, IR, RS-232, TCP/IP (LAN 10M/100M) control

    • Specifications:

      • Hardware
      • Input Signal Types:
        800x600@60Hz
        1024x768@60Hz
        1280x768@60Hz
        1280x800@60Hz
        1280x1024@60Hz
        1360x768@60Hz
        1366x768@60Hz
        1400x1050@60Hz
        1440x900@60Hz
        1600x1200@60Hz
        1680x1050@60Hz
        1920x1200@60Hz
        480p, 576p, 720p
        1920x1080i, 1920x1080p
        3840x2160@24Hz/25Hz/30Hz/50Hz/60Hz
        4096x2160@24Hz/25Hz/30Hz/50Hz/60Hz
      • Output Signal Types:
        3840x2160@60Hz
        3840x2160@50Hz
        3840x2160@30Hz
        3840x2160@25Hz
        1920x1200@60Hz
        1920x1080@60Hz
        1920x1080@50Hz
        1600x1200@60Hz
        1400x1050@60Hz
        1366x768@60Hz
        1360x768@60Hz
        1280x1024@60Hz
        1280x768@60Hz
        1280x720@60Hz
        1280x720@50Hz
        1024x768@60Hz

        Performance
      • Power Consumption: 100W, 110-240VAC
      • Power Supply: 100-240VAC 50/60Hz
      • Operating Temperature: 32° to 122°F (0° to 50°C)
      • Storage Temperature: -4° to 158°F (-20° to 70°C)
      • Relative Humidity: 0 to 90% non-condensing
      • MTBF: 50,000 hours
      • Interface: HDMI-A
      • HDMI/DP/VGA Version: HDMI2.0, HDCP2.2
      • HDMI Amplitude: T.M.D.S ±0.4Vpp
      • Differential Impedance: 100+15Ω
      • Baudrate and Protocol: Baudrate: 9600, data bit: 8 stop bit: 1, no parity checking
      • Ethernet: IE10.0+, HTML5
      • Permissible Humidity: 10 to 50%

        Enclosure
      • Product Dimensions: 16.93 x 11.81 x 1.73"
      • Product Weight: 11.02Lbs

    • Warranty:

      • 3-year Parts and Labor Limited Warranty


    SX-8800 - Required Accessories
