Palmer Audio PAN01 DI Box passive

    Questions? Ask a Markertek Expert:
    800-522-2025 Email

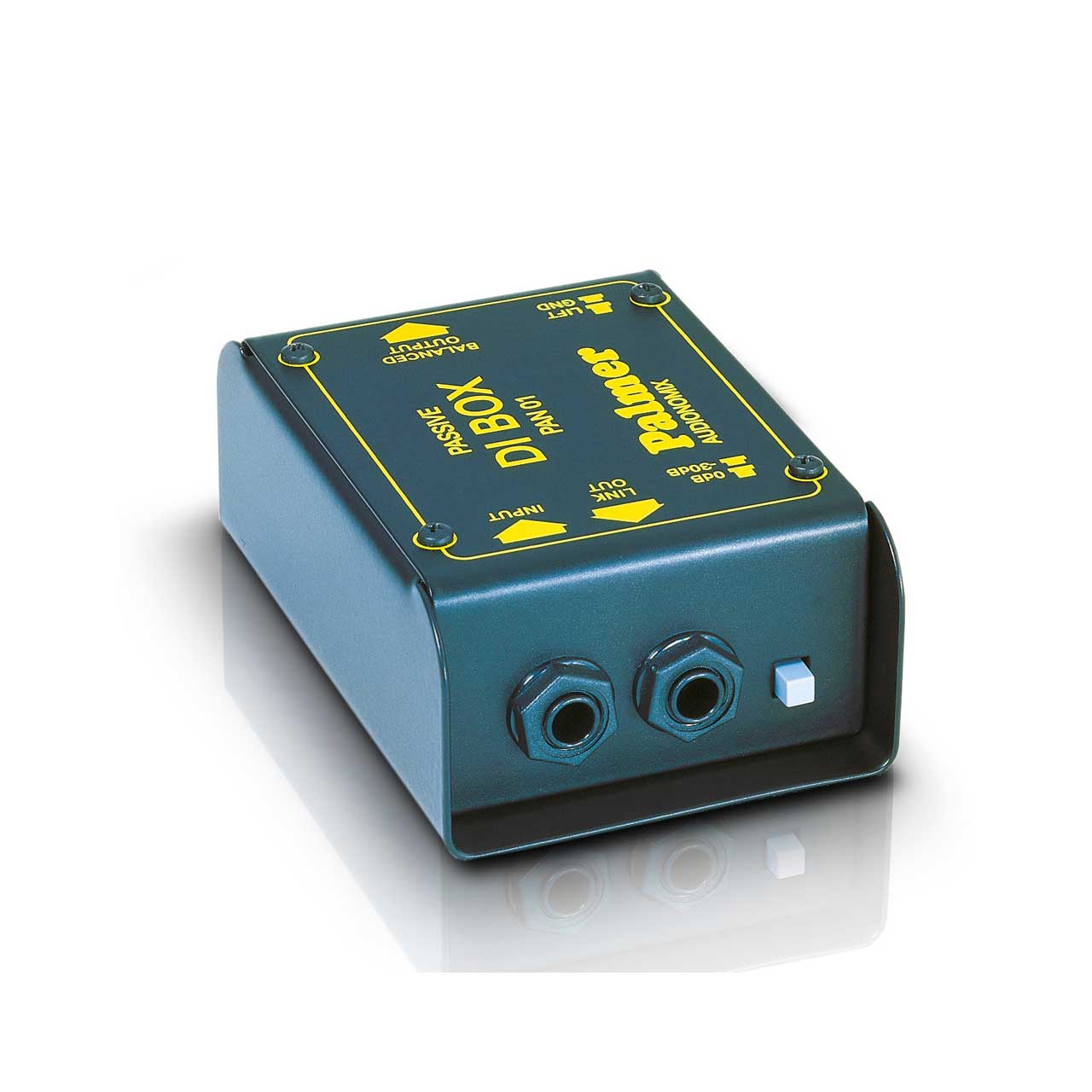

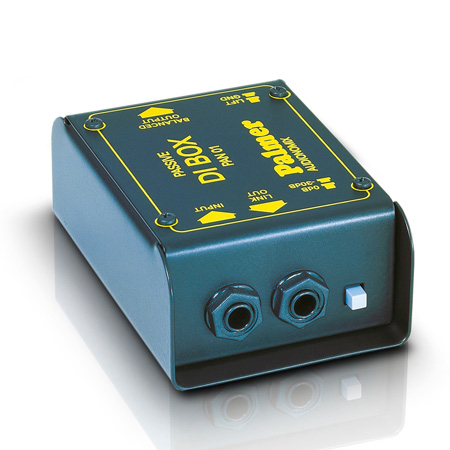

    Palmer Audio PAN01 DI Box passive

    Manufacturer: Palmer Audio

    Item #: PLM-PAN01   •   MFG #: PAN01



    List Price:$131.95
    Our Price:$79.95

    free ship


    Availability: Usually ships in 3-10 business days
    i
    This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.




      Share!

      California Residents:
      8pt-triangleWARNING:
      Cancer and Reproductive Harm - www.P65Warnings.ca.gov





      Passive DI box. Jack input with paralell "THRU" output, transformer balanced XLR output. Attenuable input sensitivity, can handle both line level and speaker level signals.


      • Features

        • Passive DI Box + Thru Output + Attenuable Input Sensitivity

      • Specifications

        • Product type: DI box
        • Type: passive
        • Channels: 1
        • Inputs: 2
        • input connectors: 6.3 mm Jack
        • max. input level: + 62 dBu
        • input impedance: 68 k Ohm(s)
        • input pad: 0 / -30 dB
        • Outputs: 1
        • THRU outputs/channel: 1
        • output connectors: XLR, 6.3 mm Jack
        • max. output level: + 4 dB
        • output impedance: 600 Ohm(s)
        • frequency response: 10 - 40000 Hz
        • transformer balanced: yes
        • Ratio: 10 : 1
        • controls: merge, ground lift, attenuation
        • cabinet material: sheet steel
        • Cabinet / Housing surface: powder coated
