Palmer Audio PAN02 DI Box active

    Questions? Ask a Markertek Expert:
    800-522-2025 Email

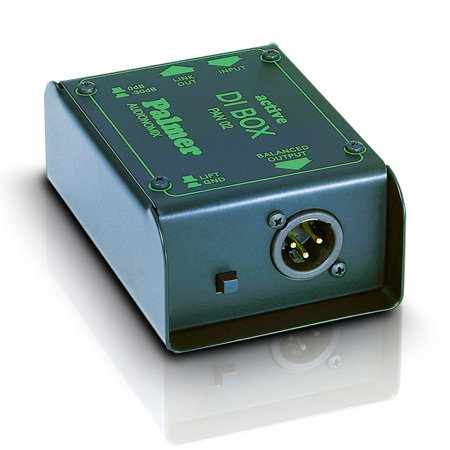

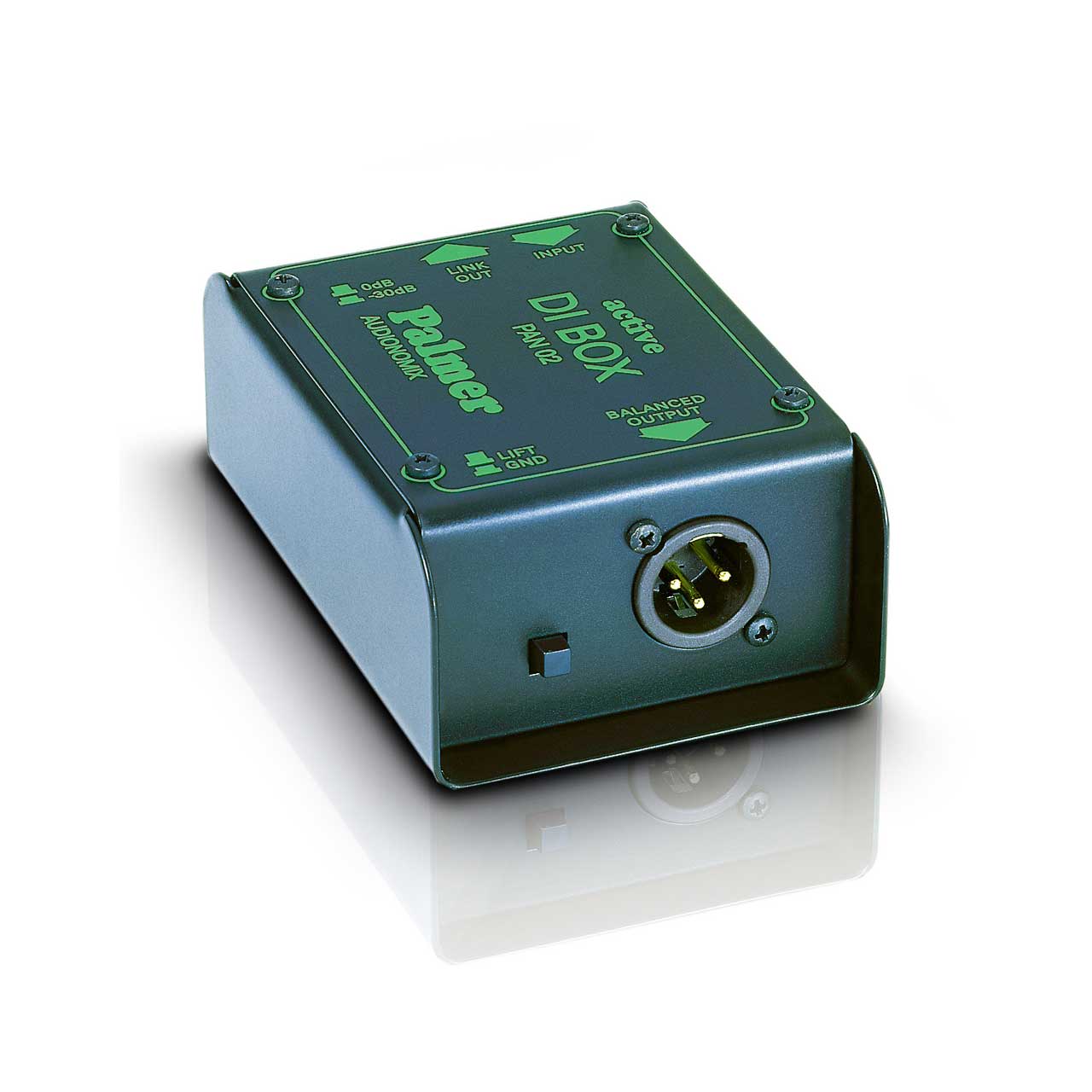

    Palmer Audio PAN02 DI Box active

    Manufacturer: Palmer Audio

    Item #: PLM-PAN02   •   MFG #: PAN02




    Share!





    Standard active DI box. Can be operated with 9 V batteries or 48 V phantom power. High-impedance input; higher output level than with a passive DI box. Active circuitry allows for high input impedance ( 1 meg. ohm) and higher input sensitivity (typical difference between in and out -4 dB). Maximum output impedance with phantom power operation +10 dB. Output: transformer balanced. The special "floating ground" circuitry enables ground lift even during phantom power operation. Metal case 110 x 73 x 42 mm.


    • Features

      • DI Box + Active + Can Operate with Phantom Power + Floating Ground Circuitry

    • Specifications

      • Product type: DI box
      • Type: active
      • Channels: 1
      • Inputs: 1
      • input connectors: 6.3 mm Jack
      • max. input level: + 45 dBu
      • input impedance: ((at) 60 Hz) 1 M Ohm(s)
      • input pad: 0 / -30 dB
      • Outputs: 1
      • THRU outputs/channel: 1
      • output connectors: XLR, 6.3 mm Jack
      • max. output level: + 10 dB
      • output impedance: 600 Ohm(s)
      • frequency response: 10 - 20000 Hz
      • transformer balanced: yes
      • Ratio: 10 : 1
      • controls: ground lift, attenuator
      • power supply: 9 V block, +48 V phantom power
      • cabinet material: sheet steel
      • Cabinet / Housing surface: powder coated
