Palmer Audio PAN04 DI Box 2-channel passive
  • Palmer Audio PAN04 DI Box 2-channel passive
  • Palmer Audio PAN04 DI Box 2-channel passive
  • Palmer Audio PAN04 DI Box 2-channel passive

Questions? Ask a Markertek Expert:
800-522-2025 Email

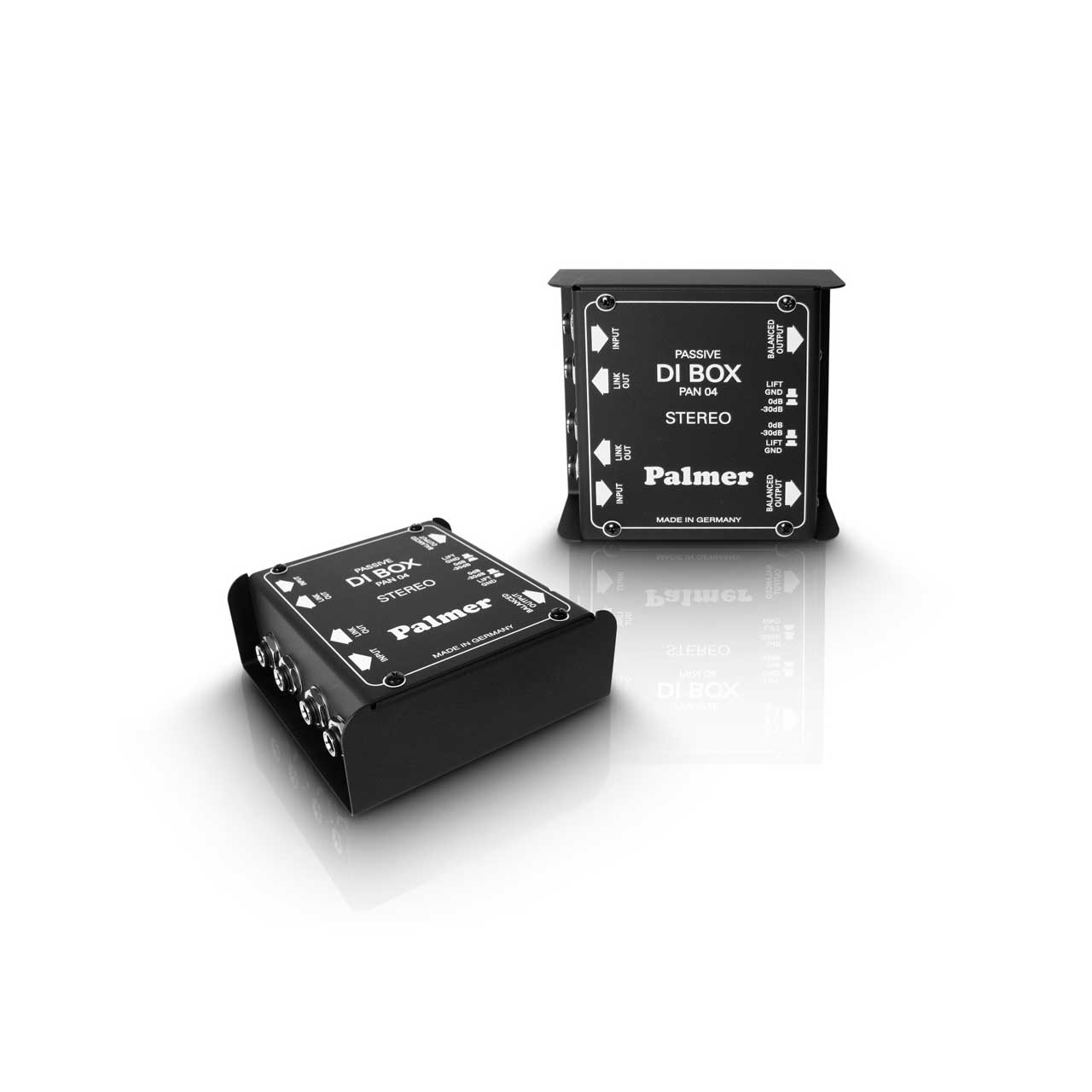

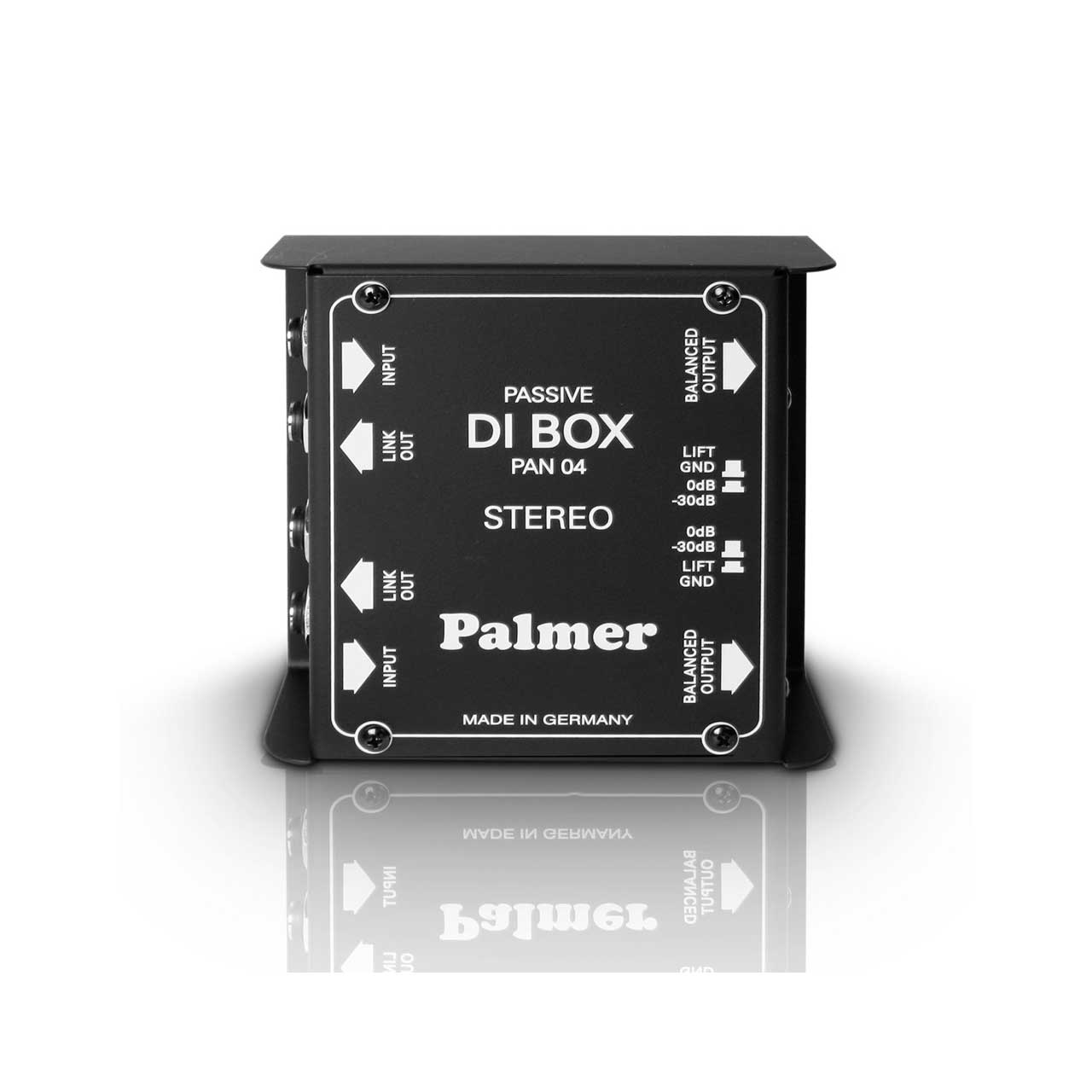

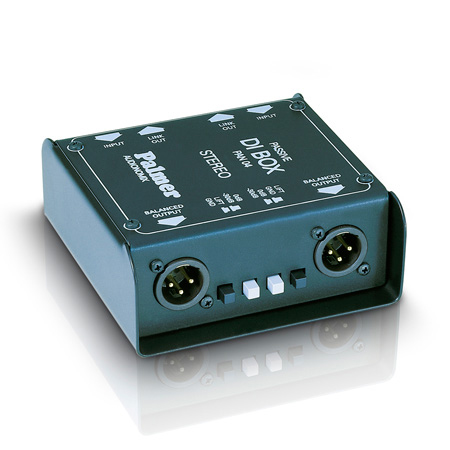

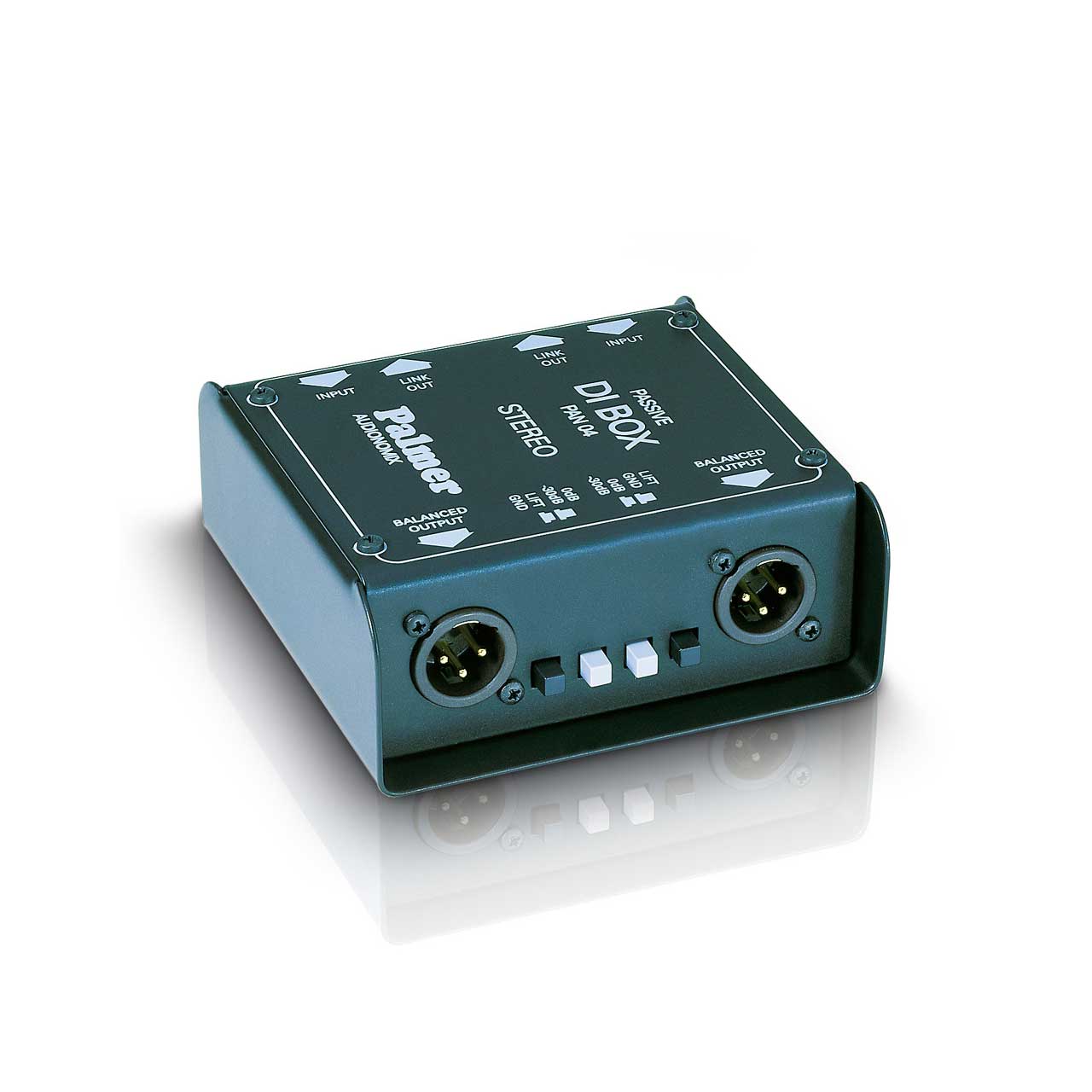

Palmer Audio PAN04 DI Box 2-channel passive

Manufacturer: Palmer Audio

Item #: PLM-PAN04   •   MFG #: PAN04




Share!





The PAN-04 consists of a housing containing the equivalent of two PAN-01s, making it a dual channel passive DI box. This „stereo" configuration makes it ideally suited for use with certain keyboards and devices which have several outputs. Jack input with paralell „THRU" output, transformer balanced XLR output. Attenuable input sensitivity, can handle both line level and speaker level signals.


  • Features

    • 2 Channel Passive DI Box + Jack input with parallel THRU + Can handle line and speaker level signals

  • Specifications

    • Product type: DI box
    • Type: passive
    • Channels: 2
    • Inputs: 2
    • input connectors: 6.3 mm Jack
    • max. input level: + 54 dBu
    • input impedance: 60 k Ohm(s)
    • input pad: 0 / -30 dB
    • Outputs: 2
    • THRU outputs/channel: 1
    • output connectors: XLR, 6.3 mm Jack
    • max. output level: + 4 dB
    • output impedance: 600 Ohm(s)
    • frequency response: 10 - 40.000 Hz
    • transformer balanced: yes
    • Ratio: 10 : 1
    • controls: ground lift, attenuation
    • cabinet material: sheet steel
    • Cabinet / Housing surface: powder coated
