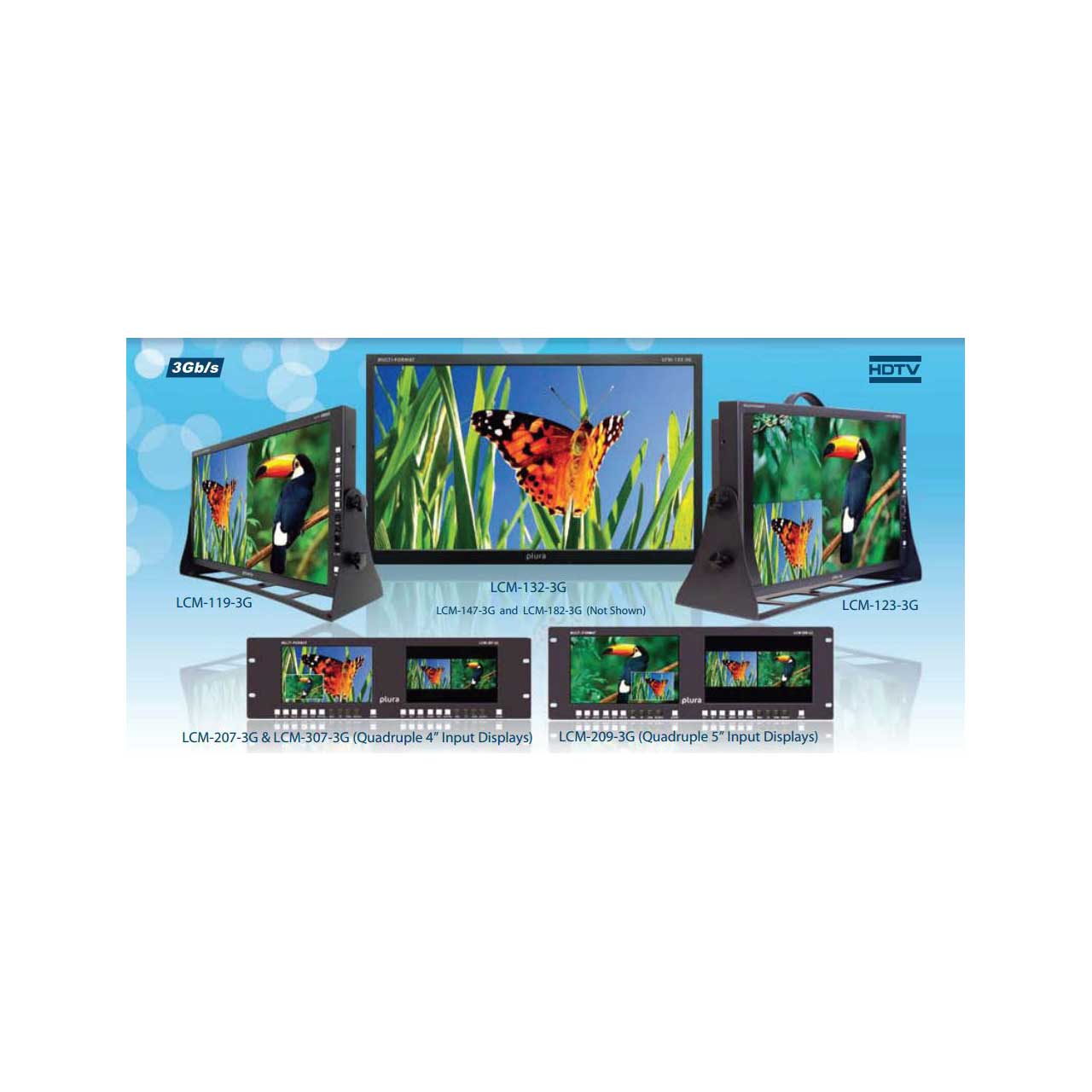

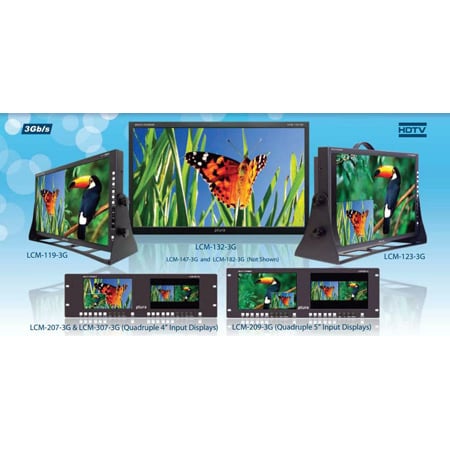

Plura LCM-307-3G Dual 7 Inch or Quad 4 Inch - Rackmount 3G General Use Monitor (1024 x 600)

ITEM #: PLUR-LCM-307-3G MFG #: LCM-307-3G

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:

$2,100.00

Our Price:

$1,890.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


    LCM-307-3G - Overview

    The Plura LCM-307-3G is a 2 x 7" general use monitor (1024 x 600). The LCM Series consists of high quality HD LCD monitors, specifically designed for use in Broadcast environment ensuring accurate color reproduction in accordance with SMPTE, EBU, REC 709 Broadcast Standards. The standard calibration feature enables gamma, color temperature and white luminance level adjustments to meet all Broadcast standards. The LCM series calibration tool provides 10 bit look up table (LUT) (1024 steps of grayscale). Rackmount is included.

    Highlighted Features:
    PBP/PIP, FREEZE AND ZOOM FUNCTIONS WITH TWO 3G HD-SDI INPUTS: These functions are available with two video side-by-side and picture in picture.
    MULTI-FORMAT SIGNAL: Supports HD/SD-SDI (3GHD-SDI, 1.5 G HD), Composite, Component, VGA, DVI,HDMI with HDCP, RGB and S-Video formats.
    SDI INPUT SIGNAL FORMAT: SMPTE-425M,SMPTE-274M/SMPTE-372M/SMPTE-296M /SMPTE-260M/SMPTE-125M
    ETHERNET / SERIAL TALLY SUPPORT: LCM supports and integrates withh TSL TallyMan and/or Image Video Tally Systems via Ethernet or Serial protocols.
    AUTO CALIBRATION FUNCTION LCM: Series offers auto calibration functionality using Freeware tool. All monitors run through an intensive and full calibration process. LCM series offers accurate luminance uniformity levels and confirm with SMPTE-C, EBU-3325 & REC709 color space standards.
    INTERNAL PATTERN TEST MODE: Various Internal Test Patterns are available through OSD menu.

    • Features:

      • 2 x 7" True 8 bit LED Panel
      • 3Gb/s ready - 1080/60P
      • 2 x Auto-Detect with Active Loops (3Gb/s ~ 1.485Gb/s ~ 270Mb/s)
      • RGB, YUV, Y/C, Composite, UXGA, DVI & HDMI (HDCP)
      • Complies with EBU-2330 TECH, SMPTE-C and ITU-R BT.709 standards
      • (ICAC) - Plura Intelligent Connection for Alignment & Calibration
      • Cutting edge De-interlacing and Scaling Technology
      • Fast Response Time for High Motion Video
      • 12 Bit Color Processing
      • 178 Viewing Angle Display
      • Color Temperature - User adjustable (11000K TO 3200K)
      • Various and User defined Markers Display, Safe Area in HD & SD
      • Picture and Picture (PaP), Picture in Picture (PiP) Display / Blend
      • Third-party Tally systems support
      • Underscan / Overscan / Normal / Zoom
      • Internal Test pattern Mode
      • Ethernet & Serial Wall Remote Control
      • Intuitive OSD Display, Graphic based, 6 Languages (UNICODE System)

    • Specifications:

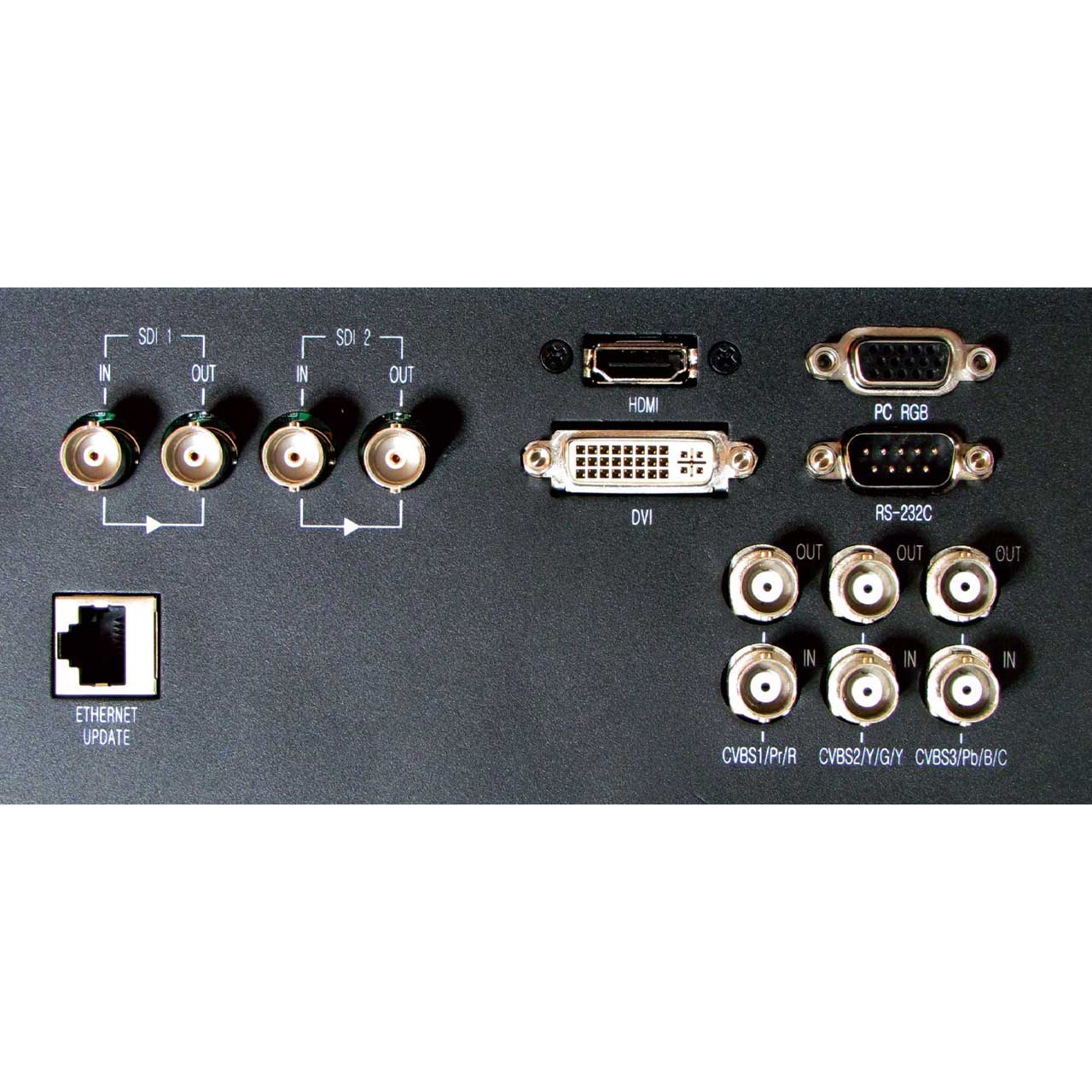

      • INPUT
      • HDMI: 1 x HDMI In With HDCP, 19 Pin Female Per Screen
      • HD/SD-SDI: 2 x 3G HD/SD-SDI Per Screen
      • D-Sub: N/A
      • 9 Pin D –Sub: 1 x RS-232, 9 Pin Male Per Screen
      • 3 x BNC: 1 x Component In (Y, Pb, Pr) Per Screen
      • 2 x BNC: S-Video In (Y,C) Per Screen
      • 1 x BNC: Composite In (CVBS) Per Screen
        OUTPUT
      • HD/SD-SDI: 2 x 3G HD/SD-SDI Per Screen
      • Analog: 1 x Analog Per Screen
      • INPUT SIGNAL
      • HDMI: 640 x 480 up to 1920 x 1080
      • PC-RGB: 640 x 480 up to 1920 x 1080, SOG sync support
      • HD-SDI: 3G Signal
        ANALOG INPUT
      • Composite: 1.0Vp-p (With Sync)
      • S-Video: Y : 1.0Vp-p, C : 0.7Vp-p
      • Component: Y: 1.0Vp-p, Pb : 0.7Vp-p, Pr : 0.7Vp-p
      • D-Sub: 1.0Vpp (With Sync)
        DIGITAL INPUT FORMAT
      • SMPTE-425M (3G): 1920 x 1080P (50/60)
      • SMPTE-292M: 1920 x 1080i (50/59.94/60); 1920 x 1080P (30Psf/25Psf/24Psf/30/25/24)
      • SMPTE-372ML: 1080P (30/29.97/25/24/23.98); 1080i (29.97/25/24/23.98); 720P (60/59.94/50)
      • SMPTE-296M: 1280 x 720P (50/59.94/60)
      • SMPTE-259M/C: 480i (59.94) 576i (50)
      • Component: 640 x 480 up to 1920 x 1080
        DVI, VGA, HDMI Input Signal Format
      • VESA Standard; 1920 x 1080 (60P, 60i, 50i); 1920 x 1080 (25P, 24P, 23P)
        I/O PORT
      • Ethernet Port: RJ-45 8 Pin Ethernet Port, 100Mbps, LAN to Serial Support for Wall control Application Firmware Update.
      • Serial Update: 9Pin D-sub, Remote, Update, Serial Interface
        COLOR COORDINATE
      • Color space: EBU, SMPTE-C, IBT-709, NTSC, Native
        LCD
      • Size: 2 x 7”
      • Resolution: 1024 X 600 (17:10)
      • Pixel Pitch (V) x (H): 0.148x0.1524mm
      • Color: 16.7 M Colors
      • Viewing Angle (deg): R/L:165, U/D:165
      • Luminance of White: 400 cd/m2
      • Contrast: 900 : 1
      • Response Time: 7.5 msec
      • Display Area : 152.4x91.44mm
        GENERAL
      • Power Requirements: DC 12V/5.0A
      • ATC for Reliability: Automatic Temperature Control - 80 x 25mm BLDC Cooling Fan
      • Operating Temperature and Humidity: 0°C - 40°C (32°F-104°F) ,20% ~ 80% RH
      • Weight: 2.5 KG (5.5 lbs)
      • Dimension (W*H*D) without Box & Stand mm & inch: 480x127x64 mm.; 18.75x5.0x2.0 in.
      • Rack Units: 3 RU
      • Accessories: Power Cord & Rackmount
