Plura SFP-224-3G 24-Inch Class A 3G 1920x1080 Broadcast Video Monitor w/SFP Port
    Questions? Ask a Markertek Expert:
    800-522-2025 Email

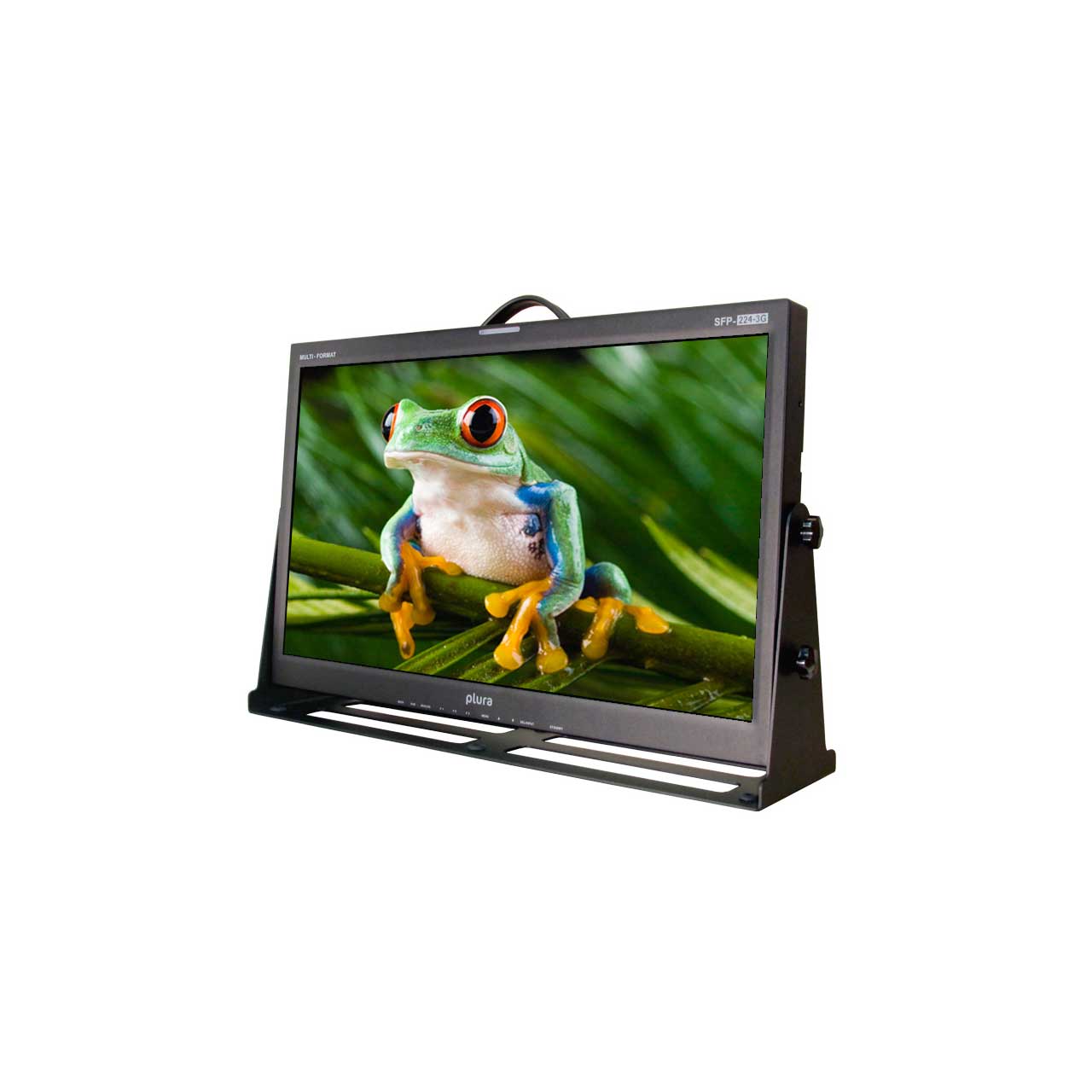

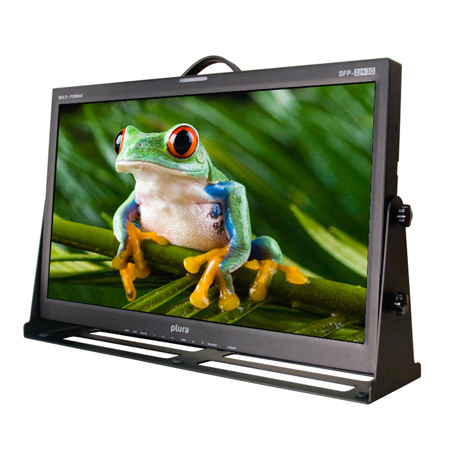

    Plura SFP-224-3G 24-Inch Class A 3G 1920x1080 Broadcast Video Monitor w/SFP Port

    Manufacturer: Plura Broadcast, Inc.

    Item #: PLUR-SFP-224-3G   •   MFG #: SFP-224-3G


    List Price:$4,299.00
    Our Price:$3,869.00

    free ship
    Availability: Direct Ship From Manufacturer
    Item ships directly from the manufacturer. Normal delivery time is 2-7 business days and is subject to manufacturer availability. Need it sooner? Call 800-522-2025, or email Customer Service for expedited delivery options.
    • Special Order Item: non-cancelable, non-returnable, non-refundable.
    • 2 - 7 Day Normal Delivery Time - Faster Shipping Options at Checkout or Call Us.



    The SFP-3G Series consists of SFP-217-3G, SFP-221-3G, SFP-224-3G & SFP-232-3G, 17", 21", 24" & 32" FULL HD 1920x1080 Precision Broadcast LCD Series which is built with 17", 21" 24" & 32" high quality panel respectively. The SFP-3G series adapt to various optional PLURA SFP modules which can fit any possible broadcast application. It supports up to 3 Gbps-1080-60P along with all other Digital and Analog inputs & formats.

    Optional SFP Modules

    SFP-3G-TXRX-HD-BF-LR: SFP Module - 3Gbps SDI Coaxial Transceiver, Long Range,HD-BNC
    SFP-3G-TXRX-HD-BF-LR-C: SFP Module - 3Gbps SDI Coaxial Transceiver w/Reclocker, Long Range,HD-BNC
    SFP-3G-2RX-1310F-LC-MH: SFP Module - 3Gbps SDI Dual Optical Receiver, Medium Range-LC-F
    SFP-3G-2TX-1310F-LC-MH: SFP Module - 3Gbps SDI Dual Optical Transmitter (1310nm)Medium Range-LC-F
    SFP-3G-TXRX-1310F-LC-MH: SFP Module - 3Gbps SDI Optical Transceiver, Medium Haul- LC-F
    SFP-3G-2RX-1310F-LC-BF: SFP Module - 3Gbps HYBRID DUAL RECEIVER, w/Reclocker, LONG Reach-LC-F-HD-BNC
    SFP-3G-TX-HDMIF-TypeD: SFP Module - 3Gbps SDI to HDMI converter, Type D
    SFP-3G-2TX-HD-BF-LR: SFP Module - 3Gbps SDI Coaxial Dual Transmitter, Long Range,HD-BNC

    • Features

      • 3Gb/s ready - 1080/60P
      • Advanced Waveform (Y.Cb.Cr. selectable), Vectorscope
      • 4 SFP Slots HD-SDI, SDI with active loops (3Gb/s / 1.485Gb/s / 270Mb/s)
      • Fiber (RX, TX or Transceiver) and Coaxial (Rx, TX or Transceiver) optional connectivity
      • SDI to HDMI conversion with an optional SFP module
      • Built-IN 6 x 6 Cross Point Switcher
      • Inclusive Network Controller PSC-400 with Firmware & Cal. Transfer
      • Complies with EBU-3320 TECH, SMPTE-C and ITU-R BT.709 Standards
      • (ICAC) - Plura Intelligent Connection for Alignment & Calibration
      • RGB, YUV, Y/C, Composite, UXGA, DVI(DHCP) & HDMI(DHCP)
      • Cutting edge De-interlacing and Scaling Technology
      • Fast Response Time for high motion video
      • RGB 10 Bit Digital Signal Processing
      • 178° Viewing Angle Display
      • Closed Caption (608/708)
      • Color Temperature - User, VAR, 11000K, 9300K, 7500K, 6500K, 5000K, 3200K
      • Various and User defined Markers Display, Safe Area in HD & SD
      • Picture and Picture (PaP), Picture in Picture (PiP) display / Blend
      • Analog & Embedded Audio Input, Digital Audio Decoding
      • Built In Stereo Speaker , 16 CH Audio Metering Display
      • IMD & Time code display and Wall Control System
      • Pixel to Pixel Mode, Tally, DC Operation
      • Underscan/ Overscan/ Normal / Zoom
      • Programmable Front Pushbutton Controls, GPI & RS232 Remote Control
      • Intuitive OSD Display, Graphic based, 6 Languages (UNICODE System)
      • OPTIONS: Battery Mount (SFP-217-3G, SFP-221-3G), Carry Case
      • Rack mount: (SFP-217-3G, SFP-221-3G & SFP-224-3G)
    • Specifications

      • SD-SDI Input: 2EA, HD/SD Serial Digital , 3G/1.485G/270M ,BNC Jack
      • Analog Input: 3EA, Composite, Component(YPbPr/RGB), BNC Jack
      • S-VIDEO Input: 1EA,YC(S-Video)
      • DVI/VGA Input: 1EA, DVI-I, 24pin, Female
      • HDMI: 1EA, HDMI, 19pin Female
      • Output: SDI Output: 2EA, BNC, Active Through Output
      • Analog loop Output: 3 EA, 75? BNC
      • Analog Input Level: Composite: 1.0Vpp (With sync)
      • YC (S-Video): 1.0Vpp (Y With sync), 0.286Vpp (C)
      • Component: 1.0Vpp (Y With sync), 0.7Vpp (Pb/Pr)
      • RGB: 1.0Vpp (G With sync), 0.7Vpp (R/B)
      • DVI - (Analog PC): H Frequency Range : 22~82KHz, V Frequency Range : 55~90Hz,
      • Maximum Resolution : UXGA at 60Hz,
      • Maximum Pixel Rate : 162MHz - Separate Sync Support
      • Digital Input Format: SMPTE-428.1M*: 2048x1080P(24/25)
      • SMPTE-425M(3G)*: 1920x1080P(50/60)
      • SMPTE-260M*: 1920x1035i(60/59.94)
      • SMPTE-274M*: 1920x1080i (50/59.94/60)
      • 1920x1080P (30Psf/25Psf/24Psf/30/25/24)
      • SMPTE-372M*: Dual Link HD-SDI YPbPr(4:2:2) : 1080P(50/59.94/60)
      • Dual Link HD-SDI YpbPr/RGB(4:4:4)
      • 1080P(30/29.97/25/24/23.98)
      • 1080i(29.97/25/24/23.98)
      • 720P(60/59.94/50)
      • SMPTE-296M*: 1280x720P (50/59.94/60)
      • SMPTE-125M*: 480i(59.94)
      • ITU-R BT.601*: 576i(50)
      • Component: 640 X 480 up to 1920 X 1080p
      • HDMI
      • DVI-I Digital: H Frequency Range : 22~82KHz, V Frequency Range : 55~90Hz,
      • Maximum Resolution : UXGA at 60Hz ,
      • Maximum Pixel Rate : 162MHz
      • Audio Input: Input Line: Analog Stereo (RCA Jack)
      • SDI Audio Input: Embedded HD/SD-SDI Audio
      • Audio Output: Speaker Output: Internal Speaker (Stereo) 2W+2W
      • Output Line: 1EA, L/R, Stereo pin jack
      • Ear-phone Output: 1EA, L/R Stereo, 3.5mm pin jack
      • Output Signal: Input Line & De-embedded Audio, 1~ 16CH
      • I/O Port: GPI: RJ-45 pin (Programmable General Purpose Input)
      • RS422/485: RJ-45 8 pin for upgrade
      • Upgrade Port: D-sub 9 pin female for upgrade
      • RS232: D-sub 9 pin female I/P for wall control
      • LCD: Size: LCD 24"
      • Aspect Ratio: 16 : 10
      • Resolutions: 1920 x 1080
      • Display Area: 372.9 x 209.7 (mm)
      • Display Color: 16.7 M colors
      • Brightness: Max 350 cd/m2
      • Contrast Ratio: 900 : 1 (Typical)
      • Response Time: Tr=8.0ms / Tf=8.0ms
      • Viewing Angle: Horizontal: 178(Typ.), Vertical 178(Typ.)
      • Power Requirement: AC 100 V ~ 240 V (60/50 Hz)
      • Power Consumption: 0.65 A - 0.34A(65W)
      • Working Temperature: -30°C ~ 40°C (-22F ~ 104°F)
      • Working Humidity: 10%RH ~ 85%RH (Non Condensed)
      • Storage Temperature: -30°C ~ 60°C (-22°F ~ 140°F)
      • Storage Humidity: 10%RH ~ 85%RH (Non Condensed)
      • Weight (w/o Stand & Packaging): 16Kg - 35.27 Lbs
      • Dimension (W*H*D) w/o Box & Stand: 21.8 x 15 x 3.46 Inch
      • Packing Dimension (WxHxD): 26 x 20.6 x 8.7 Inch
      • Accessory: Power Cord - Desk Stand
      • Option:
      • * W/ PLURA SFP Module
      • Battery Mount, Rack mount, Carrying Case
