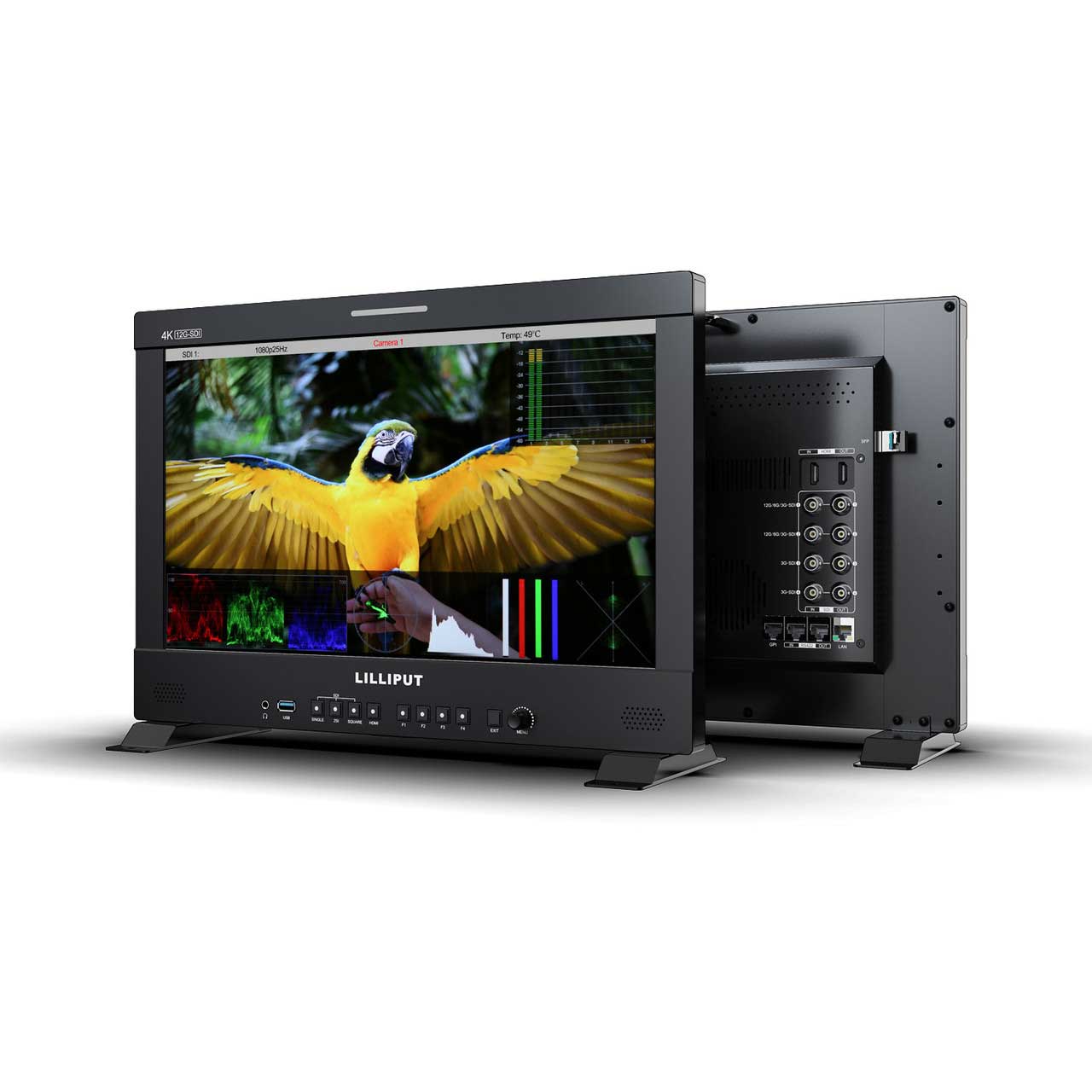

Lilliput Q18-VBP 17.3in 12G-SDI 4K 3840x2160 Broadcast/Production Monitor with V-Mount Battery Plate

Q18-VBP - Overview

• Features:

  • 12G-SDI/4K HDMI Signal
  • Accurate Color Calibration
  • Remote Control Application

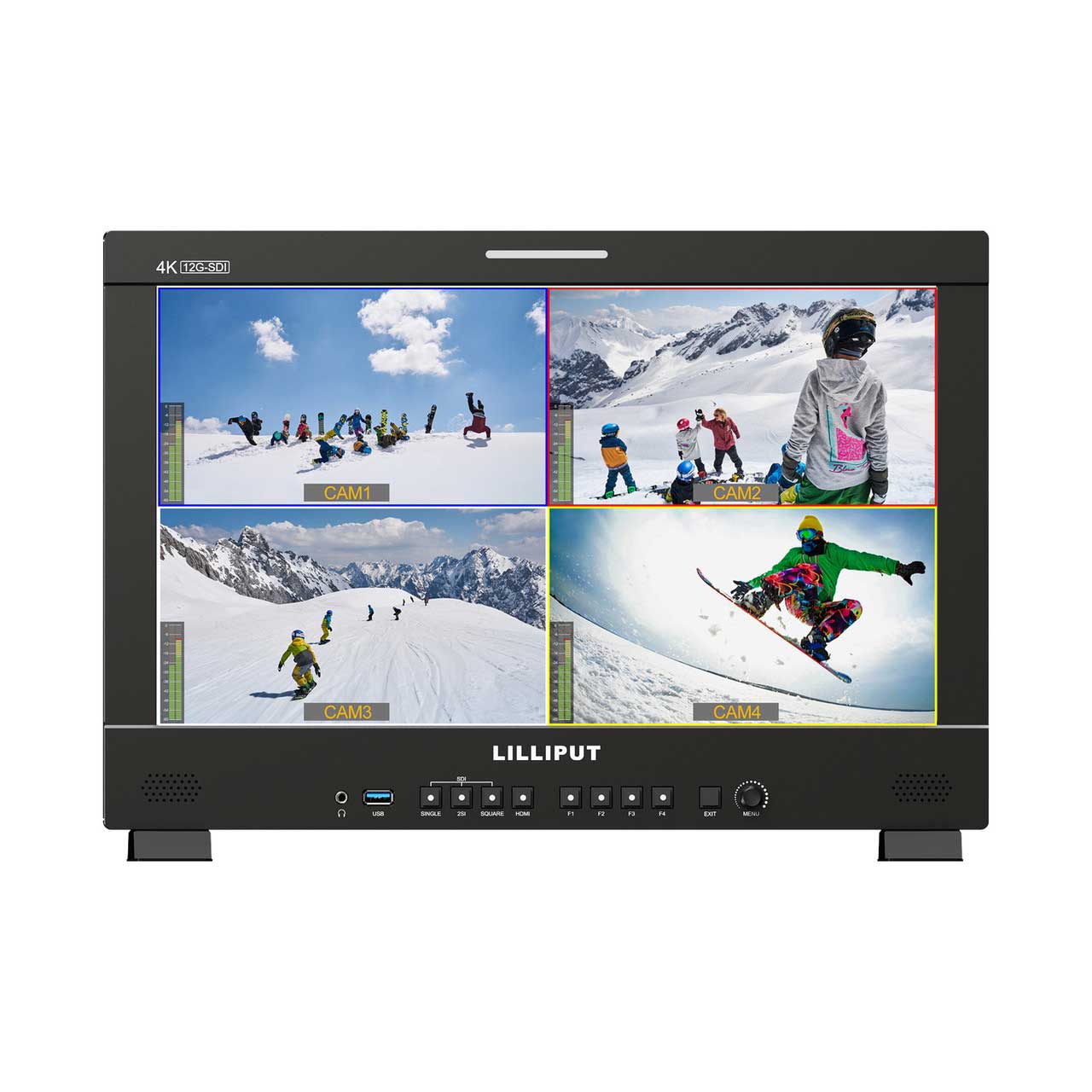

  • Quad Split Multiview
  • Audio Vector (Lissajous)
  • HDR
  • 3D LUT

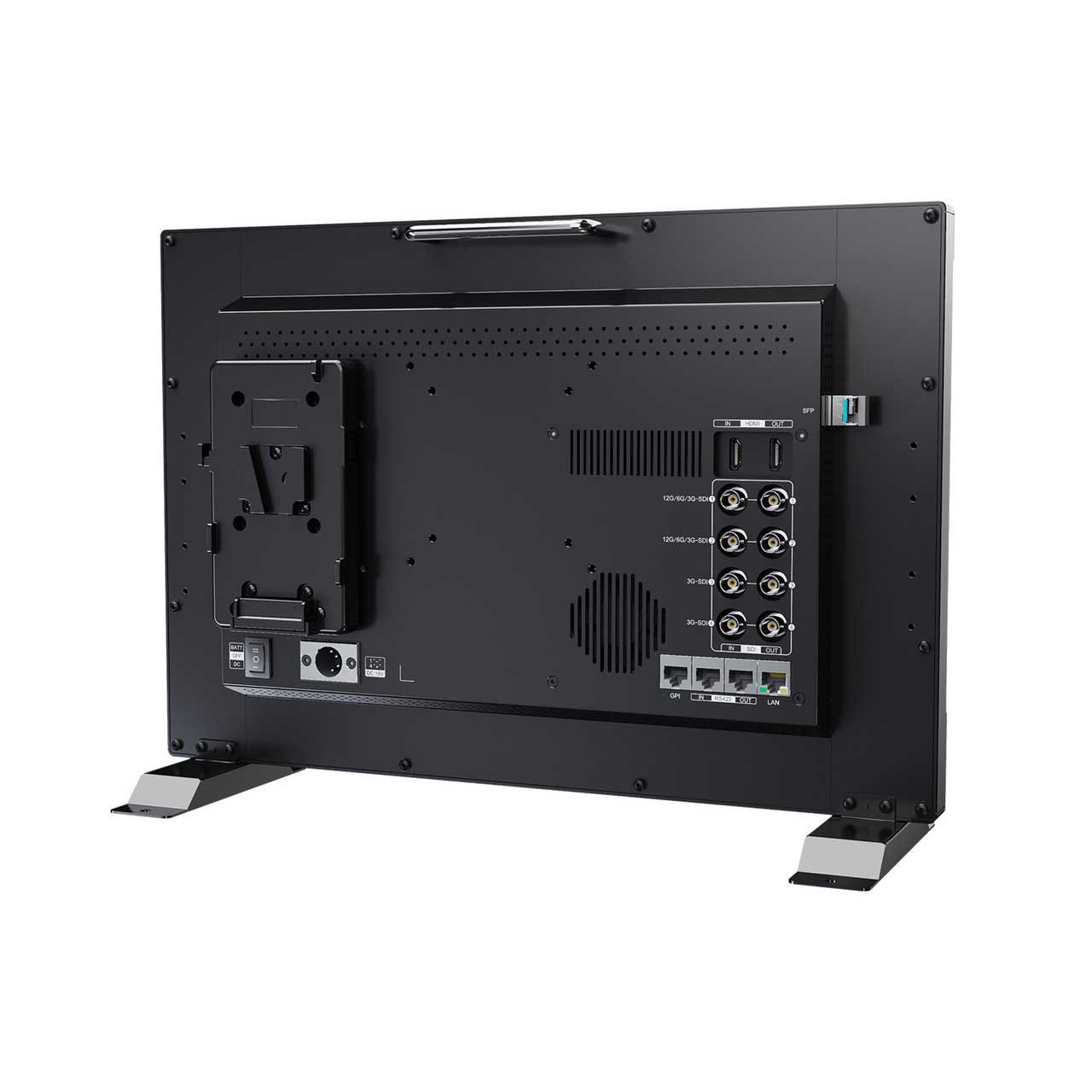

  • V-Mount Battery Plate


• Specifications:

  • Display
  • Panel: 17.3"
  • Physical Resolution: 3840 x 2160
  • Aspect Ratio: 16:9
  • Brightness: 400 cd/m²
  • Contrast: 1200:1
  • Viewing Angle: 170°/170°(H/V)
  • HDR: ST2084 300/1000/10000/HLG
  • Supported Log Formats: SLog2 / SLog3 / CLog / NLog / ArriLog / JLog or User.
  • Look up Table(LUT)support: 3D LUT (.cube format)
  • Technology: Calibration to Rec.709 with optional calibration unit

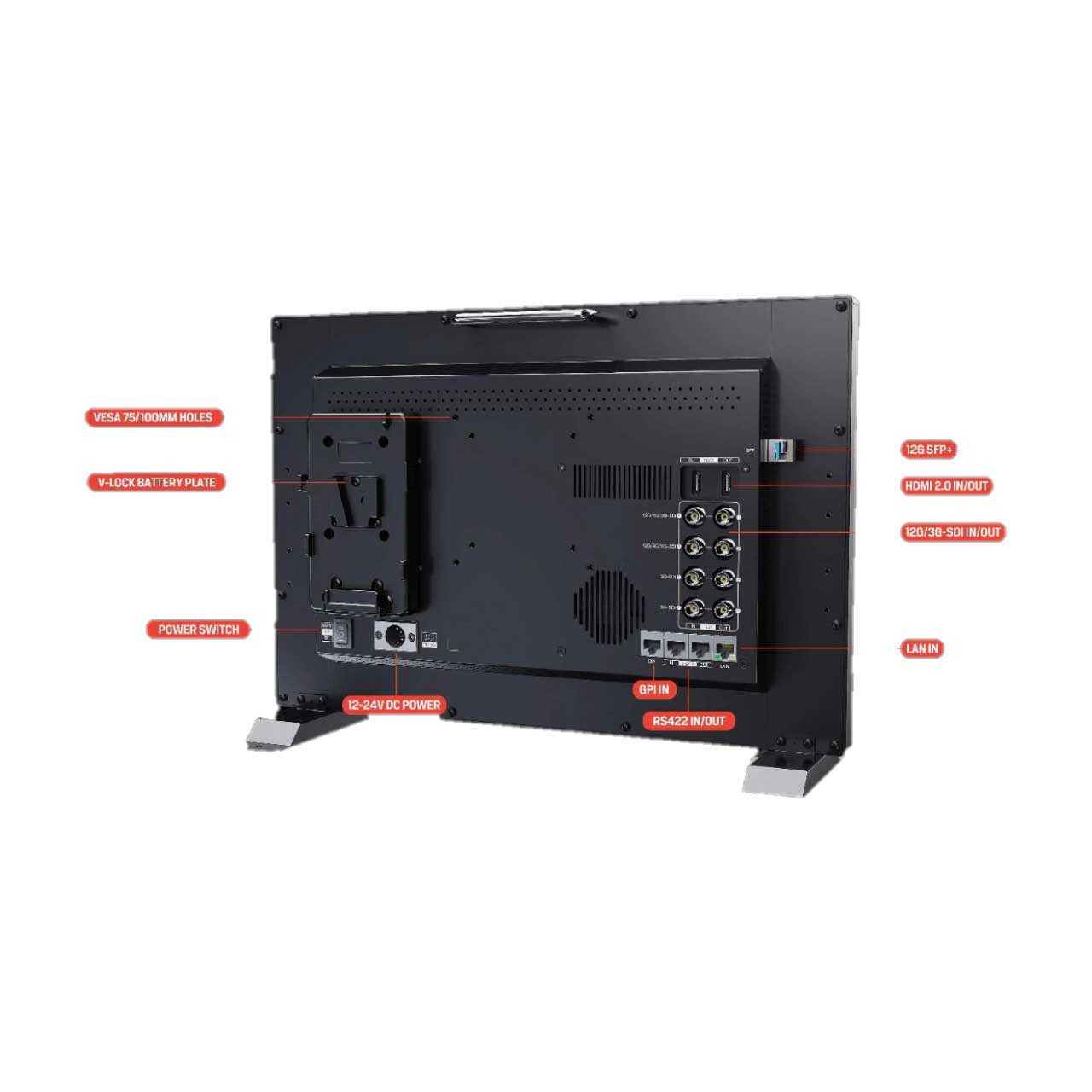

    Video Input
  • SDI: 2x 12G, 2x 3G (Supported 4K-SDI Formats Single/Dual/Quad Link)
  • SFP: 1x 12G SFP+(Fiber module for optional)
  • HDMI: 1x HDMI 2.0

    Video Loop Output
  • SDI: 2x 12G, 2x 3G (Supported 4K-SDI Formats Single/Dual/Quad Link)
  • HDMI: 1x HDMI 2.0

    Supported Formats
  • SDI: 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60.
  • SFP: 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60.
  • HDMI: 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60.

    Audio In/Out (48kHz PCM AUDIO)
  • SDI: 16ch 48kHz 24-bit
  • HDMI: 8ch 24-bit
  • Ear Jack: 3.5mm
  • Built-in Speakers: 2

    Remote Control
  • RS422: In/out
  • GPI: 1
  • LAN: 1

    Power
  • Input Voltage: DC 12-24V
  • Power Consumption: ≤34.5W (15V)
  • Compatible Batteries: V-Lock Mount
  • Input Voltage(battery): 14.8V nominal


• Item Includes:

  • 1x Q18 Series 17.3" 12G-SDI 4K 3840x2160 Broadcast/Production Monitor with V-Mount Battery Plate
