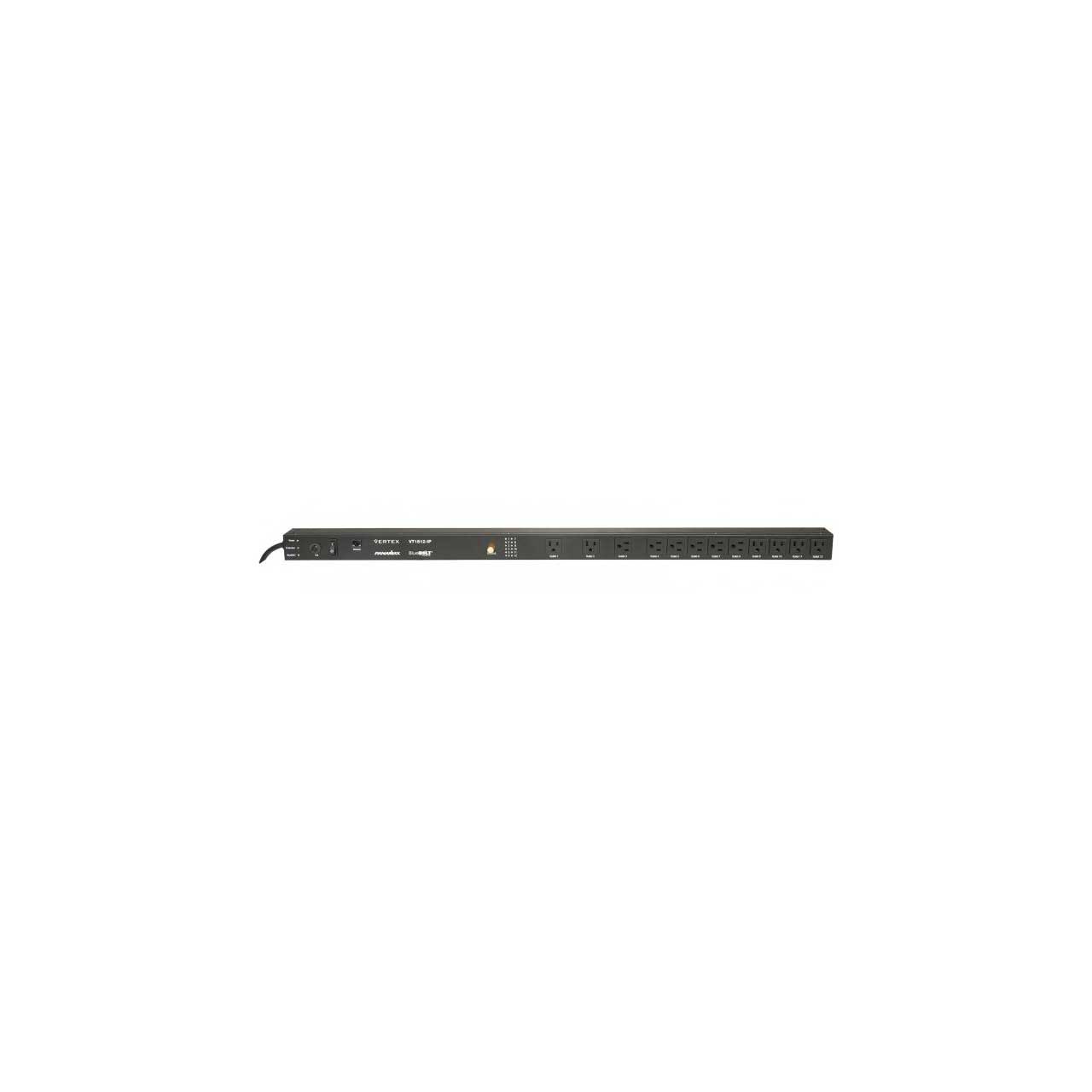

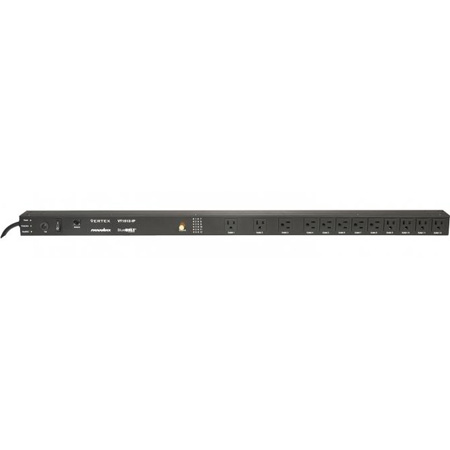

Panamax VT1512-IP 15 Amp 12 Outlet Vertical Rack Mount Power Conditioner Power Sequencer - Bluebolt - 10Ft NEMA 15A Cord

ITEM #: PMAX-VT1512-IP MFG #: VT1512-IP

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

Our Price:


Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup

    VT1512-IP - Overview

    Vertical strip style power distribution unit (PDU) / surge protector with local area network and BlueBOLT cloud control
    The Panamax VT1512-IP is a BlueBOLT enabled slim form factor vertical rack power conditioner and power sequencer. The VT1512-IP is a full featured power conditioner providing protection and filtration for maximum longevity and performance of connected equipment. BlueBOLT enabled, the VT1512-IP allows remote reboot of 12 individually controlled outlets, as well as the ability to monitor energy use, set alerts, program scheduled commands, network pings with conditioner reboots. For non-Cloud applications the VT1512-IP has an embedded webpage for control and programming, or you can use a LAN for secure control via an ELAN or other 3rd party control system.

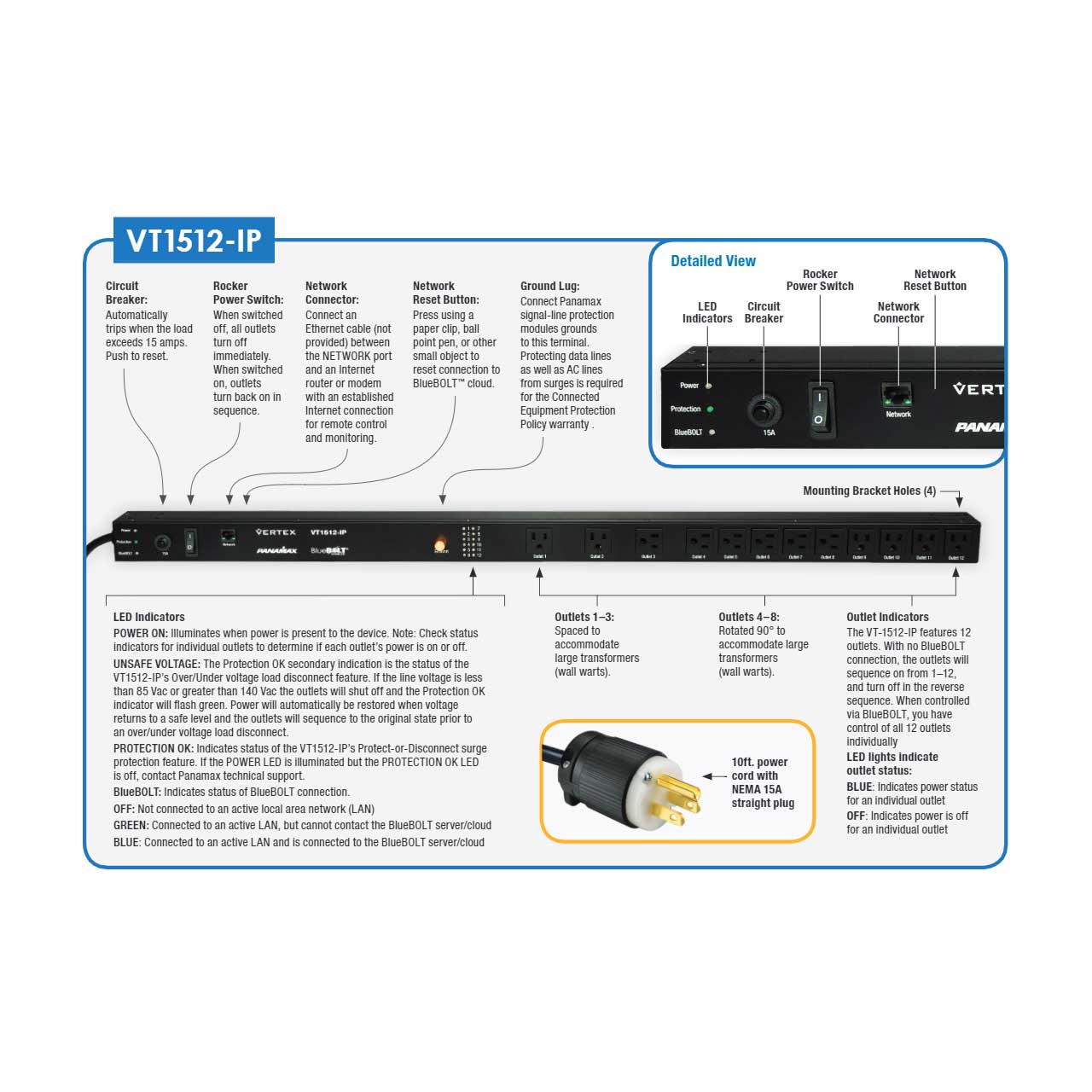

    • Features:

      • Protect-or-Disconnect surge protection
      • Standard EMI/RFI Filtration
      • Over/Under voltage load disconnect
      • Power Sequencing
      • IP Monitoring and Control - BlueBOLT enabled for IP monitoring and control
      • 12 individually controlled outlets, 3 spaced for wall warts, 6 turned 90°
      • Ground lug to attach Panamax signal-line protection modules
      • Steel chassis
      • Sleek design ideal for vertical mounting to an equipment rack with included brackets
      • 10 foot power cord with removable plug to customize length
      • 15A Capacity with circuit breaker
      • 3 year limited product warranty with $5,000,000 Connected Equipment Protection Policy when used with Panamax signal-line protection modules.
    • Specifications:

      • AC Power: 20Vac, 50/60Hz
      • Total Outlets: 12
      • Total Current Capacity: 15A (1800W)
      • Voltage Protection Rating (UL 1449 4th Edition, 3,000A): L-N 500V, L-G 500V, N-G 500V
      • Protection Modes: L-N, L-G, N-G
      • Initial Clamping Level: 200V Peak, 141 RMS
      • Energy Dissipation: 200 Joules
      • Peak Impulse Current: 12,000
      • Protect-or-Disconnect: Yes
      • Thermal Fusing: Yes
      • Cord Length: Captive 10ft. cord with removable NEMA 5-15P for length customization
      • Temperature: 0° C -+ 40° C (+32°F -+ 104°F)
      • Operating Humidity: 0 - 90% non-condensing
      • Over-voltage load disconnect: 40 Vac
      • Under-voltage load disconnect: 85 Vac
      • Filtration Technology Standard: RFI/EMI Filtration
      • Filtration Rating: 18dB@100kHz ,53dB@1MHz, 18dB-53dB@100kHz-1MHz
    • Warranty:

      • 3 year limited product warranty
    • GTIN:
