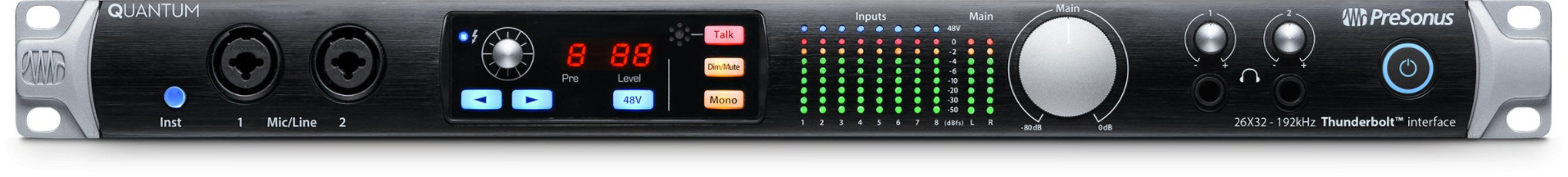

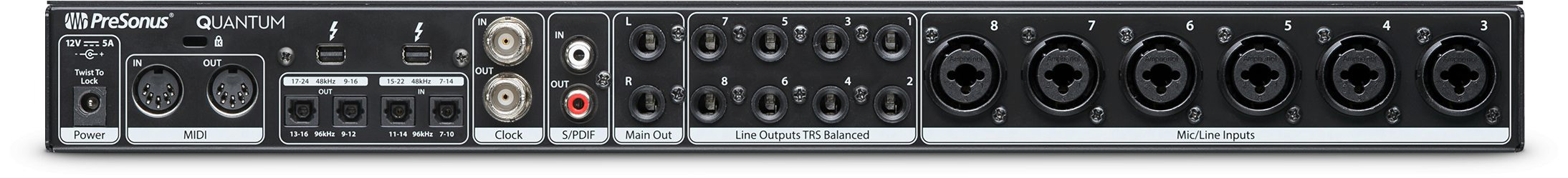

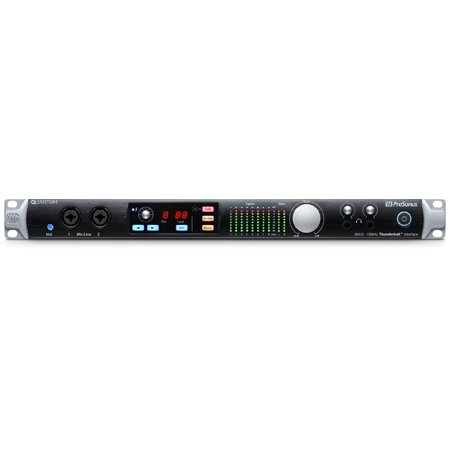

PreSonus Quantum 26x32 Thunderbolt 2 Audio Interface

ITEM #: PRE-QUANTUM MFG #: QUANTUM

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order


Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


    QUANTUM - Overview

    Taking full advantage of the high-speed Thunderbolt 2 bus and ADAT Optical I/O, the PreSonus Quantum audio/MIDI interface delivers up to 26 inputs and 32 outputs, with extremely low latency. Boasting superb audio quality; 24-bit, 192 kHz recording and playback; recallable XMAX microphone preamps; and the ability to expand your system as your needs grow, it's a great choice for a wide variety of professional and semi-pro producers and electronic musicians. Every design decision during Quantum's engineering was made with one goal in mind: speed. Quantum sports high-speed Thunderbolt 2 connectivity and a no-frills, direct-to-daw architecture, with no DSP. The result is our leanest, fastest, lowest-latency interface to date. Cutting-edge 24-bit, 192 kHz converters with 120 dB of dynamic range and a surprising amount of expandability and software control options round out the package.

    The Quantum offers two combo mic/line/instrument inputs and six combo mic/line inputs, each with a digitally-controlled XMAX preamp and individual +48V phantom power. You also get two ¼" TRS main outputs, eight ¼" TRS aux outputs, and two independent headphone outs with dedicated volume controls. But that's just the start. With ADAT Optical I/O and S/PDIF stereo digital I/O, you can have up to 18 digital inputs and outputs. And if you need even more I/O channels, you can stack up to four Quantum interfaces via Thunderbolt to create a monster system with up to 96 in and out. BNC word clock I/O ensures your Quantum and other digital audio devices operate in tight sync. And of course you get MIDI I/O, too.

    Audiophile-grade digital converters, low-jitter clocking, and recallable preamps add up to a superior recording and listening experience. The Quantum operates at up to 192 kHz for ultra-high-definition mixing and recording. High-quality converters on every input and output provide 120 dB of dynamic range to capture complex musical harmonics smoothly and naturally with no audible distortion. And our recallable XMAX Class A analog microphone preamps deliver incredibly high headroom, deep lows, smooth highs, and a rich overall sound so you'll hear every breath, transient, and detail in your recordings. With the Quantum, your audio interface is an integrated extension of your recording environment. Launch Studio One, and you'll find full preamp control integrated into your recording environment. Need to track away from your computer? Launch Studio One Remote on your iPad.

    With its pro features and abundant I/O, the Quantum fits into any recording and production environment. You get two main and eight auxiliary balanced line-level outputs, as well as Mute/Dim and Mono controls. The onboard talkback mic can be routed to any mix, and you can listen to any mix from either of two independent headphone amps. All 10 analog outputs are DC coupled so they can provide control voltage to external analog equipment. Add that to Quantum's expandability, flexible software suite, blazing speed, and superb sound quality, and you have a recording system that will be the heart of your dream studio for years to come.

    The Quantum's onboard features can also be controlled in PreSonus' free UC Surface control software, so even if you use third-party recording software, you can remotely access them. We even included a real-time analyzer to monitor your audio streams. UC Surface has rapidly won accolades for an intuitive mixing interface that provides quick access to everything you need.

    Now includes Studio Magic plug-in suite!
    This suite of plug-ins brings extended sonic functionality into Studio One. Cherry-picked from the first names in virtual instruments and effects, each one brings a different flavor of practical magic to your songs. These plug-ins aren't gimmicky one-trick ponies - these are real-deal workhorses that you'll find yourself relying on for countless mixes.

    • Features:

      • 26x32 Thunderbolt 2 ultra-low-latency audio interface
      • PreSonus' fastest interface; record direct to DAW (no DSP)
      • Stack up to four Quantum interfaces via Thunderbolt for a monster system
      • Talkback switch and internal Talkback microphone
      • Mute/Dim and Mono switches
      • Assignable output level control
      • 10 8-segment LED meters (8 input, 2 output)

    • Specifications:

      • Microphone Preamp
      • Type: XLR Female (via Combo), Balanced
      • Maximum Input Level: +10 dBu (Balanced, min. gain)
      • Gain Control Range: 60 dB
      • Frequency Response: 20 Hz to 20 kHz (±0.15 dB, unity gain, 48 kHz); 20 Hz to 40 kHz (±0.22 dB, unity gain, 96 kHz)
      • Dynamic Range: > 110 dB (A-wtd, min. gain)
      • Total Harmonic Distortion: < 0.005% (1 kHz, min. gain)
      • EIN: < -131 dBu (max gain, 40O, 22 kHz BW, A-wtd)
      • Input Impedance: 1.6 kΩ
      • Phantom Power: +48V, > 8 mA per input

        Instrument Inputs
      • Type: ¼" TS Female (via Combo), Unbalanced
      • Maximum Input Level: +15 dBu (Unbalanced, min. gain)
      • Gain Control Range: 60 dB
      • Frequency Response: 20 Hz to 20 kHz (±0.2 dB, unity gain, 48 kHz); 20 Hz to 40 kHz (±0.6 dB, unity gain, 96 kHz)
      • Dynamic Range: > 106 dB (A-wtd, min. gain)
      • Total Harmonic Distortion: < 0.005% (1kHz, min. gain)
      • Input Impedance: > 1 MΩ

        Line Inputs
      • Type: ¼" TRS Female (via Combo), Balanced
      • Maximum Input Level: + 18 dBu (Balanced, min. gain)
      • Frequency Response: 20 Hz to 20 kHz (±0.05 dB, unity gain, 48 kHz); 20 Hz to 40 kHz (±0.10 dB, unity gain, 96 kHz)
      • Dynamic Range: > 118 dB (A-wtd, min. gain)
      • Total Harmonic Distortion: < 0.005% (1 kHz, min. gain)
      • Input Impedance 10 kΩ

        Main and Line Outputs
      • Type: ¼" TRS Female, impedance balanced
      • Maximum Output Level: +18 dBu (Balanced)
      • Frequency Response: 20 Hz to 20 kHz (±0.05 dB, unity gain, 48 kHz); 20 Hz to 40 kHz (±0.15 dB, unity gain, 96 kHz)
      • Dynamic Range: > 118 dB (A-wtd)
      • Total Harmonic Distortion: < 0.0035% (1 kHz, +4 dBu)
      • Output Impedance: 51Ω

        Headphone Outputs
      • Type: ¼" TRS Female, Stereo, Unbalanced, x2
      • Maximum Output Level: 175 mW/channel (56O load)
      • Frequency Response: 20 Hz to 20 kHz (±0.5 dB, 48 kHz)
      • Dynamic Range: > 110 dB (A-wtd)
      • Total Harmonic Distortion: < 0.03% (1 kHz)
      • Headphone Impedance (working range): 16Ω to 300Ω

        Crosstalk
      • Input to Input: < -110 dB
      • Output to Output: < -115 dB
      • Input to Output: < -120 dB

        Digital Audio
      • Connection Type: Thunderbolt 2
      • ADC Dynamic Range: 120 dB (A-wtd)
      • DAC Dynamic Range: 120 dB (A-wtd)
      • Bit Depth: 24 bits
      • Internally Supported Sample Rates: 44.1, 48, 88.2, 96, 176.4, 192 kHz

    • GTIN:

      0673454005718
