    STUDIOLIVE 1602 USB - Overview

    Small size. Bigger possibilities.

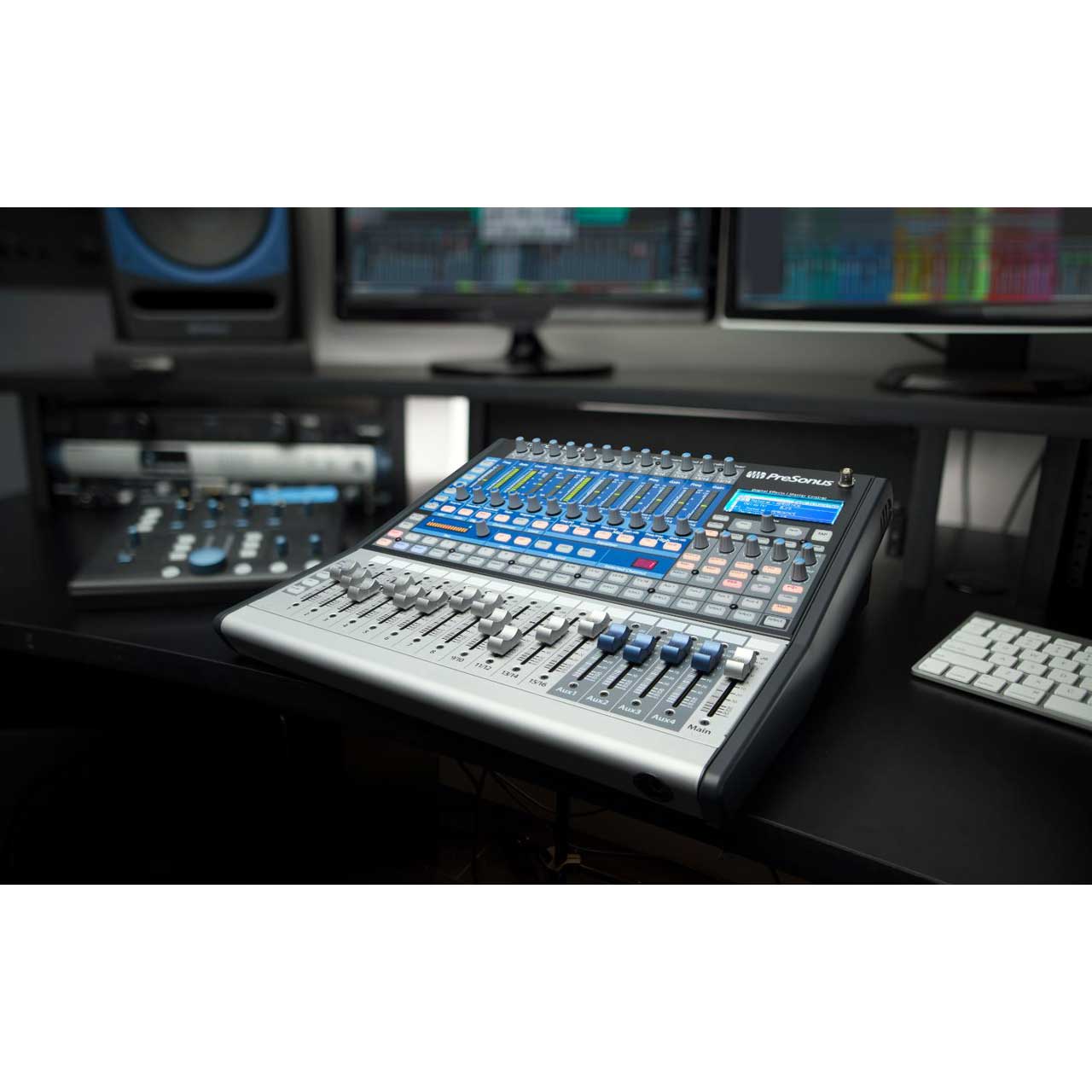

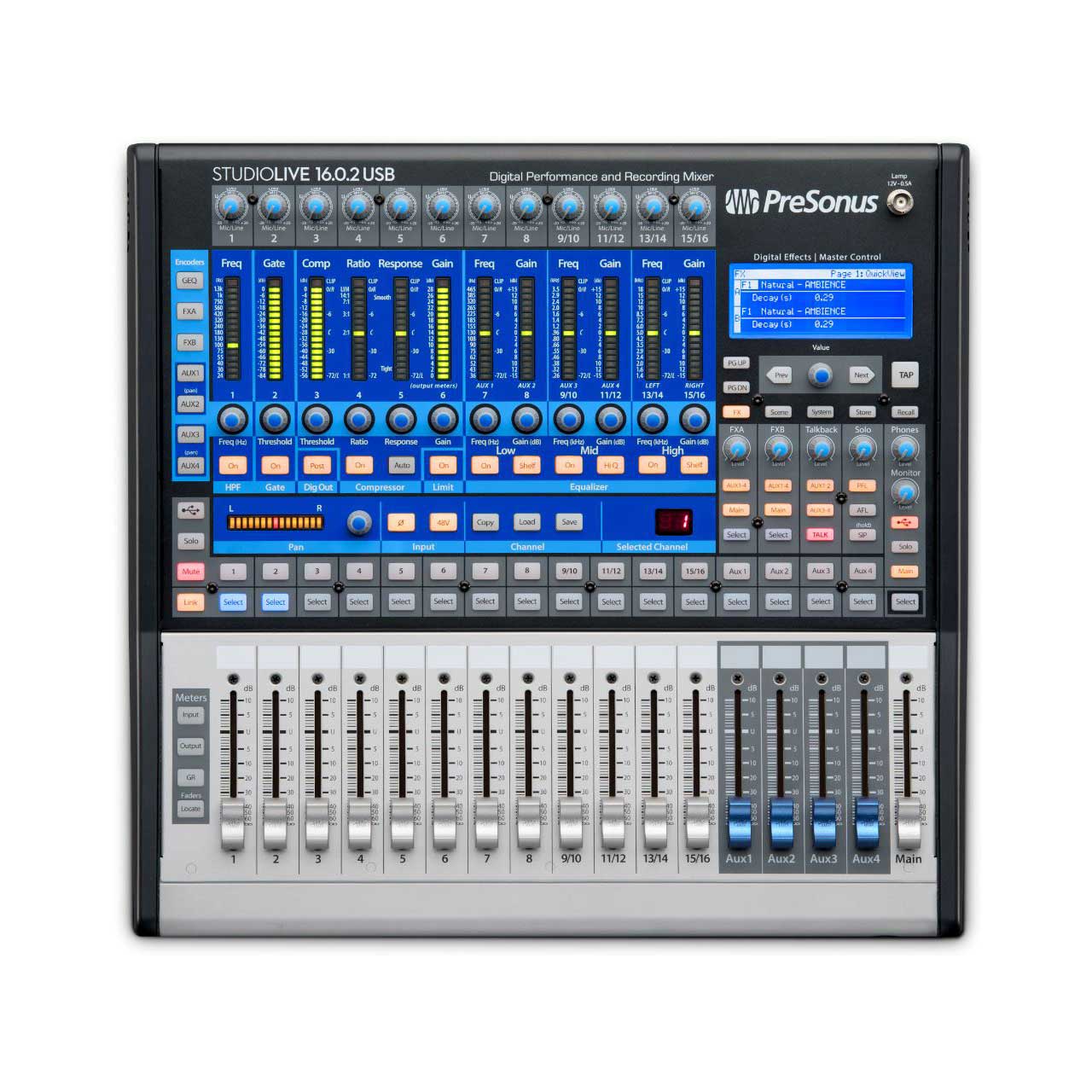

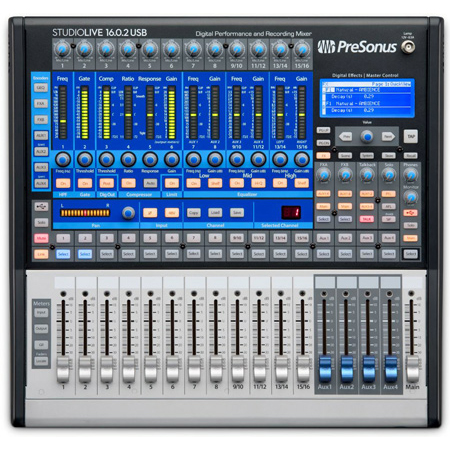

    In a footprint of less than 2 square feet (0.19 square meters), the PreSonus compact, 16-channel StudioLive 16.0.2 USB offers 8 mono input channels, 4 stereo channels, and 4 aux buses, each with a high-quality, 60 mm fader. You get generous analog I/O, 12 XMAX Class A solid-state mic preamps, a Talkback input with Class A mic preamp, extensive signal processing with physical controls, MIDI control, accurate metering, and a built-in multichannel recording interface. As with all StudioLive mixers, the 16.0.2 USB comes with a suite of tightly integrated recording, control, and audio analysis software. And it's so lightweight and compact that you can easily hold it in one hand and tuck it under your arm.

    You'll never run out of signal processors.
    StudioLive 16.0.2 USB mixers provide plenty of DSP power, with no limitations, no shared resources, no figuring out what processing is available where. You have all of the processing available at all times, with no compromises or caveats. The unique Fat Channel provides a compressor, limiter, expander, and 3-band semi-parametric EQ on every channel and bus; a highpass filter on each channel; phase reverse for the channel mic preamps; a library of professionally crafted presets; and the ability to save and selectively recall processor settings. A stereo, 31-band graphic EQ sits on the main bus. To top it off, you get two 32-bit delay/reverb effects processors, each with its own dedicated mix bus and a library of useful effects presets.

    Superior sound.
    Connect a StudioLive 16.0.2 USB mixer and you'll instantly hear details and clarity you'd expect to find only in a much more expensive console. StudioLive mixers operate at up to 48 kHz for high-definition mixing and recording. High-quality Burr-Brown converters on every input and output provide a best-in-class 118 dB of dynamic range so you'll catch every high and low with great accuracy and no audible distortion. And our XMAX microphone preamps deliver incredibly high headroom, deep lows, smooth highs, and a rich overall sound.

    • Features:

      • 8 mono and 4 stereo channel inputs with 60 mm faders (12 faders)
      • 12 Class A XMAX solid-state mic preamplifiers
      • 4 auxiliary buses (pre/post-fader send) and 2 internal FX buses
      • 2 stereo 32-bit digital effects processors
      • Fat Channel signal processing on all channels and buses, with 3-band semi-parametric EQ, compressor, downward expander, and limiter
      • Stereo, 31-band graphic EQ on the main bus
      • 18-in/16-out USB 2.0 audio interface (24-bit/44.1 kHz and 48 kHz) records all channels and main L/R mix
      • Scene and individual settings store and recall
      • MIDI I/O: control main and effects output levels, recall effects presets and Scenes, and serve as a MIDI interface
      • Software library includes PreSonus Studio One Artist DAW and Capture live-recording software for Mac and Windows and UC Surface mixer-control software for Mac, Windows, and iPad. QMix-UC touch wireless aux-control software for iPhone, iPod touch, and Android are also available free.

    • Specifications:

      • Microphone Preamp
      • Type: XLR Female, Balanced
      • Frequency Response to Direct Output (at unity gain): 20 Hz-20 kHz, 0 / -0.5 dBu
      • Frequency Response to Main Output (at unity gain): 20 Hz-20 kHz, ±0.5 dBu
      • Input Impedance (Balanced): 1 kΩ
      • THD to Direct Output (1 kHz at unity gain): <0.005%, +4 dBu, 20 Hz-20 kHz, unity gain
      • THD to Main Output (1 kHz at unity gain): 0.005%, +4 dBu, 20 Hz-20 kHz, unity gain
      • EIN to Direct Output: +125 dB +130 dB A-wtd
      • S/N Ratio to Direct Output (Ref = +4 dB, 20 kHz BW, unity gain, A-wtd): -102 dB
      • S/N Ratio to Main Output (Ref = +4 dB, 20 kHz BW, unity gain, A-wtd): -95 dB
      • Common Mode Rejection Ratio (1 kHz at unity gain): +65 dB
      • Gain Control Range (± 1 dB): -16 dB to +67 dB
      • Maximum Input Level (unity gain): +16 dBu
      • Phantom Power (± 2 VDC): +48 VDC

        Line Inputs, Balanced
      • Type: ¼" TRS Female, balanced mono
      • Frequency Response to Direct Outputs (at unity gain): 10 Hz-20 kHz, 0 / -0.5 dBu
      • Frequency Response to Main Outputs (at unity gain): 20 Hz-20 kHz, 0/-0.5 dBu
      • Input Impedance: 10 kΩ
      • THD to Direct Output (1 kHz at unity gain): <0.0007%, +4 dBu, 20 Hz-20 kHz, unity gain
      • THD to Main Output (1 kHz at unity gain): <0.005%, +4 dBu, 20 Hz-20 kHz, unity gain
      • S/N Ratio to Direct Output (Ref = +4 dBu, 20 kHz BW, unity gain, A-wtd): -105 dB
      • S/N Ratio to Main Output (Ref = +4 dBu, 20 kHz BW, unity gain, A-wtd): -95 dB
      • Gain Control Range (± 1 dB): -20 dB to +20 dB
      • Maximum Input level (unity gain): +22 dBu
      • Line Inputs, Unbalanced: Type - RCA Female, unbalanced (stereo pair)
      • Maximum Input Level: +22 dBu

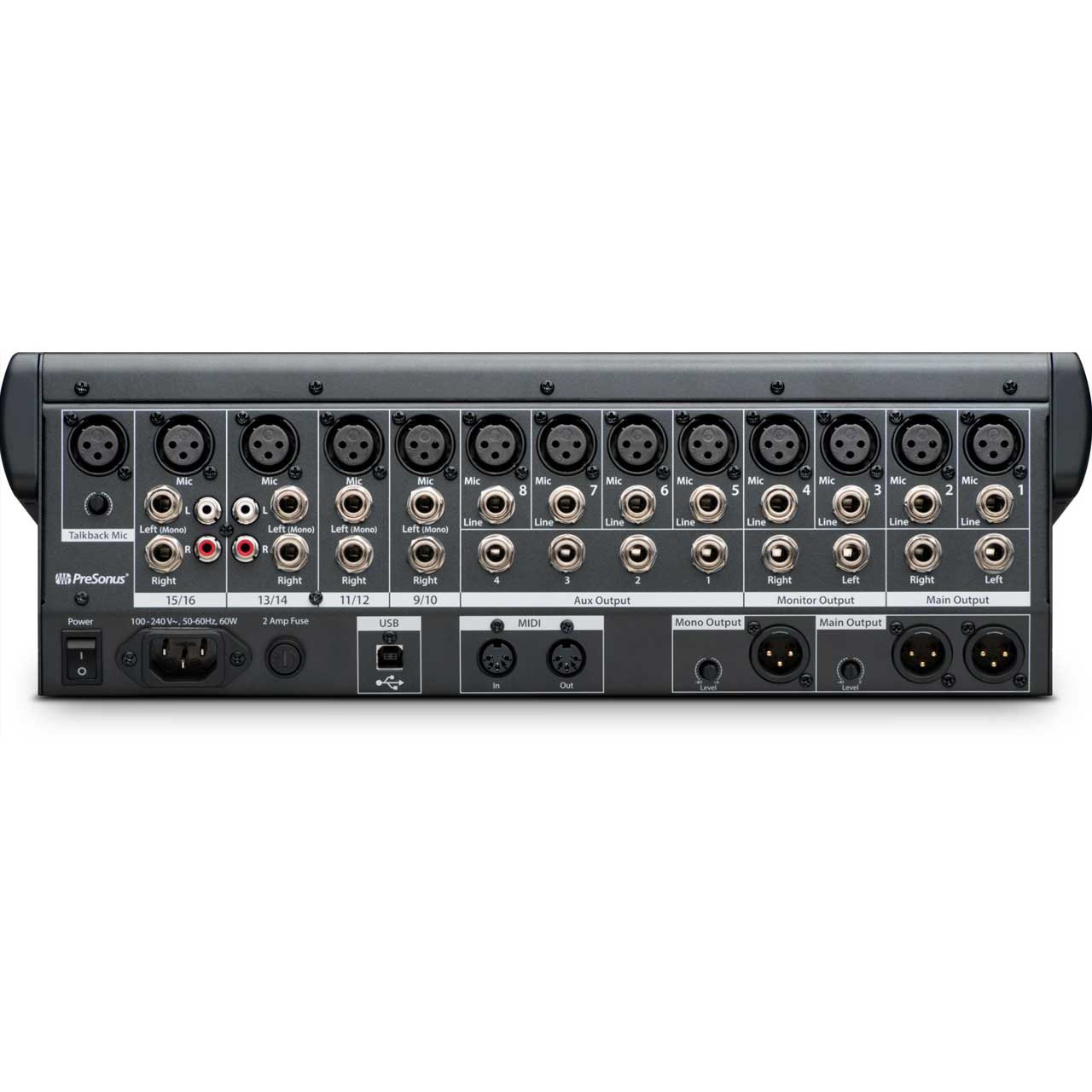

        Outputs
      • Main Outputs: XLR Male, balanced (stereo pair); ¼" TRS Female, balanced (stereo pair)
      • Rated Output Level: +24 dBu
      • Output Impedance: 100Ω
      • Aux Outputs: ¼" TRS Female, balanced (mono)
      • Rated Output Level: +18 dBu
      • Output Impedance: 100Ω
      • Monitor Outputs: ¼" TRS Female, balanced (stereo pair)
      • Rated Output Level z: +18 dBu
      • Output Impedance: 100Ω

        System Crosstalk
      • Input to Output (Ref = +4 dBu, 20 Hz-20 kHz): -90 dBu
      • Adjacent Channels (Ref = +4 dBu, 20 Hz-20 kHz): -87 dBu

        Noise Gate (Expander)
      • Threshold Range: -84 dB to 0 dB
      • Attack Time: Adaptive (0.2 - 2.5 ms)
      • Release Time: 70 ms
      • Expander Attenuation Range: 2:1

        Compressor
      • Threshold Range: -56 dB to 0 dB
      • Ratio: 1:1 to 14:1
      • Response Time (Attack/Release): 0.2 ms / 1.0s ("Tight") to 180 ms / 1.0s ("Smooth")
      • Auto Attack and Release: Attack = 10 ms, Release = 150 ms
      • Curve Types: hard and soft knee

        EQ
      • Type: 2nd-order shelving filter (Q = 0.55)
      • Low (Low-pass or Bandpass): 36 to 465 Hz, ±15 dB
      • Mid: 260 Hz to 3.5 kHz, ±15 dB
      • High (High-pass or Bandpass): 1.4 kHz to 18 kHz, ±15 dB

        Digital Audio
      • Host Interface: USB 2.0
      • ADC/DAC Dynamic Range (A-wtd, 48 kHz): 118 dB
      • Internal Processing: 32-bit, floating point
      • Sampling Rate: 44.1, 48 kHz
      • A/D/A Bit Depth: 24 bits
      • Reference Level for 0 dBFS: +18 dBu

        Physical
      • Connector: IEC
      • Input-Voltage Range: 100 to 240 VAC
      • Power Requirements (continuous): 100W
      • Dimensions (L x W x H): 15.56 x 16 x 5.5 Inches
      • Weight: 20 lbs.

    • GTIN:

      0673454006210
