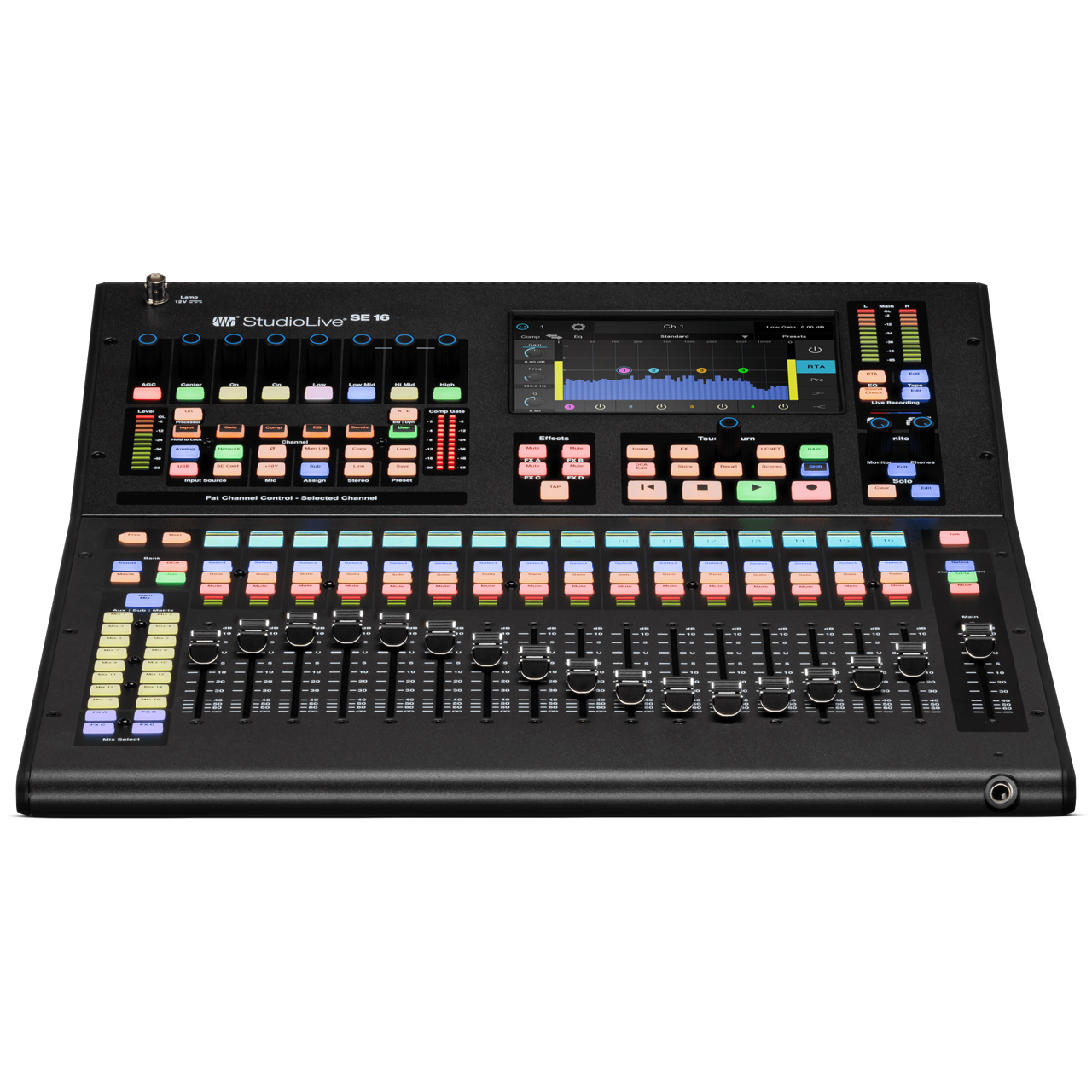

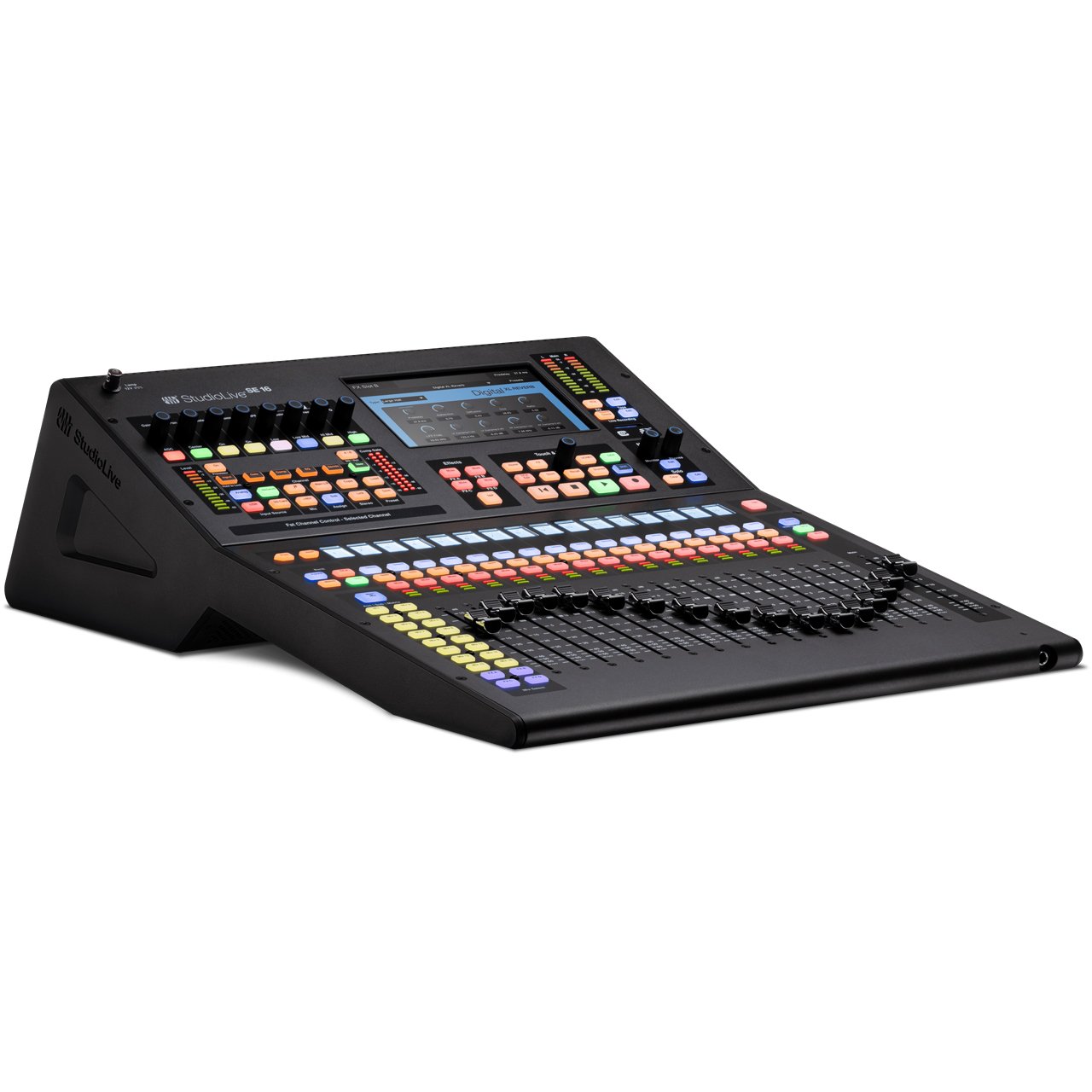

PreSonus StudioLive Series III SE 16 40-Channel 26-Bus Digital Console Mixer with 17 Motorized Faders/64x64 USB Audio

2779200308 - Overview

40-Channel, 26-Bus Digital Mixer with 17 Motorized Faders, 64x64 USB Audio Interface, and Milan-certified AVB Audio Networking with Studio One Pro and Capture software

• Features:

  • Record every channel and mix with the onboard SD recorder or 64x64 USB audio interface
  • One-click Virtual Soundcheck with Capture
  • Seamless compatibility with Studio One Pro and leading DAWs
  • 17 XMAX-Remote preamps for transparent analog tone and digital recall
  • 32-bit floating-point DSP processing
  • 115 dB A/D-D/A converters with ultra-low jitter clocking
  • 16 FlexMixes configurable as auxes, subgroups, or matrix mixes
  • AVB networking with StudioLive Stage Boxes and Milan-compatible gear
  • Four dedicated effects buses, four subgroups, and 24 DCAs
  • Dynamic Fat Channel design with 8 scribble strip displays for fast visual access and customization
  • All 7 EQs and 8 Compressors from the Fat Channel Collection included
  • Modeled after iconic hardware: Brit Comp, FC-670, Tube EQ, and more
  • Extended reverb parameters: Diffusion, Predelay, Room Size, and advanced damping
  • Control every aspect of your mix remotely-from routing to effects
  • Provide technical support and reconfiguration remotely
  • Use QMix-UC for personal monitor mixing from mobile devices
  • 17 touch-sensitive motorized faders deliver smooth automation and tactile mixing
  • Ergonomic flat screen and redesigned fader caps for maximum visibility and comfort


• Specifications:

  Electronics
  • Headphone Jack: ¼" TRS Active Stereo
  • Phantom Power: +48VDC (±2VDC)
  • Power Consumption: 85W (Continuous)
  • Voltage Requirements: 100V - 230VAC, 50-60Hz

    General
  • Color: Black
  • Series: StudioLive

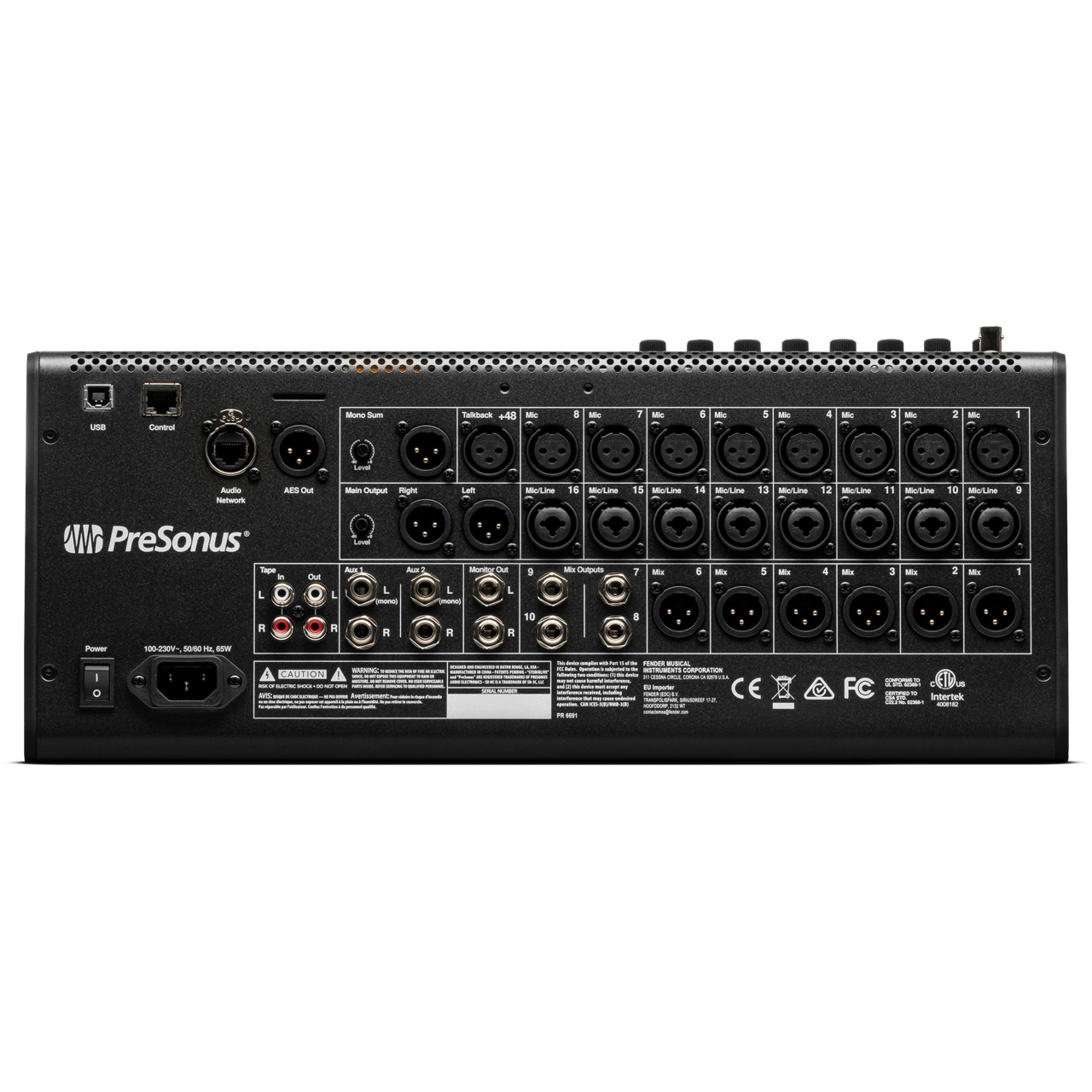

    Hardware
  • Digital Audio:
    - AES EBU Output: XLR Male
    - AVB Audio Network Ports: Neutrik etherCONN
    - Network Control Port: RJ-45
    - USB Recording Port: USB 2.0, Type-B
  • Tape Connection Type: RCA Female, Unbalanced (Stereo Pair)

    Inputs
  • Line Input Connection Type: ¼" TRS Female, Balanced
  • Line Inputs:
    - Frequency Response: 20Hz - 20kHz (±0.5dBu at Unity Gain)
    - Impedance: 10kΩ
    - Maximum Level: =+18dBu
    - Signal To Noise Ratio: 94dB (Ref =+4dB, 20kHz BW, Unity Gain, A-Weighted)
    - Total Harmonic Distortion: < 0.005%, +4dBu, 20Hz - 20kHz, Unity Gain, Unweighted
  • Microphone Input Connection Type: XLR Female, Balanced
  • Microphone Preamp:
    - Common Mode Rejection Ratio: 65dB (1kHz at Unity Gain)
    - Frequency Response: 20Hz - 20kHz (±0.5dBu at Unity Gain)
    - Gain Control Range: 0dB - 60dB (±1dB)
    - Input Impedance: 1kΩ
    - Maximum Input Level: =+12dBu (Unity Gain)
    - Signal To Noise Ratio: 94dB (Ref = +4dB, 20kHz BW, Unity Gain, A-Weighted)
    - Total Harmonic Distortion: < 0.005%, +4dBu, 20Hz - 20kHz, Unity Gain, Unweighted
  • Tape Maximum Input Level: +12dBu, ±0.5dBu

    Measurements
  • Media Storage Capacity:
    - SD Card: 2GB
    - SDHC Card: 32GB
  • Product Depth: 22.97" x 17.59 x 6.51" (583.84mm x 165.36mm x 165.36mm)
  • Product Weight: 23.15lbs (10.5kg)
  • Refinement Weight: 25-under

    Miscellaneous
  • Digital Audio Internal Processing: 32-Bit, Floating Point
  • Power Cable: IEC
  • Recommended Ambient Operating Temp: 32°F - 104° F (0°C - 40°C)
  • Recording File Format: WAV
  • Supported Media Format: FAT16 Formatted SD Card, FAT32 Formatted SDHC Card
  • Supported Sample Rates: 48kHz, 44.1kHz

    Output
  • Headphone Outputs:
    - Frequency Response: 20Hz - 20kHz, ±0.5dB
    - Maximum Output: 100mW/ch. @ 60Ω load
    - Signal To Noise Ratio: 96dB, 1kHz, Maximum Gain, 20Hz BW, Unweighted
    - Total Harmonic Distortion: 0.01%, 1kHz, Maximum Gain, 20Hz BW, Unweighted
  • Line Outputs:
    - Connection Type: ¼" TRS Female, Balanced
    - Maximum Output Level: =+18dBu, ±0.5dBu
    - Output Impedance: 100Ω
  • Tape Maximum Output Level: +18dBu, ±0.5dBu
  • Tape Output Impedance: 100Ω
  • XLR Outputs:
    - Maximum Output Level: +24dBu, ±0.5dBu
    - Impedance: 100&ohm

    Performance
  • Crosstalk (Adjacent Channels): -87 dB (Reference = +4dBu, 20Hz - 20kHz, Unweighted)
  • Digital Audio:
    - Bit Depth: 24
    - Dynamic Range: ADC Dynamic Range: 115dB (A-Weighted, 48kHz), DAC Dynamic Range: 115dB (A-Weighted, 48kHz)
    - Reference Level For Zero dBFS: +18dBu
    - Total System Latency: 1.9ms (local routing, analog in-analog out, all processing active)
  • SD Recorder Bit Depth: Recording: 24 Bit, Playback: 16 or 24 Bit
  • SD Recorder Sampling Rate: 44.1kHz or 48kHz


• Item Includes:

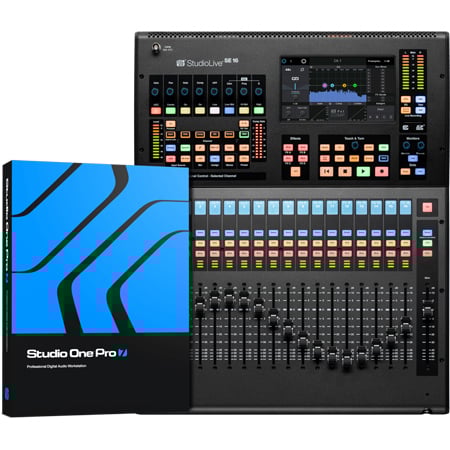

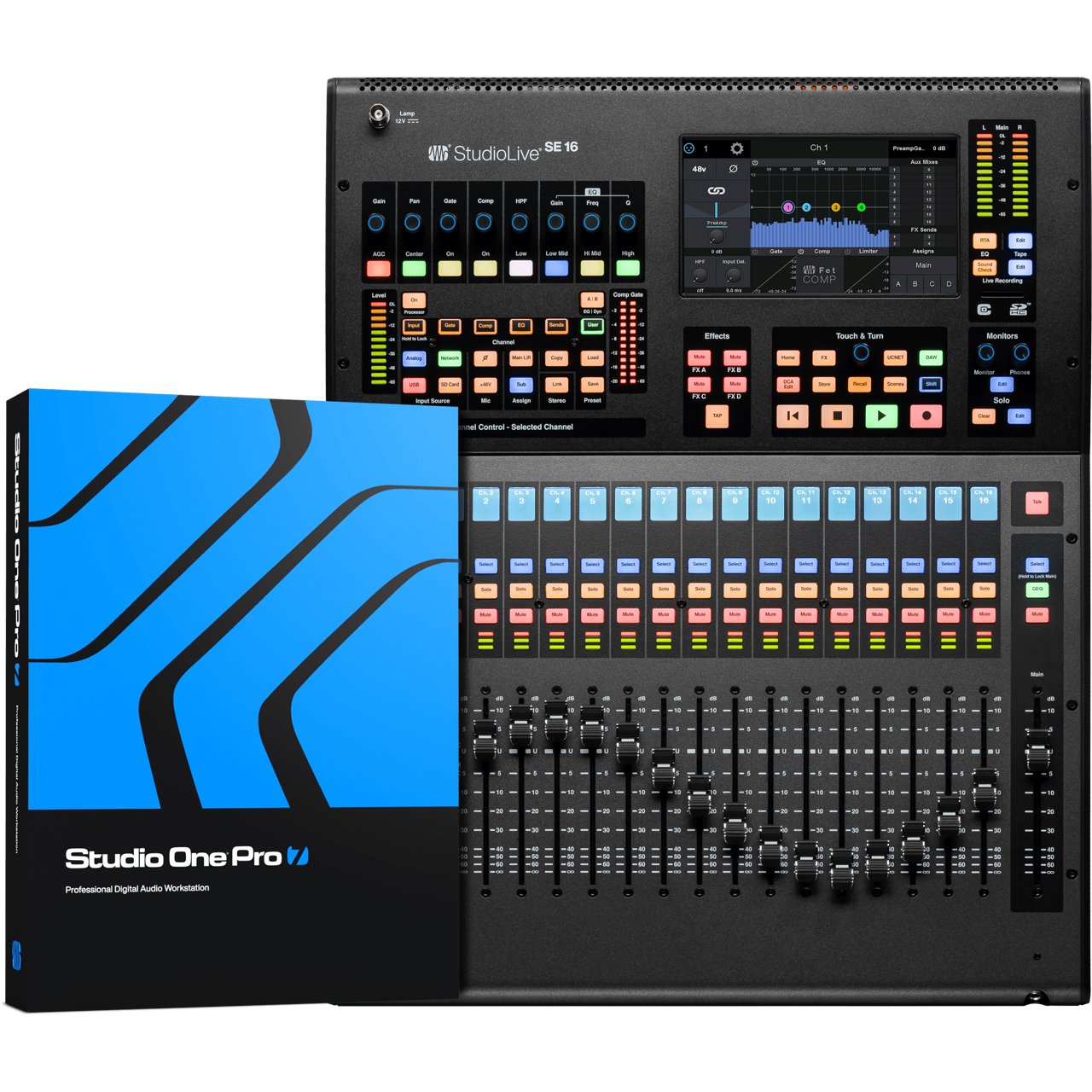

  • 1x StudioLive Series III SE 16
  • 1x Studio One Pro Software


• GTIN:

  0673454013003
