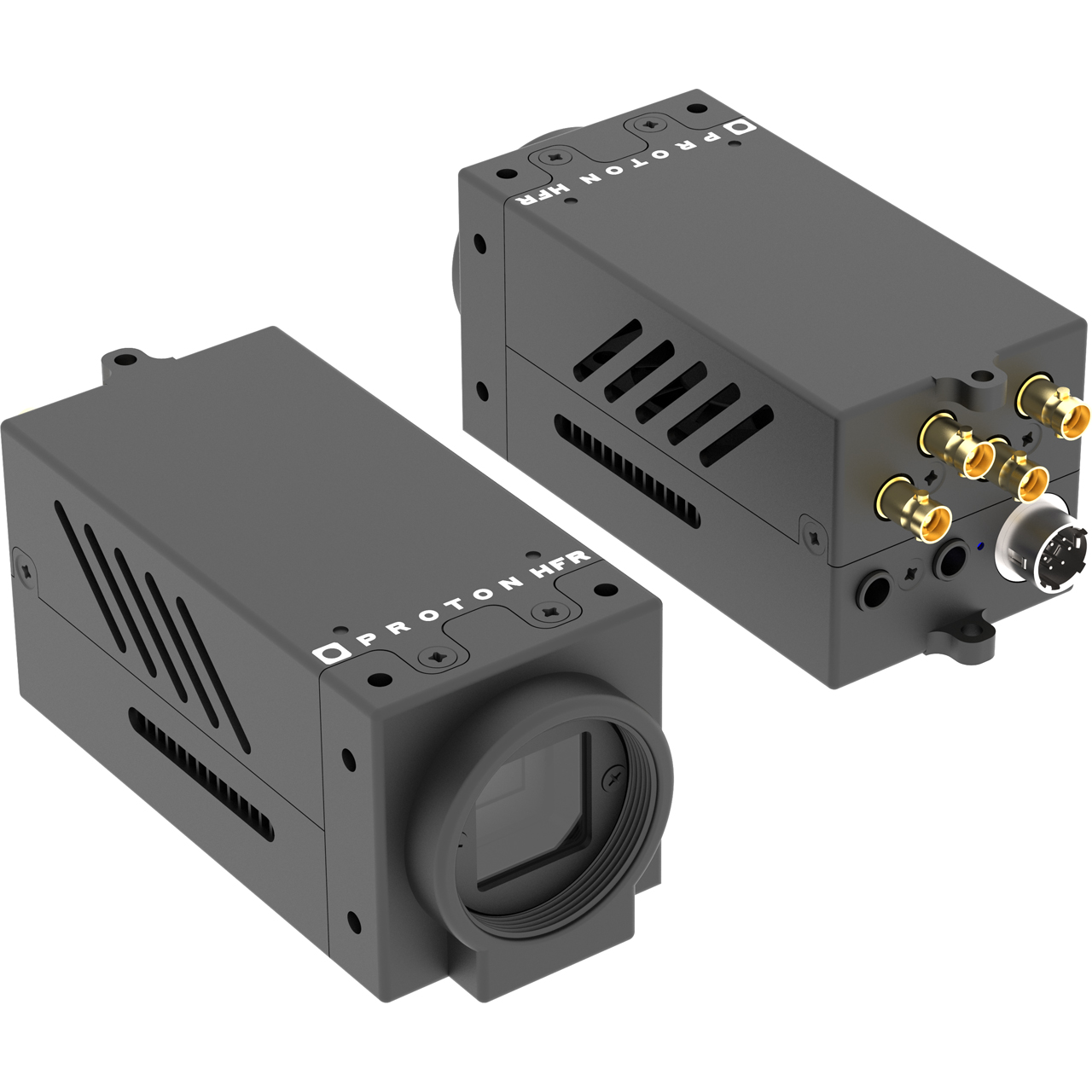

Proton PCI-HFR Compact HFR Broadcast Camera -4 x 3G-SDI- No Lens - Detachable Head

PROTON-PCI-HFR - Overview

• Features:

  • High 12-bit dynamic 1080p
  • HDR compliant - HLG, PQ and S-log3
  • High sensitivity - Low noise, less light required
  • Lowest operational voltage (12V - 25V)
  • Lowest Power 15W
  • Detachable head


• Specifications:

  • Dimensions (LxWxH): 1.42" x 1.42" x 3.35" (36mm x 36mm x 85mm)
  • Weight: 0.331lbs (150g)
  • Operation Voltage: 12V - 30V (Camera has reverse polarity protection)
  • Power: 16W (P60/P240)
  • Operational Temperature: -22°F - 140°F (-30°C - 60°C)
  • Lens Mount: C mount with CS mount support (Lens sold separately)
  • Sensor:
    - 2/3" 1920x1080 4.5µm pixel
    - 8.64mm x 4.86mm - 11mm diagonal
    - 12-bit dynamic (72dB)
  • Shutter: 6µs - 1/FPS
  • Video Modes:
    - 1-4 phases 1920x1080 SDI 1.5G/3G
    - P23, P24, P25, P29, P30, P50, P59, P60
    - Optional: 4K 12G SDI SQD or 2SI mode
  • Audio:
    - 2x 3.5mm stereo microphone audio socket
    - 48kHz sampling rate 24 bit
    - 80dBA Signal-to-Noise-Ration


• Item Includes:

  • 1x PCI-HFR


• Warranty:

  • 6 Month Limited Warranty
