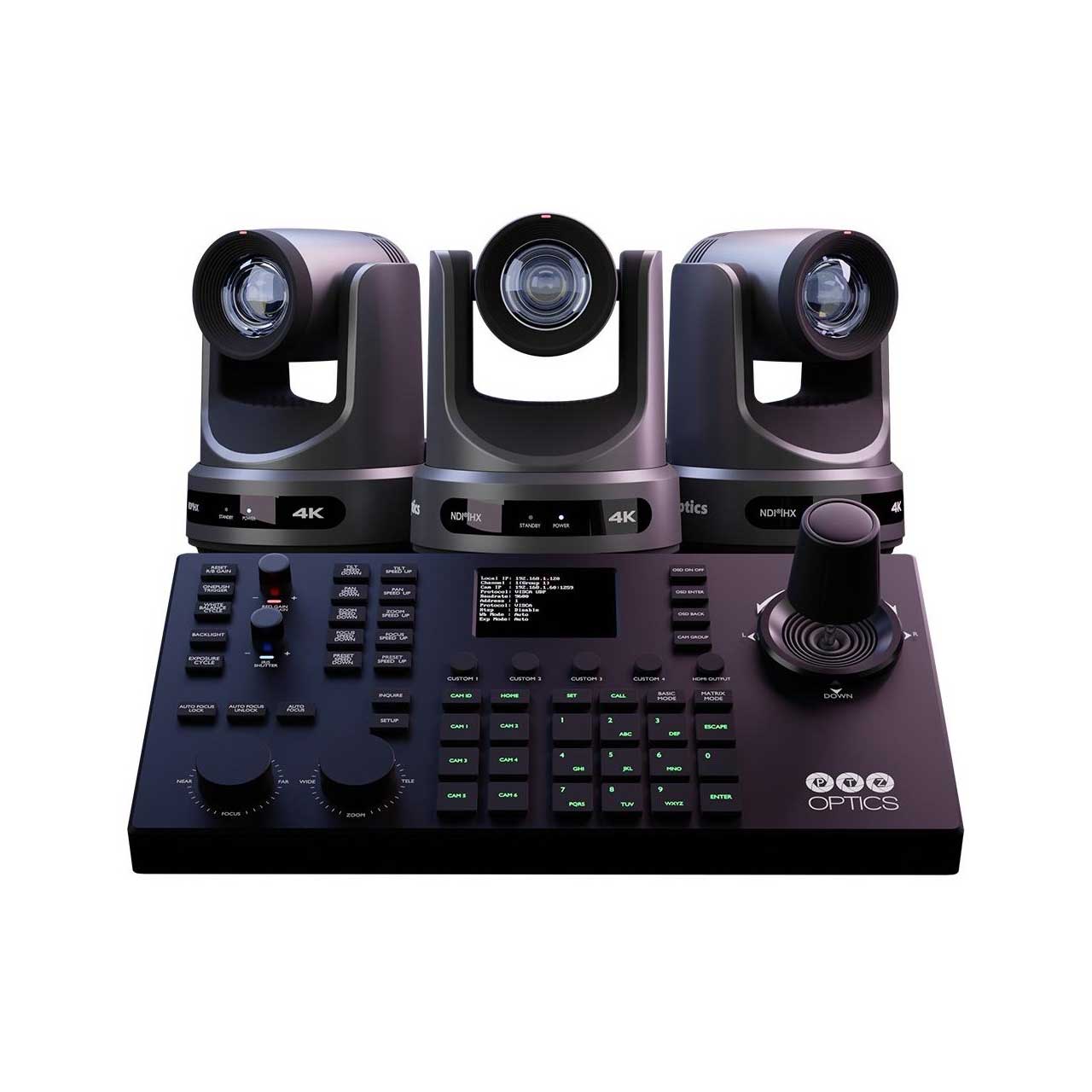

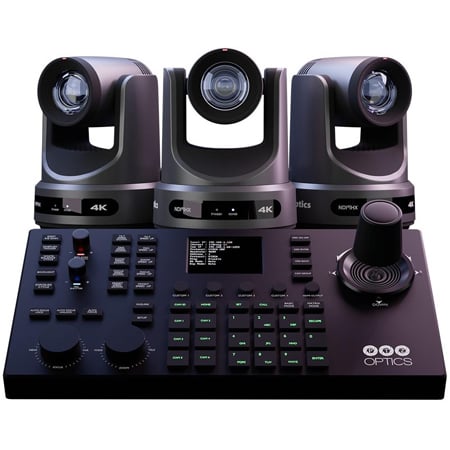

PTZOptics PT20X4K-PRODUCER-SJOY Producer 3x Move 20x Zoom 4K PTZ Cameras and 1x PT-SUPERJOY PTZ Controller Bundle

ITEM #: PT20X4KPRODSJOY MFG #: PT20X4K-PRODUCER-SJOY

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
PTZOptics
Free Shipping with $49 Minimum Order

List Price:

$7,586.00

Our Price:

$6,545.00

Add to Wish ListLeasing Options
Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup
    Report Lower PriceLarge Quantity Quote

    PT20X4K-PRODUCER-SJOY - Overview

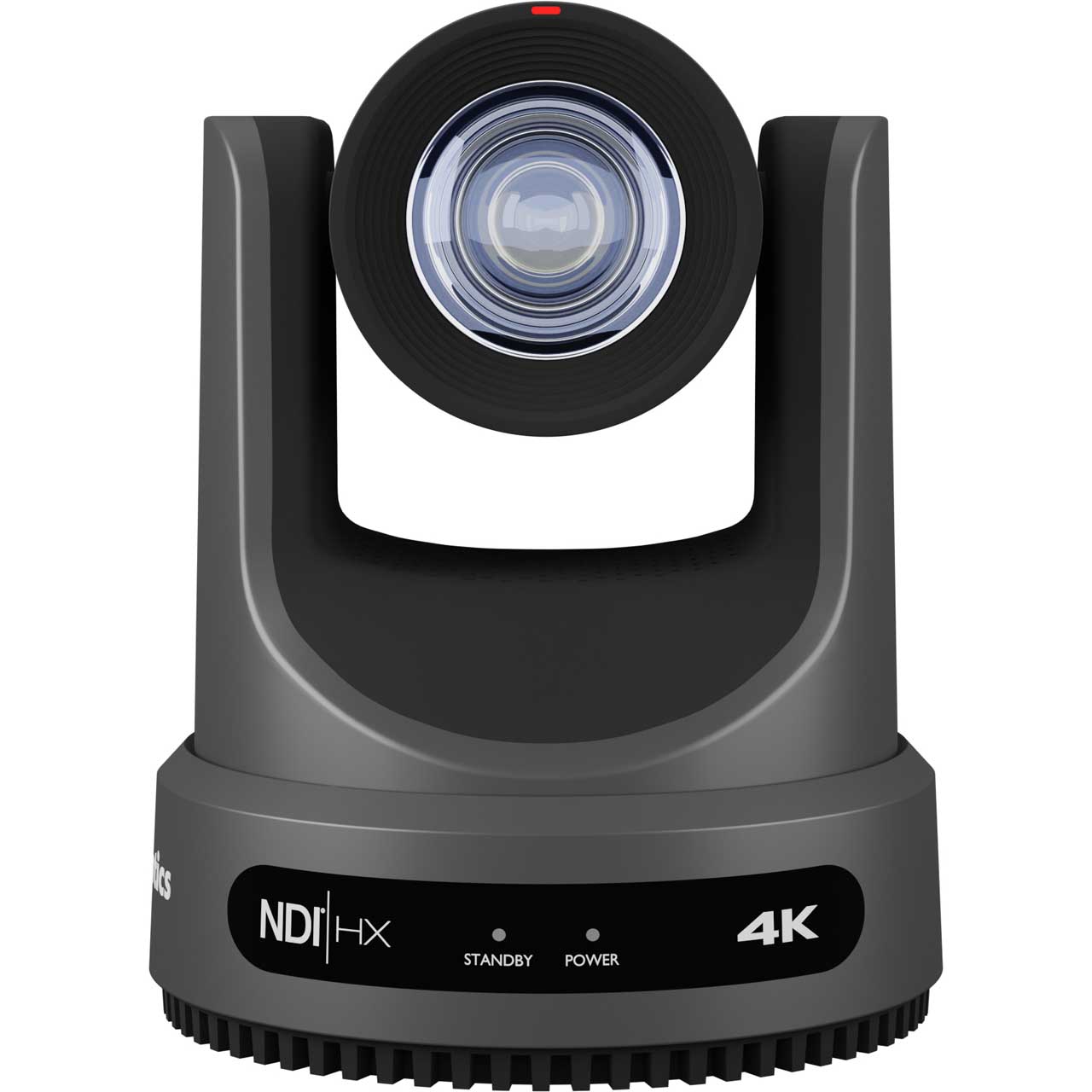

    PTZOptics Move 4K 20x Auto-Tracking PTZ Camera
    The Move 4K is the latest PTZ camera from PTZOptics, featuring auto-tracking for a more intelligent video production workflow. The Move 4K is capable of 4K at 60fps (1080p at 60fps over SDI), future-proofing your technology investment while still accommodating HD and Full HD video resolutions equipment. The Move 4K offers high performance in low-light scenarios, PoE+ capabilities, and a built-in tally light.

    Designed with the Future in Mind
    Every Move 4K camera features SDI, HDMI, USB, and IP output, and comes native with NDI|HX for unparalleled performance and versatility. The Move 4K offers built-in auto-tracking capabilities -- no need to run software on another computer -- freeing teams of the need for a camera operator.

    Discreet Mounting Options
    Mount your PTZ Move camera above, below or beside the action to capture the ideal view every time. The new automatic video inversion feature senses the camera's orientation and saves time on installation and setup.

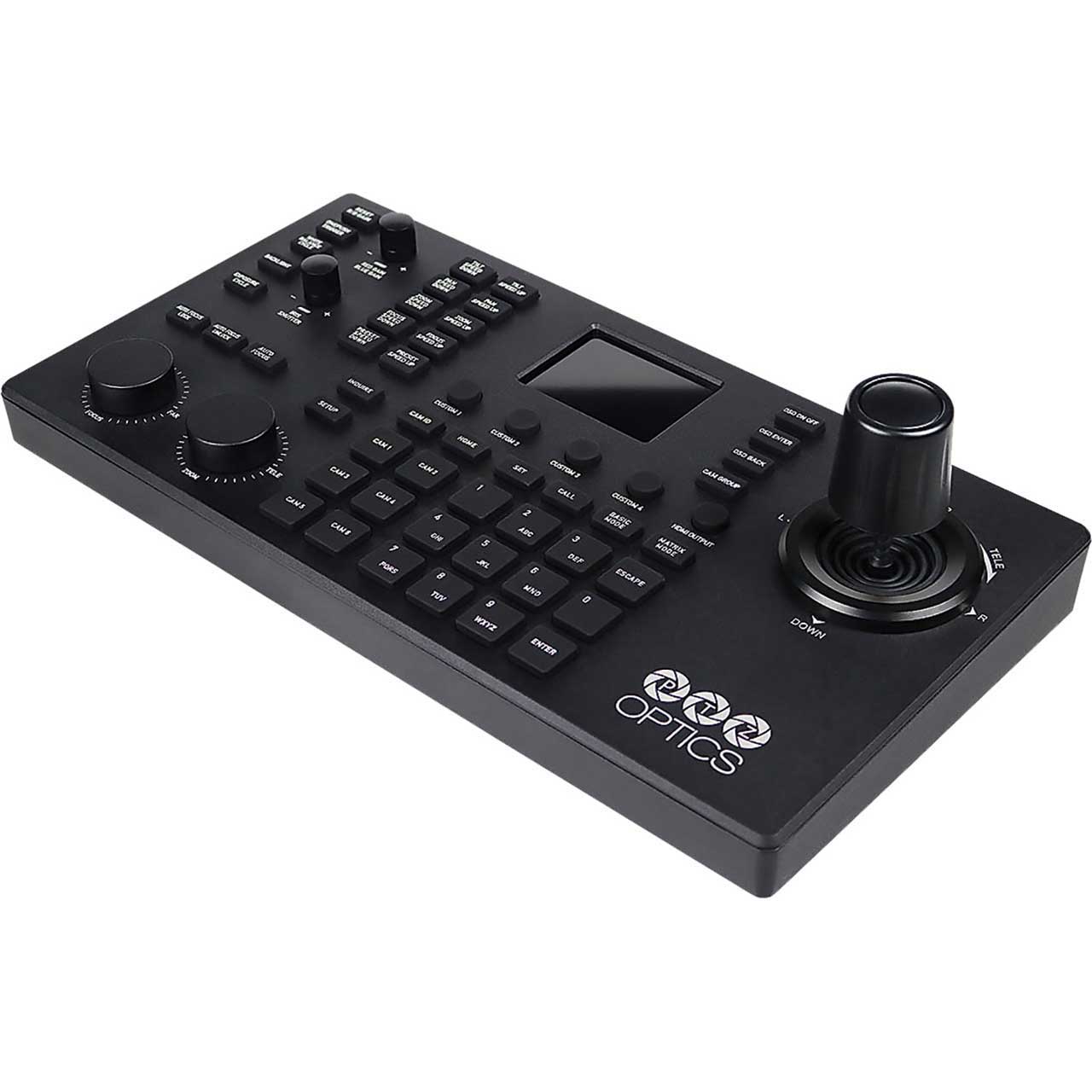

    PTZOptics PT-SUPERJOY-G1 SuperJoy PTZ Camera Joystick Controller
    Introducing the PTZOptics PT-SUPERJOY-G1 SuperJoy, a PTZ camera joystick controller designed for smooth, efficient production workflows. The SuperJoy takes remote pan, tilt, and zoom camera operations to the next level in a simplified user interface with advanced controls for power users.

    Custom Control Across a Variety of Cameras and Devices
    The PTZOptics SuperJoy Joystick Controller is a comprehensive solution supporting mix-and-match serial and network-based control for PTZ cameras of any generation. Simultaneous pan, tilt and zoom control across IP, NDIr and serial cameras from multiple brands including PTZOptics, HuddleCamHD, Sony, BirdDog, and NewTek

    If it's IP-controlled, chances are the SuperJoy can control it - cameras, lights, projector screens and more - using four customizable buttons

    Powerful Super-Preset buttons are programmable to trigger synchronized multi-preset commands across up to four unique camera groups with up to eight cameras each.

    • Features:

      • Built-In Auto-Tracking
      • Advanced White Balance Modes
      • Wide Dynamic Range
      • Full Frame Rates: 2160p-60/50/30/25, 1080p-60/50/30/25, 1080-60/50, 720p-60/50/30/25
      • 3D Noise Reduction
      • SRT Support
      • Up to 4K Resolution @ 60fps
      • Durable metal housing
      • PTZOptics VISCA over IP & Serial control
      • Limited NDI & Sonycontrol
      • PTZOptics Camera On Screen Display control
      • Full Pan / Tilt / Zoom camera control
      • P/T/Z Speed adjustment on the fly


    • Specifications:

      • PTZOptics Move 4K 20x Auto-Tracking PTZ Camera
      • Optical Zoom: 20x
      • Video Sensor and Frame Rate: HDMI: 3840x2160p-60/59.94/50/30/29.97/25, 1920x1080p60/59.94/50/30/29.97/25, 1920x1080i-60/59.94/50, 1280x720p-60/59.94, SDI: 1920x1080p-60/59.94/50/30/29.97/25,1920x1080i-60/59.94/50, 1280x720p-60/59.94
      • Digital Zoom: Off (3840x2160), 2X (1920x1080), 3X (1280x720), 4X (960x540), 8X (480x270), 16X (256x144)
      • Field of View: 12x: Horizontal: 6.9° (tele) ~ 72.5° (wide), Vertical: 3.9° (tele) ~ 44.8° (wide), 20x: Horizontal: 3.5° (tele) ~ 60.7° (wide), Vertical: 1.9° (tele) ~ 34.1° (wide)
      • Min. Lux: 0.5 Lux @ (F1.8, AGC ON)
      • Shutter: 1/30s ~ 1/10000s

        Pan/Tilt Movement
      • Pan Speed: 1.7° ~ 100°/s
      • Tilt Movement: +90° to -30
      • Tilt Speed: 1.7° ~ 69.9°
      • Presets: 255 Presets
      • Video Tracking: Supported
      • Image Flip, Mirror and Freeze: Supported

        Power Options
      • Power Supply: DC 12V / PoE+ (802.3at)
      • Input Power: 18W (Max)

        Physical Specifications
      • Material: Aluminum, Plastic
      • Color: Gray
      • Dimensions (W x D x H): 5.57 W x 5.94 x 7.91 in
      • Weight: 3.25 lbs
      • Working Environment: Indoor
      • Operating Temperature: 14°F ~ 104°F
      • Storage Temperature: -40°F ~ 140°F

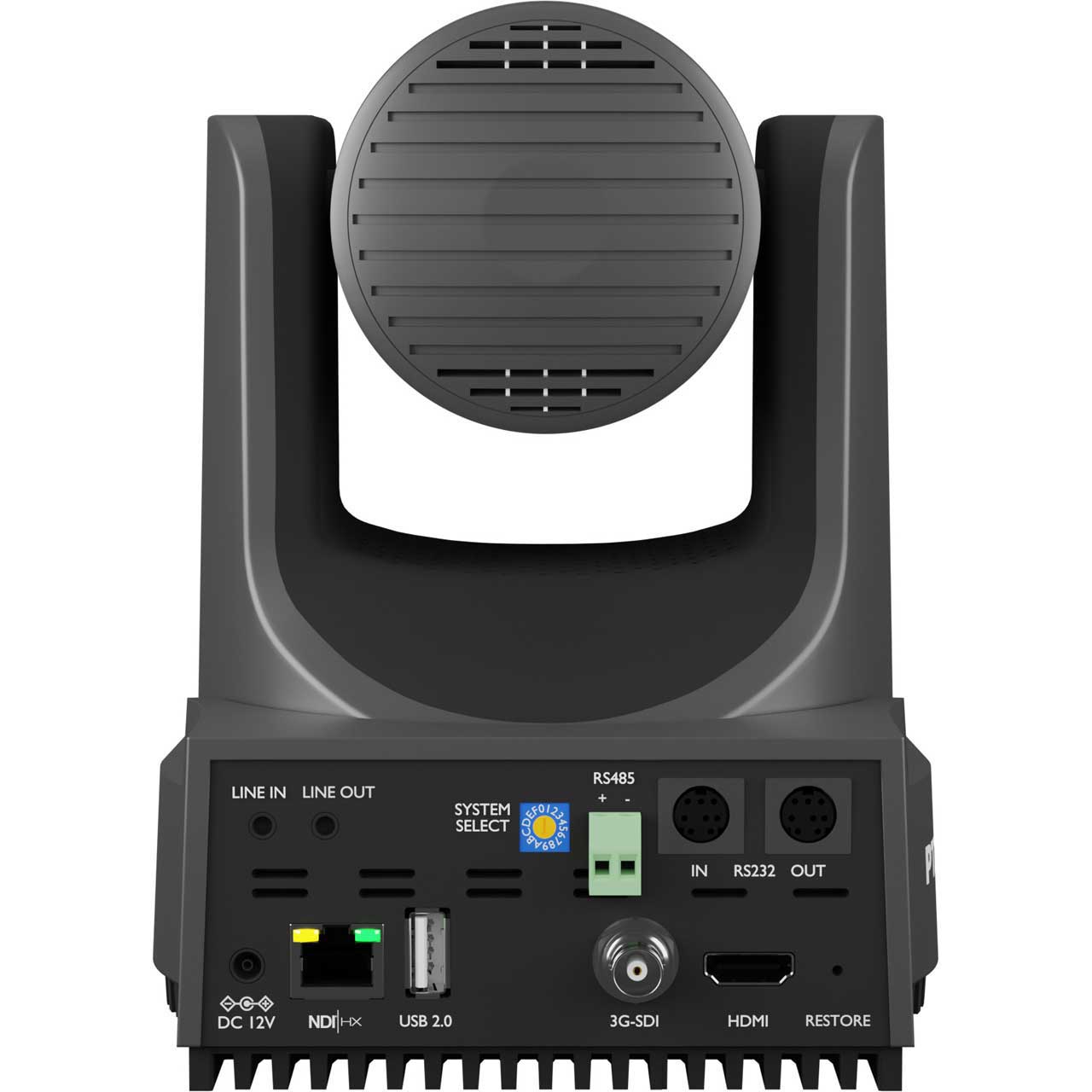

        Rear Board Connectors
      • HD Video Output: 1x RJ45: 10/100/1000M Adaptive Ethernet Port424M standard, 1x HDMI: version 2.0, 1x USB 2.0: type A, 1x 3G-SDI: BNC type, 800mVP-p, 75Ω, Along to SMPTE 424M standard
      • Audio Interface: 1x 3.5mm Line level Input
      • Communication Interface: 1x 8 pin Mini-din RS232 input, Max distance: 98.5ft / 30m, protocol: VISCA / Pelco-D / Pelco-P, 1x 8 pin Mini-din RS232 output, Max distance 98.5ft / 30m, protocol: VISCA / Pelco-D / Pelco-P, 1x 2 pin Phoenix port, RS485 input / output, Max distance 3,937ft / 1200m, protocol: VISCA / Pelco-D / Pelco-P
      • Network Interface: RJ45: 10/100/1000M Adaptive Ethernet Port, supports PoE
      • Power Jack: JEITA type (DC IN 12V)

        PTZOptics PT-SUPERJOY-G1 SuperJoy PTZ Camera Joystick Controller

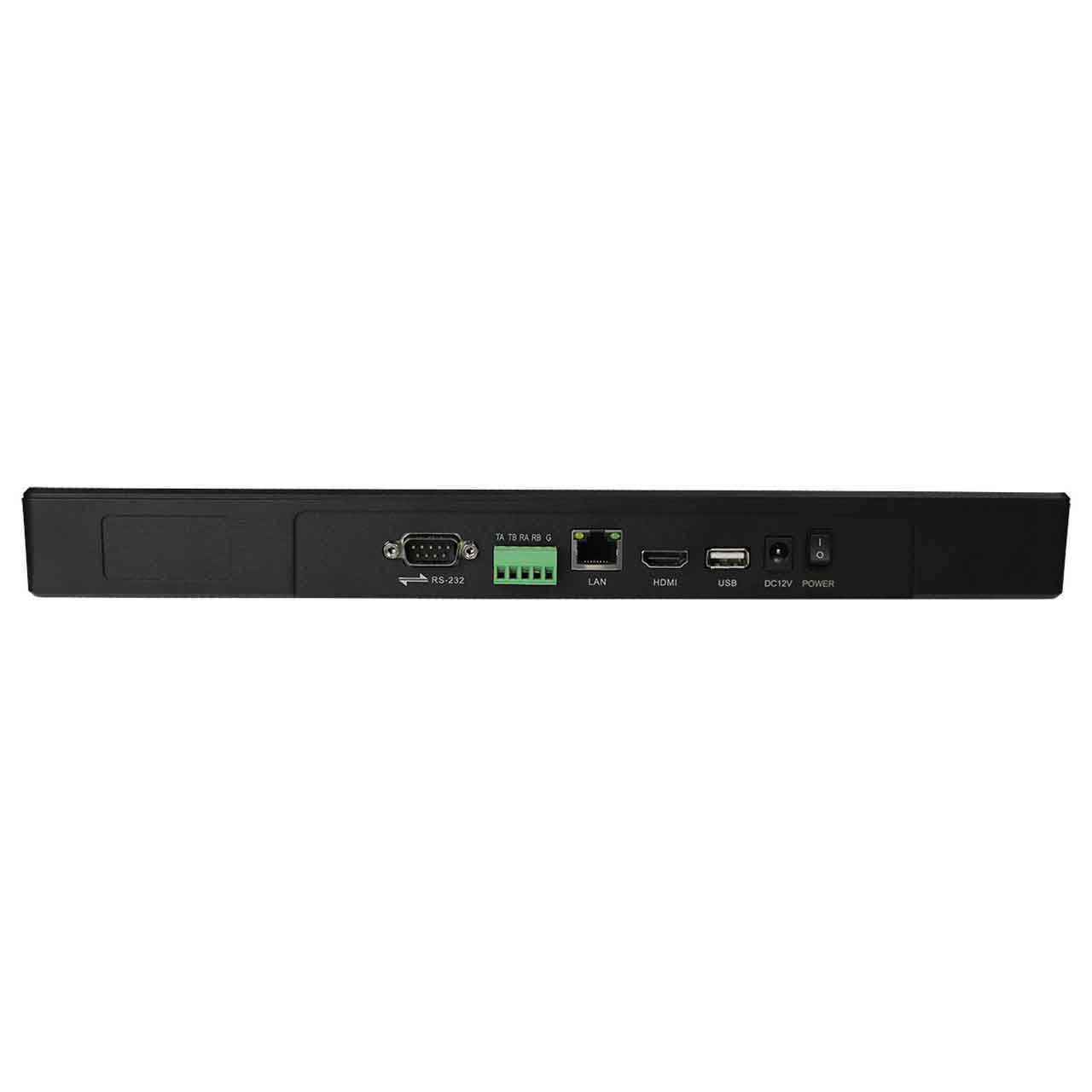

      • Connections: RS-232, RS-485, RS-422, RJ-45
      • Control Protocols: VISCA, VISCA over IP, PELCO-D, PELCO-P, Sony, & NDI
      • Max Cameras: 28 cameras total (4 groups of 7 channels)
      • Recommended Max Distance RS-232 / RS-422: 50 ft / 15m, RS-485: 3,937 ft / 1200m, Ethernet: 328 ft / 100m
      • Baud Rate: 1200 ~ 19200 bps
      • Power: 6W | 12VDC / PoE (802.3af) (Only use one (1) power source at a time.)
      • Working Temp: 14° F ~ 122° F
      • Working Humidity: 10% ~ 90% (non-condensation)
      • Weight: 3.75 lbs | 1.70 kg
      • Dimensions (in.): 13.94 W x 7.05 D x 3.98 H
      • Dimensions (mm.): 370 W x 180 D x 101 H


    • Item Includes:

      • 3x 20x Move 4K PTZ cameras
      • 1x PT-SUPERJOY-G1 PTZ Controller
