PTZC-SWITCH-N8-3PTZ-BDL - Overview

PTZ Camera Controller and Switcher In One Powerful Device

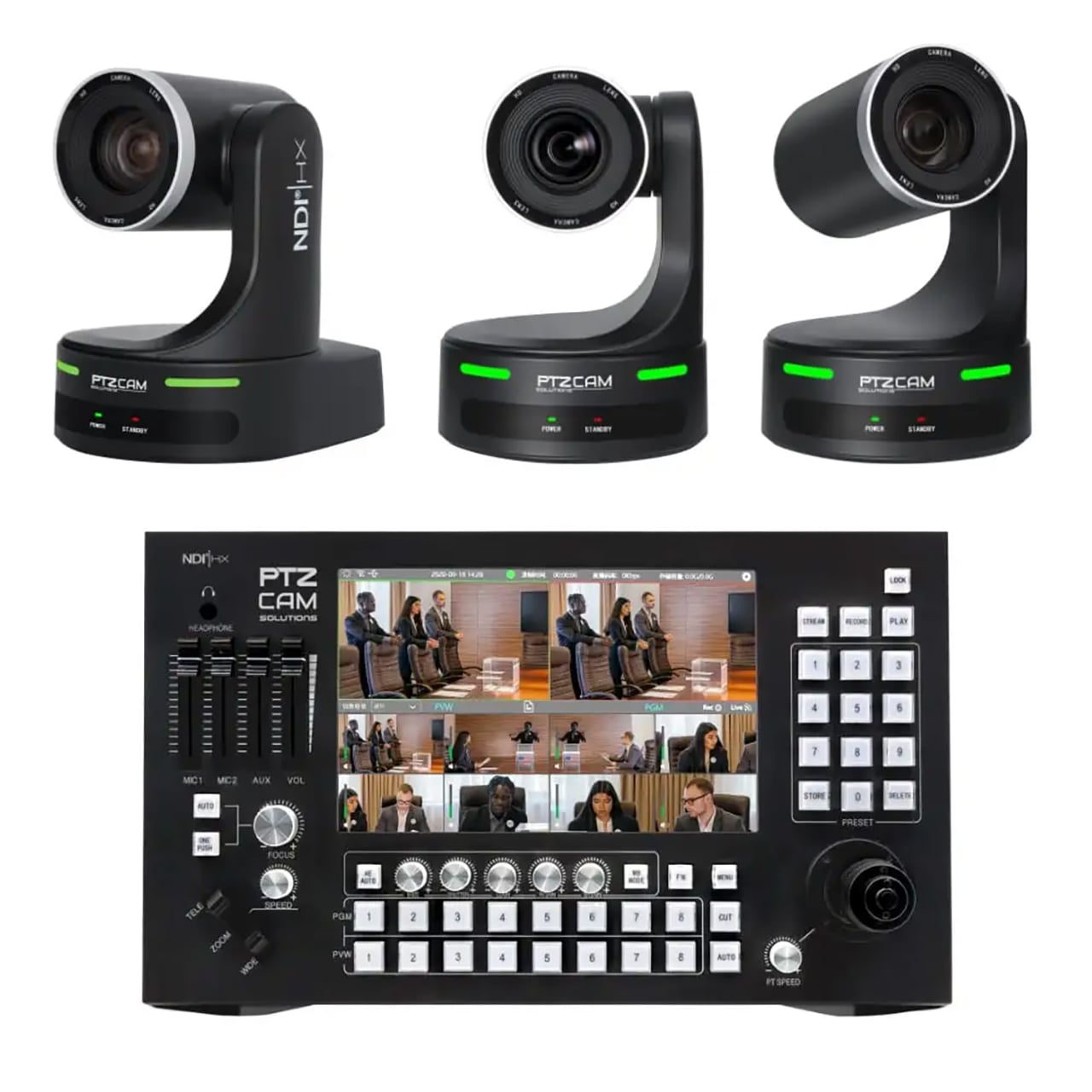

The PTZCam PTZC-SWITCH-N8-3PTZ-BDL is a bundle with 3x PTZCam IP Pro 20 PTZ cameras and an N8 Touch Screen PTZ controller and Switcher, which gives a single operator full control over a production, from camera positioning to color correction, audio, graphics, and streaming.

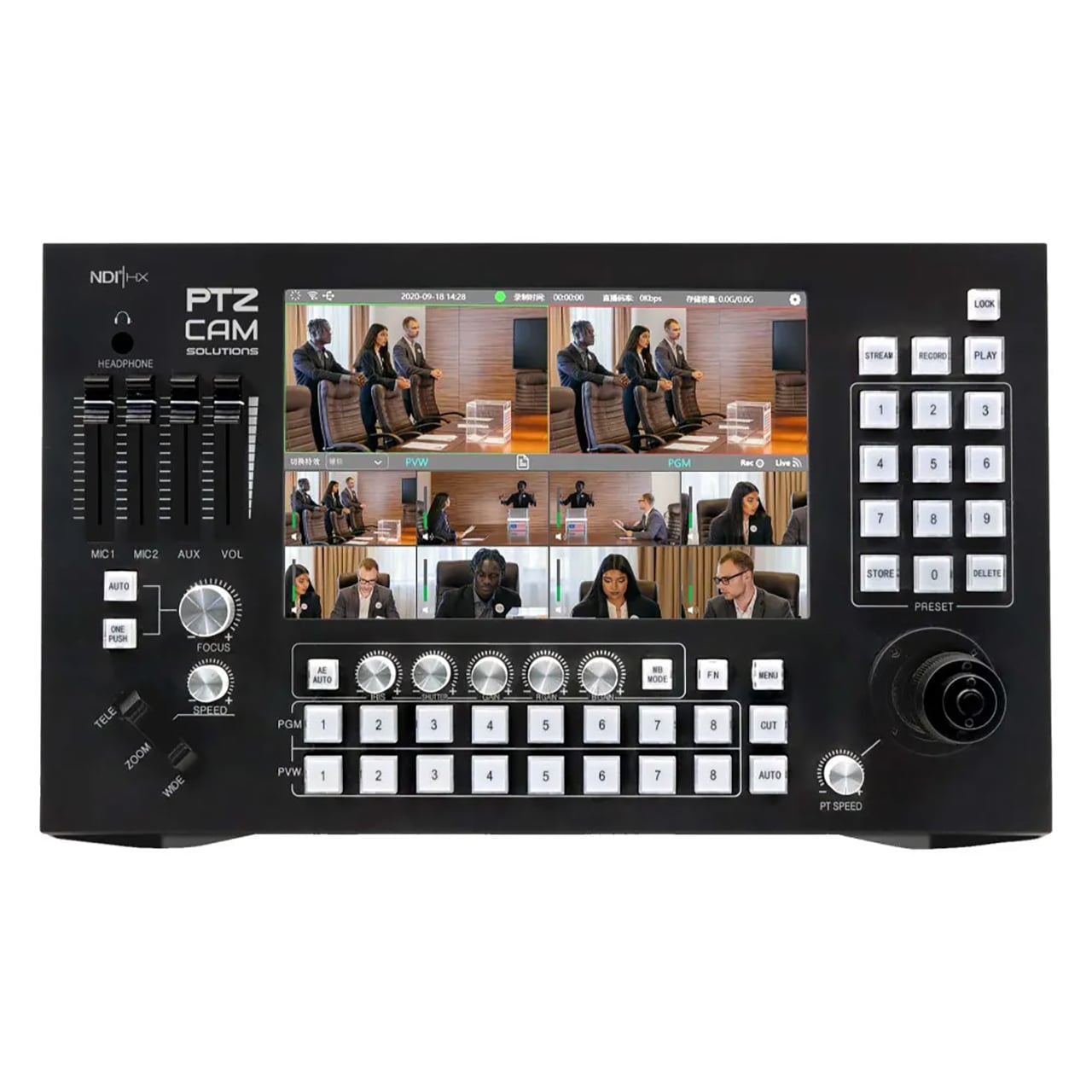

The Switch N8 is a unique combination of video switcher and PTZ controller that makes streaming live events simple for a single operator. With its large 10.1" touch screen, all video inputs are clearly visible and can be switched by clicking on the desired input or using the traditional broadcast program/preview buttons below the screen. The PTZ controller features all the essential functions for controlling remote cameras, such as a high-quality joystick, zoom rocker, imaging controls, and programmable present buttons. The Switch N8 also has a built-in streaming encoder and recorder, enabling users to stream their productions live to multiple destinations, including YouTube, while recording a backup to a USB drive and monitoring their show on an external monitor via the switcher's HDMI output. For handling audio sources, the Switch N8 includes stereo RCA and 1/4" inputs, headphone output, and four audio faders for easy control of audio levels.

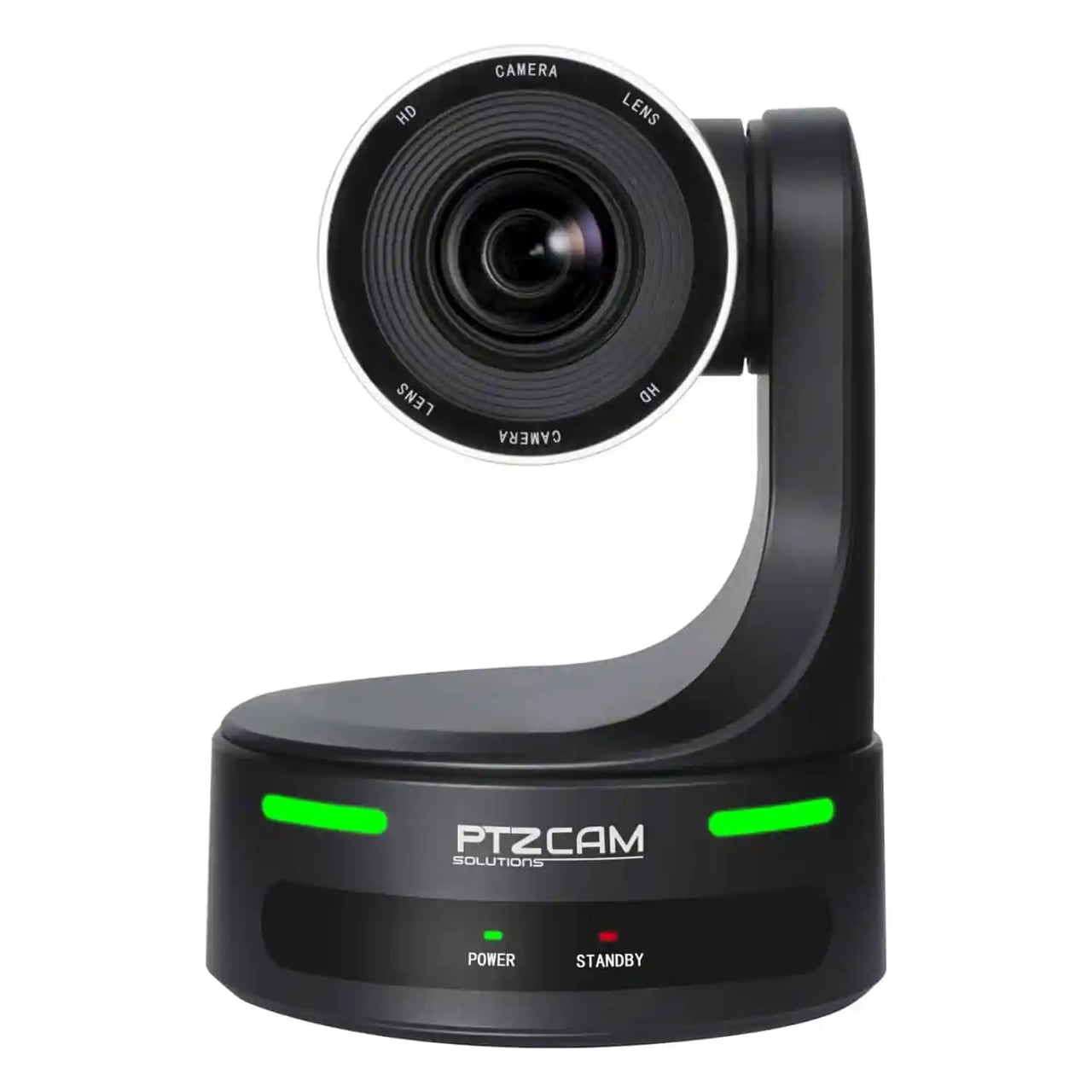

Equipped with a 20x optical zoom, the IP Pro 20 is perfect for capturing clear, detailed footage in small to medium-sized rooms. The versatility of this camera is unmatched, featuring a wide range of output options such as 3G-SDI, HDMI, and USB. And if you need to transmit video over a network, its built-in H.264/H.265 streaming encoder supports up to 1080p60 in formats like NDI|HX2, RTMP, RTSP, SRT, and ONVIF.

  • Features:

    • 10.1" Touch Screen for live monitoring of all video signals without the need for an external display
    • Touch control for input switching, overlay placement, and editing parameters
    • Supports up to 8x NDI|HX2 inputs with PTZ control automatically available for NDI PTZ cameras
    • 4D PTZ control joystick
    • Dedicated zoom rocker button
    • High-quality aluminum knobs to control image settings including iris, shutter, gain, PT speed, and focus
    • 1080p60 video is supported on all inputs, ensuring the highest level of detail and motion
    • Add custom logos and text for a professional-looking broadcast
    • Audio mixer 4x physical faders and 8x internal digital faders give you complete control of your audio mix
    • Stream to 2x locations independently, each with a separate encoding profile
    • Play video clips as part of your productions or record the whole event to disk (requires a USB 3.0 flash drive)
    • Get started streaming with the 3x bundled IP Pro 20 cameras

  • Specifications:

      N8 NDI Switcher
    • Video Format: Full HD
    • Video Processing Capability
      - Input: Up to 8x channels 1080p60
      - Output: Up to 1080p60 (HDMI) + 1080p60 (IP) + 720p60 (IP)

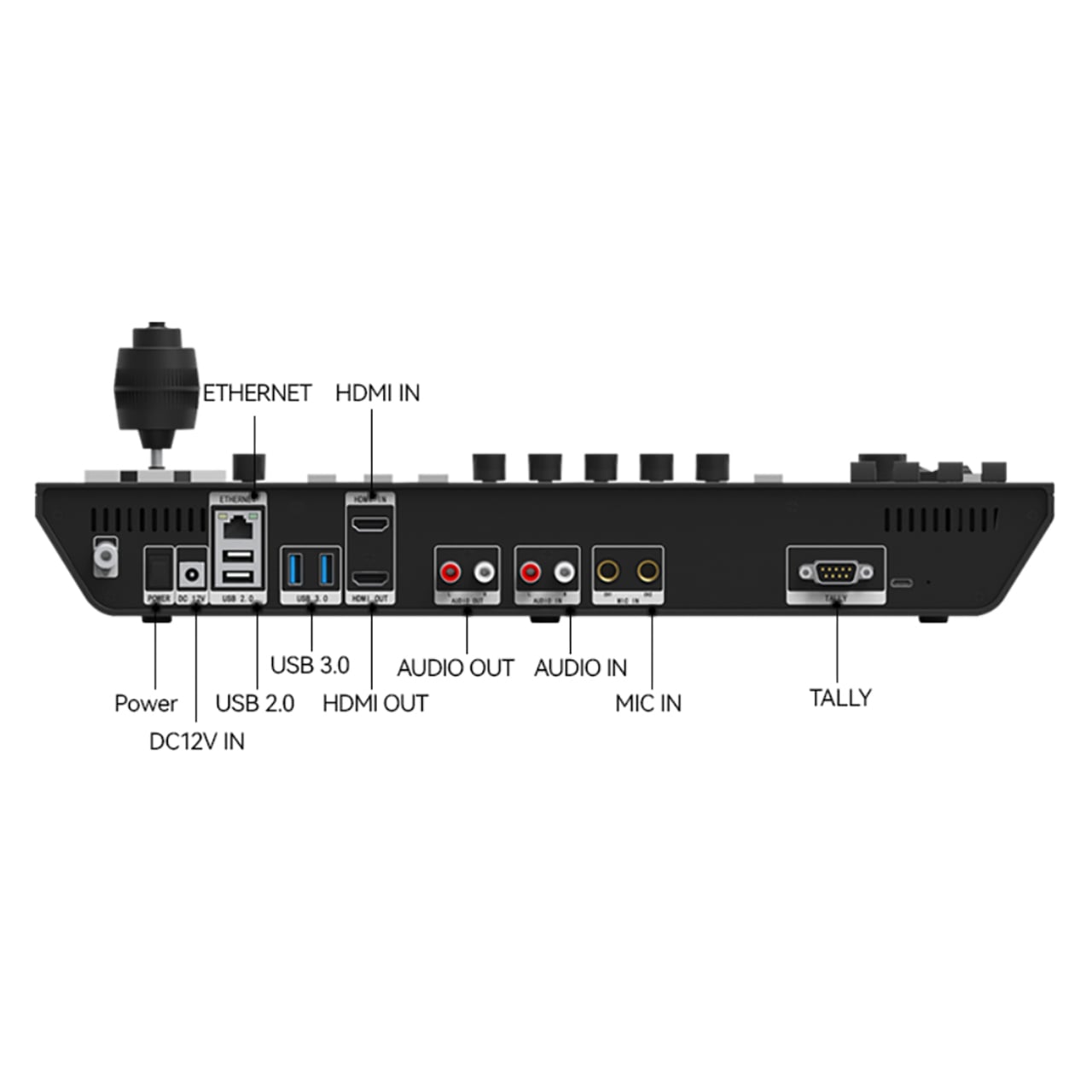

    • Video Input: 8 channels IP video capture + 1 channel HDMI + local video file
    • Video Output: 1 channel IP video streaming + 1 channel HDMI + local recording
    • Live Video Encoding Format: H.264, H.265
    • Live Video Bitrate: 512Kbps - 16384Kbps
    • Live Video Bitrate Mode: CBR
    • Network Input Protocol: NDI|HX2, RTSP, RTMP
    • Network Output Protocol: RTSP, RTMP
    • Audio Input:
      - Stereo RCA left/right input
      - Stereo 1/4" TRS - Compatible with active and passive signals
      - Video-embedded audio input
    • Audio Output:
      - Stereo RCA left/right output
      - Video embedded audio output
    • Audio Mixer: 4x physical audio faders + 8x digital audio faders
    • Transition Control: T-Bar, cut/auto buttons, touch screen
    • Subtitle Overlay: Supported
    • Logo Overlay: Supported
    • Tally: DB9 output
    • USB Port:
      - 2x USB 3.0
      - 2x USB 2.0
    • Camera Control: Supports PTZ, focus, exposure, white balance, preset position control
    • Input Voltage: DC 12V
    • Input Current: 3A
    • Rated power: 36W
    • POE Optional: 802.3AT
    • Dimensions: 16.54" x 10.14" x 4.77" (420mm x 257.52mm x 121.2mm)

      IP Pro 20
    • Resolution:
      - HDMI: 1080p: 60/59.94/50/30/29.97/25, 1080i: 60/59.94/50, 720p: 60/50
      - SDI: 1080p: 60/59.94/50/30/29.97/25, 1080i: 60/59.94/50, 720p: 60/50
    • Image Sensor: SONY 1/2.8" CMOS
    • Pixels: 3.10 Megapixels, 2.07 Effective Megapixels
    • Scan Mode: Line by line
    • Lens: 20x Optical Zoom, f=5.2m (W) - 104mm (T)
    • Horizontal View Angle: 58.7° (W) - 3.2° (T)
    • Vertical View Angle: 32.2° (W) - 1.8° (T)
    • Focus System: Auto, Manual
    • Shutter Speed: 1/50s - 1/10000s
    • Minimum Illumination: 0.1 Lux @ (F1.5, AGC ON)
    • Exposure: Auto, Manual, Iris Priority, Shutter Priority, Brightness Priority
    • White Balance: Auto, Indoor, Outdoor, One Push, Auto Tracking, Manual
    • Backlight Compensation: Support
    • Digital Noise Reduction: 2D & 3D Digital noise reduction
    • S/N Ratio: 50dB
    • Pan Angle: 355°
    • Tilt Angle: -30° - +90°
    • Pan Speed: 1° - 80°/s
    • Tilt Speed: 1° - 60°/s
    • Preset Positions: 9x preset positions by IR remote controller, 255x preset positions by joystick controller or PC
    • Preset Accuracy: 0.1° ±10%
    • Flip: Support
    • Image Freeze: Support
    • PoE: 802.3af (Optional)
    • Humanoid Tracking: Supported
    • Auto Framing: Supported
    • Protocol: UVC 1.1
    • Operating System: Windows 7 and above, macOS, Linux, Android
    • Video Compression: YUY2, MJPEG
    • Resolution: 1920x1080, 1280x720, 960x540, 800x600, 720x576, 720x480, 640x480, 640x360, 352x288, 320x240
    • Frame Rate: Max. 60
    • UVC: Control Support
    • Protocol: TCP/IP, HTTP, RTSP, RTMP, RTMPS, SRT, ONVIF, DHCP, VISCA Over IP, NDIrHX2
    • Video Compression: H.264, H.265
    • Code Stream: Main code stream, Sub code stream
    • Main Stream Resolution: 1920x1080, 1280x960, 1280x720, 720x576, 720x480, 640x480
    • Sub Stream Resolution: 640x480, 640x360, 480x360, 352x288, 320x240, 176x144
    • Bitrate Control: VBR, CBR
    • Audio Compression: AAC
    • Audio Bit Rate: 128kbps

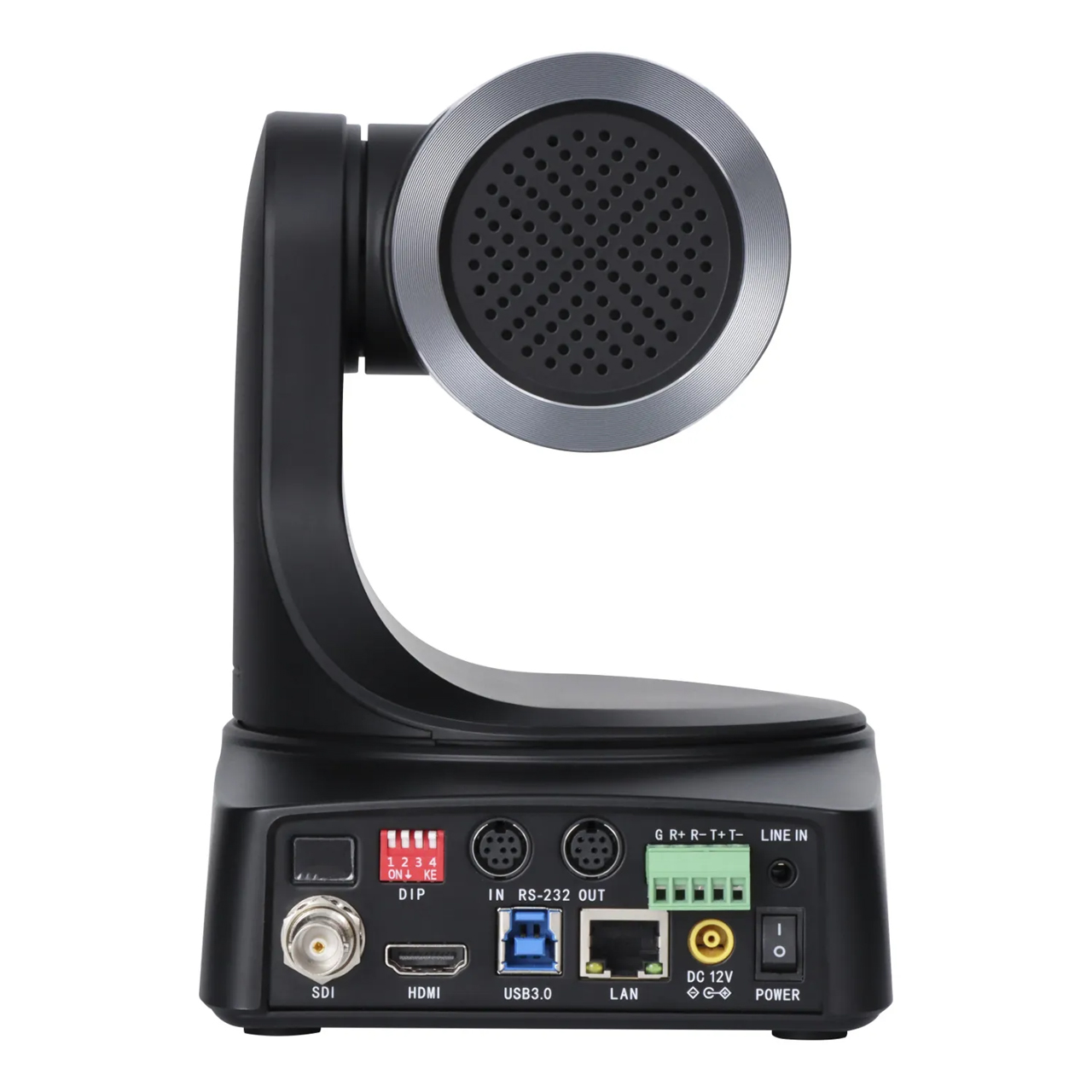

    • HDMI Interface: HDMI 1.4
    • SDI Interface: 3G-SDI
    • USB Interface: USB 3.0, Type-B Socket
    • Network Interface: RJ45: 10M/100M adaptive Ethernet port
    • Audio Interface: Line In, 3.5mm jack
    • Serial Interface:
      - RS232 In/Out: 8-pin mini DIN, Up to 98.4ft (30m), VISCA/Pelco-D/Pelco-P Protocol
      - RS422/485: 5-pin Phoenix Interface, Up to 1200m, VISCA/Pelco-D/Pelco-P Protocol
    • Power Interface: JEITA RC-5320A Type 4
    • Tally Light: Support
    • Input Voltage: DC 12V
    • Input Current: Max. 1.5A
    • Power Consumption: Max. 18W
    • Color: Black
    • Dimension: 5.25" x 6.85" x 7.36" (134mm x 174mm x 187mm)
    • Weight: 2.65lbs (1.2kg)

  • Item Includes:

    • 2x IP Pro 20 PTZ Cameras
    • 1x N8 Touch Screen PTZ controller and Switcher

  • Warranty:

    • 1 Year Limited Warranty

  • GTIN:

    0616050682471
