PTZCam PTZC-SWITCH-N8-TALLY8 N8 PTZ Controller and Switcher Bundle with 8-Light Wireless Tally System

ITEM #: PTZC-SWN8TALLY8 MFG #: PTZC-SWITCH-N8-TALLY8

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$4,195.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


PTZC-SWITCH-N8-TALLY8 - Overview

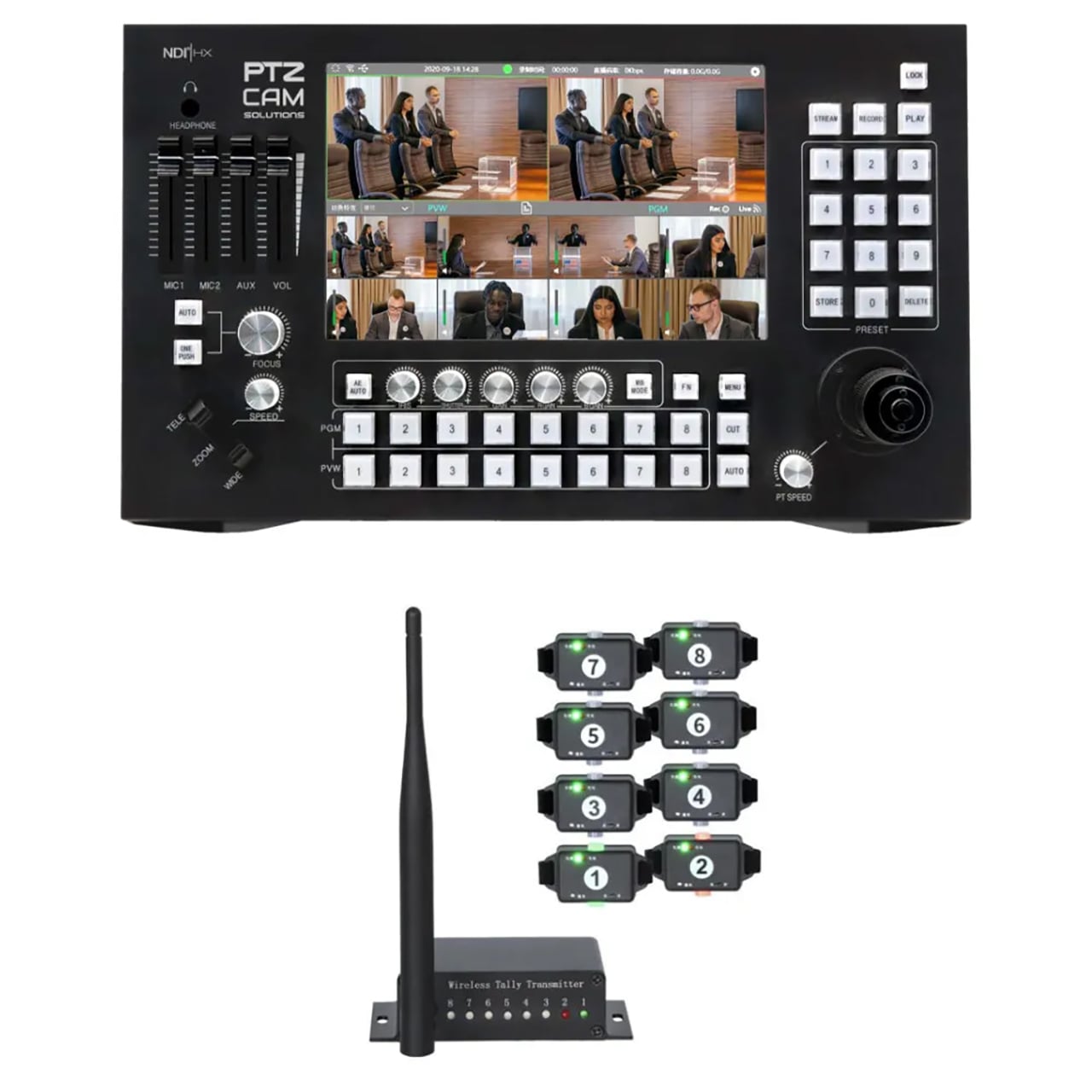

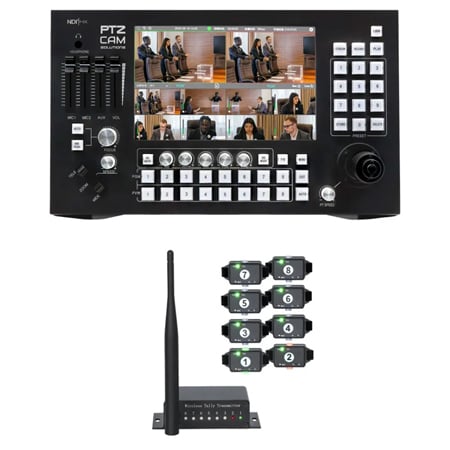

The PTZCam PTZC-SWITCH-N8-TALLY8 is a bundle with 8x PTZCam wireless tally lights for any camera and an N8 touch screen PTZ controller and switcher, which gives a single operator full control over a production, from camera positioning to color correction, audio, graphics, and streaming. The included tally lights work in conjunction with the PTZCam N8 switcher.

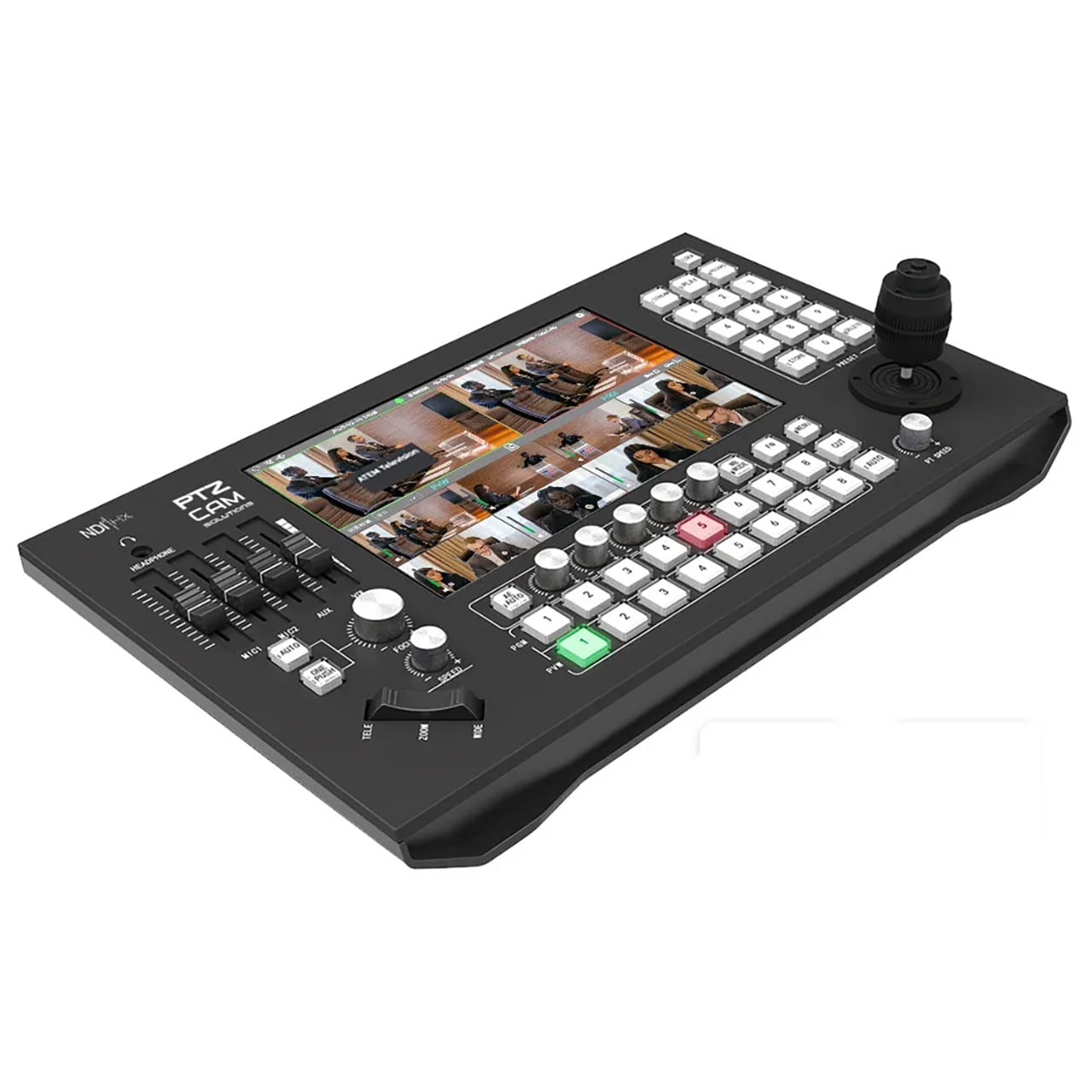

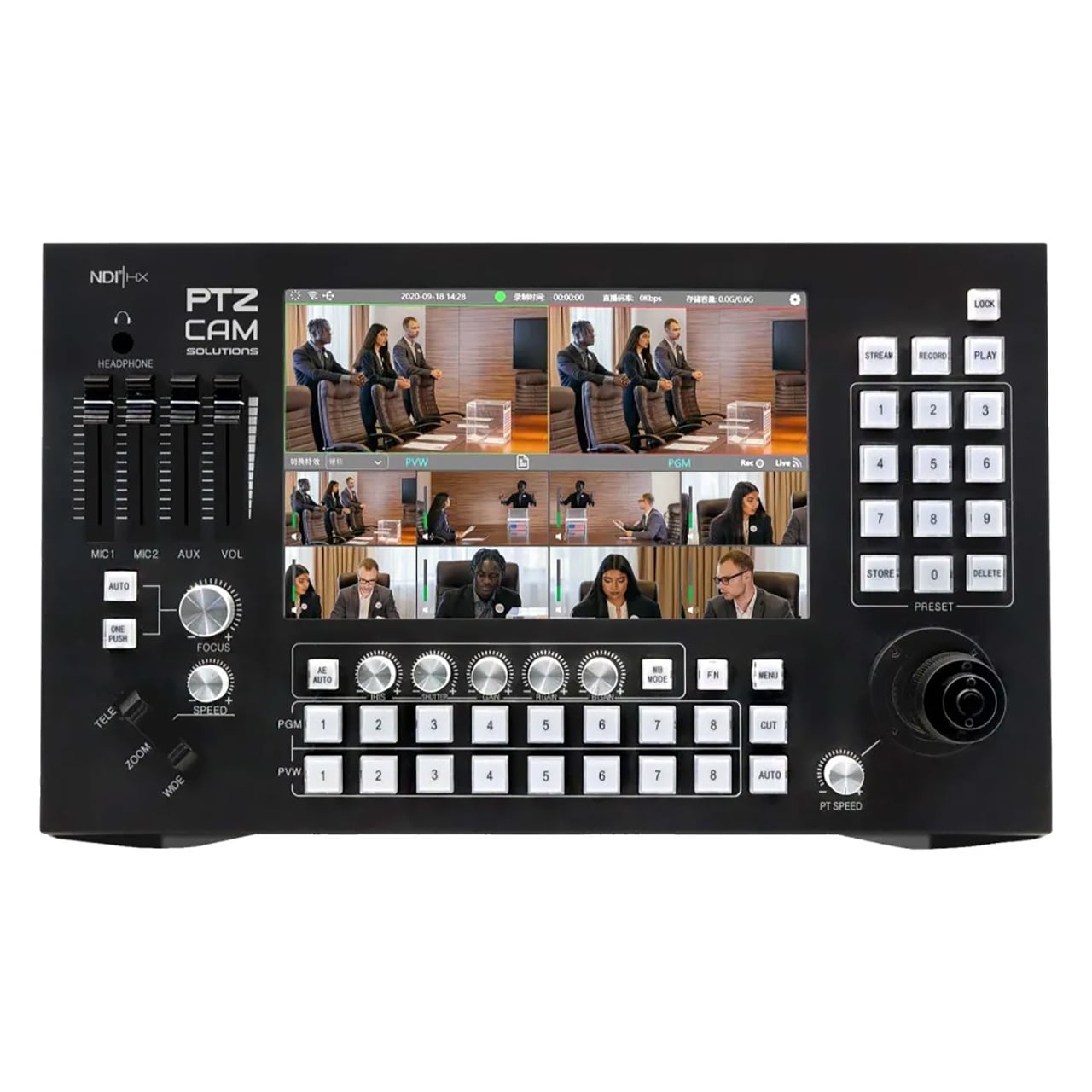

The Switch N8 is a unique combination of video switcher and PTZ controller that makes streaming live events simple for a single operator. With its large 10.1" touch screen, all video inputs are clearly visible and can be switched by clicking on the desired input or using the traditional broadcast program/preview buttons below the screen. The PTZ controller features all the essential functions for controlling remote cameras, such as a high-quality joystick, zoom rocker, imaging controls, and programmable present buttons. The Switch N8 also has a built-in streaming encoder and recorder, enabling users to stream their productions live to multiple destinations, including YouTube, while recording a backup to a USB drive and monitoring their show on an external monitor via the switcher's HDMI output. For handling audio sources, the Switch N8 includes stereo RCA and 1/4" inputs, a headphone output, and four audio faders for easy control of audio levels.

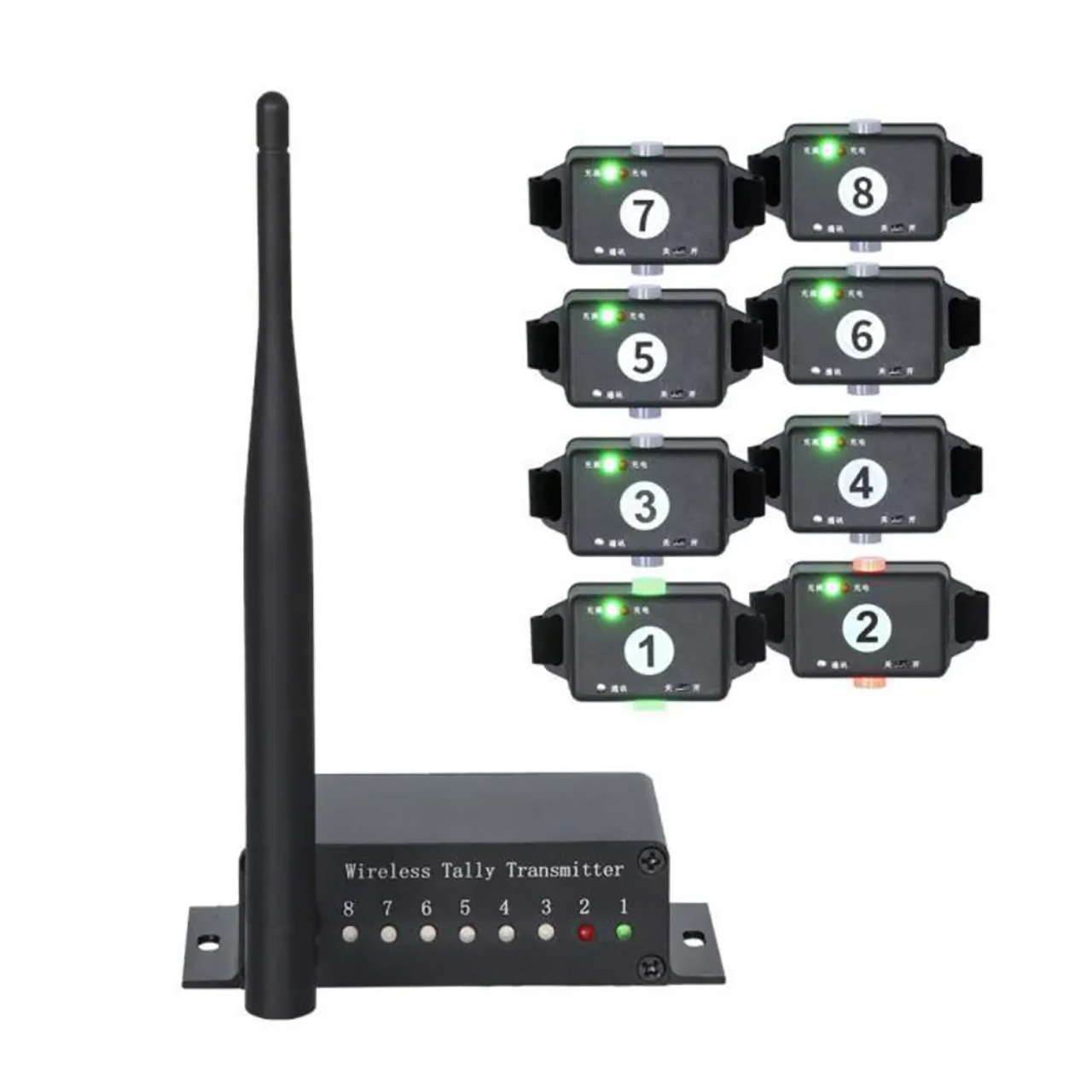

The PTZCam TALLY8 lets you easily add 8x wireless tally lights to any camera and control them in conjunction with the PTZCam N8 switcher or Switchblade VMC12 control panel.

  • Features:

    • 10.1" Touch Screen for live monitoring of all video signals without the need for an external display
    • Touch control for input switching, overlay placement, and editing parameters
    • Supports up to 8x NDI|HX2 inputs with PTZ control automatically available for NDI PTZ cameras
    • 4D PTZ control joystick
    • Dedicated zoom rocker button
    • High-quality aluminum knobs to control image settings including iris, shutter, gain, PT speed, and focus
    • 1080p60 video is supported on all inputs, ensuring the highest level of detail and motion.
    • Add custom logos and text for a professional-looking broadcast
    • Audio mixer 4x physical faders and 8x internal digital faders give you complete control of your audio mix
    • Stream to 2x locations independently, each with a separate encoding profile
    • Play video clips as part of your productions or record the whole event to disk (requires a USB 3.0 flash drive)
    • Wireless Host Unit with 8x Tally Lights
    • Connect Tally Lights up to 984ft Away
    • Built-In Batteries in Host & Lights
    • Low Transmission Power
    • Green and Red Light Colors

  • Specifications:

      N8 NDI Switcher
    • Video Format: Full HD
    • Video Processing Capability
      - Input: Up to 8 channels 1080p60
      - Output: Up to 1080p60 (HDMI) + 1080p60 (IP) + 720p60 (IP)
    • Video Input: 8 channels IP video capture + 1 channel HDMI + local video file
    • Video Output: 1 channel IP video streaming + 1 channel HDMI + local recording
    • Live Video Encoding Format: H.264, H.265
    • Live Video Bitrate: 512Kbps - 16384Kbps
    • Live Video Bitrate Mode: CBR
    • Network Input Protocol: NDI|HX2, RTSP, RTMP
    • Network Output Protocol: RTSP, RTMP

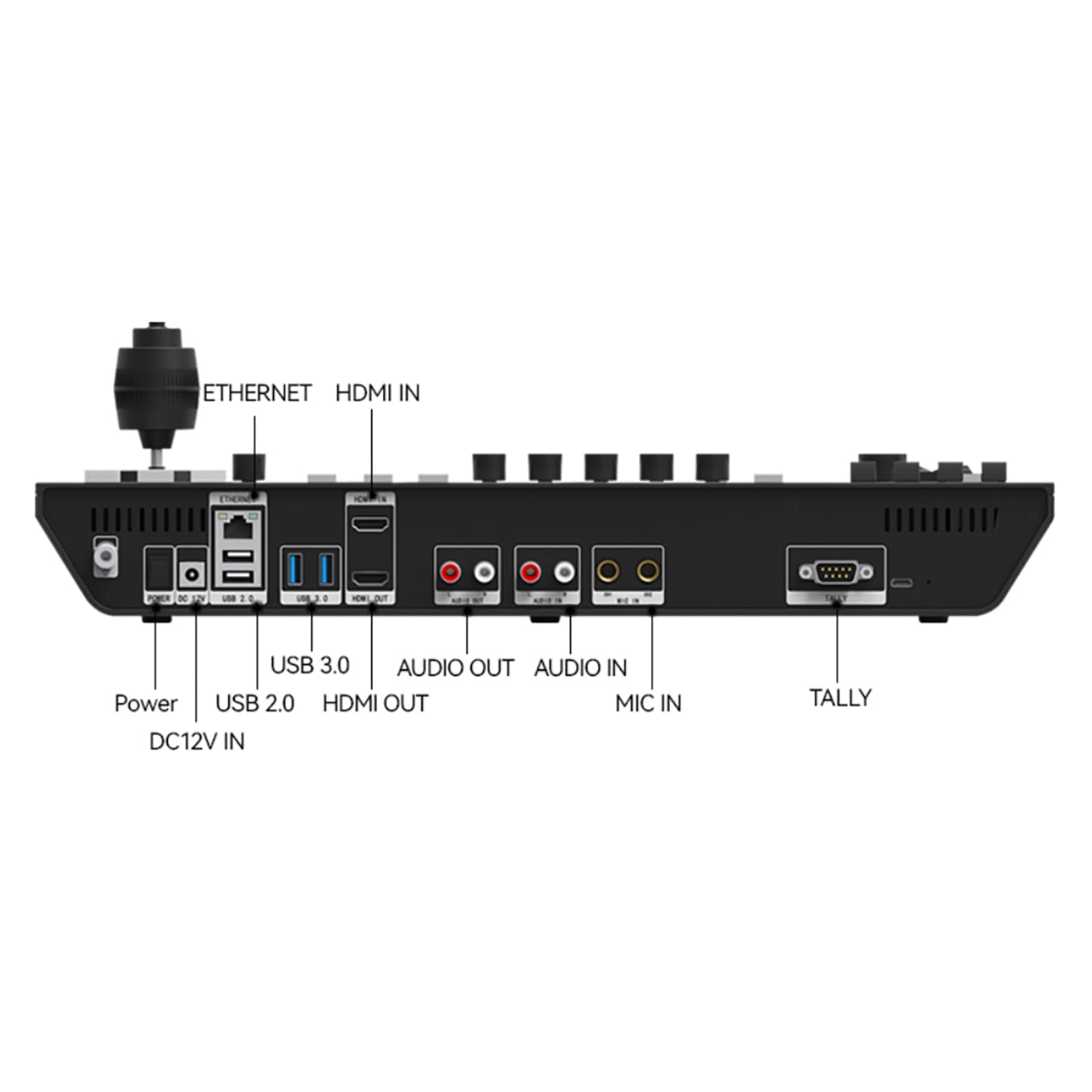

    • Audio Input:
      - Stereo RCA left/right input
      - Stereo 1/4" TRS - Compatible with active and passive signals
      - Video-embedded audio input
    • Audio Output:
      - Stereo RCA left/right output
      - Video embedded audio output
    • Audio Mixer: 4x physical audio faders + 8x digital audio faders
    • Transition Control: T-Bar, cut/auto buttons, touch screen
    • Subtitle Overlay: Supported
    • Logo Overlay: Supported
    • Tally: DB9 output
    • USB Port:
      - 2x USB 3.0
      - 2x USB 2.0
    • Camera Control: Supports PTZ, focus, exposure, white balance, preset position control
    • Input Voltage: DC 12V
    • Input Current: 3A
    • Rated power: 36W
    • POE Optional: 802.3AT
    • Dimensions: 16.54" x 10.14" x 4.77" (420mm x 257.52mm x 121.2mm)

      TALLY8
    • Interface: DB25 Port
    • Communication Carrier Frequency: 433MHz spread spectrum
    • Transmission Distance: 1km in an open area, 300m away from the city
    • Battery Specification: Built-in 2000mAh battery, approx 20 hours runtime
    • Charging Port: Micro USB
    • Charging Voltage: DC 5V
    • Recharging Current: 400mA
    • Generating Power: 500mW
    • Host Size: 2.56" x 4.13" x 0.7" (65mm x 105mm x 17.9mm)
    • Antenna Size: 6.69" (171mm)
    • Weight: 1.1lbs (0.5kg)
    • Indicator Light: Two-color indicator light
    • Installation Method: Integrated hot shoe wrist strap
    • Signal Indicator Status:
      - Blue Indicator Light: Flickering after receiving the Tally signal from the host
      - Red Indicator Light: Always on when the battery is not charging, and the power is less than 40%
      - Green Indicator Light: Always on when the battery is not charging, and the battery is less than 80%
    • Charging Port: Micro USB
    • Tally Size: 1.4" x 2.65" x 0.75" (36mm x 67.3mm x 18.8mm)
    • Tally Weight: 0.44lbs (0.2kg)

  • Item Includes:

    • 1x N8 touch screen PTZ controller and switcher
    • 8x Wireless tally lights
    • 1x Wireless host station
    • 1x Host station power adapter

  • Warranty:

    • 1 Year Limited Warranty

  • GTIN:

    0601946496348
