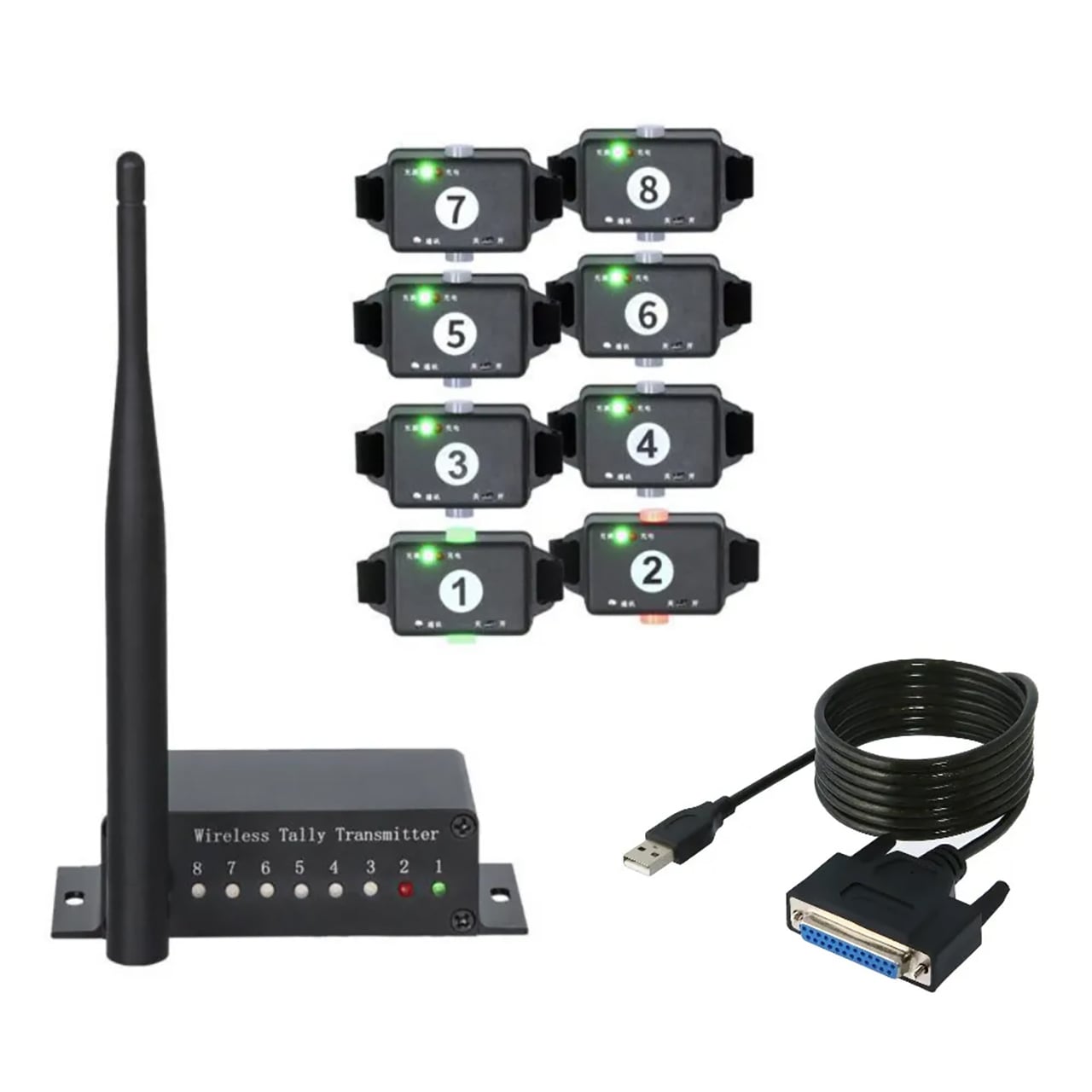

PTZCam PTZC-TALLY8-VMIX 8-Light Wireless Tally System with Host Station for vMix

PTZC-TALLY8-VMIX - Overview

Add tally lights to any vMix system!

• Features:

  • Wireless Host Unit and 8x Tally Lights
  • USB tally light adapter for connecting wireless host to vMix
  • Works with PTZCam Switch N8 and Switchblade VMC12 controller
  • Connect Tally Lights up to 984 Feet Away
  • Built-In Batteries in Host & Lights
  • Low Transmission Power
  • Lights Feature Two Colors (Green and Red)


• Specifications:

  • Interface: DB25 Port
  • Communication Carrier Frequency: 433MHz spread spectrum
  • Transmission Distance: 1km in an open area, 300 meters away from the city
  • Battery Specification: Built-in 2000mAh battery, approx 20 hours runtime
  • Charging Port: Micro USB
  • Charging Voltage: DC 5V
  • Recharging Current: 400mA
  • Generating Power: 500mW
  • Host Size: 2.56" x 4.13" x 0.7" (65mm x 105mm x 17.9mm)
  • Antenna Size: 6.69" (171mm)
  • Weight: 1.1lbs (0.5kg)
  • Indicator Light: Two-color indicator light
  • Installation Method: Integrated hot shoe wrist strap
  • Signal Indicator Status:
    - Blue indicator light: flickering after receiving the Tally signal from the host
    - Red indicator light: always on when the battery is not charging, and the power is less than 40%
    - Green indicator light: always on when the battery is not charging, and the battery is less than 80%
  • Charging Port: Micro USB
  • Tally Size: 1.4" x 2.65" x 0.75" (36mm x 67.3mm x 18.8mm)
  • Tally Weight: 0.44lbs (0.2kg)


• Item Includes:

  • 8x Wireless tally lights
  • 1x Wireless host station
  • 1x Host station power adapter
  • 1x USB adapter cable


• Warranty:

  • 1 Year Limited Warranty


• GTIN:

  0601946496799
