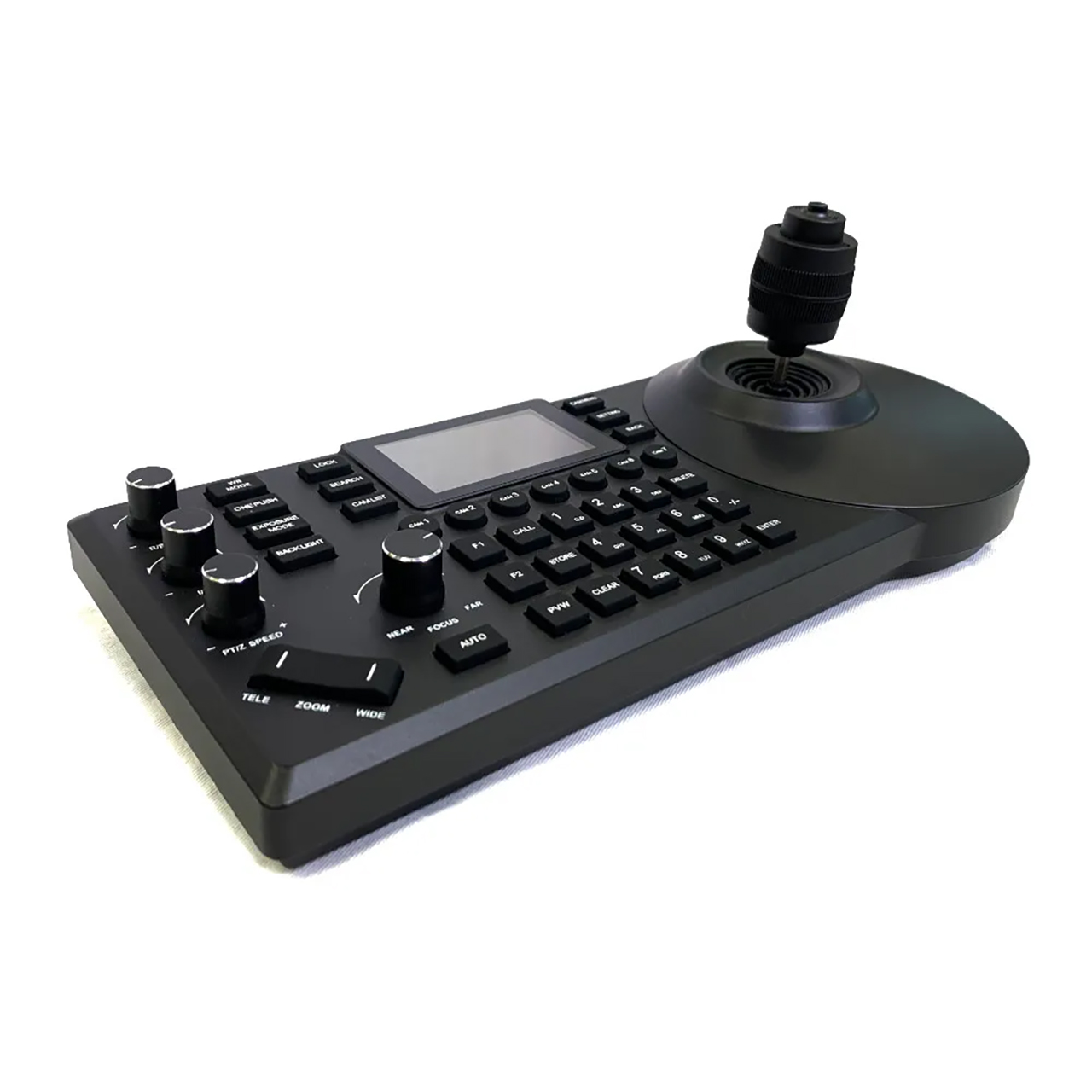

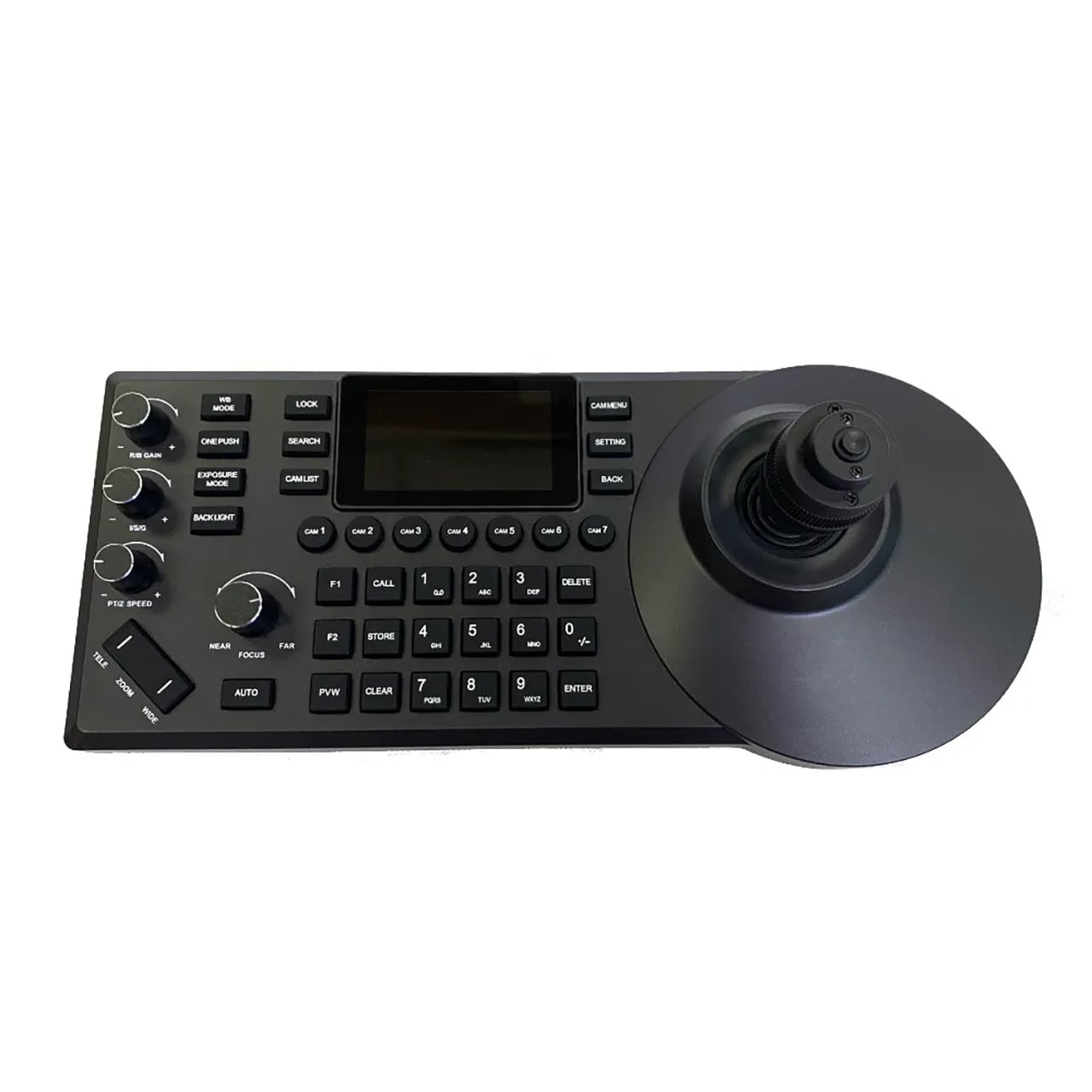

PTZCam PTZC-VIEWNDI View NDI PTZ Controller with 3-Inch NDI HX Preview and External Tally Support

PTZC-VIEWNDI - Overview

Control multiple PTZ cameras via NDI protocol

• Features:

  • Precision joystick and ergonomic zoom rocker button
  • 3" color display for menu settings and previews
  • Up to 7x camera shortcuts
  • White and red backlit silicone buttons
  • One-click button lock
  • Multiple protocol support
  • External tally support (see PTZCam TALLY4 and TALLY8)


• Specifications:

  • Joystick: 4D precision Joystick
  • Knobs: 3D knobs, support scale rotation to adjust parameters, support button function to select mode
  • Buttons: High-quality silicone buttons with white and red two-color backlight
  • Screen: 3" LCD color display
  • Shortcut Button: Supports 7 camera shortcut button settings
  • Button Sound: Toggle On/Off
  • Lock Button: One-key lock function
  • Maximum Preset Positions: 255

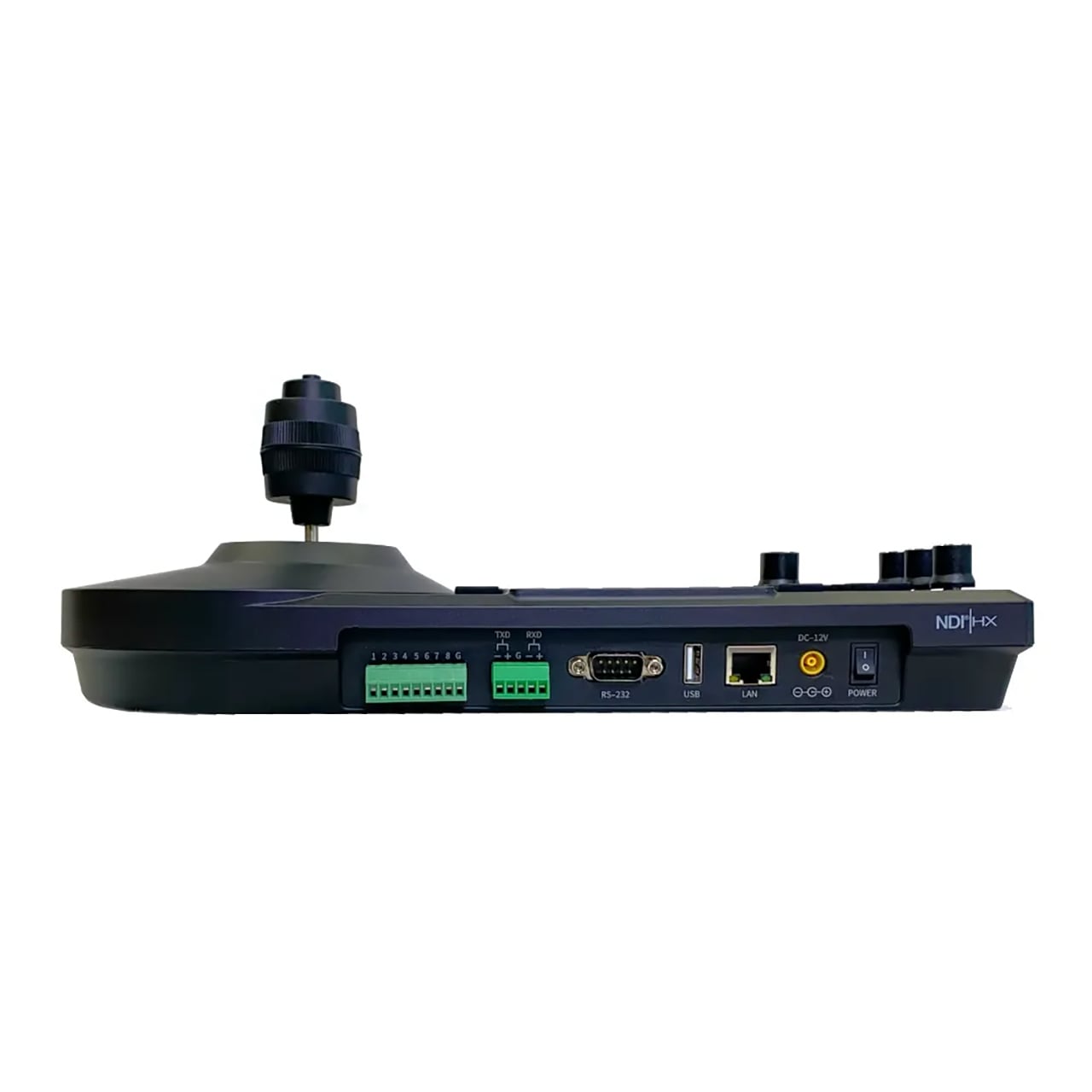

  • Control Interface: RJ45 (Support POE and NDI|HX2), RS-232, RS-422/485
  • IP Control Protocol: Onvif, VISCA Over IP, VISCA TCP, NDI
  • Serial Port Protocol: VISCA, Pelco D, Pelco P
  • Input Voltage: 12V
  • Input Current: 0.25A
  • POE: 802.3af
  • Rated Power: 3W
  • Tally: Support up to 8 channels
  • Operating Environment: Indoor
  • Dimensions:
    - Without Joystick: 13.07" x 5.35" x 2.28" (332mm x 136mm x 58mm)
    - With Joystick: 3.07" x 5.35" x 4.56" (332mm x 136m x 116mm)
  • Weight: 1.76lbs (0.8kg)


• Item Includes:

  • 1x View NDI PTZ Controller


• Warranty:

  • 1 Year Limited Warranty


• GTIN:

  0601946496324
