PTZCam PTZC-VIEWNDIMINI View NDI Mini PTZ Controller with 3.5-Inch NDI Video Preview Display

ITEM #: PTZC-VIEWNDIMINI MFG #: PTZC-VIEWNDIMINI

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$399.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


PTZC-VIEWNDIMINI - Overview

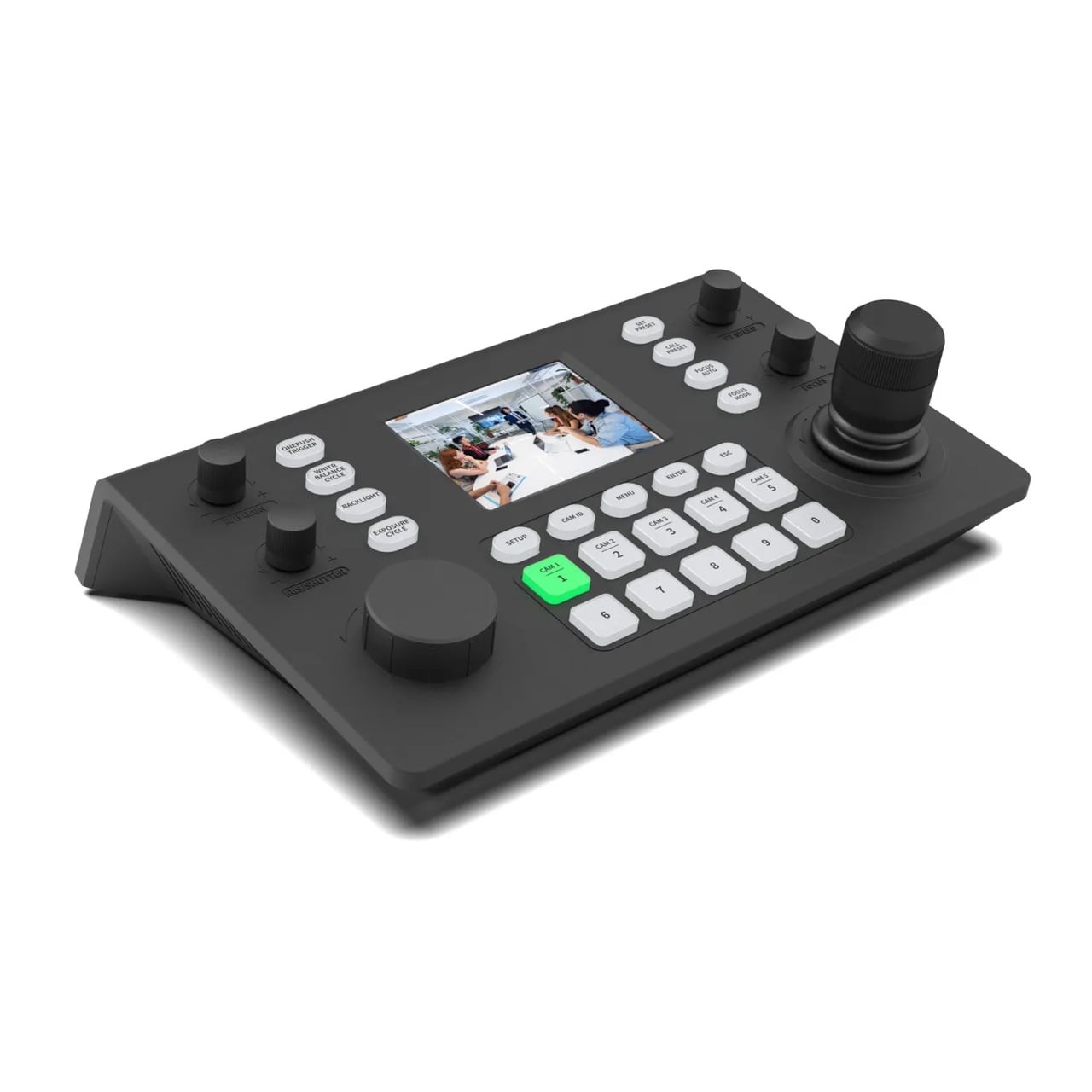

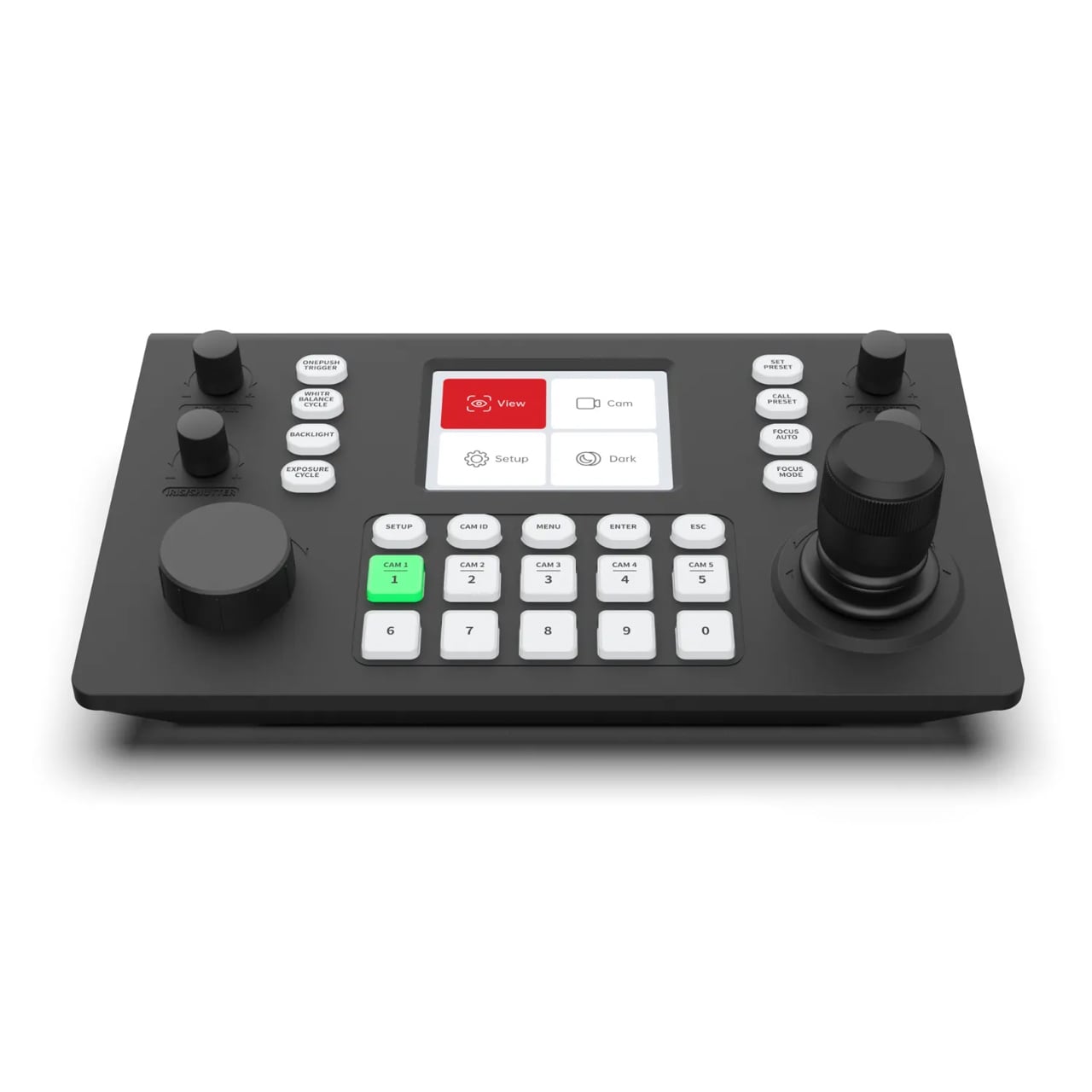

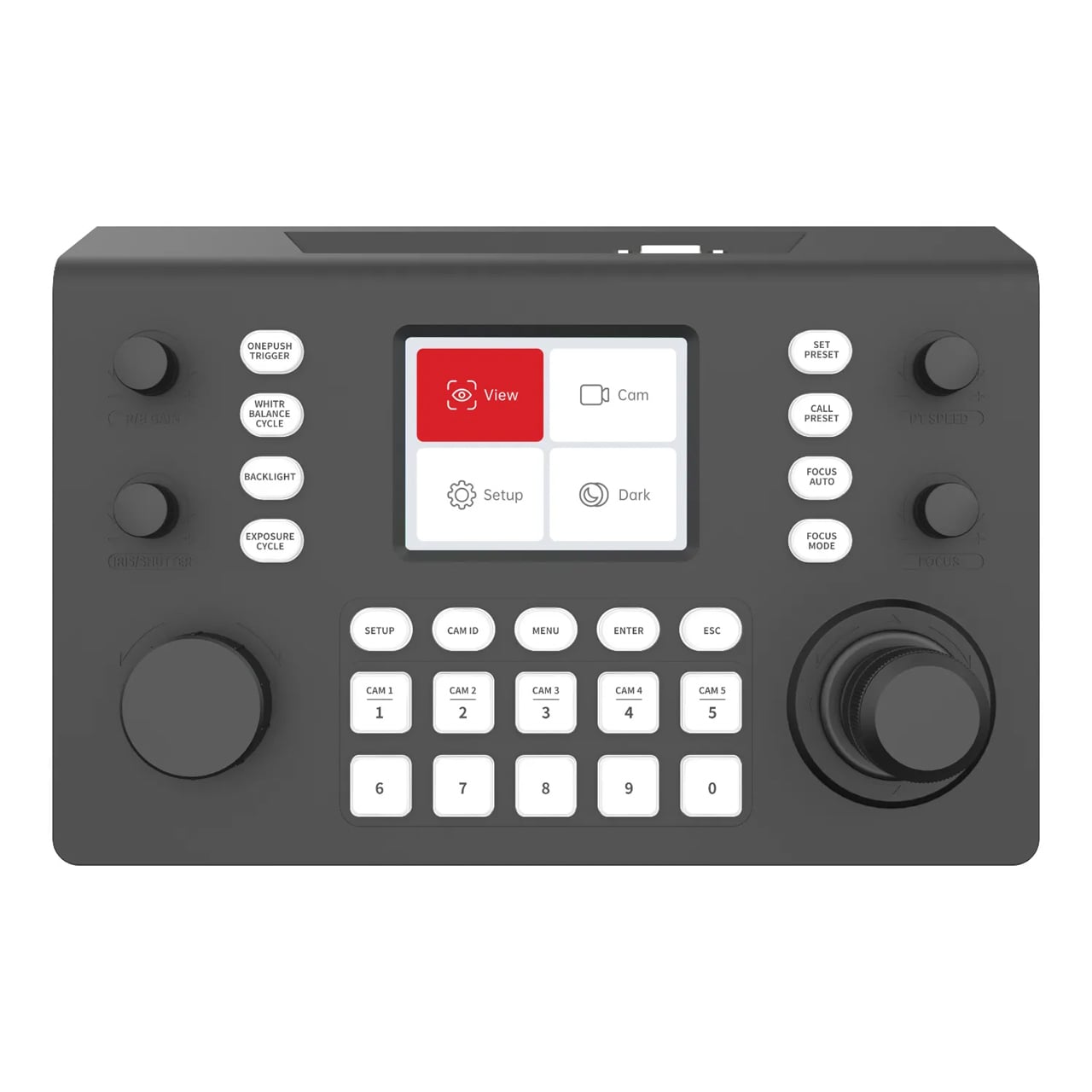

The PTZCam PTZC-VIEWNDIMINI is a compact PTZ camera controller with a 3.5" color display. The display functions as a video preview monitor for NDI|HX, RTSP, and ONVIF camera sources, enabling direct monitoring of each camera's position without the need for a separate monitor.

This compact controller features a smooth 3D joystick, zoom rotary wheel, preset buttons, and four encoder knobs for fine-tuned control of focus, pan/tilt speed, gain, and iris/shutter speed.

In terms of control protocols, the View NDI Mini is compatible with most popular formats, including Visca, Visca-over-IP, ONVIF, NDI, Pelco-P, and Pelco-D.

  • Features:

    • 3.5" Display with NDI Video Preview
    • 2D Joystick and Zoom Wheel Controls
    • NDI & Onvif Camera Source Compatible
    • Visca Serial & IP, Pelco-P & D Controls

  • Specifications:

    • Display: 3.5" 640x480 TFT LCD, 3000 cd/m² brightness

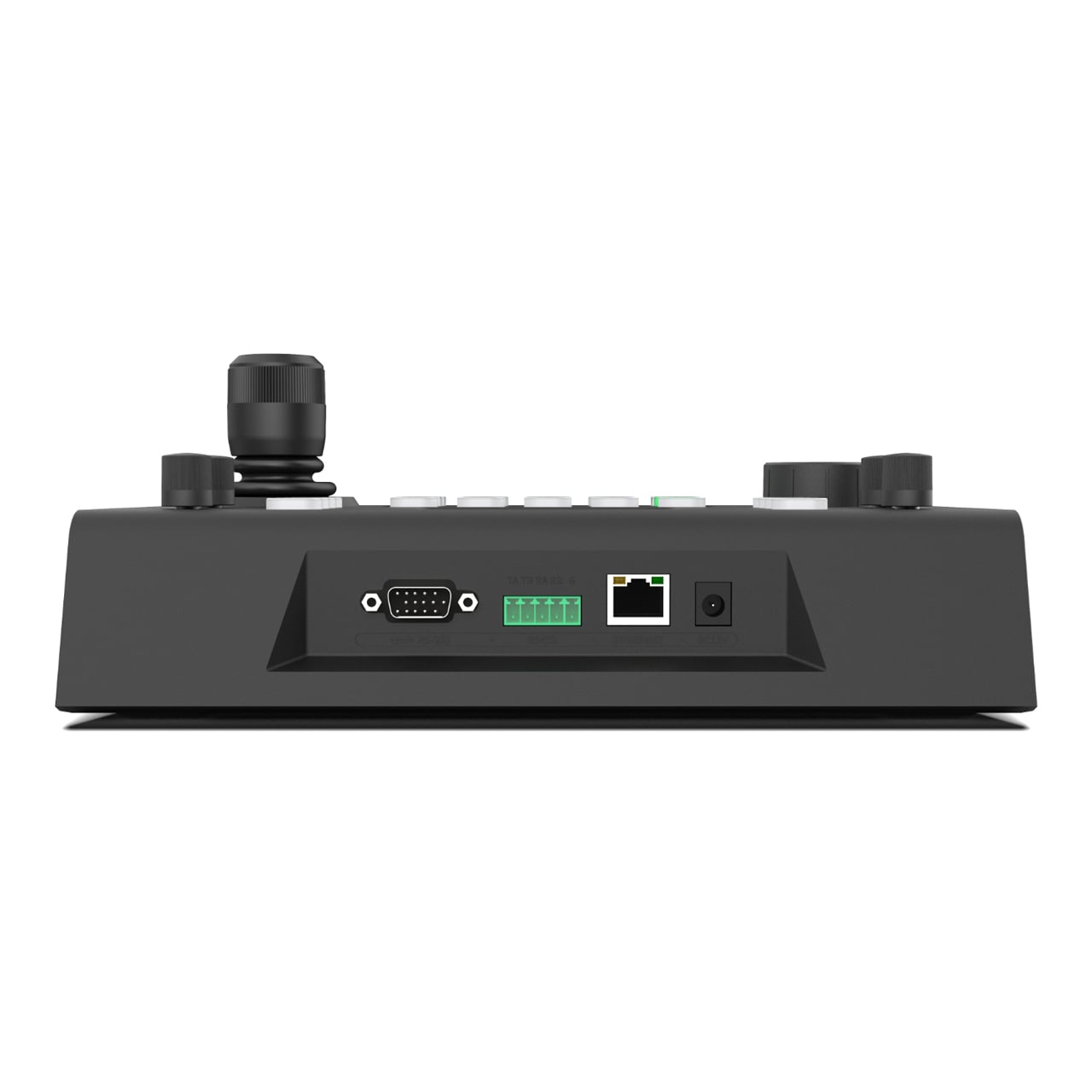

    • Interfaces: RJ45 (Ethernet), RS-485, RS-232
    • Video Decoding Support: NDI|HX, RTSP, ONVIF
    • Network protocol Support: Visca-over-IP, Visca, ONVIF v2.42, NDI v5.5
    • Analog protocol Support: Visca, Pelco-D, Pelco-P
    • Maximum Devices: 255x cameras
    • White Balance Settings: Indoor, Outdoor, One-click, Manual, Automatic
    • Exposure Settings: Brightness priority, shutter priority, aperture priority, manual exposure, automatic exposure
    • Power: DC 12V - 2A, ≤5W
    • Dimensions: 6.69" x 9.84" x 3.57" (170mm x 250mm x 90.7mm)

  • Item Includes:

    • 1x View NDI Mini PTZ Controller

  • Warranty:

    • 1 Year Limited Warranty

  • GTIN:

    0601961419537
