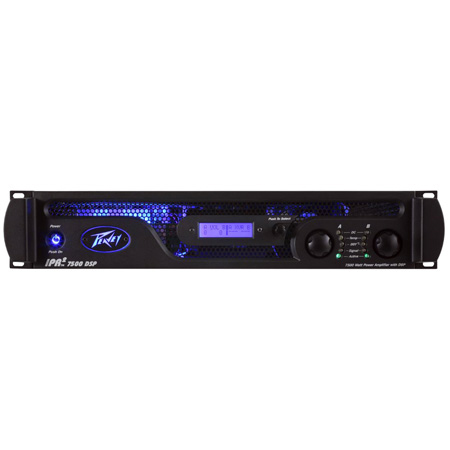

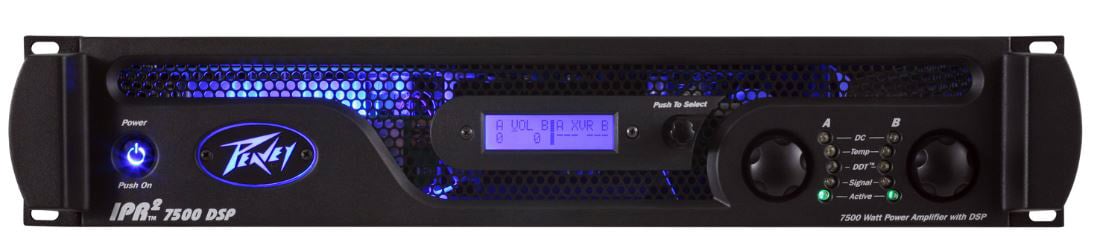

Peavey 3004510 IPR2 7500 DSP Power Amplifiers

ITEM #: PVY-3004510 MFG #: 3004510

Primary Image

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the PVY-3004510

3004510 - Overview

IPR2 power amplifiers, designed for years of reliable, flawless operation under rigorous use. The groundbreaking IPR2 series utilizes an advanced design that allows Peavey engineers to dramatically reduce weight while increasing output power, reliability and thermal efficiency. IPR2 Series amplifiers are designed with a resonant switch-mode power supply and a high-speed class D topology that yields the highest audio resolution and efficiency available. This revolutionary amplifier offers the sonic superiority and unsurpassed reliability for which Peavey is famous, in an extremely efficient and lightweight design. Advanced technology and extensive protection circuitry allow operation with greater efficiency into difficult loads and power conditions. The DDT (Distortion Detection Technique) circuitry ensures trouble-free operation into loads as low as 2 ohms. DDT protects drivers and ensures that sonic integrity is maintained, even in extreme overload conditions. The IPR2's high-efficiency design allows the amplifier to operate at very low temperatures, and does not require massive heat sinks to cool.

As the name implies, the IPR2 5000 and 7500 DSP all include advanced digital signal processing. The DSP was designed to be incredibly effective, yet extremely easy to use. Using unique and revolutionary advanced bass enhancement processes, the IPR2 DSP amplifiers dramatically improve the perceived level of bass in any system, using a fraction of the power that would be required with any other power amplifier.

  • Features:

    • 3750W RMS x 2 at 2 ohms
    • 2020W RMS x 2 at 4 ohms
    • 250W RMS x 2 at 8 ohms
    • 3850W RMS x 1 at 2 ohms
    • 2400W RMS x 1 at 4 ohms
    • 1330W RMS x 1 at 8 ohms
    • Revolutionary IPR class D topology
    • Detented input controls
    • Combination XLR 1/4" inputs
    • Combination 1/4" or 1/4" 4 pole twist lock output connector
    • DDT protection
    • Individual signal pass-thru 1/4" jacks on each channel
    • Light weight
    • LED illuminated
    • DSP-based Loudspeaker Management System
    • 120 ms of delay per channel
    • 4 bands of parametric equalization per channel
    • Security lock
    • Adjustable fourth-order Linkwitz-Riley Crossover
    • Adjustable fourth-order high-pass filter each channel
    • Setup wizard
    • MAXX Bass
    • Horn EQ each channel
    • Blue, backlit LCD screen
    • Weight Unpacked: 14.57 lb(6.61 kg)
    • Weight Packed: 18.39 lb(8.34 kg)
    • Width Packed: 21"(53.34 cm)
    • Height Packed: 21.2"(53.848 cm)
    • Depth Packed: 6"(15.24 cm)

  • Specifications:

    • Rated Watts 2ch x 2 ohms: 4750 watts 20ms repetitive burst / 3750 watts 1% THD both channels driven @ 1kHz.
    • Rated Watts 2ch x 4 ohms: 2800 watts 20ms repetitive burst / 2450 watts 1% THD / 2020 watts 0.15% THD, both channels driven @ 1kHz.
    • Rated Watts 2ch x 8 ohms: 1550 watts 20ms repetitive burst / 1425 watts 1% THD / 1200 watts 0.15% THD, both channels driven @ 1kHz.
    • Minimum Impedance: 2 ohms
    • Maximum RMS Voltage Swing: 124 volts
    • Frequency Response: 20Hz - 25kHz; +0dB, -3dB
    • 20Hz - 20kHz 2ch x 2 ohms: <0.5% @ 3280 watts 20Hz to 4kHz, decreasing to 3000 watts @ 20kHz, both channels driven.
    • 20Hz - 20kHz 2ch x 4 ohms: <0.15% @ 2000 watts 20Hz to 20kHz, both channels driven.
    • 20Hz - 20kHz 2ch x 8 ohms: <0.15% @ 1200 watts 20Hz to 20kHz, both channels driven.
    • Input CMRR: > - 75dB @ 1 kHz.
    • Voltage Gain: x 70 (+37 dB)
    • Crossover: Adjustable High Pass and Low Pass filter per channel. Filter Types: 12dB/oct 2nd order, 18dB/oct 3rd order, 24dB/oct 4th order Butterworth and 24dB/oct 4th order Linkwitz -Riley
    • Crosstalk: > -60dB @ 1kHz @ 1000 watts power @ 8 ohms.
    • Hum and Noise: > -95dB, "A" weighted referenced to rated power @ 4 ohms.
    • Slew Rate: > 12V/s
    • Damping Factor (8 ohms): > 200:1 @ 20Hz - 1kHz @ 8 ohms
    • Input Sensitivity: 1.290 volts +/- 3% for 1 kHz 4 ohm rated power, 1.240 volts +/- 3% for 1 kHz 2 ohm rated power
    • Input Impedance: 12 kilohms, balanced and 10 kilohms unbalanced.
    • Current Draw @ 1/8 in VA (watts): 2210 (1440) @ 2 ohms, 1550 (950) @ 4 ohms, 982 (560) @ 8 ohms
    • Current Draw @ 1/3 in VA (watts): 4260 (3150) @ 2 ohms, 3120 (2160) @ 4 ohms, 1890 (1200) @ 8 ohms
    • Idle Consumption: 250VA, 120 watts.
    • Cooling: 3 temperature dependent variable speed fans.
    • Controls: 2 front panel detented attenuators, push-button navigation encoder to navigate through the menus on the LCD screen for input mode, parametric EQ, crossover H.P.F, Normal, L.P.F. and more.
    • Indicator LEDs: Five LED indicators per channel: Active, Signal, DDT, Temperature and DC
    • Protection: Thermal, DC, subsonic, incorrect loads, under and over voltage
    • Connectors: Inputs: Dual combination 1/4" XLR, Outputs: Dual male XLR input thru, one 2-pin & one 4 pin twist-lock connectors
    • Construction: 0.062" thick aluminum
    • Dimensions: 3.5"x19"x 17" behind front panel + 0.6" for handle
    • Net Weight: 6.61kg (14.6lbs.) Not including power cord
    • Gross Weight: 8.34kg (18.4lbs.)
