Radial R800 1102 Pro D2 Full Range Passive Direct Box (2 Channels)

ITEM #: RAD-PROD2 MFG #: R800 1102

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$240.00

Our Price:

$199.99

Availability: In Stock
iAvailability Description Popup


    R800 1102 - Overview

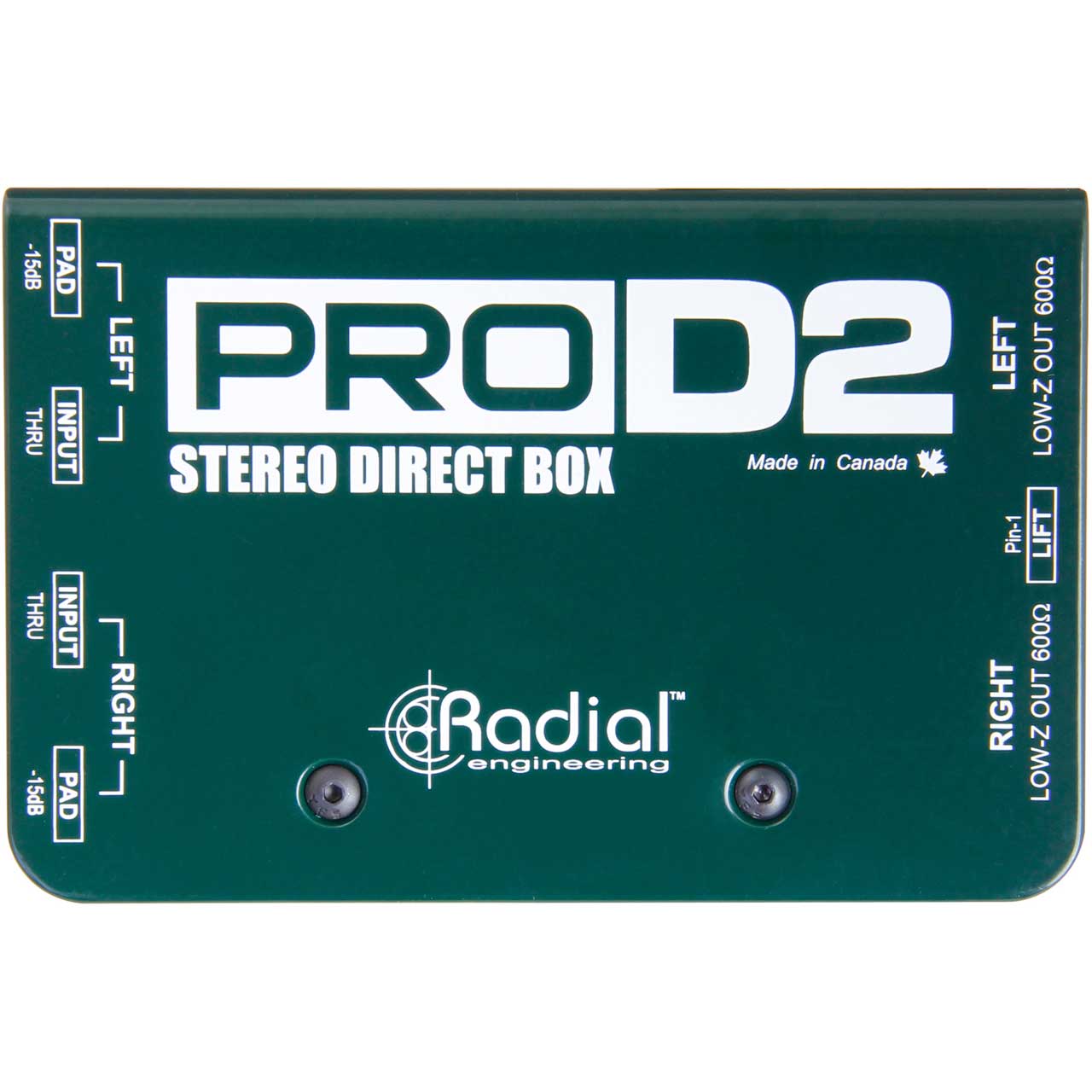

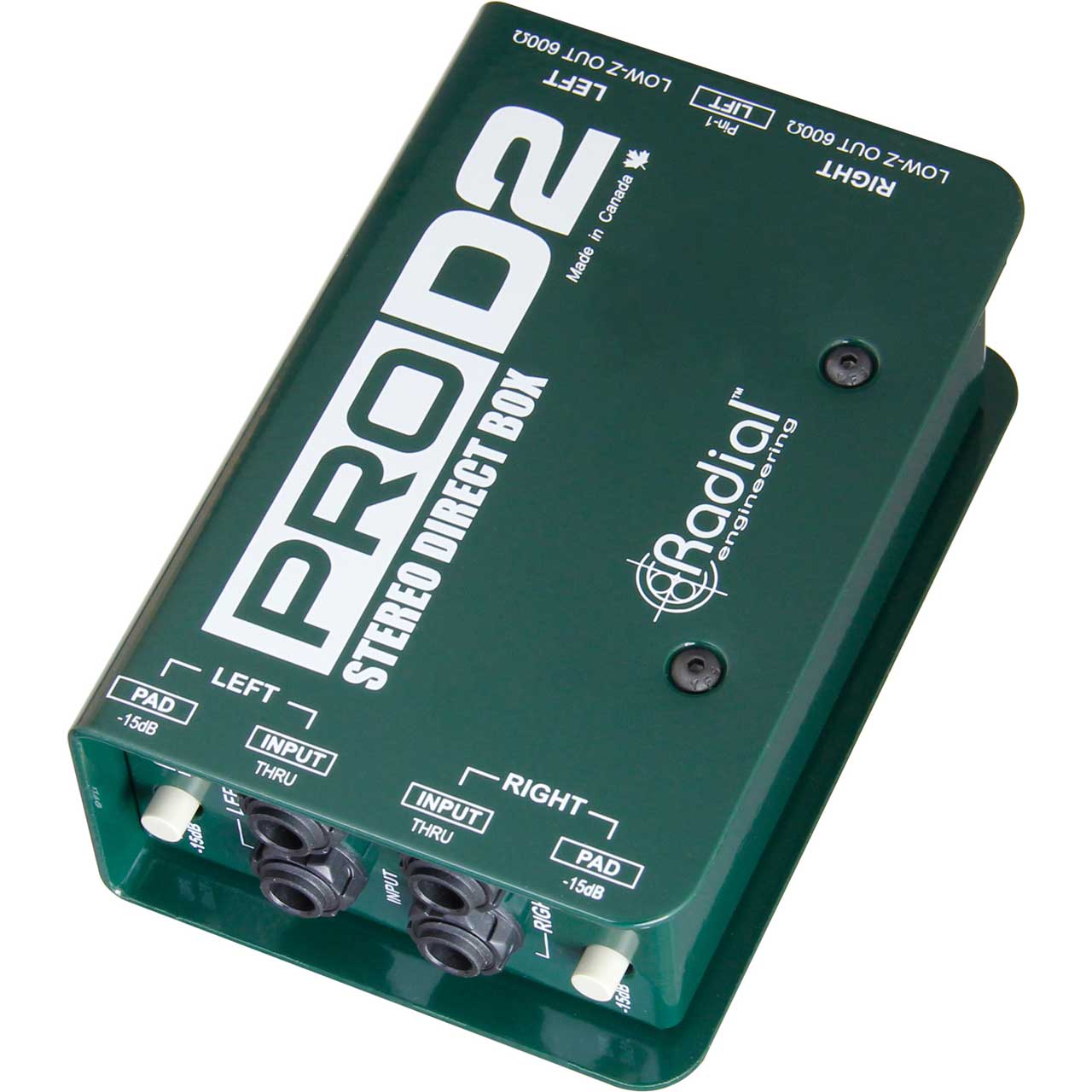

    The Radial PRO D2 is a high-quality, passive direct box that uses 2 proprietary custom-made transformers, one for each channel, for both impedance conversion and isolation. Linear from 20Hz-18kHz, with low distortion and virtually zero phase distortion makes it perfect for live or studio performances. Because of the transformer isolation, problems such as hum and buzz caused by ground loops are eliminated, making it very easy and hassle-free to use. Features include 1/4" thru/input, -15dB pad, and ground lift protected from damage by a protective front panel. Heavy-duty construction, baked enamel finish, and 600ohm balanced output. 3" x 5".

    • Features:

      • Passive stereo direct box
      • Dual proprietary transformer for impedance conversion and isolation
      • Linear from 20Hz-18kHz
      • Low distortion and zero phase distortion

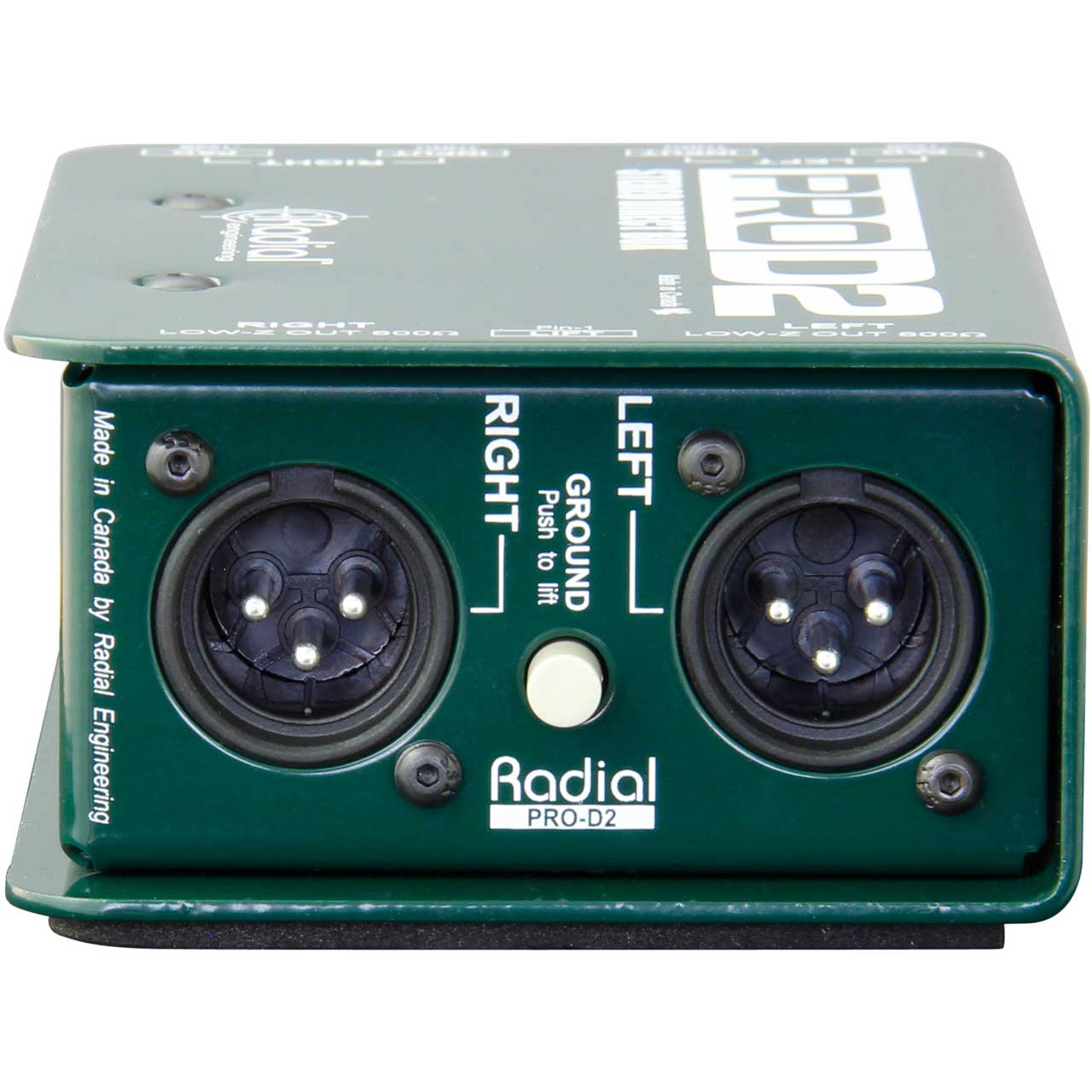

      • XLR input
      • 1/4" thru/input
      • -15dB pad
      • Ground lift
      • Protective front panel
      • Heavy-duty construction
      • Baked enamel finish
      • 600ohm balanced output
      • 3" x 5"

    • Specifications:

      • Input Connections: 2 x 1/4" TS phone
      • Output Connectors: 2 x XLR 2 x 1/4" TS phone Thru
      • Input Level: Not specified by manufacturer
      • Output Level: Not specified by manufacturer
      • Controls: -15dB pad - Ground lift switch
      • Frequency Response: 20Hz to 20kHz, ±2.5dB
      • Noise: Not specified by manufacturer
      • Power: Passive
      • Custom audio transformers on input provides 100% isolation to eliminate hum and noise causing ground loops while maintaining signal integrity
      • Shipping Weight: 1.945 lb
      • Shipping Dimensions (LxWxH): 6.4 x 4.15 x 2.9"

    • GTIN:

      0676101035977
