Radial SW8-USB 8 Channel Line Level Auto Switcher and USB Interface

Manufacturer: Radial Engineering

Item #: RAD-SW8-USB   •   MFG #: R800 8101



List Price:$2,200.00
Our Price:$1,999.99

free ship


Availability: Usually ships in 3-10 business days
i
This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.




    Share!

    California Residents:
    8pt-triangleWARNING:
    Cancer and Reproductive Harm - www.P65Warnings.ca.gov

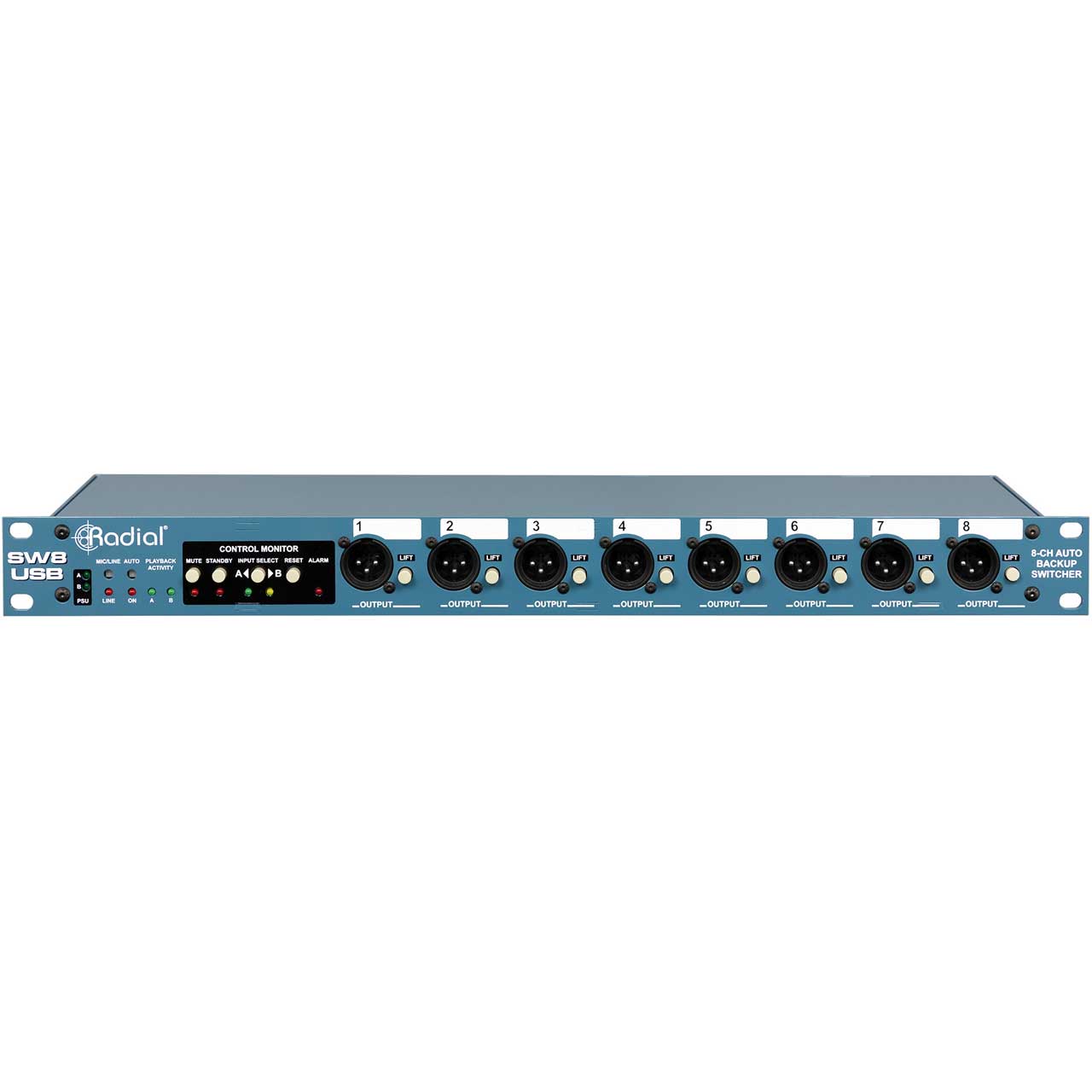

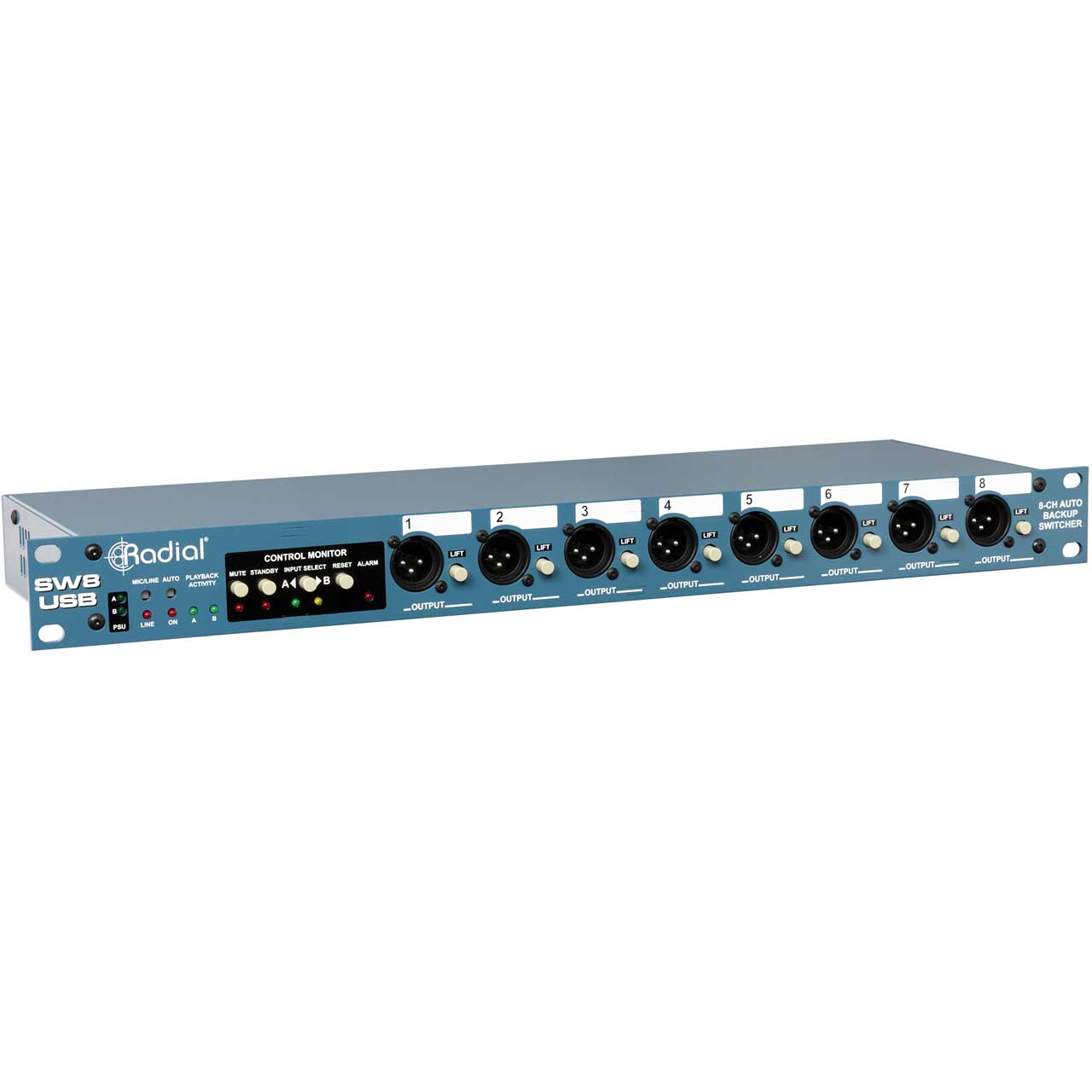

    The Radial SW8-USB is an eight channel switching device designed primarily for live concerts where backing tracks are used to reinforce the performance. Should your primary playback source suffer a failure or dropout, the SW8-USB can switch to a backup source to prevent any negative effects on the performance. This switching can be done automatically by the SW8-USB, or it can be performed manually using a switch on the front panel or by remote control.

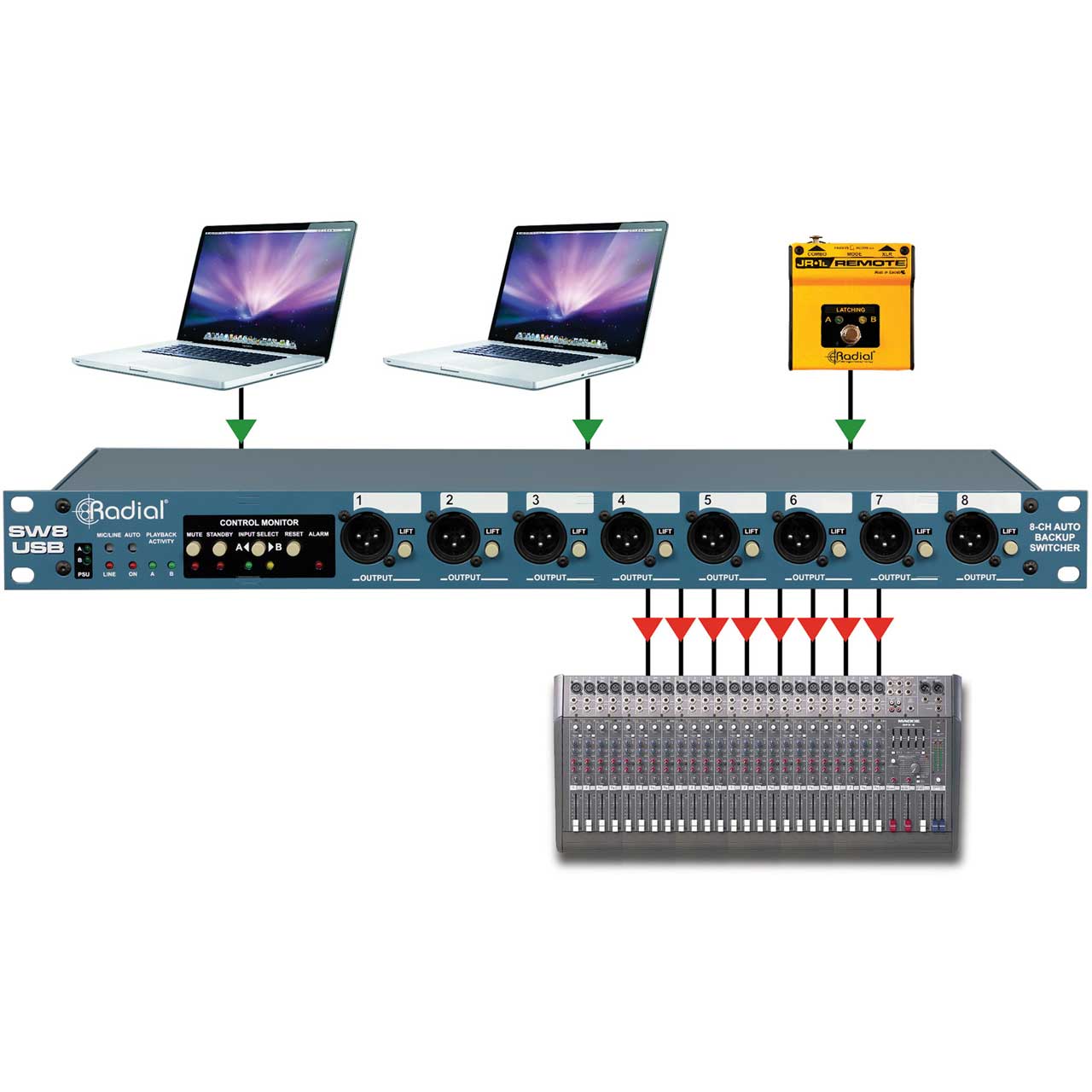

    Typical playback systems require a computer as the digital audio source, along with an audio interface in order to provide analog audio outputs to feed the PA system. For a redundant playback system, the list of equipment required is doubled: two computers, and two audio interfaces to pair with them. One of the advantages that the SW8-USB provides over this typical setup is that it allows you to connect directly to your playback computers over USB, eliminating the need for additional audio interfaces which in turn reduces the weight and cost of your redundant system.

    The SW8-USB is equipped with Type-B USB connectors and 24bit/192kHz digital audio converters that provide eight channels of high quality audio playback over balanced XLR outputs. Designed to feed the PA system, these mic-level outputs are transformer isolated to eliminate noise from ground loops, and they can also be set to linelevel operation. Additional line-level outputs are provided for local monitoring of your playback signals, with the choice of DB25 or 1/4" TRS connections.

    In addition to passing audio over USB, the SW8-USB is also able to function as a MIDI interface: providing you with the ability to use the SW8-USB with show control systems to trigger lighting or video cues, or to control and synchronize audio playback on your primary and backup computers. For larger shows that require more than eight channels of audio playback, up to three SW8-USB units can be linked together for a total of 24 output channels.


    • Features

      • Switch between redundant playback systems
      • Two USB inputs eliminates the need for additional audio interfaces
      • Manual or seamless automatic switching
      • Line level or transformer-isolated mic level outputs
      • Synchronize both playback systems using MTC

    • Specifications

      • Transformer: Eclipse ET-DB2
      • Frequency Response: 20Hz - 20kHz (+0.0dB/-0.5dB)
      • Dynamic Range:
        XLR Outputs: 120dB
        Monitor Outputs: 120dB
      • Total Harmonic Distortion:
        XLR Line Level Outputs: 0.006% @ 1Khz +18dBu
        XLR Mic Level Outputs: 0.009% @ 1Khz +18dBu
        Monitor Outputs: 0.006% @ +18dBu
      • Intermodulation Distortion:
        XLR Outputs: 0.0002% @ +18dBu
        Monitor Outputs: 0.0002% @ +18dBu
      • Output Impedance:
        XLR Outputs: 150Ω
        Monitor Outputs: 150Ω
      • Common Mode Rejection Ratio:
        XLR Line Level Outputs: -98dB
        XLR Mic Level Outputs: -90dB
        Monitor Outputs: -98dB
      • Noise:
        XLR Outputs: -120dB
        Monitor Outputs: -120dB
      • Noise: 44.1, 48, 88.2, 96, 176.4, 192kHz
      • Maximum Output:
        XLR Outputs: +18dBu @ 0DBFS
        Monitor Outputs: +18dBu @ 0DBFS

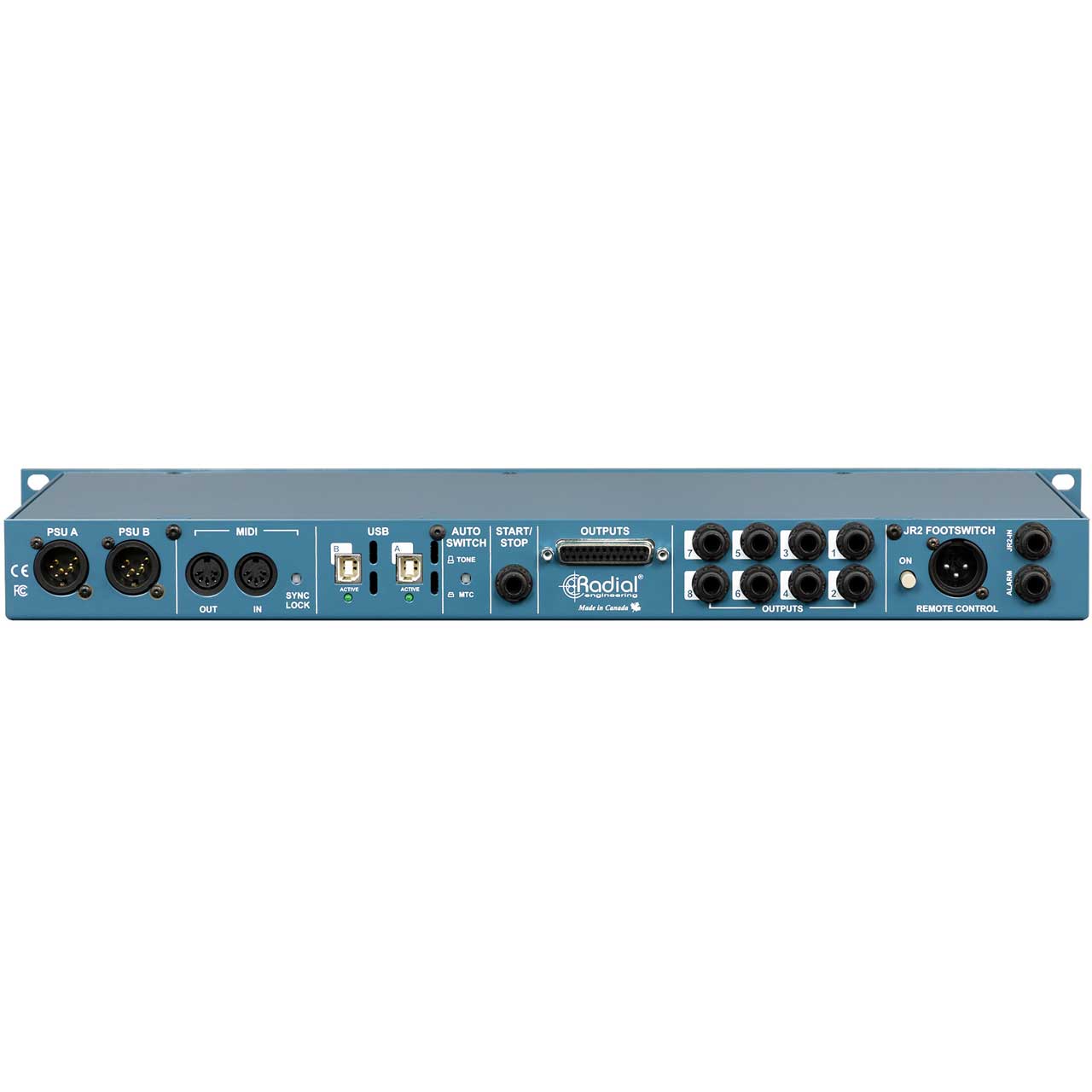

      • Input Connectors: 2x Type-B USB 2.0
      • Output Connectors: XLR-F, TRS, DB25
      • Extras: MIDI I/O, Dual Power Supply, Remote Footswitch (optional)
      • Dimensions (LxWxD): 17.5" x 6" x 1.75" (44.5cm x 15.25cm x 4.5cm)
      • Weight: 9.2lb (4.2kg)
      • Shipping Size (LxWxD): 22" x 10.38" x 4.5" (55.9cm x 26.4cm x 11.4cm)
      • Shipping Weight: 9.7lb (4.4kg)
      • Power: 100V - 240V, locking 4-pin XLR
      • Conditions: For use in dry locations only between 41°F - 104°F (5°C - 40°C)

    • Warranty

      • 3 year transferable

    • GTIN:

      0676101037803
