RCF TT51-A Active 300W 2-Way - 5 Inch Speaker with 1 Inch Dome Tweeter - RDNet Option
  • RCF TT51-A Active 300W 2-Way - 5 Inch Speaker with 1 Inch Dome Tweeter - RDNet Option
  • RCF TT51-A Active 300W 2-Way - 5 Inch Speaker with 1 Inch Dome Tweeter - RDNet Option
  • RCF TT51-A Active 300W 2-Way - 5 Inch Speaker with 1 Inch Dome Tweeter - RDNet Option
  • RCF TT51-A Active 300W 2-Way - 5 Inch Speaker with 1 Inch Dome Tweeter - RDNet Option


RCF TT51-A Active 300W 2-Way - 5 Inch Speaker with 1 Inch Dome Tweeter - RDNet Option

Manufacturer: RCF USA Inc.

Item #: RCF-TT51-A   •   MFG #: TT51-A



This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

800-522-2025Email





Item unavailable. Please select another option.

Items similar to the RCF-TT51-A

California Residents:
8pt-triangleWARNING:
Cancer and Reproductive Harm - www.P65Warnings.ca.gov

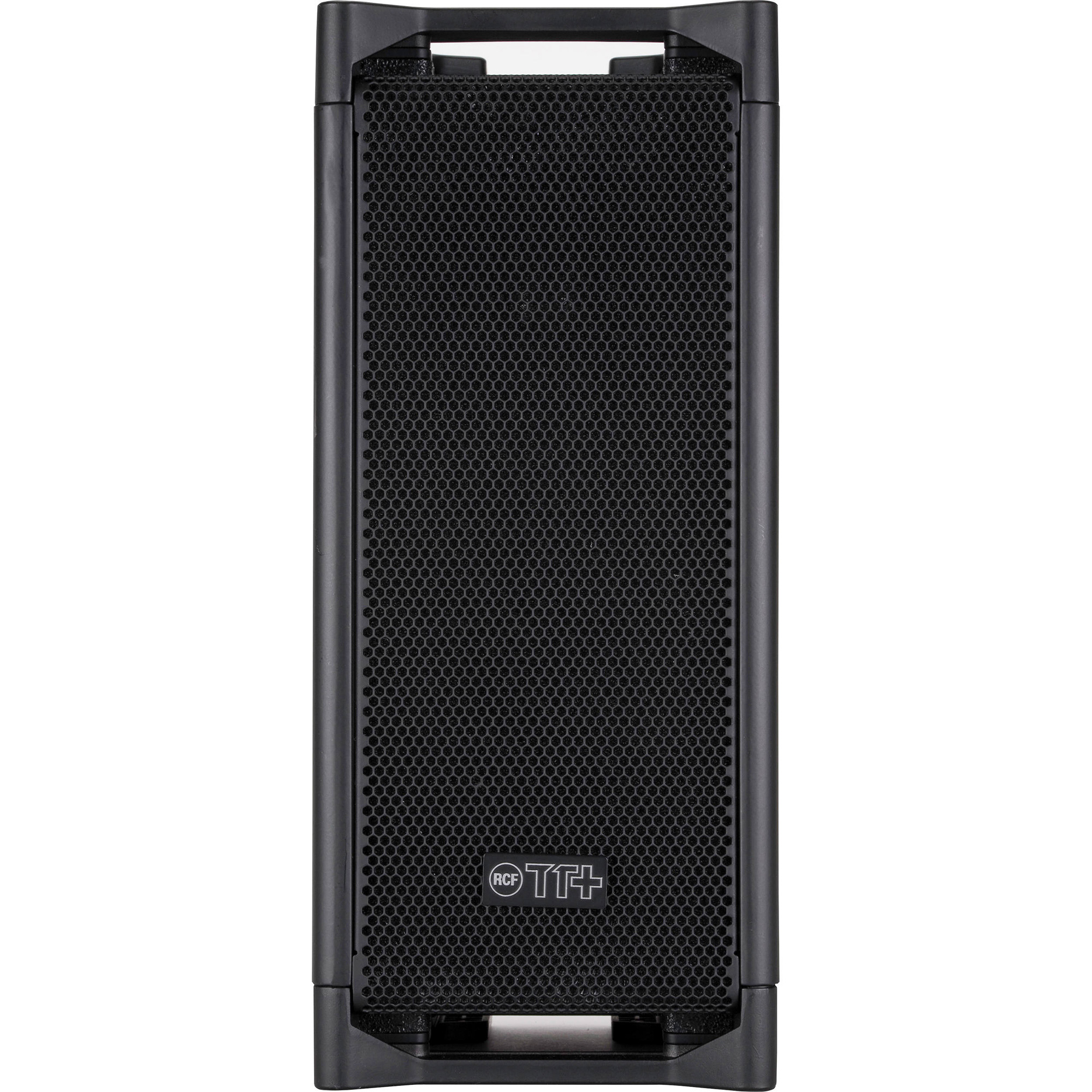

The TT51-A is an ultra compact, active loudspeaker designed specifically for high quality indoor nearfield sound amplification. It provides surprisingly high output and exceptional fidelity for foreground and background music applications. It’s speech projection capabilities also make it very effective as a fill or delay element in larger audio systems. Unlike many compact loudspeakers, the TT051-A produces the high impact, high definition sound projection expected in professional PA applications. Its wide angle projection, 110° conical, makes audience coverage easy in a variety of situations. Special integrated side mechanics with a unique quick lock system has been developed to provide a fast and easy set up of the speakers, offering an outstanding application flexibility.

It is equipped with a 300 W class D digital amplifier, 150 W for the low frequencies and 150 W for the high frequencies. A powerful 5" neodymium woofer and a 1" aluminium dome tweeter loaded to a wide dispersion constant directivity horn provide an extensive coverage.

TT51-A features a 48 Khz, 28 bit DSP processing and a dedicated networking board. Using our proprietary RDNet protocol is possible to monitor all the system parameters, form the input to the status of each single amplifier. Having a DSP on board of each cabinet, it is possible to address to single cabinets or groups of cabinets specific presets or modifications of parameters like gain, equalisation or delay. The RDNet protocol is based on RS-485 communication protocol, it is very stable and it is possible to send and receive data on a simple XLR cable.

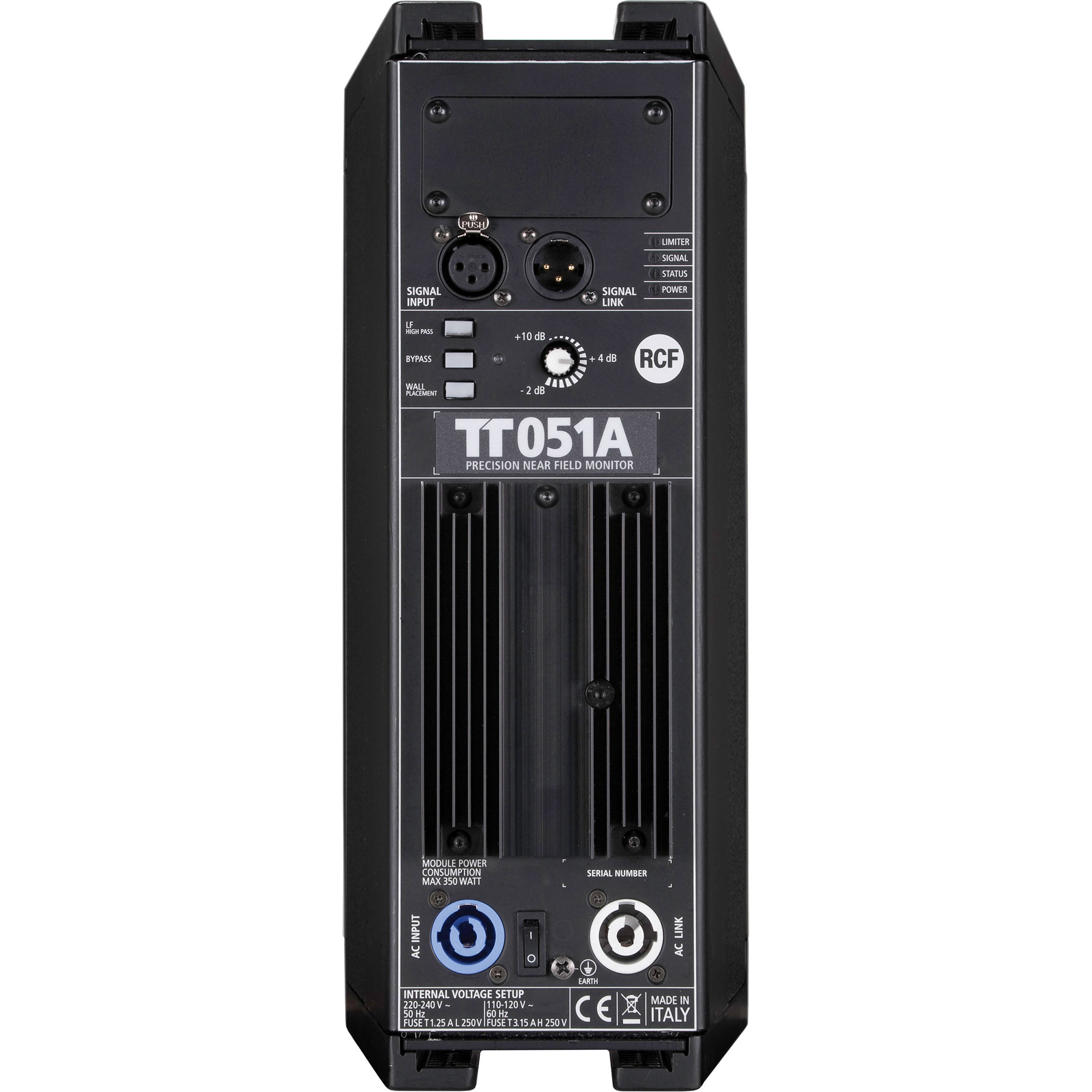

The state of the art TT51-A input board which features XLR In/Out, Volume control, Eq. switch for wall mounting, Hi-pass filter switch, RDNet ready, RDNet bypass, 4 status LEDs, Powercon In/Out.

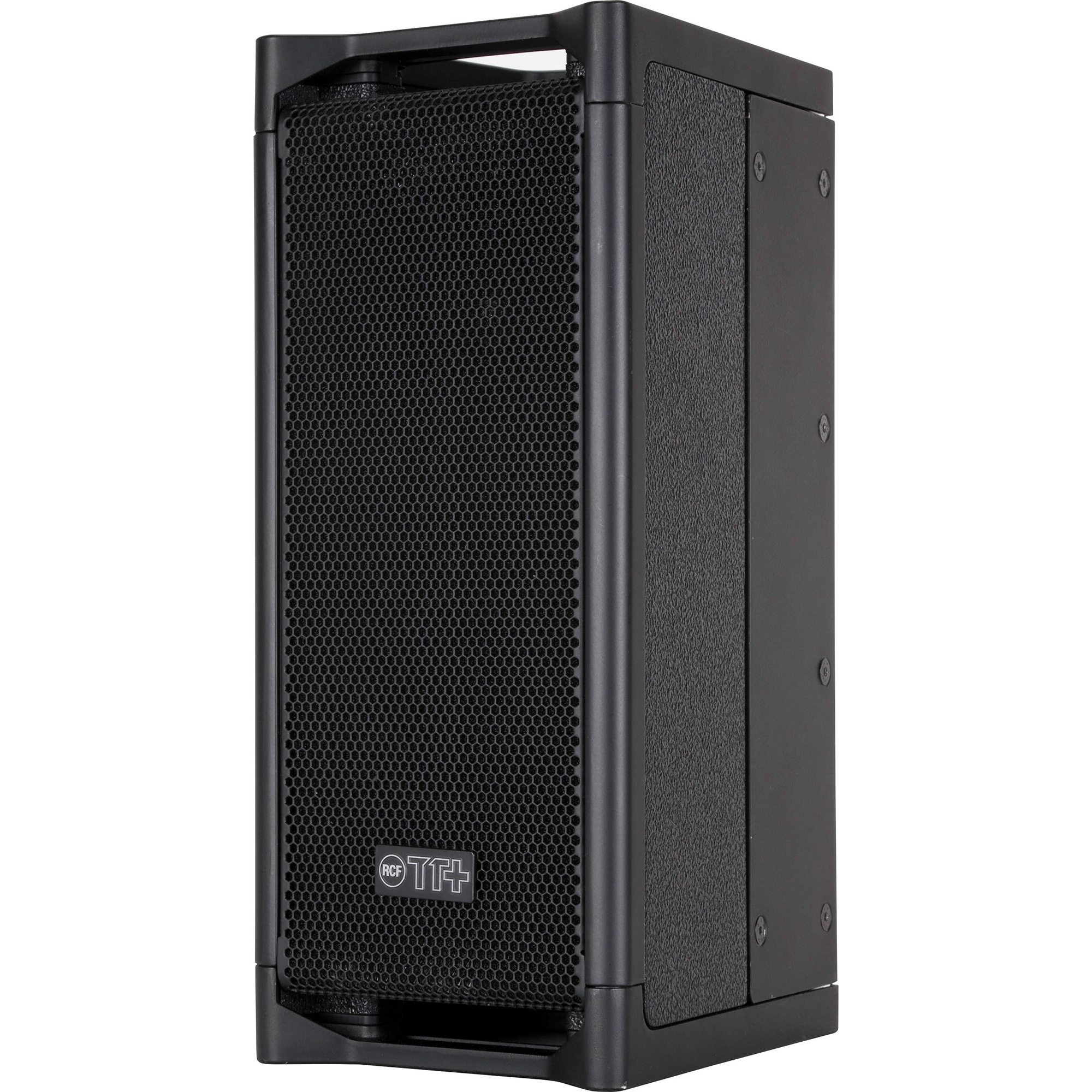

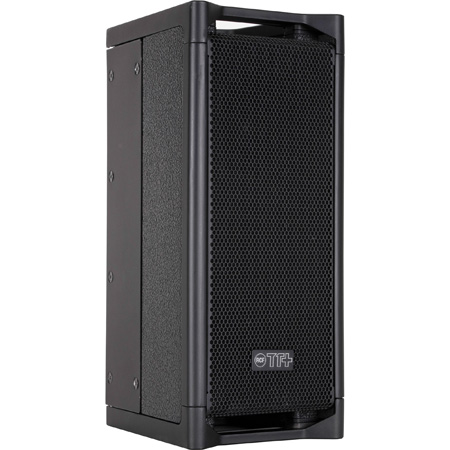

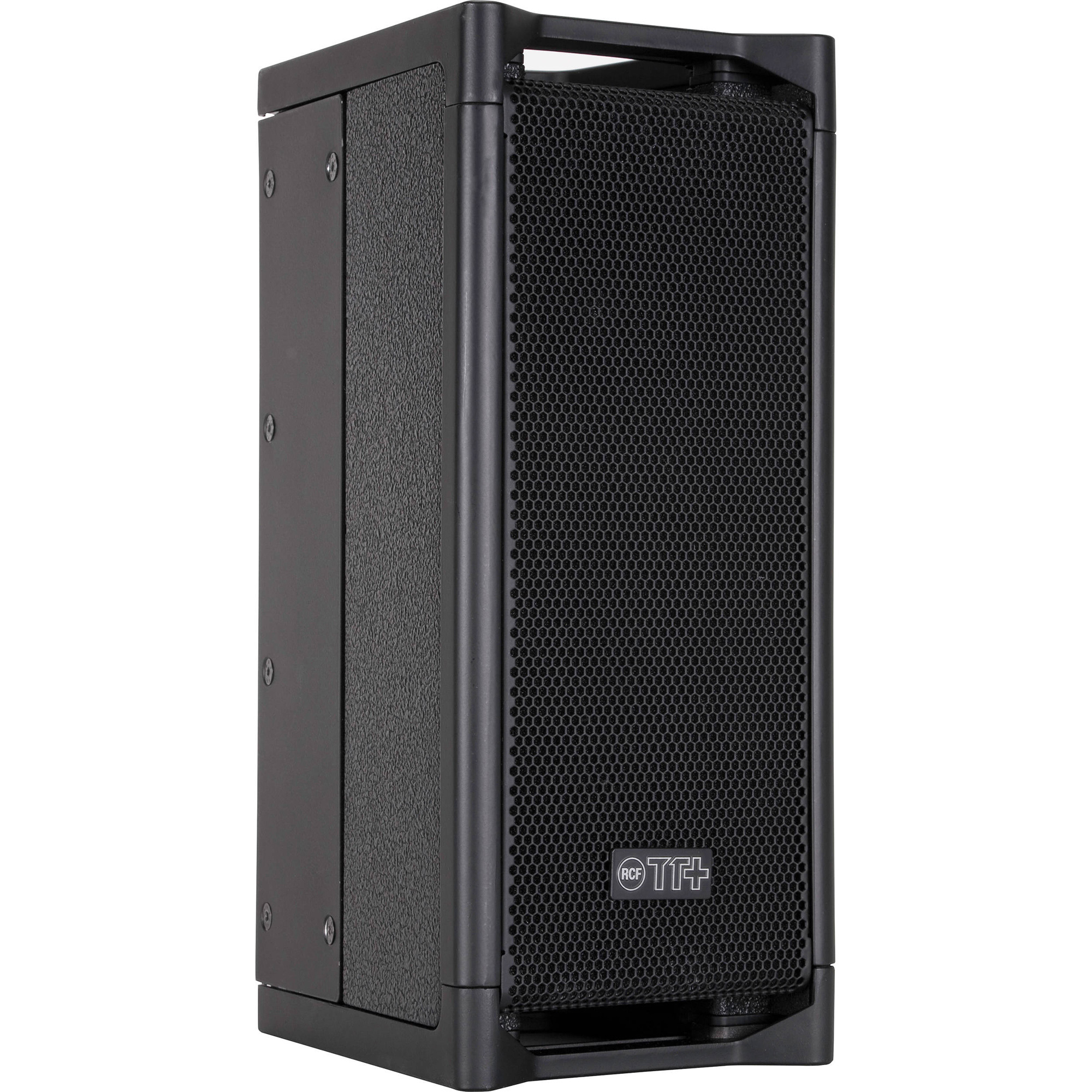

Foam-backed grilles hide the drivers from view for pleasing aesthetics. The cabinet features integrated quick lock mechanics to provide a perfect stability during mobile events or easy assembling for permanent installation


  • Features

    • 300 Watt, 2 way digital amplification
    • Heavy duty multi-functional cabinet
    • 5" low distortion woofer
    • 1" titanium dome tweeter
    • DSP processing
    • Wall mount EQ, High pass EQ
    • RDNet ready

  • Specifications

    • Acoustical
    • Frequency response: 65 Hz- 20 Khz
    • Max SPL: 116 dB
    • Horizontal coverage angle: Conical 110°
    • Vertical coverage angle: Conical 110°
    • Compression driver: 1" metal tweeter
    • Woofer: 5" woofer, 1.2" voice coil
      Input Section
    • Input signal (Impedance): bal/unbal
    • Input/Output connector: XLR, RDNet ready / XLR
    • Input sensitivity: -2 dBu / +10 dBu
      Processor Section
    • Crossover frequencies: 1800 Hz
    • Protections: thermal, excurs., rms
    • Limiter: soft limiter
    • Controls: DSP controlled
      Amplifier
    • Power supply: switching 350 Watt
    • High frequencies: D / 150 Watt
    • Low frequencies: D / 150 Watt
    • Cooling: convection
    • Connection: powercon
      Physical
    • Height: 348 mm (13.70")
    • Width: 150 mm (5.90")
    • Depth: 190 mm (7.48")
    • Weight: 7 kg (15.43 lbs)
    • Cabinet: baltic birch plywood
    • Hardware: multi-functional
    • Handles: top, bottom
    • Colour: Black

  • GTIN:

    8024530008925
