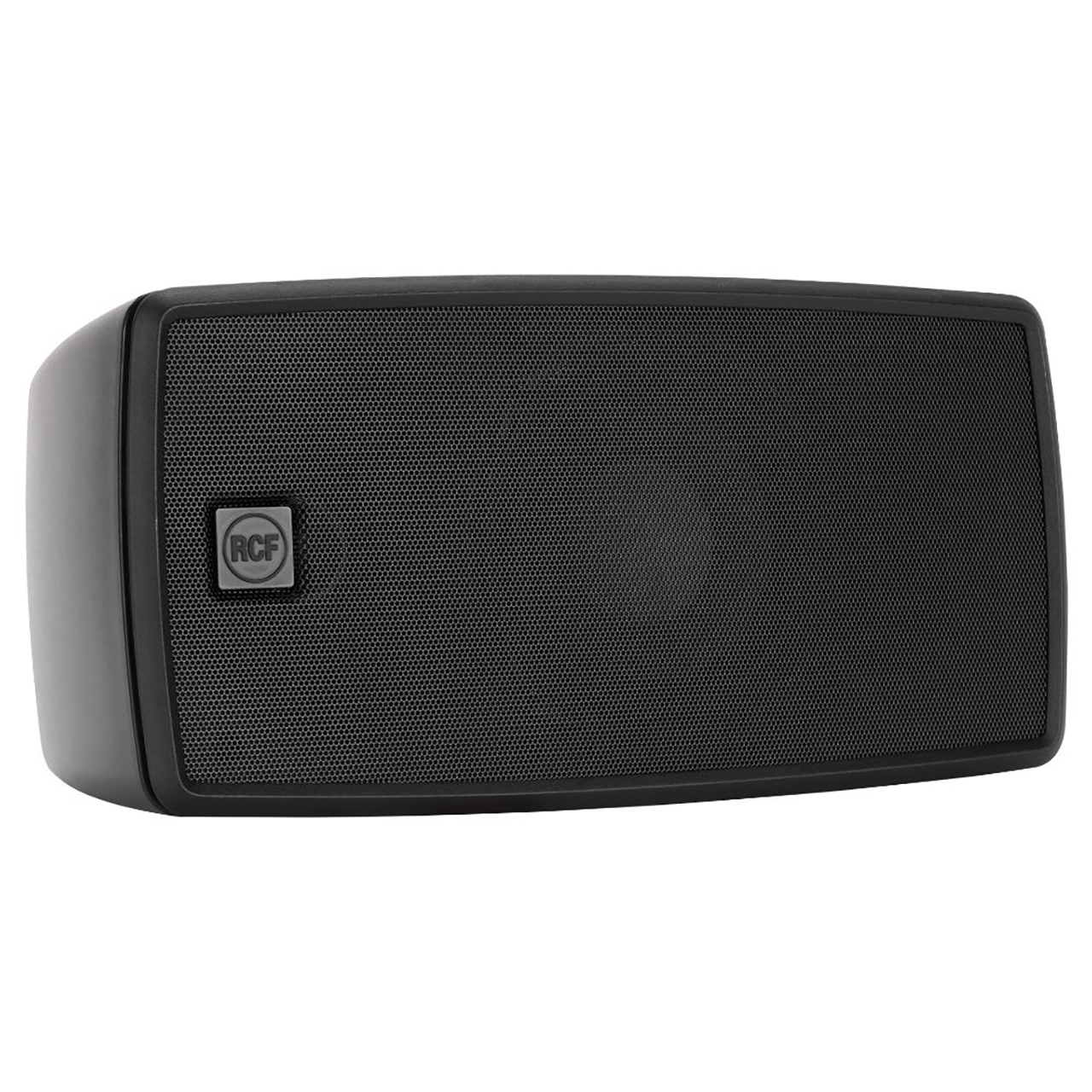

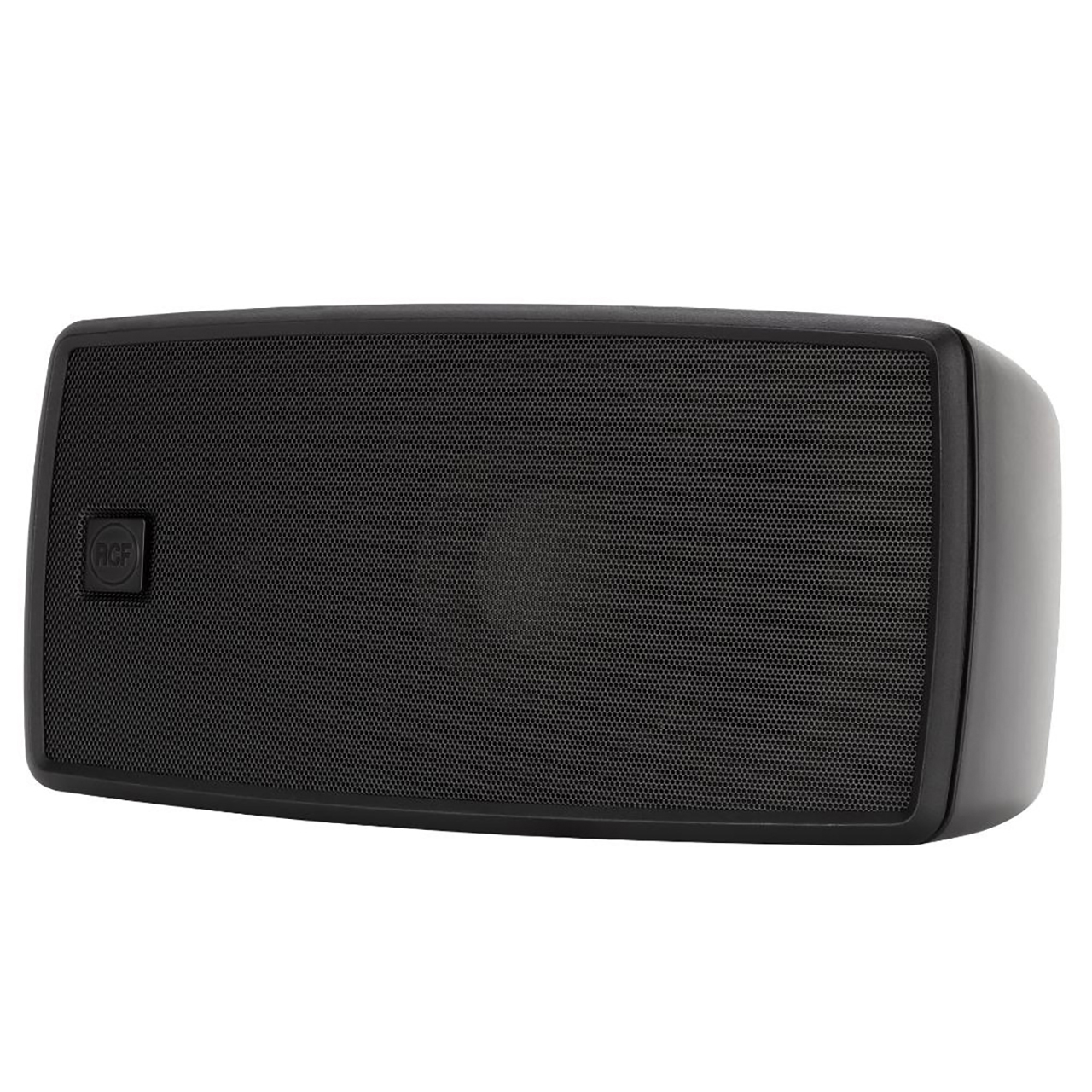

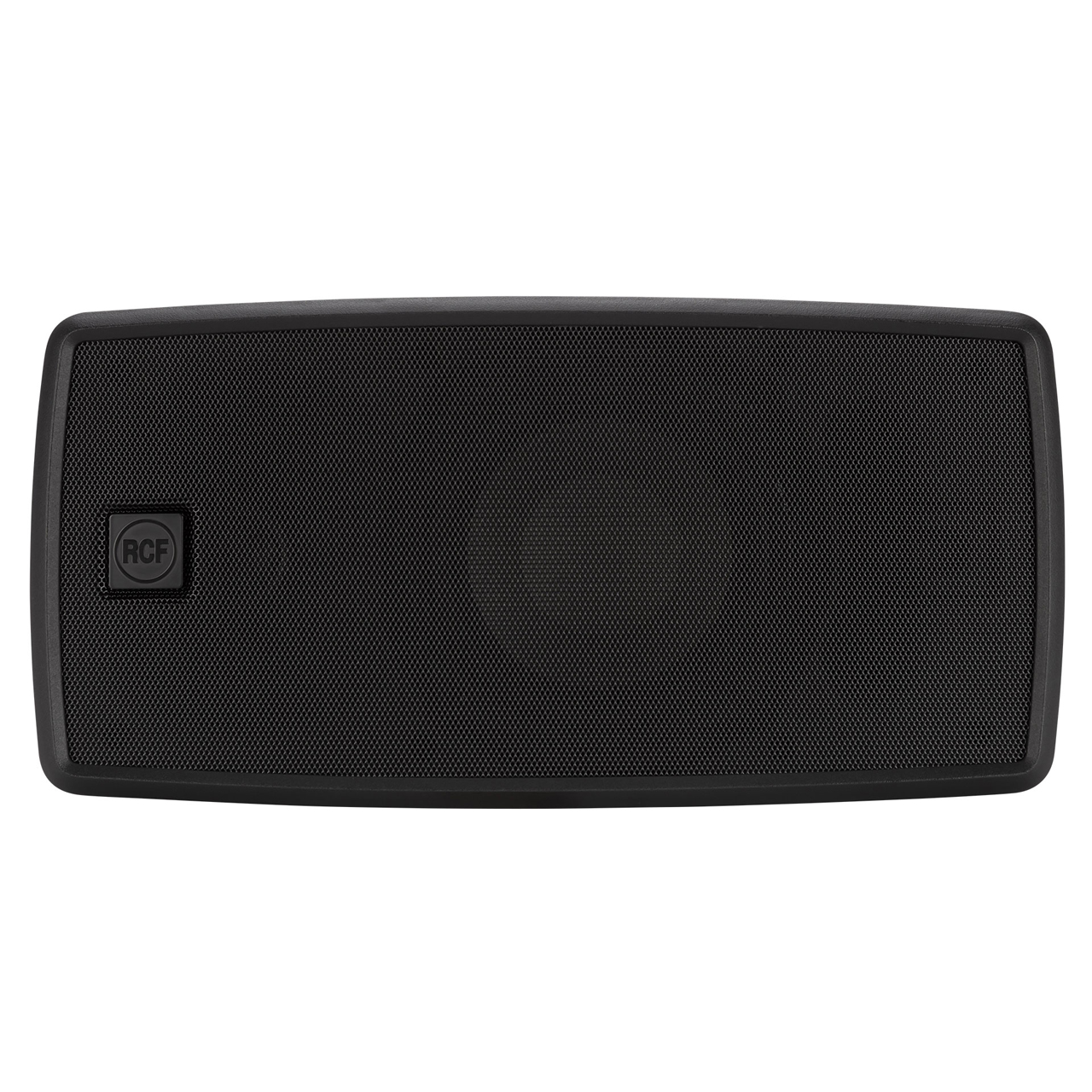

RCF WMR 50T Passive Two-Way Wall Mount Monitor Speaker with 5-Inch Woofer and 1-Inch Tweeter - Black

ITEM #: RCF-WMR-50T-B MFG #: WMR-50T-B

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$499.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


WMR-50T-B - Overview

The RCF WMR 50T is a multipurpose two-way wall-mounted speaker, suitable for a wide range of applications. Thanks to its elegant and discreet design and accurate details, WMR 50T pairs with any building's aesthetic. The high-quality transducers guarantee precise music reproduction of the entire frequency band and provide impressive sound pressure levels for such a compact enclosure. The installation is easy thanks to the dedicated connection board inside the (included) wall mount support, which allows the installer to set the desired tilt first, fix the speaker, and finally quickly connect it without the need for any tooling.

Multipurpose Sound
Music nurtures engagement and improves the feeling of hospitality provided by the environment. With a wide conical coverage angle of 140° x 100°, WMR speakers feature a two-way configuration with a bass-reflex cabinet design, ideal for both speech and music reproduction. All products designed for Business Music applications offer optimal background performance and consistent tonal quality across all the Series, preserving the same performance even during high-powered foreground music. The combination of modern monochrome and discreet design blends into any environment.

Uncompromised Performance
Quality components and careful acoustic design make the WMR Series a perfect choice for demanding applications. Designed for bars and restaurants, leisure hospitality, recreational facilities, theme parks, shopping malls, and corporate spaces. Their extra-wide directivity significantly reduces the number of speakers and installation points.

Smooth Installation

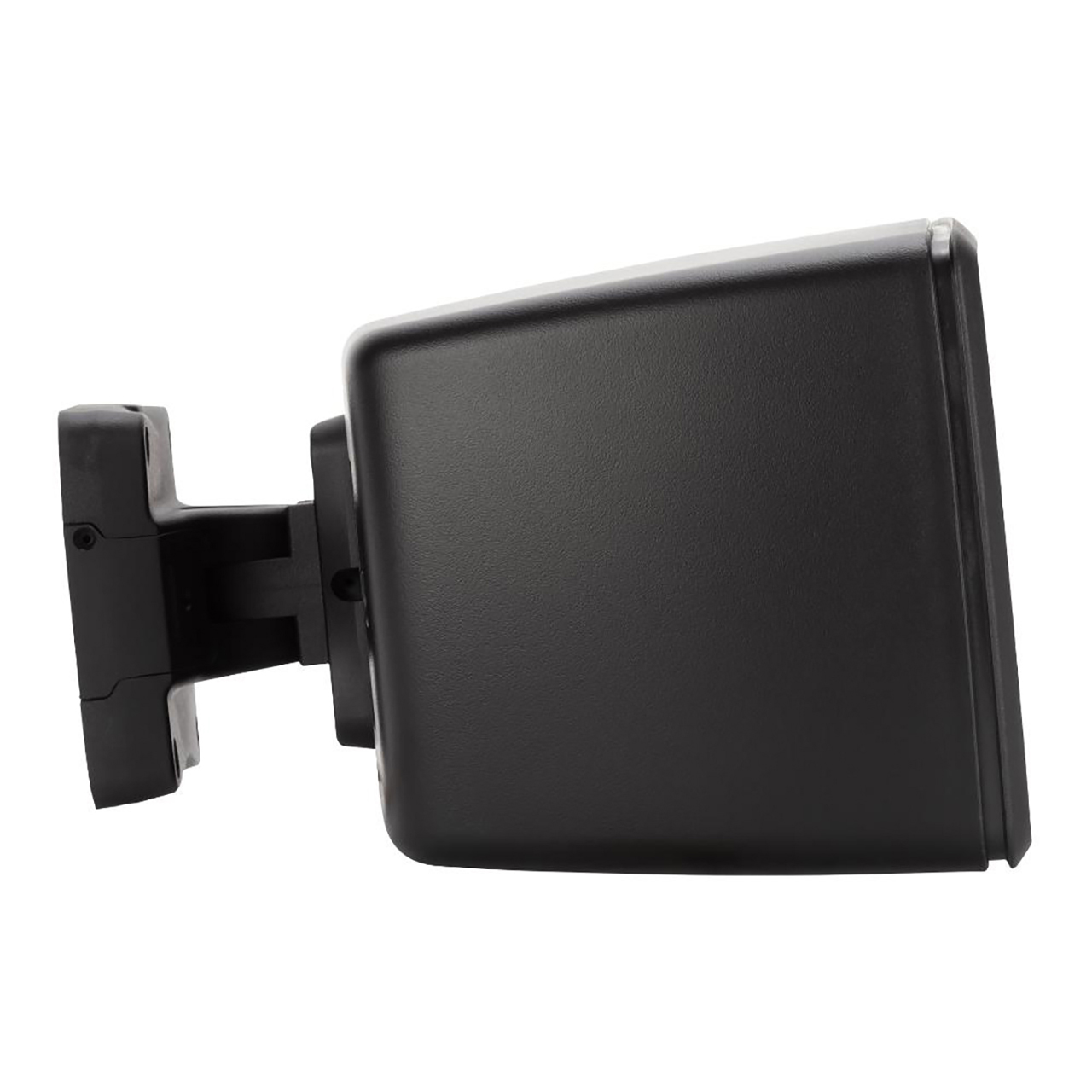

Housed in a compact self-extinguishing plastic cabinet, all models feature Euroblock inputs, a line transformer for 70V - 100V systems, and quick and easy installation. The connection panel is embedded inside the wall mount support, for both ease of installation and elegance. The stepped swivel mount is fast to configure and secure.

  • Features:

    • 40W RMS power handling
    • 110dB max SPL
    • 80Hz - 20kHz frequency range
    • 140° x 100° constant directivity coverage angle
    • 5" high power woofer
    • 1" neodymium dome tweeter
    • Self-extinguishing plastic cabinet and aluminum front grille

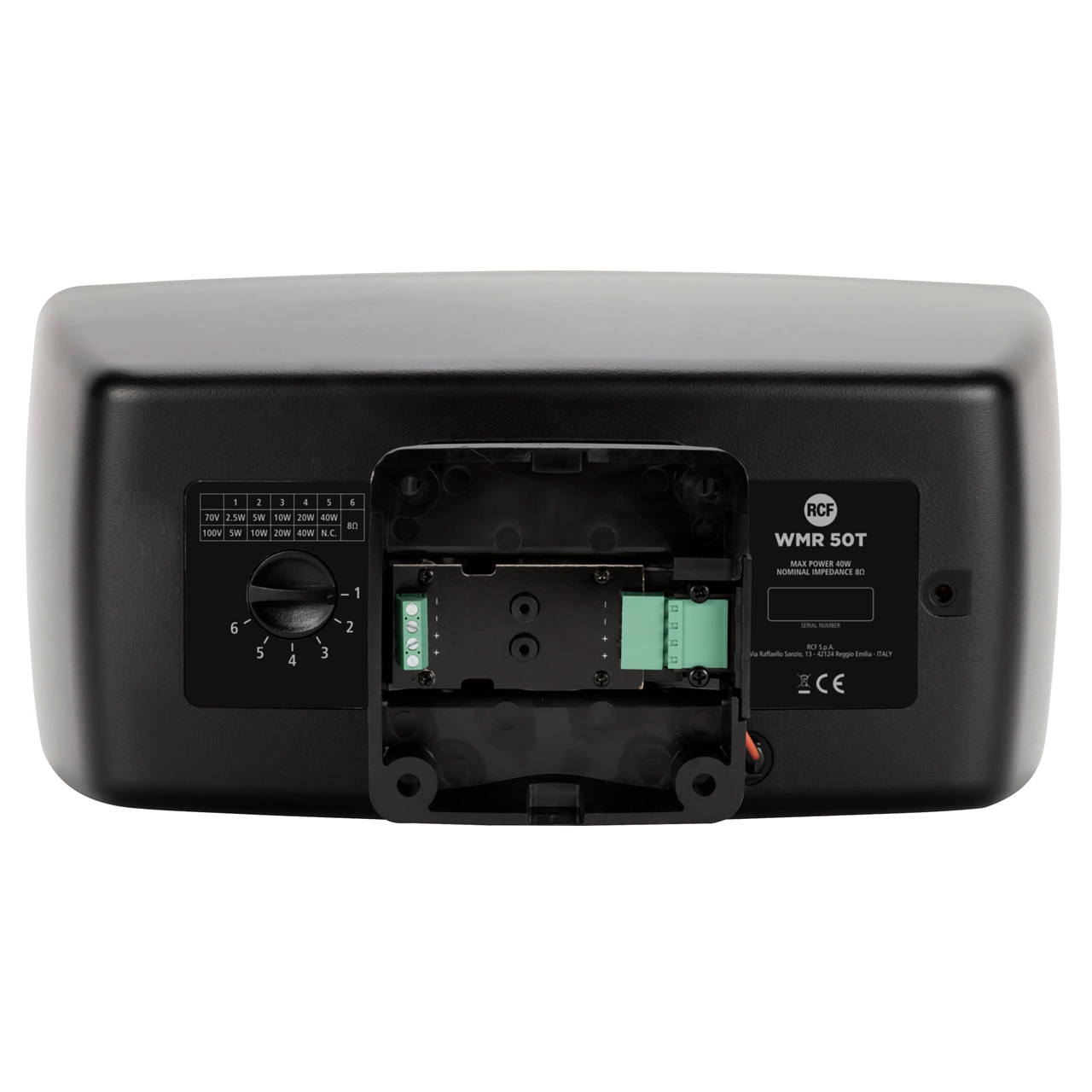

    • Connection board integrated into the wall support
    • 4-pole EUROBLOCK connector (audio input and parallel link output)
    • IP55 protection grade

  • Specifications:

      Acoustic
    • Frequency Response (-10dB): 80Hz - 20kHz
    • Max SPL @ 1m: 110dB
    • Horizontal Coverage Angle: 140°
    • Vertical Coverage Angle: 100deg;
    • System Sensitivity: 88dB

      Power
    • Amplification: Full Range
    • Nominal Impedance: 8Ω
    • Power Handling: 40W RMS
    • Peak Power Handling: 160W PEAK
    • Protections: Bulb lamp
    • Crossover Frequencies: 2500
    • Recommended Amplifiers: XPS SERIES, KPS SERIES, DMA SERIES

      Transducers
    • Dome Tweeter: 1x 1.0" neo, 1.0'" v.c
    • Woofer: 1 x 5.0'', 1.0'' v.c

      Input and Outputs
    • Input Connectors: Euroblock
    • Output Connectors: Euroblock
    • Constant Voltage Transformer: 70V/100V
    • Power Selection 1: 40W - 250Ω
    • Power Selection 2: 20W - 500Ω
    • Power Selection 3: 10W - 1000Ω
    • Power Selection 4: 5W - 2000Ω
    • Power Selection 5: 2.5W - 4000Ω

      Standard Compliance
    • IP Protection Grade: IP55
    • Safety Agency: CE compliant, UL 1480A

      Physical
    • Cabinet/Case Material: ABS
    • Hardware: Wall Mount Bracket
    • Grille: Steel
    • Weight: 9.26lbs (4.2kg)
    • Dimenisons (LxWxH) 9.96" x 6.69" x 13.74" (253mm x 170mm x 349mm)
    • Shipping Weight: 11.68lbs (5.3kg)
    • Shipping Dimensions (LxWxH): 12.13" x 16.46" x 10.94" (308mm x 418mm x 278mm)
