RDL D-RC3 Remote Audio Mixing Control
    Questions? Ask a Markertek Expert:
    800-522-2025 Email

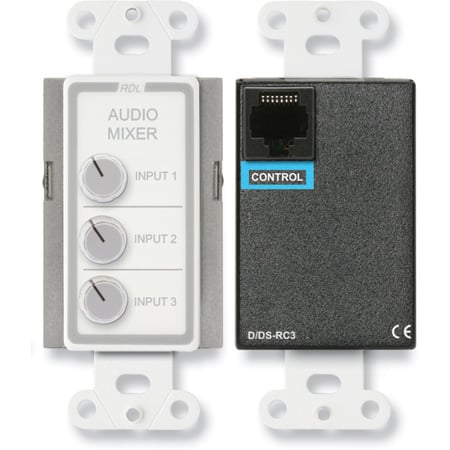

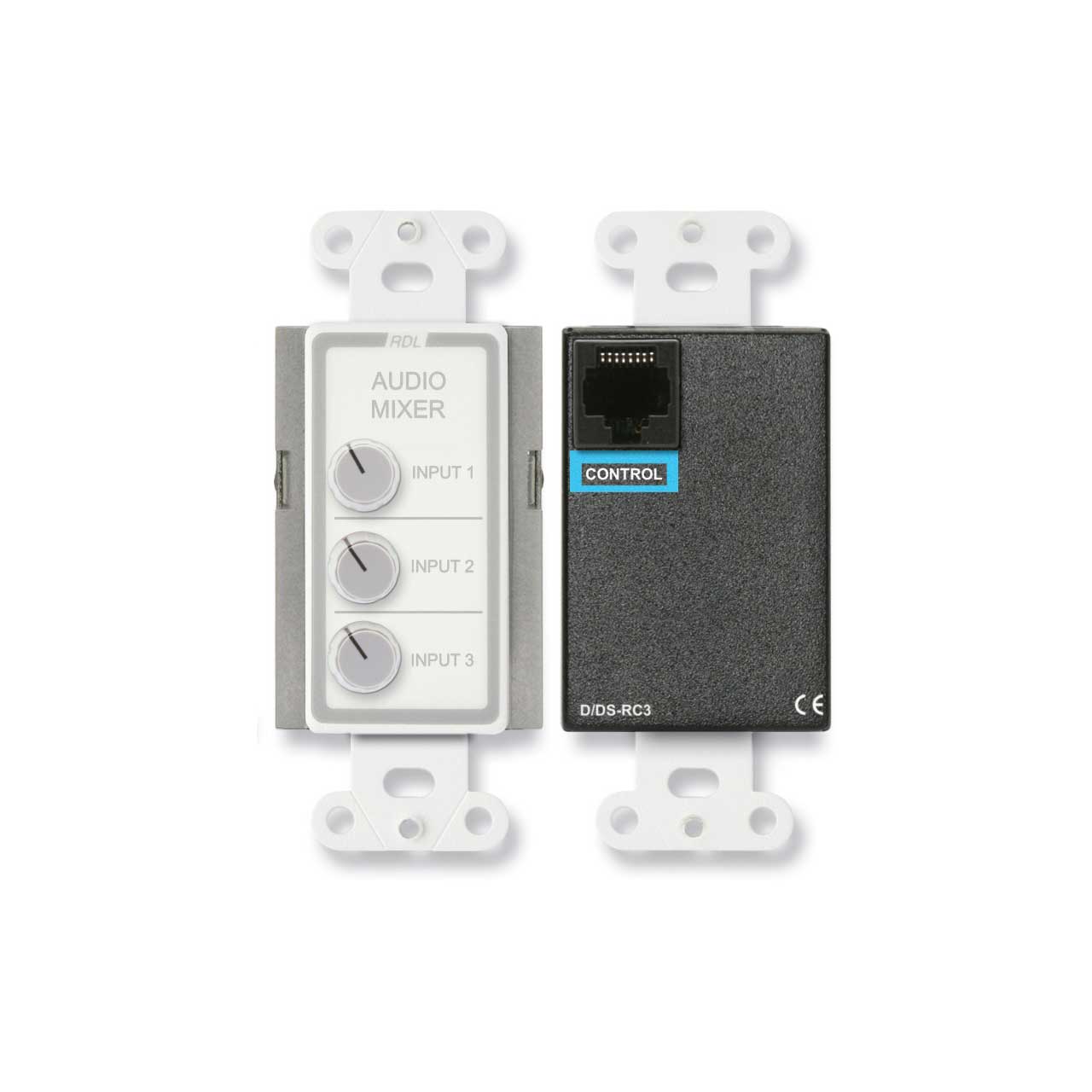

    RDL D-RC3 Remote Audio Mixing Control

    Manufacturer: Radio Design Labs

    Item #: RDL-D-RC3   •   MFG #: D-RC3


    List Price:$169.93
    Our Price:$120.59

    free ship
    More on the way, usually ships in 3-10 business days
    This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.

      California Residents:
      Cancer and Reproductive Harm -


      The D-RC type remote audio mixing controls provide user-accessible volume knobs for two or three sources. Each control is available with level controls only, or with level controls plus a muting button for each channel. They function exactly as a mixer without the need to send audio to and from the remote location. A rear-panel RJ45 jack provides the connection for standard twisted-pair wiring between the remote control and an RDL remote-controlled mixer. The cable sends the knob position and muting status data to the mixer. All audio signals remain local to the mixer which uses VCA technology to set the mixer levels. A long life 10 kΩ potentiometer is used in the control for setting the VCA voltage. Muting models provide a MUTE button for each mixer channel that alternately mutes or un-mutes the audio. An LED MUTE indicator glows red when the signal is muted and turns green when the audio channel is active. Each model is offered in a standard RDL white front panel or in stainless steel with custom lettering available. These finishes match other RDL remote selectors and jack plates for a visually appealing installation of multiple controls.

      • Features

        • Three Channel Remote Audio Mixing Control Panel
        • Single-Turn Rotary Controls
        • Single Control Location
        • Available in RDL White/Gray or Stainless Steel
        • Direct Control of RDL Mixers with an RJ45 Remote Control Port
        • Standard Twisted-Pair Interconnection to Mixer
      • Specifications

        • Compatibility: RDL remote controlled mixers (light blue color-coded control jack)
        • Control connector: RJ45
        • Mounting: Mounts in standard US electrical box; cover plate available separately
        • Dimensions: Height: 4.1 in. 10.4 cm; Depth: 1.44 in. 3.7 cm (without knob); Depth: 2 in. 5 cm (with knob); Width: 1.7 in. 4.33 cm
        • Package Type: Cardboard Box
        • Package Dimensions: 3.625 x 4.625 x 2.125 in.
        • Shipping Weight: 0.48 lbs.
        • WEEE weight: 0.325 lbs.
        • Tariff code: 8517.62.0050
      • GTIN:
