RDL D-TPS6A Passive Single-Pair Sender

ITEM #: RDL-D-TPS6A MFG #: D-TPS6A

free ship

List Price:

$127.19

Our Price:

$88.95

Availability: Typically Ships in 3-10 Days
iAvailability Description Popup


    D-TPS6A - Overview

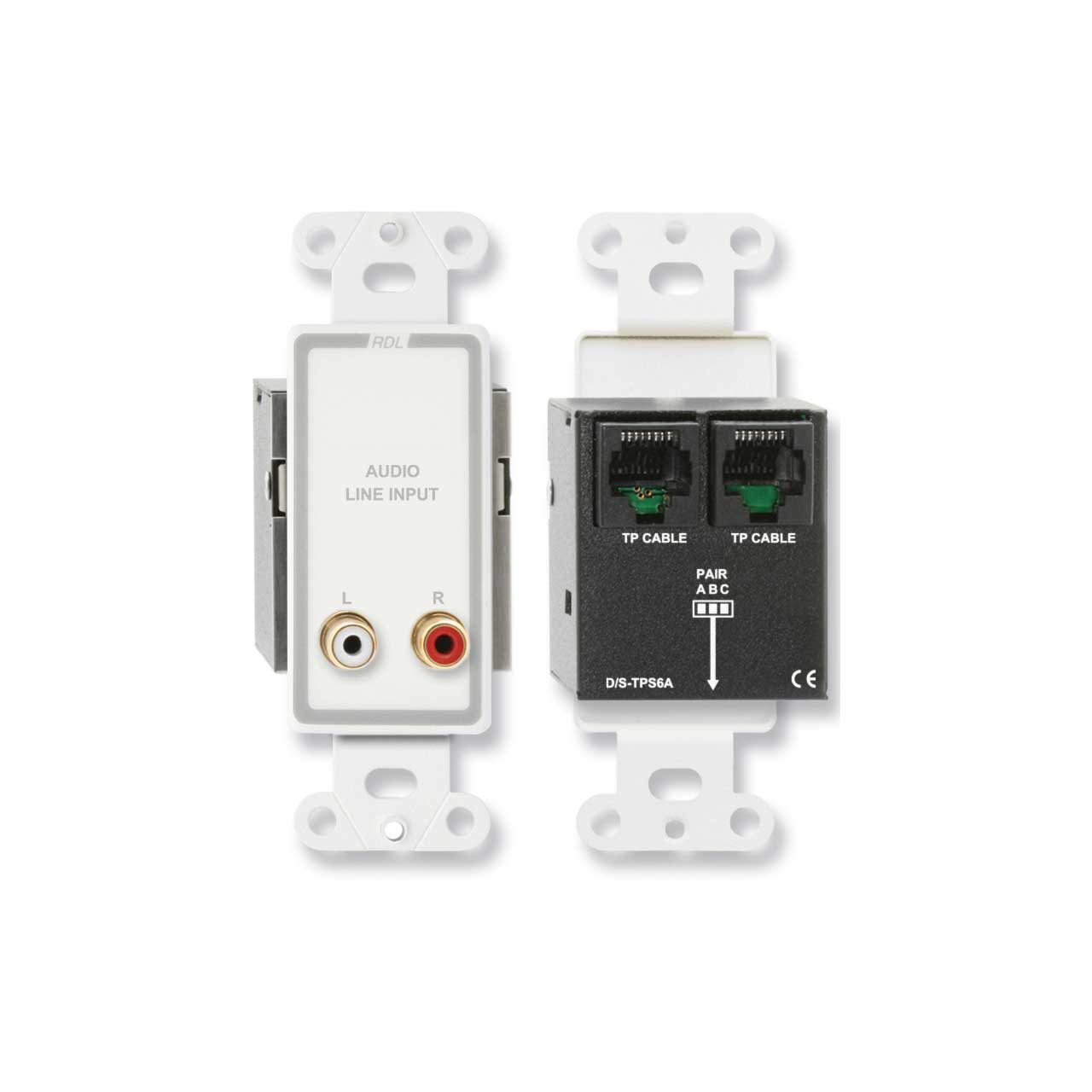

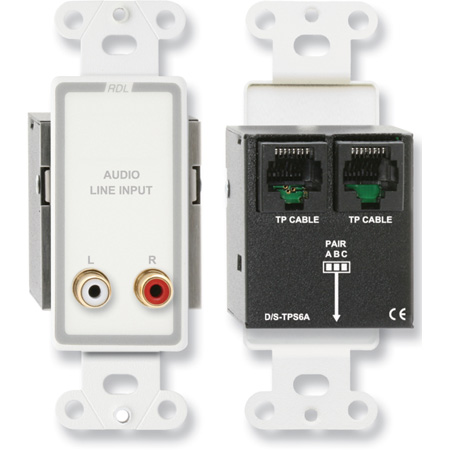

    The -TPS6A is a single-pair audio sending module compatible with RDL® Format-A twisted pair products. The front panel features two gold plated phono jacks intended for stereo consumer line level audio sources. A studio-quality transformer provides isolation between the audio source and the RJ45 TP CABLE.The -TPS6A is a single-pair sender, feeding the input signal to the cable pair set on the rear-panel switch during installation. This module drives only one cable pair, therefore a TP CABLE RJ45 jack is provided to accept signals and power from other mic-level or line-level Format-A senders. Two other single-pair senders may be chained to a TP CABLE jack, or a single two-pair sender may be connected. If three single-pair senders are connected together, each sender must feed a different pair: A, B or C. The -TPS6A must be set to feed pair A if it is connected together with an RDL two-pair sender that feeds stereo audio on pairs B and C.The -TPS6A is a passive module that does not require power to operate. If power is present on a cable connected to a TP CABLE jack, that power is passed through to the modules connected to the other TP CABLE jack.

    • Features:

      • Stereo Audio Input Combined to Mono Output
      • Input on Dual RCA Jacks
      • Switch Selects which RJ45 Pair (A, B or C) is Fed
      • Signal and Power Pair Pass-Through between TP CABLE RJ45 Jacks
      • Passive Circuitry Does Not Require Power
      • Galvanic Isolation through a Studio-Quality Transformer
      • Daisy-Chain with Single-Pair or Two-Pair Format-A Senders

    • Specifications:

      • Input: 2 RCA jacks, unbalanced stereo combined to mono
      • Input Level: -10 dBV, +22 dBu max
        Format-A Signal Pair Used: Switch-selectable A, B, or C (rear-panel switch)
        Format-AInput: RJ45 TP CABLE
        Ouput: RJ45 TP CABLE, RDL TP Format-A
        Frequency Response: 20 Hz to 20 kHz (±0.5 dB)
        THD: < 0.1% (50 Hz to 20 kHz); <0.001% (1 kHz typ)
      • Power Requirement: Passive
      • Dimensions: 1.6” (4.06 cm) W; 4.11” (10.45 cm) H; 1.89” (4.8 cm) D
      • Package Type: Cardboard Box
      • Package Dimensions: 3.625 x 4.625 x 2.125 in.
      • Shipping Weight: 0.515 lbs.
      • WEEE weight: 0.365 lbs.
      • Tariff code: 8517.18.0000

    • GTIN:

      0813721013903
