RDL DB-RC4RU 4 Channel Remote Control for RACK-UP 4x1 Audio or Video Switchers

ITEM #: RDL-DB-RC4RU MFG #: DB-RC4RU

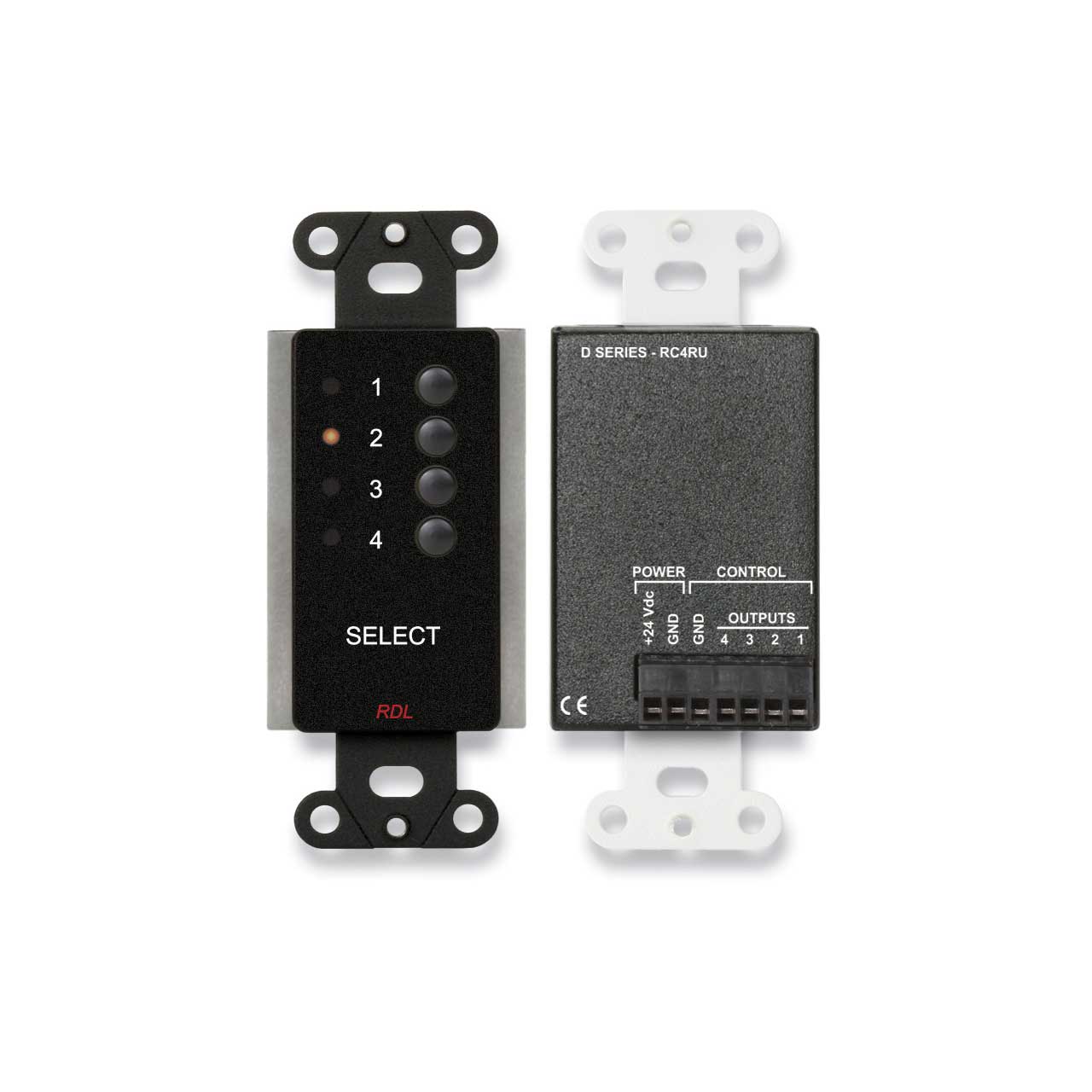

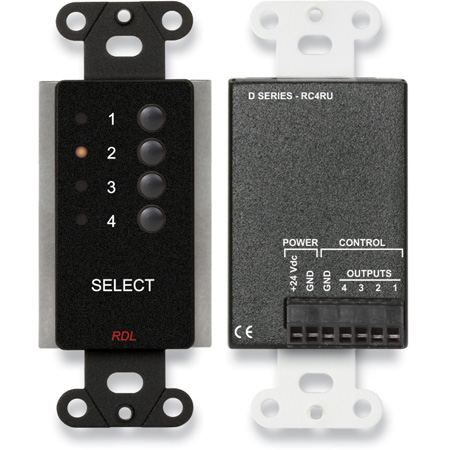

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$190.18

Our Price:

$142.63

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


DB-RC4RU - Overview

The DB-RC4RU is a wall-box mounted remote module designed to directly control an RDL RU-SX4A Audio Switcher Module. The RU-SX4A provides solid state switching of one of four balanced/unbalanced audio inputs to a single balanced/ unbalanced audio output. The DB-RC4RU connects directly to the power and SLAVE terminals of the RU-SX4A using a 3-pair cable (or a 6-conductor cable). The DB-RC4RU may be used to directly control the RDL RU-VSX4 Video Switcher.The front panel of the DB-RC4RU features four pushbuttons with four associated LEDs. Upon initial application of power, source 1 is selected. Touching any of the other 3 buttons de-selects source 1 and immediately selects the source corresponding to the button pushed. An LED adjacent to each button shows which source is selected. There are 4 output terminals on the DB-RC4RU. Each of these is an open-collector output, which is pulled to ground when the output is selected. For stereo installations, the DB-RC4RU is capable of driving two RU-SX4As simultaneously.In installations where ULTRASTYLE wall controls are preferred, use the RUC-4 Universal Remote Control.

  • Features:

    • Remote Selection of 4 Audio Sources
    • Single-Button Selection for Each Source
    • Remote Selection of Balanced Audio Sources
    • 3-pair (or 6 conductor) Remote Wiring
    • Professional Aesthetic Appearance
    • Companion to other RDL Remote Controls
    • LED Indication

  • Specifications:

    • Selectors (4): Momentary pushbuttons (1 for each channel)
    • Indicators (4): Red LEDs, (indicates channel selected)
    • Connections: Detachable terminal block; Interfaces directly with RDL RU-SX4AAmbient Operating Environment: 0° C to 55° CPower Requirement: GROUND-REFERENCED, 24 Vdc @ 30 mA
    • Mounting: Mounts in standard US electrical box, RDL WB- or SMB- series boxes; cover plate available separatelyPackage Type: Cardboard Box
    • Package Dimensions: 3.625 x 4.625 x 2.125 in.
    • Shipping Weight: 0.38 lbs.
    • WEEE weight: 0.225 lbs.
    • Tariff code: 8517.62.0050

  • GTIN:

    0813721015662
