Radio Design Labs DS-CIJ3 Consumer Input Jacks - Mono - Stainless Steel
    Questions? Ask a Markertek Expert:
    800-522-2025 Email

    Radio Design Labs DS-CIJ3 Consumer Input Jacks - Mono - Stainless Steel

    Manufacturer: Radio Design Labs

    Item #: RDL-DS-CIJ3   •   MFG #: RDL-DS-CIJ3

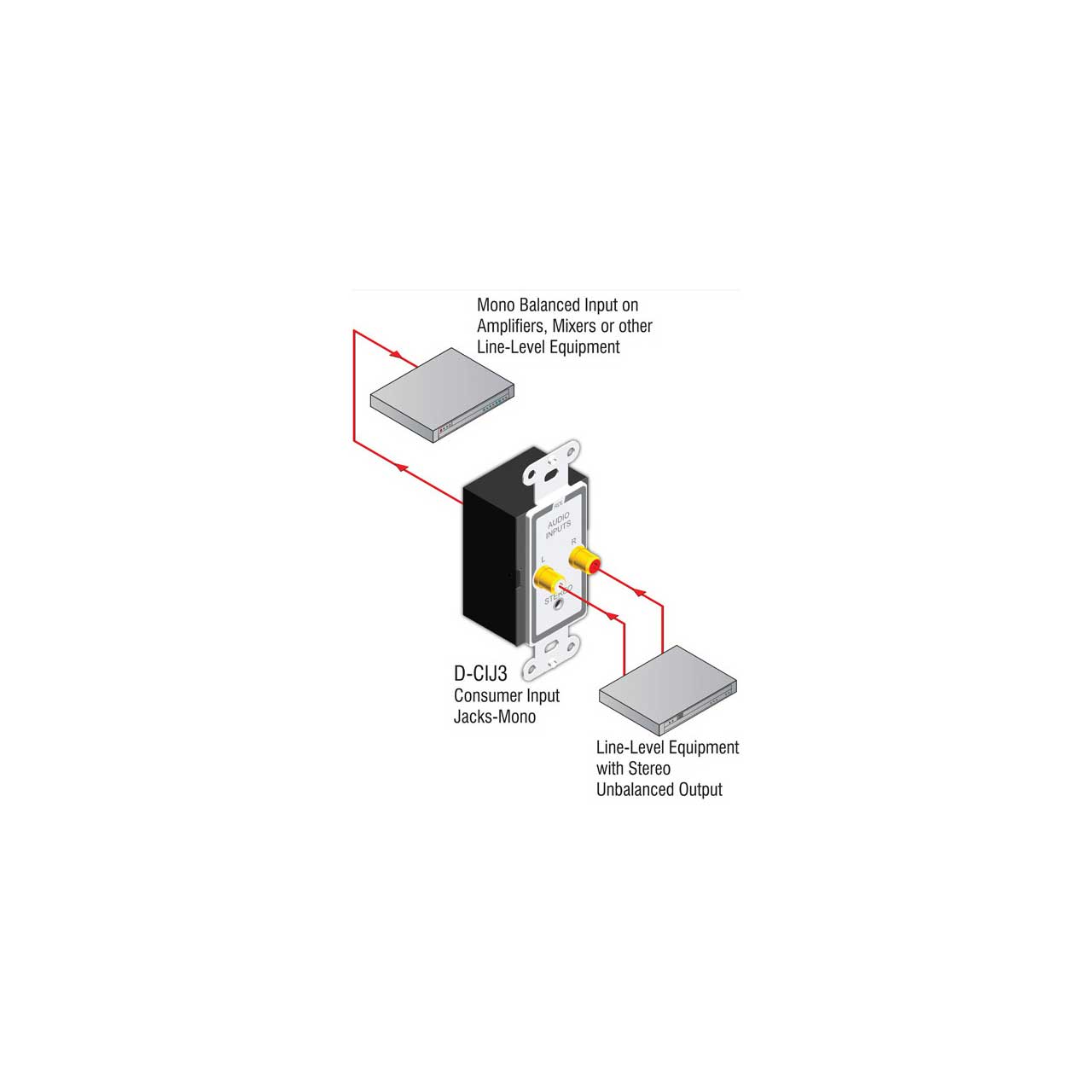

    The D/S-CIJ3 is the ideal choice in installations requiring the passive mixing of two unbalanced line level audio sources to feed a mono balanced (or unbalanced) audio line.

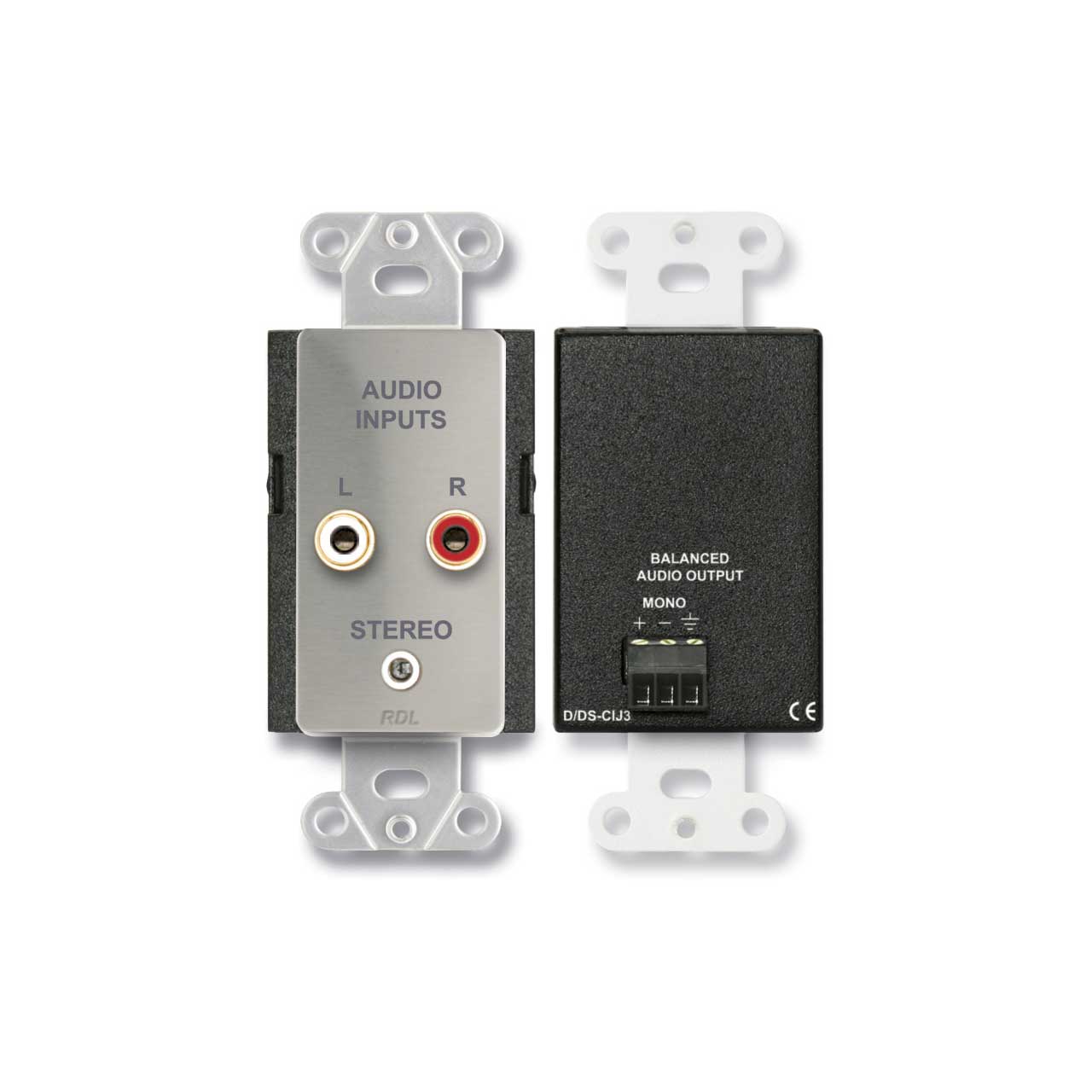

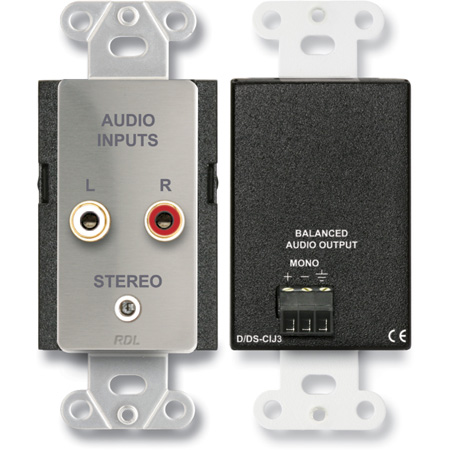

    The D/S-CIJ3 is a complete unbalanced line-level audio input module. The front panel features two gold plated phono jacks and a single stereo mini-jack, intended for mono or stereo consumer level sources. An input signal may be connected to either the phono jacks or to the mini-jack. The left and right signal inputs are combined and balanced through audio transformers configured to reject induced hum. A mono line-level output is provided on the rear-panel detachable terminal block for connection to a 10 k Ohm or higher input impedance line-level module or equipment input.

    • Features

      • Stereo Inputs to Mono Output
      • Stereo Inputs on RCA Jacks and Stereo Mini-Jack
      • Unbalanced to Balanced Conversion Without Gain
      • Transformer Isolation for Unbalanced Line Inputs
      • Hum Cancellation on Unbalanced Line Inputs
      • Line-Level Output to Feed 10 k Ohm Equipment Inputs
      • Output Connections on Detachable Terminal Block
      • Mix Stereo Inputs to Mono Balanced
      • Available in RDL White/Gray (D-CIJ3)
      • Available in Stainless Steel (DS-CIJ3)
    • Specifications

      • Input connectors (3): Phono jacks with gold contacts (Left and Right), Mini-jack 3.5 mm (Stereo)
      • Frequency response (line level): 50 Hz to 20 kHz (±1 dB); 30 Hz to 20 kHz (±2 dB)
      • THD: <0.2% (1 kHz)
      • Output connector: Detachable terminal block
      • Dimensions: Height: 4.13 in. 10.49 cm Width: 1.7 in. 4.32 cm Depth: 2.15 in. 5.47 cm
      • Mounting Box Minimum Dimensions: Width: 1.80 in. 4.57 cm Depth: 1.75 in. 4.45 cm
      • Ambient Operating Environment: 0° C to 55° C
