EV RE16 Variable-D Dynamic Supercardioid Microphone

ITEM #: RE16 MFG #: RE16

Primary Image

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the RE16

RE16 - Overview

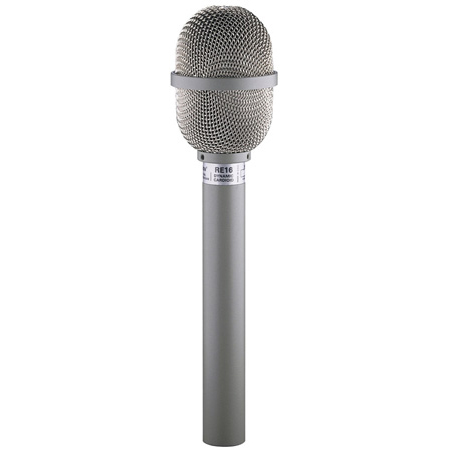

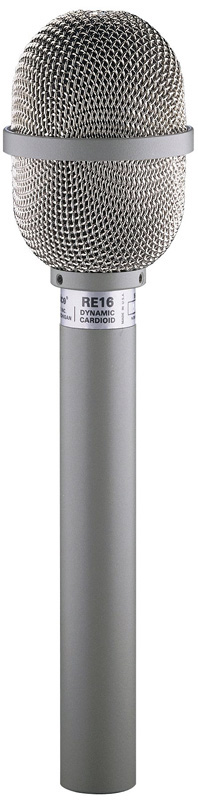

The Electro-Voice RE16 is a Variable-D dynamic supercardioid microphone designed for the most exacting professional use. It is like the RE15, except that it uses a unique blast filter. The blast filter, an integral part of the RE16, permits handheld and outdoor use without P-pops or excessive wind noise. Utilizing the Variable-D design the RE16 features a directional characteristic independent of frequency. The result is a microphone that generates little off-axis coloration while providing the greatest rejection of unwanted sounds.

A supercardioid, the RE16 provides its greatest rejection at 150 degrees off-axis. (Supercardioids provide greatest rejection in the horizontal plane when the microphone is tilted in its most natural position -30 degrees from horizontal, as on a boom or floor stand). An easily operated bass tilt switch corrects spectrum balance for boom use and other longer-reach situations. A hum-bucking coil and screw-machined steel outer casing provides 25 dB of hum rejection. Hum pickup level is -125 dBm (re: .001 gauss field).

Using the mechanical nesting concept of design, by means of which the internal transducer parts are nested one within another, the RE16 transducer is a nearly solid mechanical structure that is highly resistant to damage from mechanical shock. The Memraflex grille screen resists deformation. The exclusive nonmetallic Electro-Voice Acoustalloy diaphragm is virtually unaffected by extreme atmospheric conditions. A carefully designed steel outer case provides additional mechanical protection. The finish is nonreflecting fawn beige.

  • Features:

    • Reduced proximity effect
    • Effective internal pop protection
    • Little off-axis coloration
    • Hum-bucking coil and steel case offer excellent hum rejections
    • Bass roll-off switch

  • Specifications:

    • Generation Element: Dynamic
    • Frequency Response: 80 Hz to 15,000 Hz
    • Polar Pattern: Supercardioid
    • Impedance, Low-Z: 150 ohms (nominal)
    • Sensitivity, Open Circuit Voltage, 1 kHz: 1.4mV/Pascal
    • Hum Pickup Level (.001 gauss field): -125 dBm
    • Diaphragm Material: Electro-Voice Acoustalloy
    • Case Material: Steel
    • Finish: Fawn Beige
    • Accessories Included: 311 Stand Adapter
    • Zippered Vinyl Carrying Pouch
    • Optional Accessories: 376 Charcoal Windscreen
    • 379-1 Black Windscreen
    • 379-2 Red Windscreen
    • 422A Desk Stand
    • Dimensions: Length = 187.3mm (7.38 in)
    • Max. Diameter = 45.2mm (1.78 in)
    • Shank Diameter = 19.1mm (0.75 in)
    • Net Weight: 227 grams (8 oz.)

  • GTIN:

    0800549420341
