RED Camera 720-0060 V-RAPTOR Expander Blade with Quick Release Platform Pack Arca Plate

ITEM #: REDC-720-0060 MFG #: 720-0060

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

Our Price:

$625.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    720-0060 - Overview

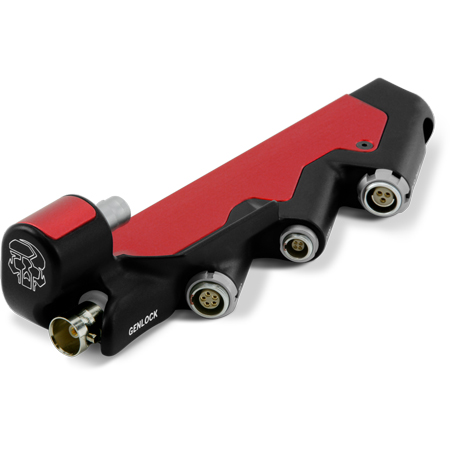

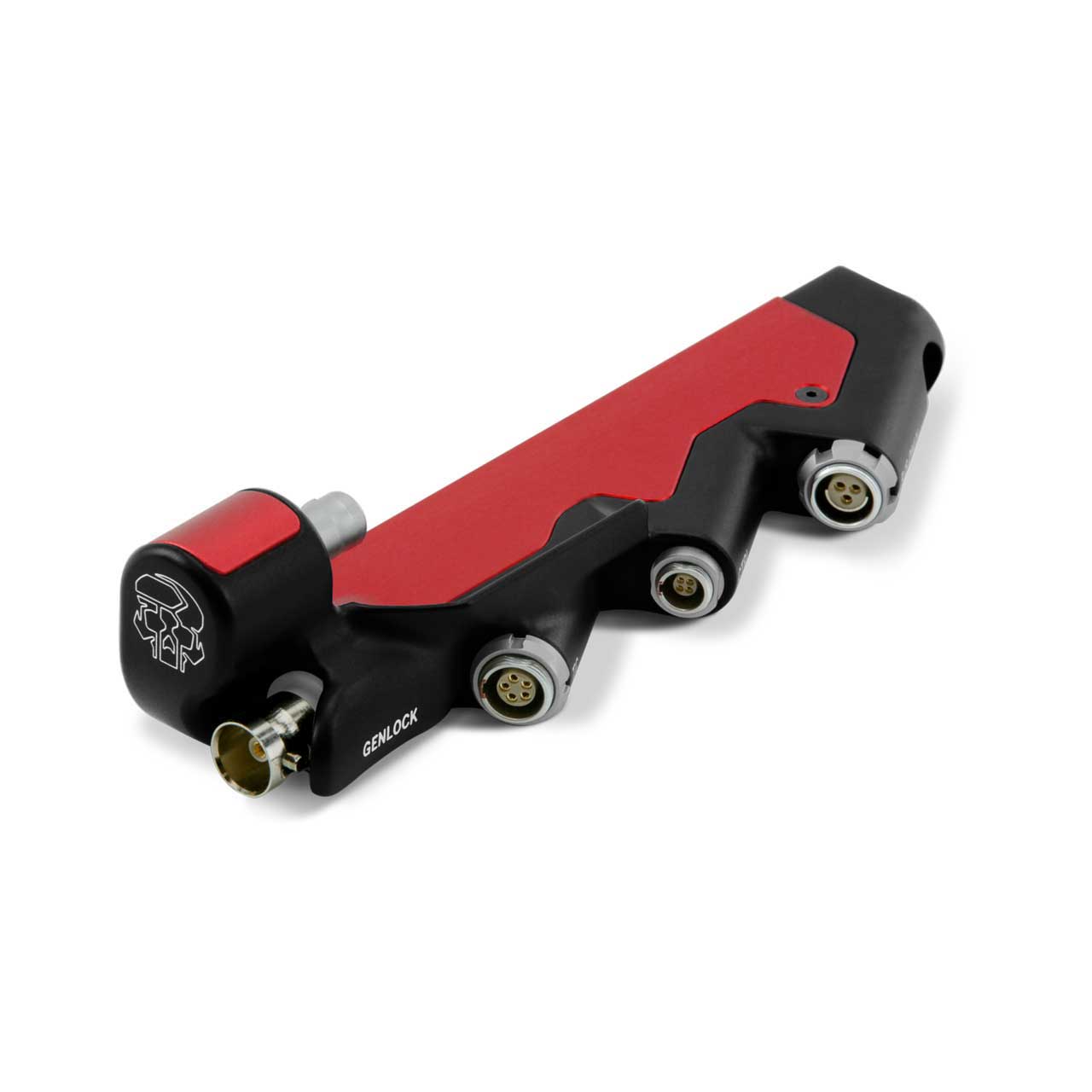

    V-RAPTOR™ Expander Blade is designed to support professional shooting configurations. With options for video and communication connections, including Genlock (BNC), Timecode 5-Pin, R/S (Run/Stop) 3-Pin, and RED CTRL 4-pin. The V-RAPTOR Expander Blade creates the flexibility to support a vast array of options when it comes to how users will rig their V-RAPTOR.

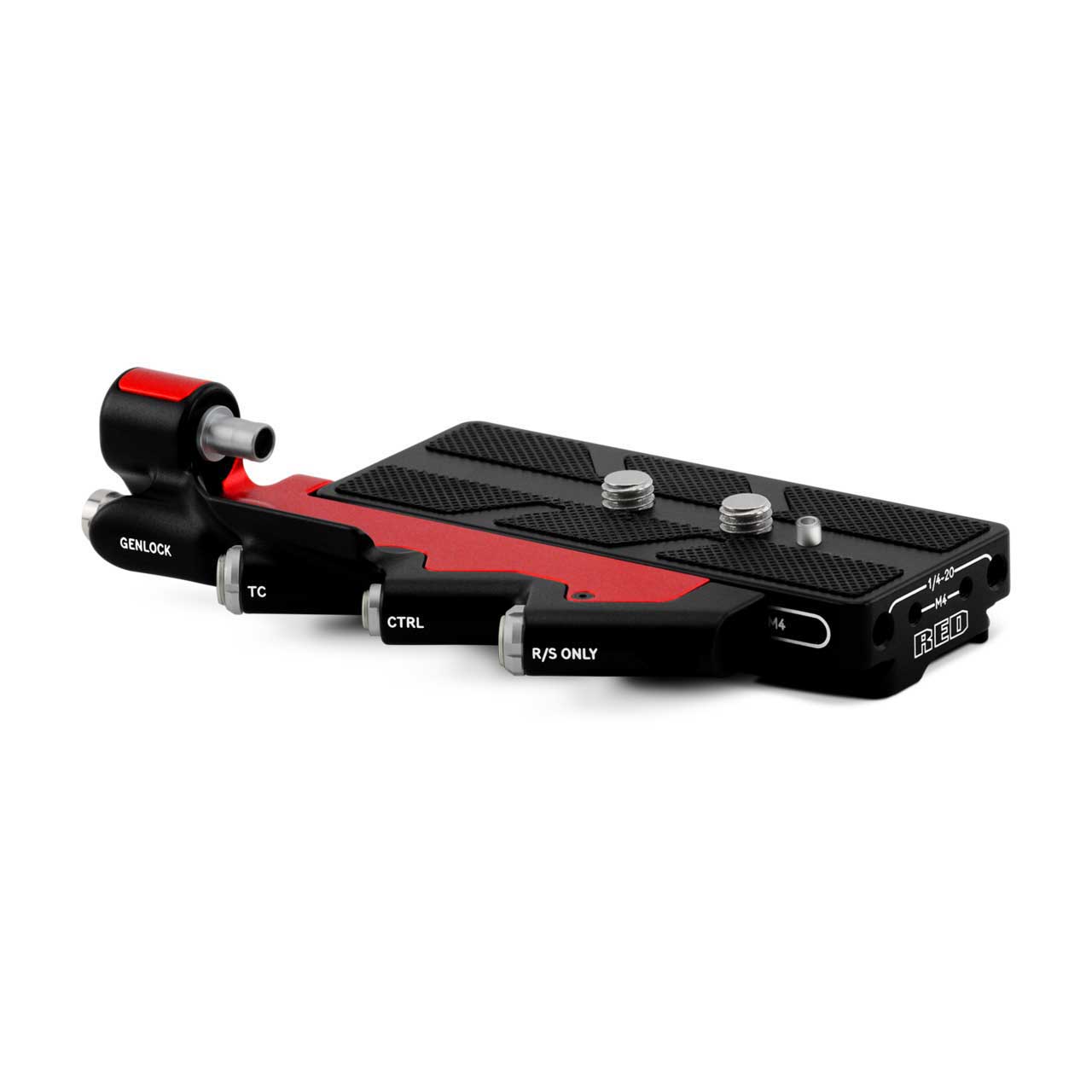

    The V-RAPTOR™ Quick Release Platform Pack Arca Plate (included w/ Expander Blade) is required for the V-RAPTOR Expander Blade to attach to the camera.

    Note: The V-RAPTOR Expander Module is not compatible with DSMC®, DSMC2®, RED RANGER® or KOMODO® camera systems. The 3-Pin Run/Stop connection is for trigger only & does not supply power.

    • Specifications:

      • Connection To V-RAPTOR: Via 9-Pin EXT Port and Arca Plate
      • Connectors: 4-Pin 00, 3-Pin Fischer, 5-Pin 0B, BNC
      • Operating Temperature: 0°C to 40°C (32°F to 104°F)
      • Storage Temperature: -20°C to 50°C (-4°F to 122°F)
      • Dimensions Expander Blade: Height: 1.28 in (32.5 mm), Width: 5.16 in (131.1 mm), Depth: 1.87 in (47.5 mm)
      • Dimensions ARCA Plate: Height: 1.28 in (20.0 mm), Width: .79 in (117.0 mm), Depth: 1.97 in (50.0 mm)
      • Weight: Without Arca Plate approximately 0.22 lbs (98.75 g). With Arca Plate approximately 0.58 lbs (262.9 g)

    • Item Includes:

      • 1x RED Camera 720-0060 V-RAPTOR Expander Blade

    • GTIN:

      0810016942504
