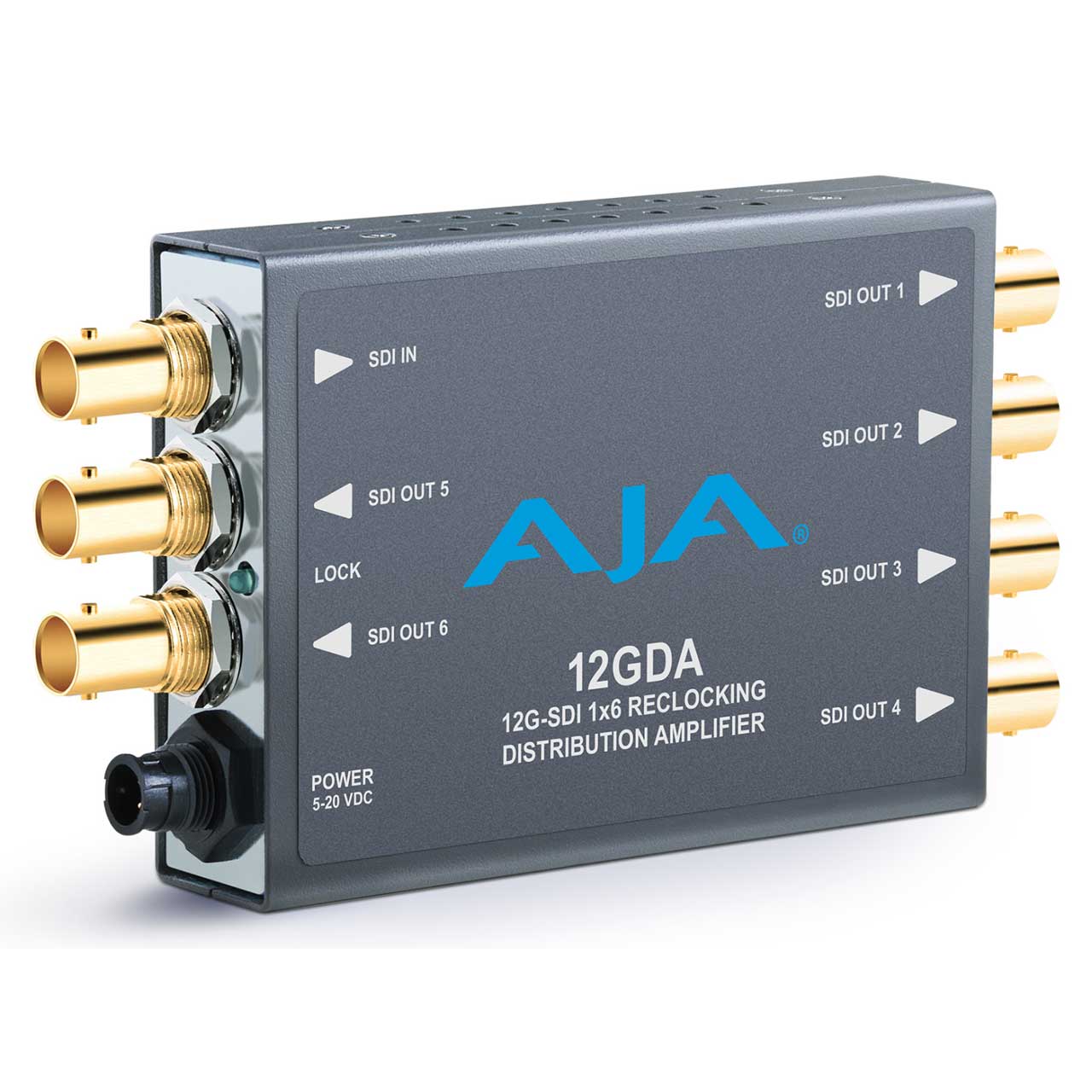

AJA 12GDA 12G-SDI 1x6 Video Distribution Amplifier


Primary Image
Free Shipping with $49 Minimum Order

Our Price:


Availability: In Stock
iAvailability Description Popup

    12GDA - Overview

    AJA 12GDA is a miniature 1x6 12G-SDI re-clocking distribution amplifier that allows facilities to save on cable runs and install times. With support for 12G-SDI for 4K/UltraHD single link workflows, the format-agnostic device features six separately buffered SDI outputs identical to the recovered input. It also offers automatic input detection, re-clocking and cable equalization, as well as a throw down package and LED signal detection indicator.

    AJA Mini-Converters are small enough to fit behind a monitor, in the back of a rack or directly on a camera rig. A locking power connector can't accidentally pull loose and an optional P-TAP power cable allows for battery power in remote locations. All AJA Mini-Converters are covered by a 5 year warranty and AJA's advanced replacement policy. If a replacement is necessary, AJA will ship a new unit immediately without the need to send the original unit back first, ensuring you are up and running again as quickly as possible.

    All AJA Mini-Converters ship with a universal power supply that includes international plug connections for use around the world. Information on the complete line of AJA Mini-Converters is now available as a mobile app on iOS. The Mini-Converter product line is extensive and this app helps you find the right converter for any situation, wherever you are. Individual products have links back to the main AJA website for more details and you can email product information directly from the app. The free AJA Mini-Matrix app for iPad and iPhone is available now in the Apple iTunes Store.

    • Features:

      • Compact 12G-SDI distribution
      • Six separately buffered outputs
      • Miniature size
      • 12G cable equalization (1694 coax)
      • 12 Gbps, 90m
      • 6 Gbps, 125m
      • 3 Gbps, 160m
      • 1.5 Gbps, 200m
      • 270 Mbps, 470m
      • 12G/6G/3G/HD/SD-SDI input, auto sensing
      • Passes all ancillary data
      • DWP-U-R1 power supply included
    • Specifications:

      • Video Formats
      • 100 Mbps - 12 Gbps, format agnostic

        Video Input Digital
      • 1 x 12G-SDI BNC, SMPTE-259/292/424/2081/2082

        Video Output Digital
      • 6 x 12G-SDI BNC, SMPTE-259/292/424/2081/2082

        Cable Equalization
      • (Belden 1694A coax)
      • 12 Gbps, 70m
      • 6 Gbps, 120m
      • 3 Gbps, 190m
      • 1.5 Gbps, 195m
      • 270 Mbps, 405m

      • 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.967 Gbps, 2.970 Gbps, 5.934 Gbps, 5.940 Gbps, 11.868 Gbps, 11.880 Gbps - Auto Select
      • All other rates are passed through and not reclocked
    • Warranty:

      • Five year warranty
    • GTIN:
