RED Camera 790-0689 V-RAPTOR Top Handle

ITEM #: REDC-790-0689 MFG #: 790-0689

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the REDC-790-0689

790-0689 - Overview

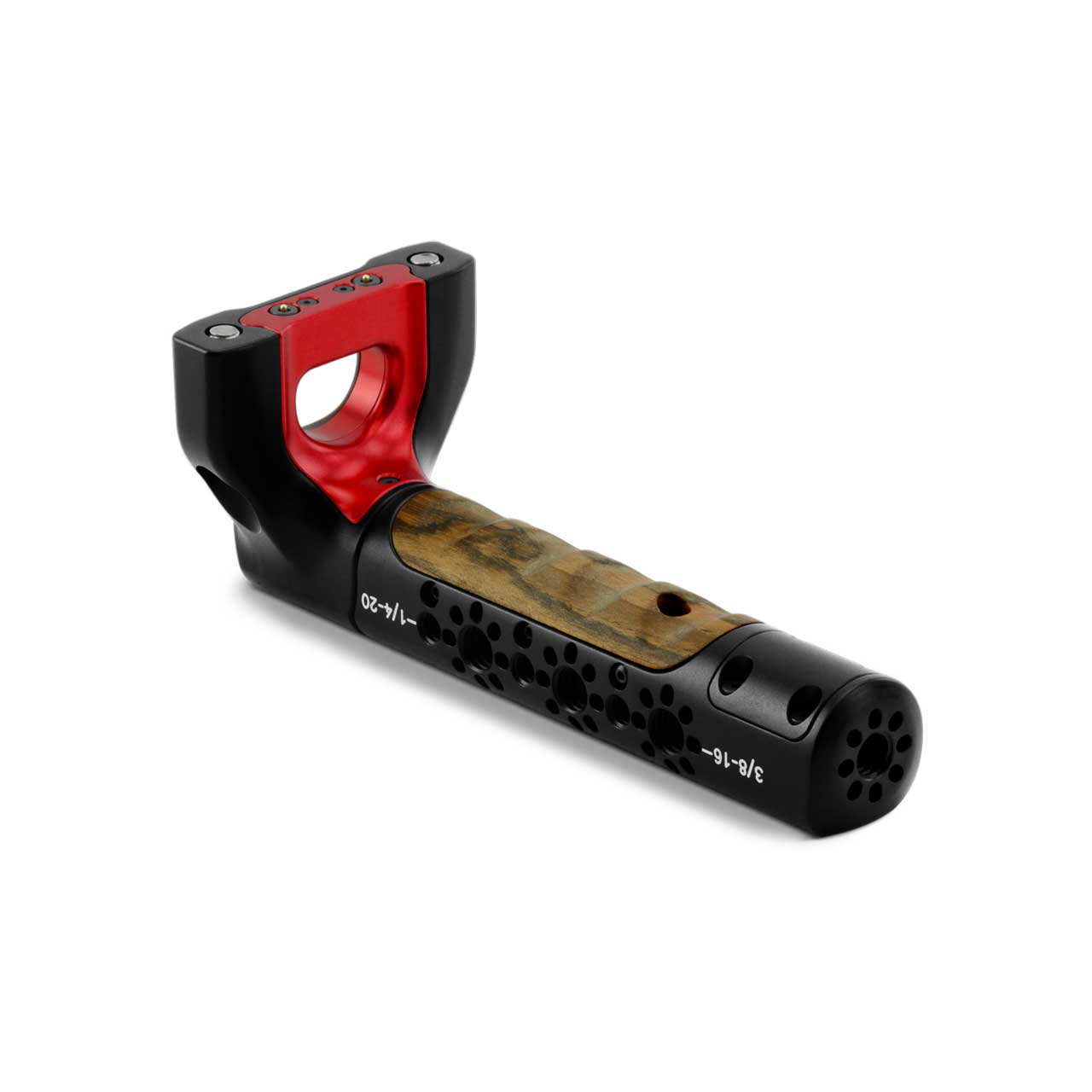

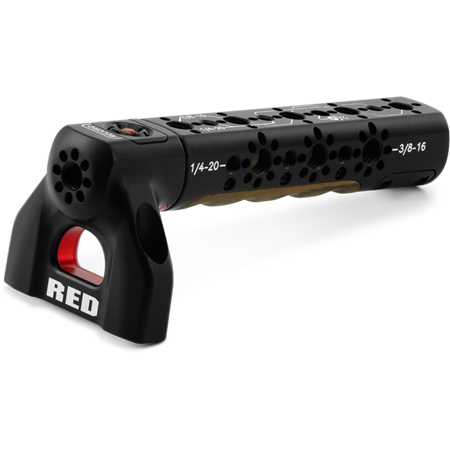

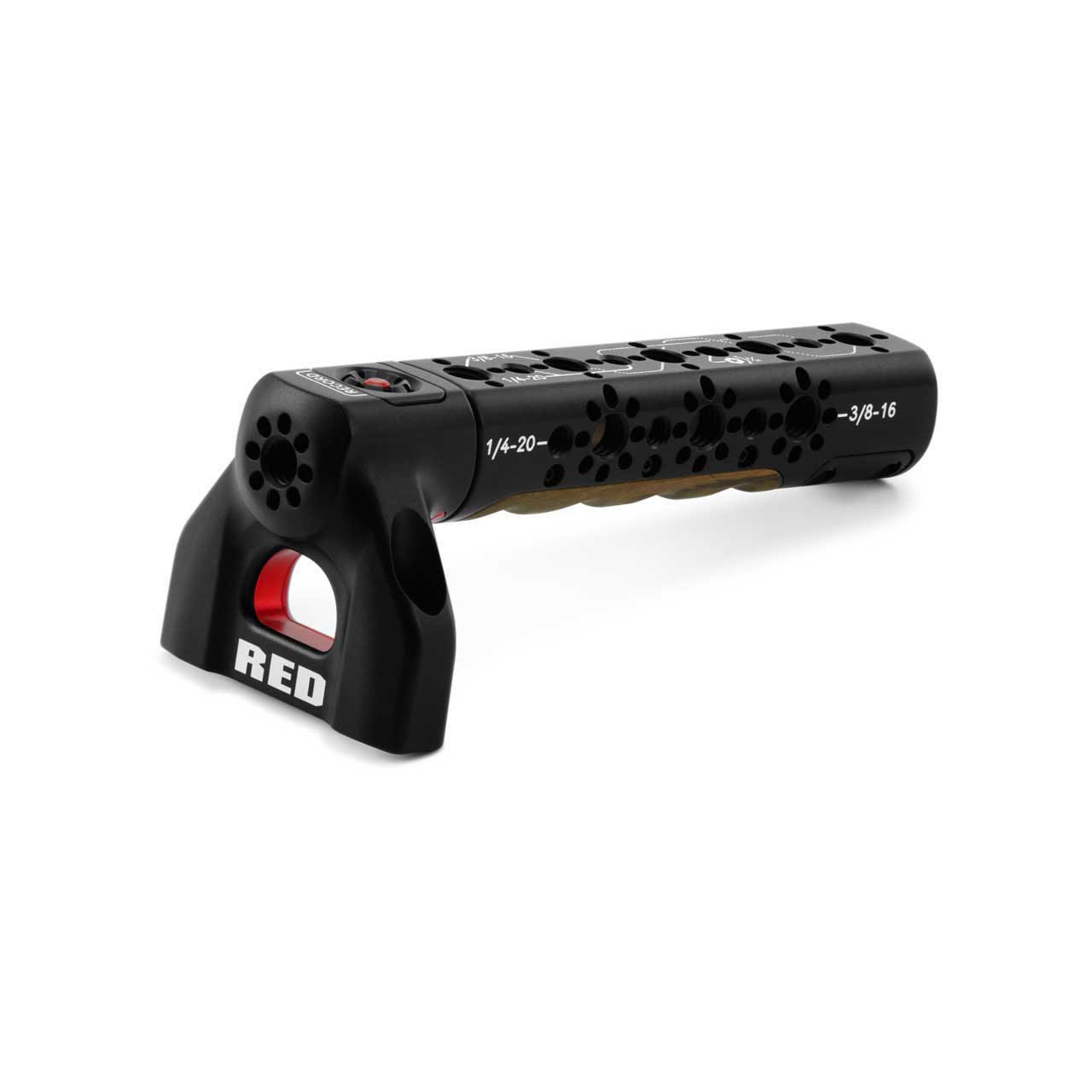

The V-RAPTOR™ Top Handle easily mounts to the top of your V-RAPTOR™ camera body while offering a combination of comfort and utility for carrying or shooting with your camera. This top-mounted machined handle features ergonomic Bocote wood inlays with camera trigger control. It also has the ability to be configured in multiple ways when used with the Top Handle Extension Kit and includes multiple 1/4-20 and 3/8-16 threads.

Note: The V-RAPTOR Top Handle is compatible with RED KOMODO when rear support arm is not attached. The V-RAPTOR Top Handle is not compatible with DSMC®, DSMC2® or RED RANGER® camera systems.

  • Specifications:

    • Materials: Aluminum & Bocote Hardwood
    • Mounting To V-RAPTOR: 2x 1/4-20 Captive Mounting Screws plus optional rear 1/4-20 support arm when used with V-RAPTOR Tactical Top Plate
    • Controls: Run/Stop
    • Operating Temperature: 0®C to 40®C (32®F to 104®F)
    • Storage Temperature: -20®C to 50®C (-4®F to 122®F)
    • Dimensions: Height: 2.36 in (60 mm), Width: 6.28 in (159.5 mm), Depth: 2.63 in (66.8 mm)
    • Weight: Approximately 0.54 lbs (245.93 g)

  • Item Includes:

    • 1x RED Camera 790-0689 V-RAPTOR Top Handle

  • GTIN:

    0810016942436
