Remote Audio BDSv4 Battery Distribution System

ITEM #: REM-BDSV4 MFG #: BDSV4

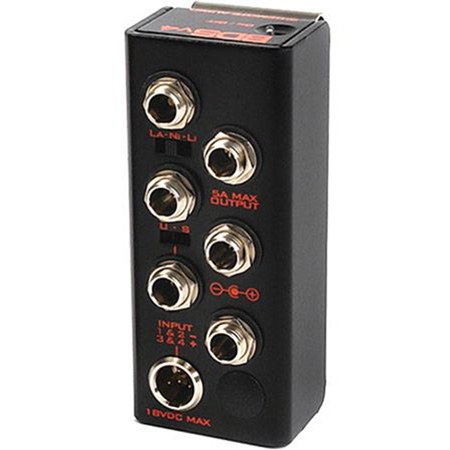

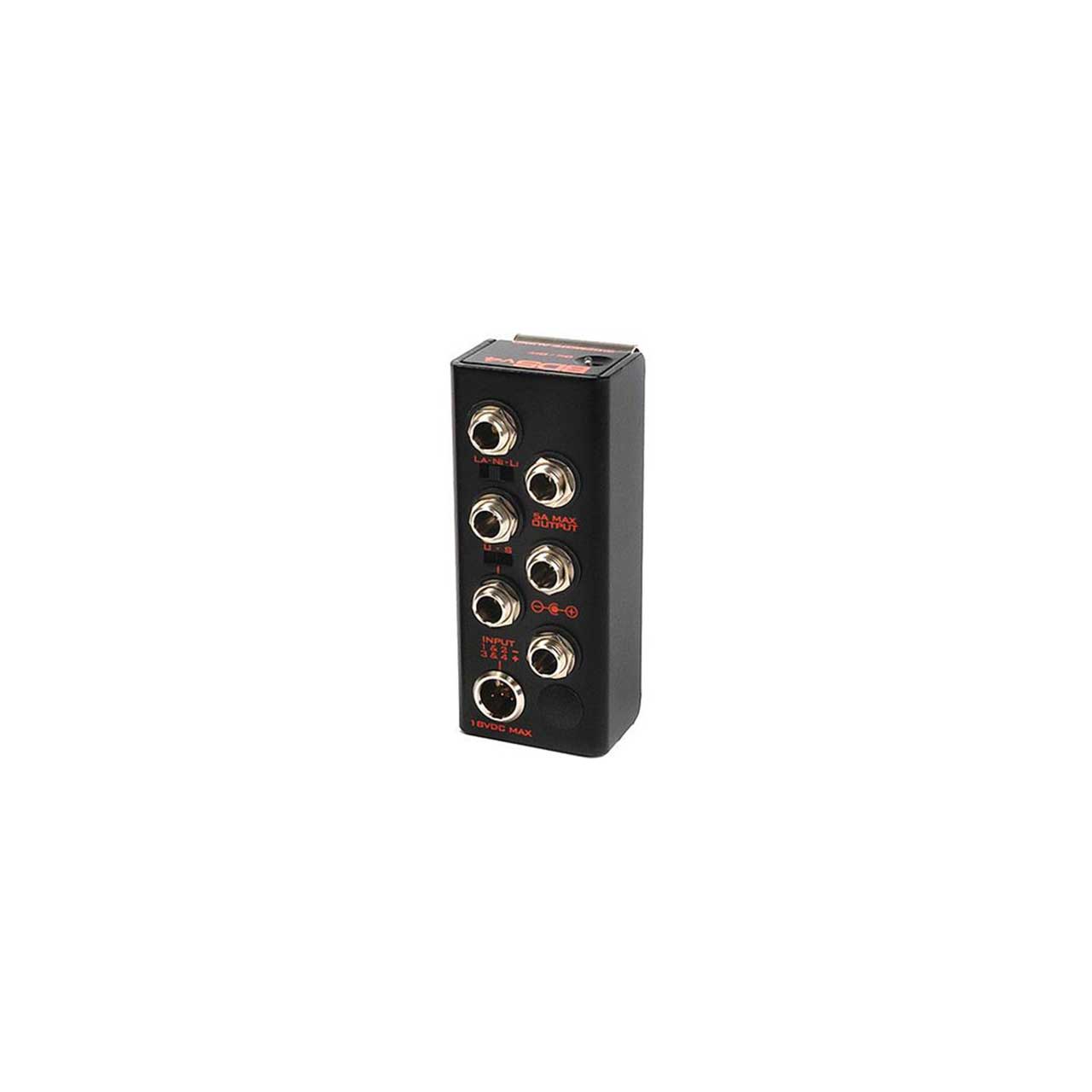

Primary Image

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the REM-BDSV4

BDSV4 - Overview

The BDS, developed by Remote Audio, has been the standard power management system in ENG audio bags for over a decade. Once considered a luxury, the ability to power multiple pieces of audio equipment with a single rechargeable battery is now a necessity as equipment demands become more complex. The BDS system accommodates this need with a reliable, convenient, and robust design.

The primary purpose of the BDS system is to enable multiple pieces of equipment to be powered by a single source, and simultaneously turn them on and off with a single switch. For this basic function, the BDSv4u may be used exactly like the earlier BDS versions that it replaces. The input and output connections are the same, so all previous BDS input and output cables manufactured by Remote Audio are compatible with the BDSv4.

  • Features:

    • Compact Design
    • Reverse Polarity Protection
    • Low Battery LED

  • Specifications:

    • Dimensions: 3.286" x 1.329" x 1.165" (83.5 x 33.8 x 29.6 mm)
    • Weight: 4.0 oz
    • Input Voltage: 6 - 20V
    • Output Current: 3A Max per output, 5A global max (60W)
    • Power Switch: Recessed toggle, illum. Green when Power "ON", Red when voltage falls below selectable
      threshold.
