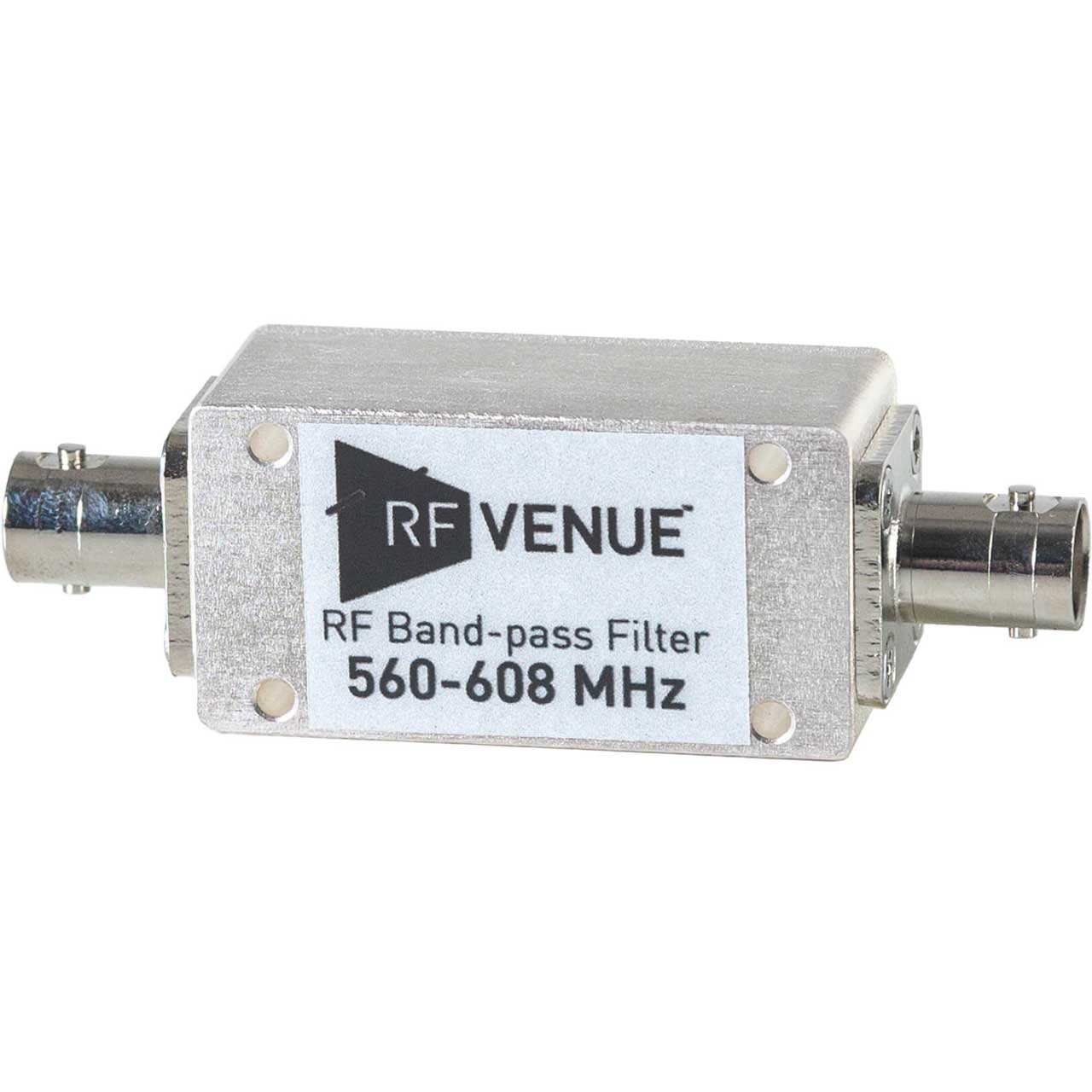

RF Venue BPF560T608 Band-Pass RF Filter - 560-608 MHz

ITEM #: RFV-BPF560T608 MFG #: BPF560T608

Primary Image
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$440.00

Our Price:

$419.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    BPF560T608 - Overview

    RF Venue band-pass filters help eliminate "out of band" signals that can saturate the front end of wireless microphone receivers and can greatly improve dynamic range by reducing noise and third party interference outside the range of operation.

    Featuring industry standard BNC connectors and a small 3" x 1.75" footprint, these hand-tuned band-pass filters require no power or user configuration and can be easily connected in-line with wireless microphone antennas to reduce noise and improve wireless system performance.

    Simply connect the band-pass filter in-line with your wireless microphone remote antenna connections for 40 dB of side rejection. Note: (2) required for diversity wireless microphone systems. Not for use with in-ear monitor or other transmit applications.

    • Features:

      • 560-608 MHz Band-pass Filter Compatibility:
        Shure J1 and J3
        Sennheiser G
        Sennheiser 6000/9000 High Band
        Lectrosonics Blocks B22 and B23

    • Specifications:

      • Pass Band: 560 to 608MHz
      • Insertion Loss Max: 3.5dB
      • Ripple In-band Max: 1.5dB
      • VSWR Max: 1.5
      • Rejection:
        40dB @ DC-440 MHz
        20dB @ 440-449 MHz
        20dB @ 582-592 MHz
        40dB @ 592-1000 MHz
      • Power: 2W
      • Temperature Range: -22° to 158°F (-30° to 70°C)

    • GTIN:

      0459225905810
