CP-ARCB - Overview

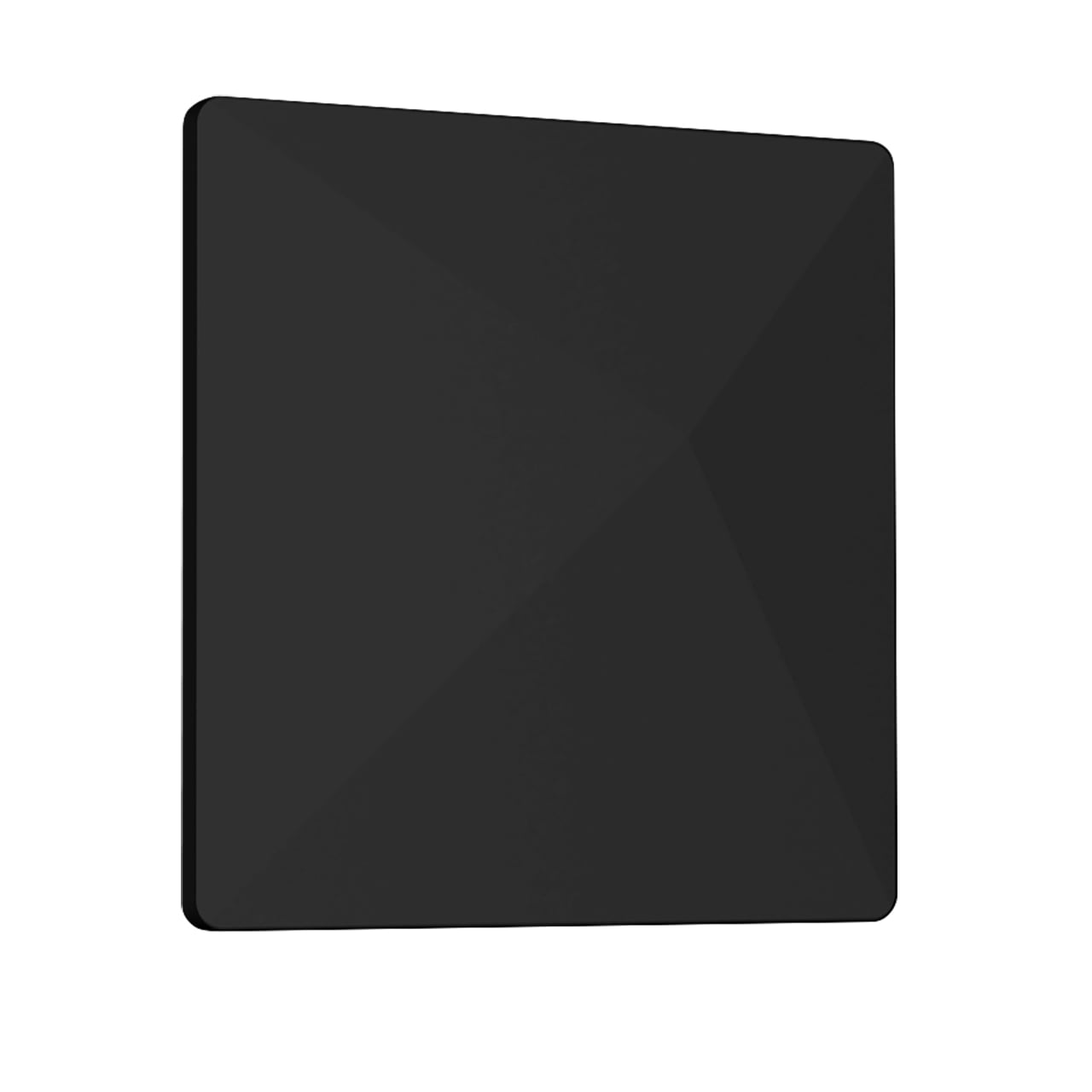

The greatest and easiest improvement you can make to your IEM system is to deploy a CP antenna. The RF Venue CP-ARCB CP Architectural Antenna provides all of the benefits of RF Venue's antenna in an elegant, almost invisible enclosure. It is a high performance antenna for installed in-ear monitor systems (IEMs). Featuring a slim profile enclosure, the CP Architectural Antenna can be installed on a wall or ceiling and can be painted to match any interior. Unlike LPDA or "paddle" antennas with a fixed polarization, the CP Architectural Antenna uses a unique circularly polarized design to provide excellent transmit signal coverage for IEMs with a highly polished and professional look that room designers and architects appreciate.

  • Features:

    • Circularly Polarized for a Consistent Signal: A fluctuating signal leads to noise and dropouts
    • Slim Profile: Blends into any background
    • High Performance: Eliminates the most common interference problems, thus reducing dropouts

  • Specifications:

    • Operating Frequency: 470MHz - 928MHz
    • Bandwidth: 458MHz
    • Average Return Loss: 10dB
    • Impedance: 50Ω
    • Pattern Type: Hypercardiod
    • Polarization: RHCP
    • Beam Width: 120°
    • Gain: @ 500MHz 3dBi
    • Dimensions: 11" x 11" x 2" (280mm x 280mm x 50mm)
    • Weight: 2lbs (0.9kg)
    • Mount Location: Wall or ceiling
    • Operating Temperature: 14°F - 104°F (-10°C - 40°C)
    • Color: Matte Black
    • Connector: BNC-F

  • Item Includes:

    • 1x CP-ARCB - CP Architectural Antenna, Black

  • Warranty:

    • 2-Year Limited Warranty
