RF Venue D-OMNID9 9 Channel Wireless Microphone Omni Upgrade Pack for the Distro9 HDR

ITEM #: RFV-D-OMNID9 MFG #: D-OMNID9

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$3,149.00

Our Price:

$2,999.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


    D-OMNID9 - Overview

    This RF Venue D-OMNID9 turnkey bundle includes everything needed to configure up to 9 channels of wireless microphones. This bundle includes the Diversity Omni Antenna, Coaxial Cabling, and DISTRO9 HDR Bundle.

    About the Diversity Omni Antenna
    Building on the success of the highly acclaimed Diversity Fin® Antenna, the Diversity Omni Antenna is an all-new antenna system designed for omnidirectional coverage of wireless microphones. The Diversity Omni features two antennas on a single stand, capturing both vertically and horizontally polarized signals and eliminates the most common signal dropouts in a compact size.

    The Diversity Omni also offers greater flexibility in antenna placement, since only one is needed in place of two separate antennas. Its weather resistant design allows it to be mounted outdoors by installing simple protection for the connectors and the provided cordura nylon cover.

    About the DISTRO9 HDR
    The DISTRO9 HDR represents a unique approach to high quality RF signal distribution for wireless microphones. The DISTRO9 saves time and rack space by offering 9 outputs and inputs for 2 zones in just one rack space. And each output is clean: DISTRO9 HDR employs low noise figure amplifiers and superior gain structure providing a high dynamic range over the spectrum. The DISTRO9 HDR makes multi zone installations easy by providing two zone antenna inputs, this allows for coverage of large areas or multiple rooms and has DC power available for in-line amplifiers or active antennas.

    About RF Venue Coaxial Cables
    Coaxial cabling can make the difference between flawless RF performance and total system failure. Even the slightest crimp or ding in coaxial cable can cause signals to drop sharply or short out.

    RF Venue provides premium made in USA low loss, 50' RG8X coaxial cable with BNC male connectors for wireless audio applications. Their cables are custom made to their specifications: double shielded braid over foil with a perfect balance between loss and flexibility. All cables are terminated in-house and QC on calibrated Agilent network analyzers for guaranteed performance. RF Venue stocks a variety of lengths from 5' to 150'.

    • Specifications:

      • Distro9 HDR
      • Frequency range: 50-1000 MHz (VHF, UHF, +900 bands)
      • RF output level (gain): ± 3dB
      • Output connection isolation: 60dB @ 510MHz, 80dB @ 200 MHz
      • Third order intercept point: 15dBm @ VHF, 20+ @ UHF
      • Impedance: 50Ω
      • Power Requirements: 50/60 HZ, 2A
      • Fuse: T3.15A/250V
      • Input AC voltage: 100-240 VAC
      • DC over coax (to external antennas): 12 VDC 100mA
      • Output DC voltage (to receiver jacks): 12V 3A
      • Output DC connectors: Anderson Power Pole
      • Dimensions (WxHxD): 19 x 2(H) x 10" (480 x 45 x 250mm)
      • Unit Weight: 6Lbs (2.7kg)

        D-Omni
      • Electrical
      • Operating Frequency: 470–616 MHz*
      • Bandwidth: 146 MHz
      • Average Return Loss (Vertical): -10.5 dB
      • Average Return Loss (Horizontal): -8.3 dB
      • Impedance: 50Ω

        Vertical Monopole
      • Beam Width: 360° azimuth
      • F/B Ratio: 0 dB
      • F/S Ratio : 0 dB
      • Gain: +2 dBd @ 500MHz

        Horizontal Folded Loop
      • Beam Width: 360° azimuth
      • F/B Ratio: 0 dB
      • F/S Ratio : -1 dB
      • Gain: -2 dBd @ 500MHz

        Physical
      • Length: 4.2" (105mm)
      • Height: 8" (204mm)
      • Weight: .51Lbs (187g)
      • Mount threads: 1/4-20, 3/8-16, 5/8-27
      • Operating temperature: -9° to 130°F (-23° to 54°C)
      • Color: Black and Gold
      • Connector(s): (2) BNC female

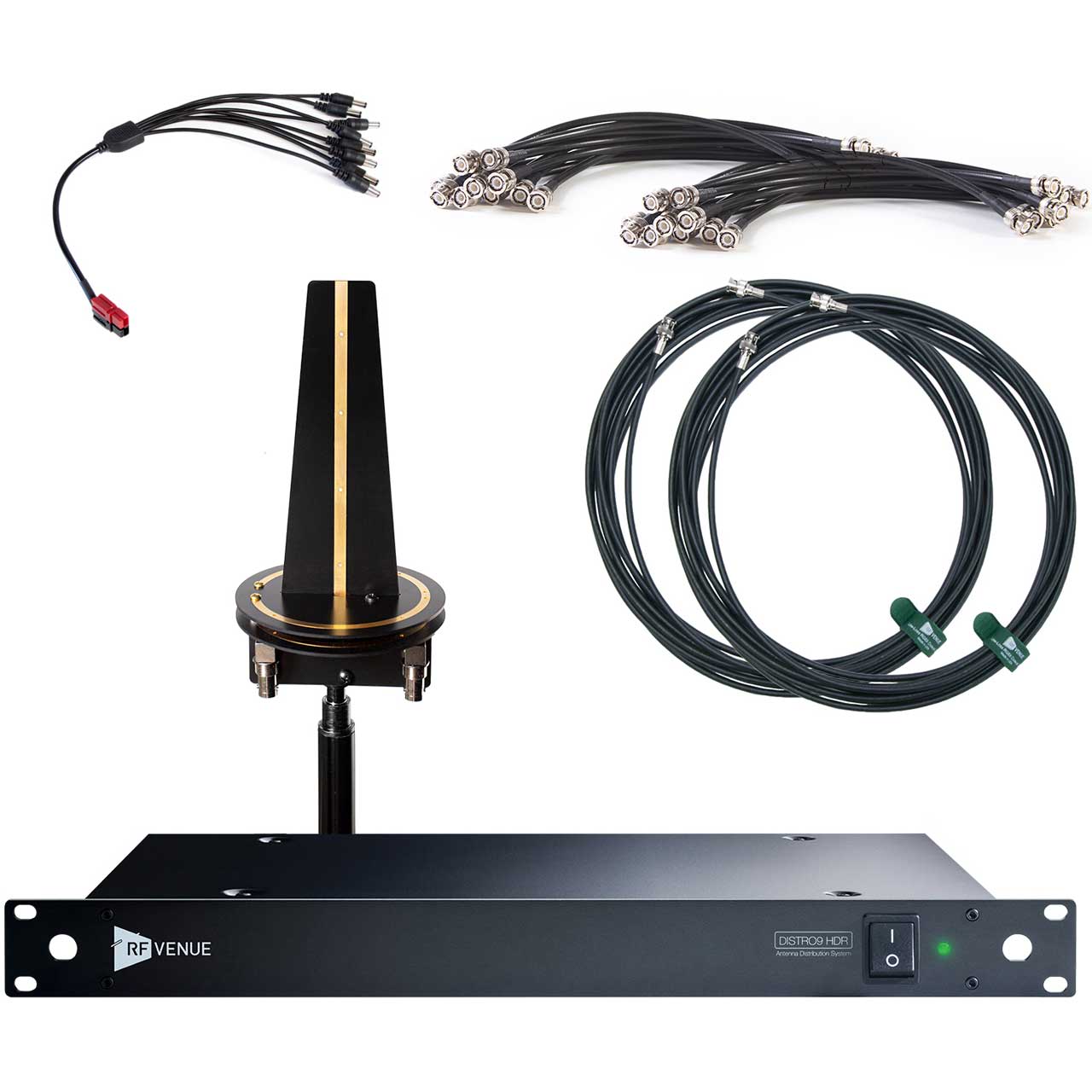

    • Item Includes:

      • 1x Diversity Omni Antenna
      • 1x DISTRO9-HDR 9 Channel RF Distributor
      • 2x RG8X25 Coaxial Cables BNC
      • 1x RG8X1.5-10 (10 pack interconnects)
      • 1x RG8X2-10 (10 pack interconnects)
      • 1x DC-OCTO 8 channel DC Power Distribution Kit for DISTRO9

    • GTIN:

      0672975227364
