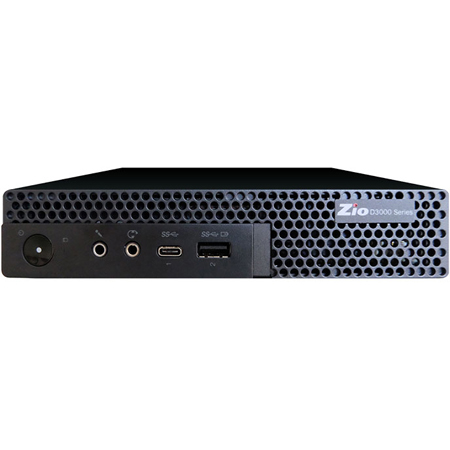

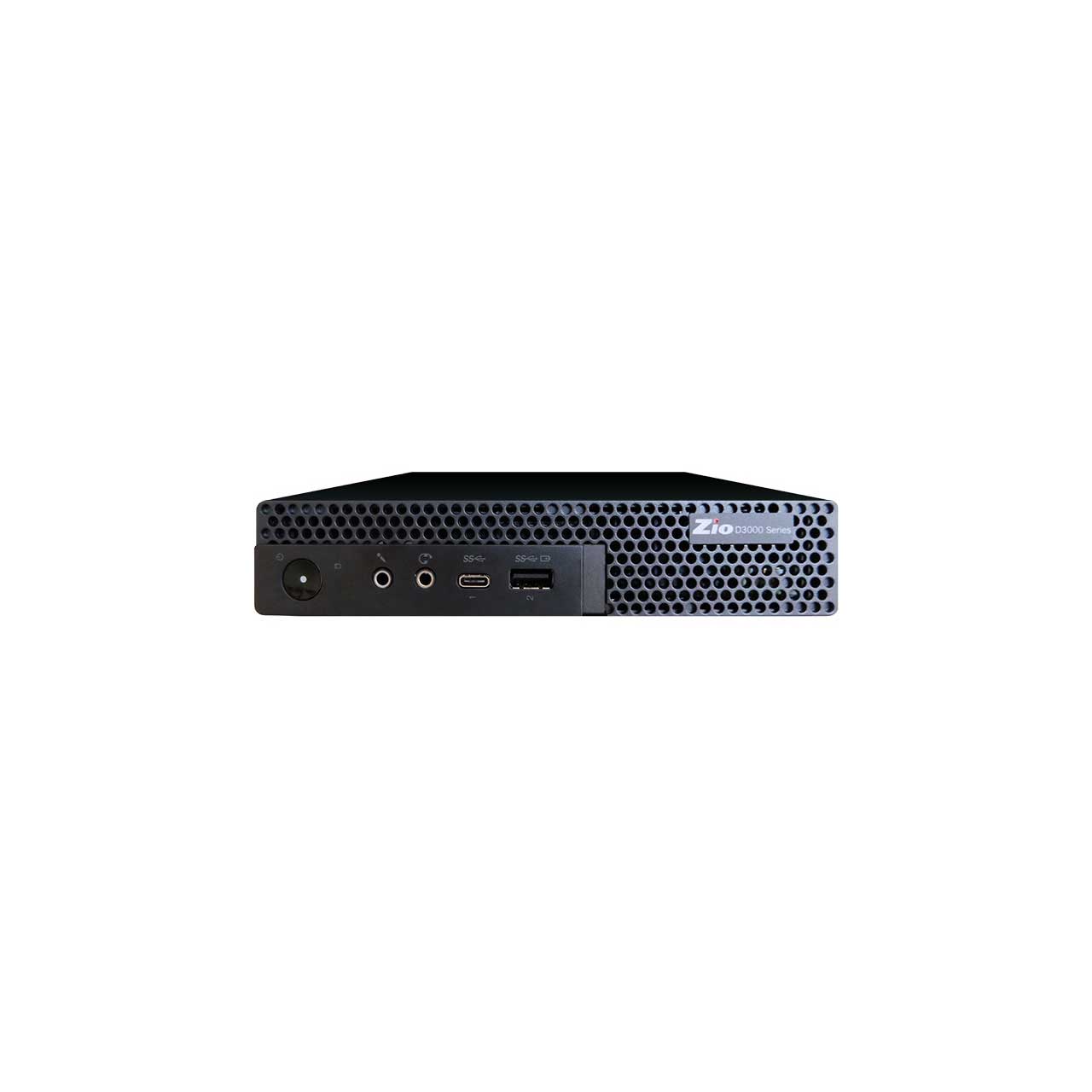

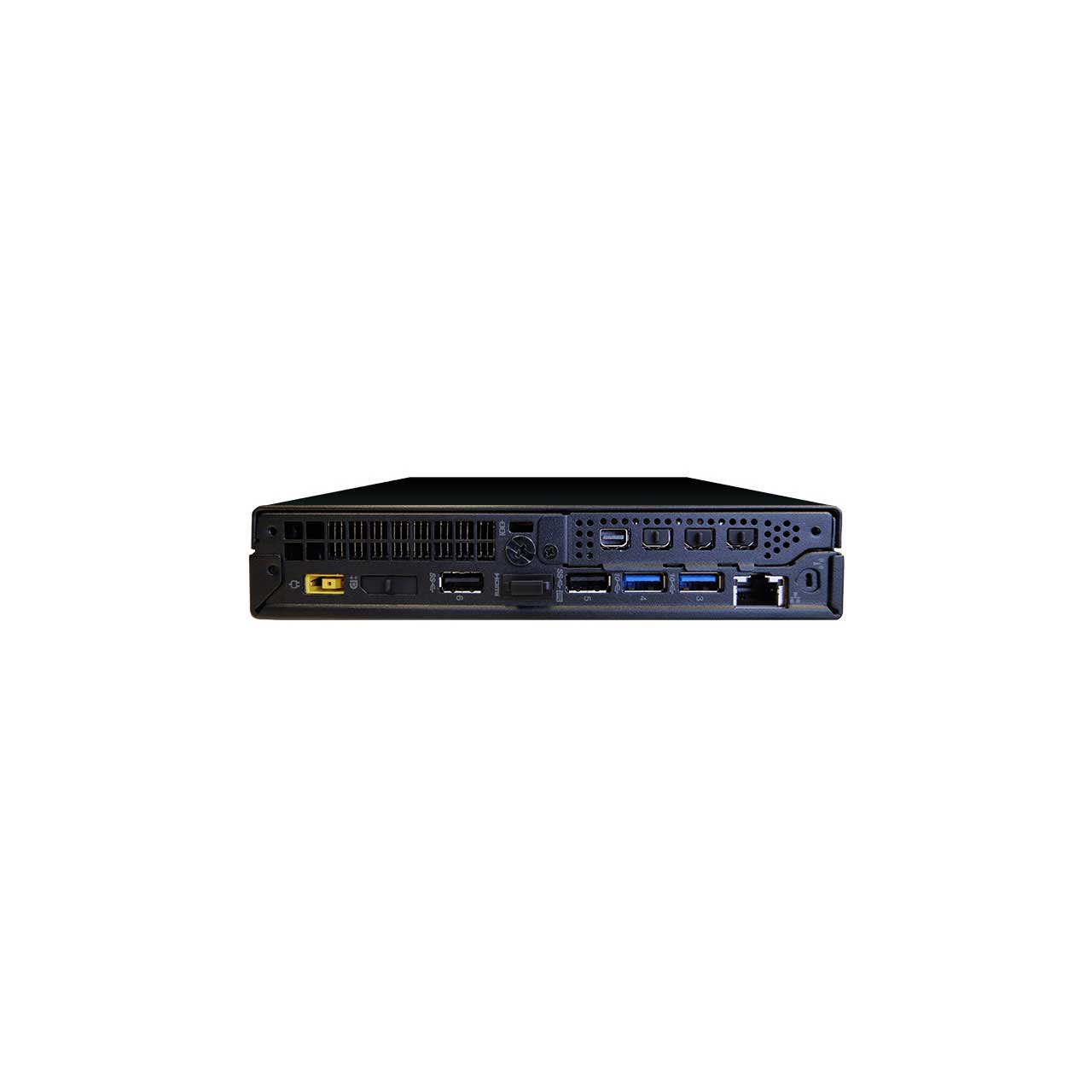

RGB Spectrum Zio HD/4K AV-over-IP Multiviewer - H.264 & H.265 up to 4K UHD - Decode Multiple Streams on a Single Display

ITEM #: RGB-ZIO-D3024 MFG #: ZIO D3024

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

List Price:

$5,640.00

Our Price:

$5,369.99

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    ZIO D3024 - Overview

    Zio. The ideal choice for mission-critical applications.

    The Zio D3024 Multiviewer builds on the functionality of the D2100 Series by increasing the number of simultaneous streams displayed. The D3024 model allows up to 15 2K, three 4K streams, or other equivalents.

    RGB Spectrum Zio Multiviewer System - Decode Multiple Streams for a Single Display - IP-based for Ultimate Flexibility

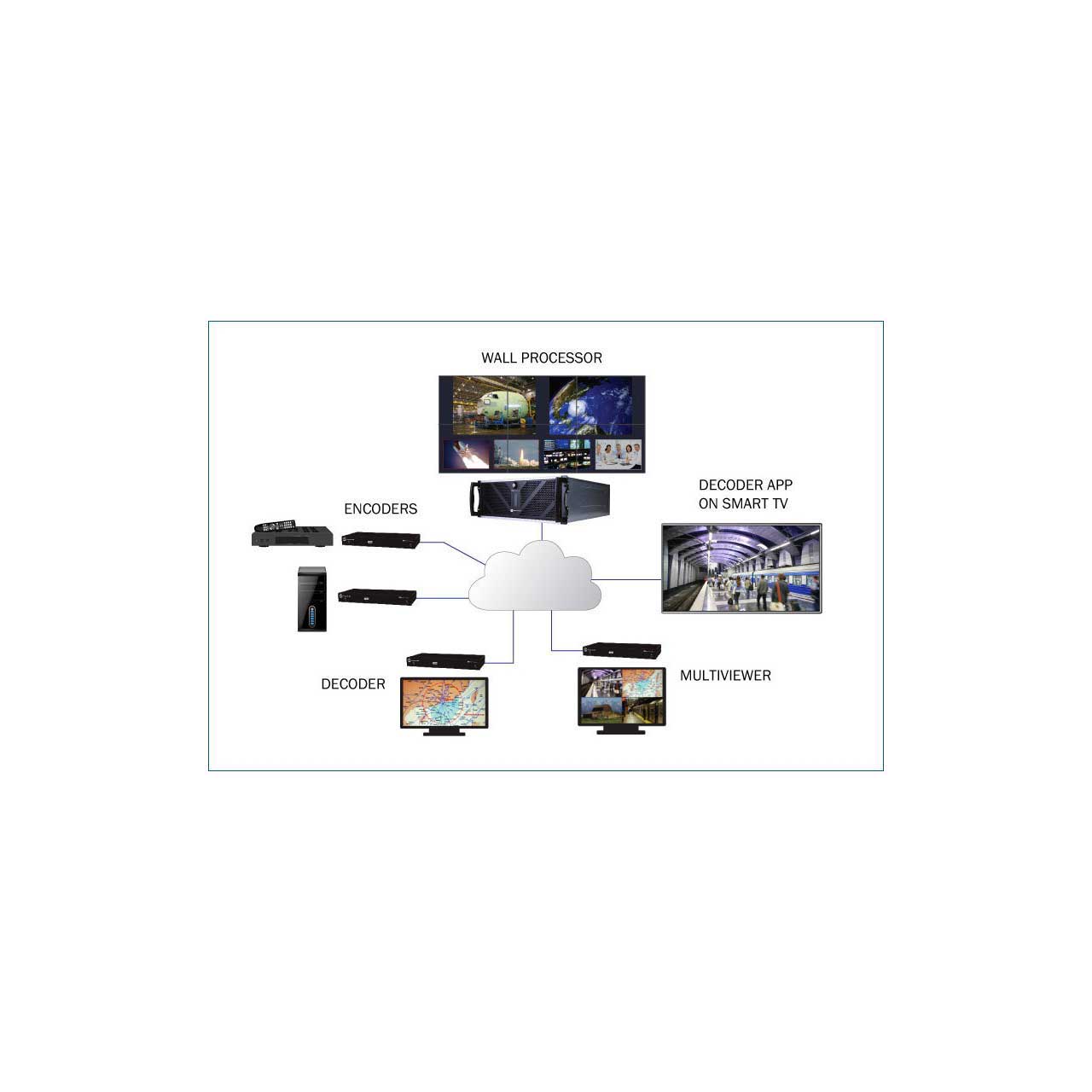

    Zio multiviewers allow multiple video streams and web content to be decoded and viewed on a single display. RGB Spectrum's AV-over-IP technology supports low bandwidth content distribution and management across a room, campus or the internet using standard 1Gb ethernet. An intuitive browser-based GUI allows drag & drop source routing, and industry standard codecs enable interoperability with third-party devices such as IP cameras.

    A room, a building, a campus, a city, or the world - LANs, WANs, even satellite links - a Zio solution is up to the challenge.
    Zio Multiviewers can display local baseband as well as IP video. The Zio platform is an enterprise-class solution. With these capabilities, the Zio platform can provide for the efficient distribution, recording, and display of video streams, from almost any source to any destination, over any network, onto any display. Wherever you are, whatever the need, the Zio platform has you covered. 24/7!

    • Features:

      • Video and graphic inputs up to 4k resolution supported
      • Real-time processing - no dropped frames
      • Designed for 24/7 operation
      • H.264 and H.265 decoding up to 4K UHD
      • Content distribution across LANs & WANs
      • Dynamic window position / size
      • Mix live video + web-based content
      • Scripting interface for external system control
      • Power over Ethernet (PoE)

    • Specifications:

      • Inputs
      • Type: Video Stream
      • Connector: 1x RJ-45 (GigE)
      • Resolution: Up to 1920 x 1080 @ 60 Hz, 3840 x 2160 @ 60 Hz
      • Audio Support: Digital (embedded video stream)
      • IP Streams: 15x 1080p and 3 4K

        Outputs
      • Type: DisplayPort
      • Connector: 1x mini-displayPort 1.4
      • Resolution: Up to 4096 x 2160 @ 60 Hz
      • Audio Support: Digital (embedded HDMI) or analog (mono)

        Streaming
      • Compression Format: H.264, H.265
      • Streaming Protocol: RTSP, Unicast/Multicast

        Control
      • Application: Browser-based HTML5: Windows, macOS, iOS and Android
      • Network: Ethernet TCP/IP 10/100/1000BaseT

        Physical
      • Dimensions (H x W x D): 1.4 x 7.0 x 7.2 inches (36.5 x 179 x 182.9 mm)
      • Weight: 3.1 lbs / 1.4 kg
      • Power: 100-240 VAC; 50/60 Hz, 135 W max

    • Item Includes:

      • 1x ZIO D3024 Multiviewer
      • 1x ZIO WebView for Browser Based Content

    • Warranty:

      • One Year Warranty
