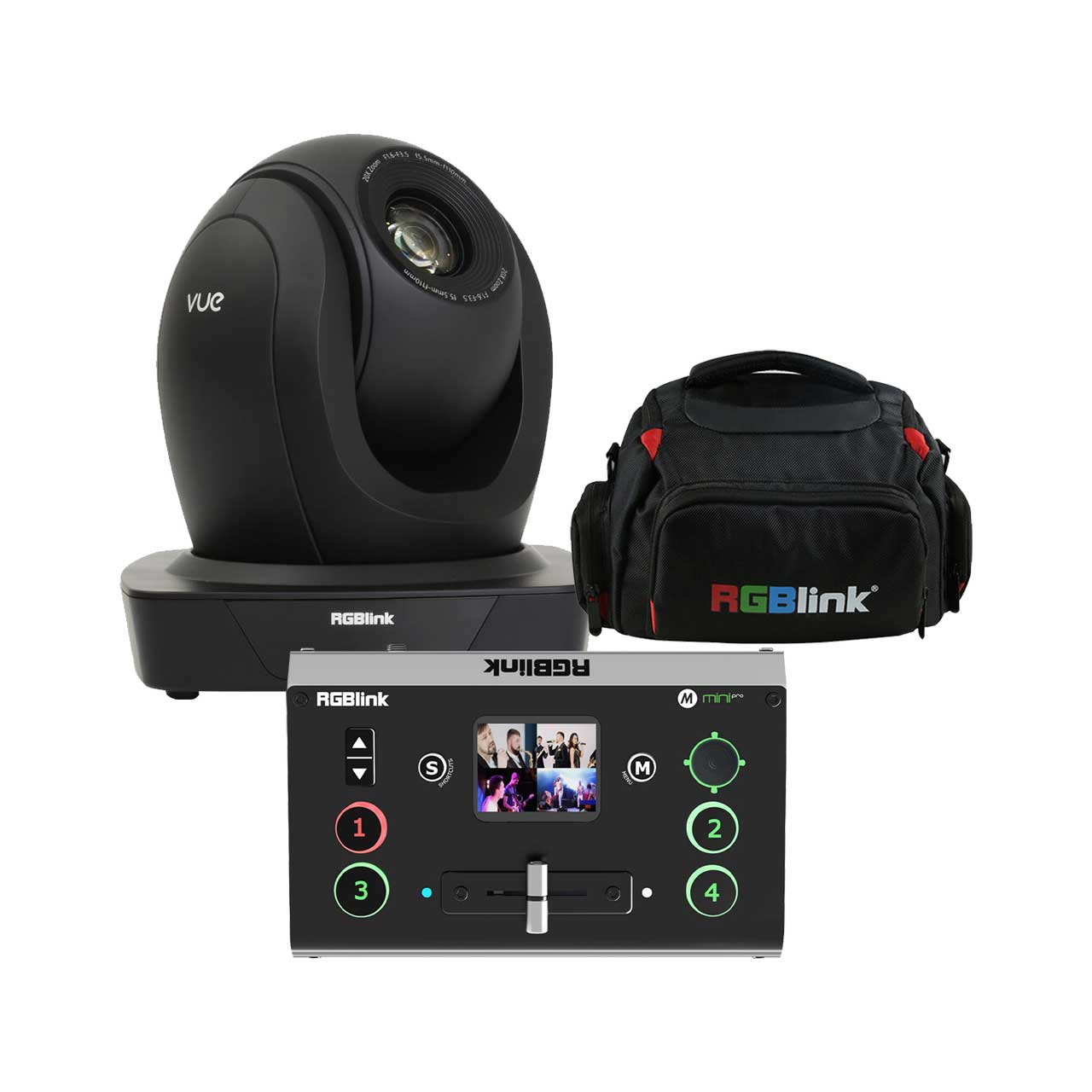

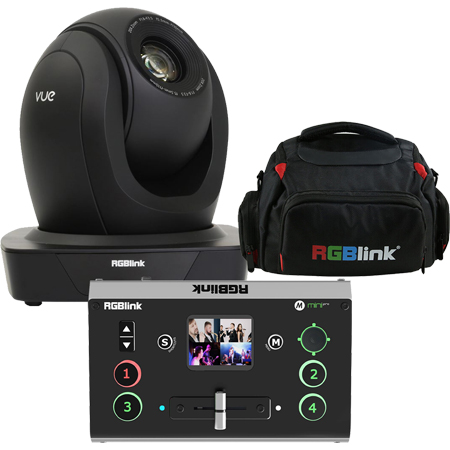

RGBLink RGBMINIPROVUEBUN VUE 20x H.265/H.264 PTZ Camera Bundle with MINI-PRO Controller & Carrying Case - Black

ITEM #: RGL-RGBMINIPROVB MFG #: RGBMINIPROVUEBUN

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the RGL-RGBMINIPROVB

RGBMINIPROVUEBUN - Overview

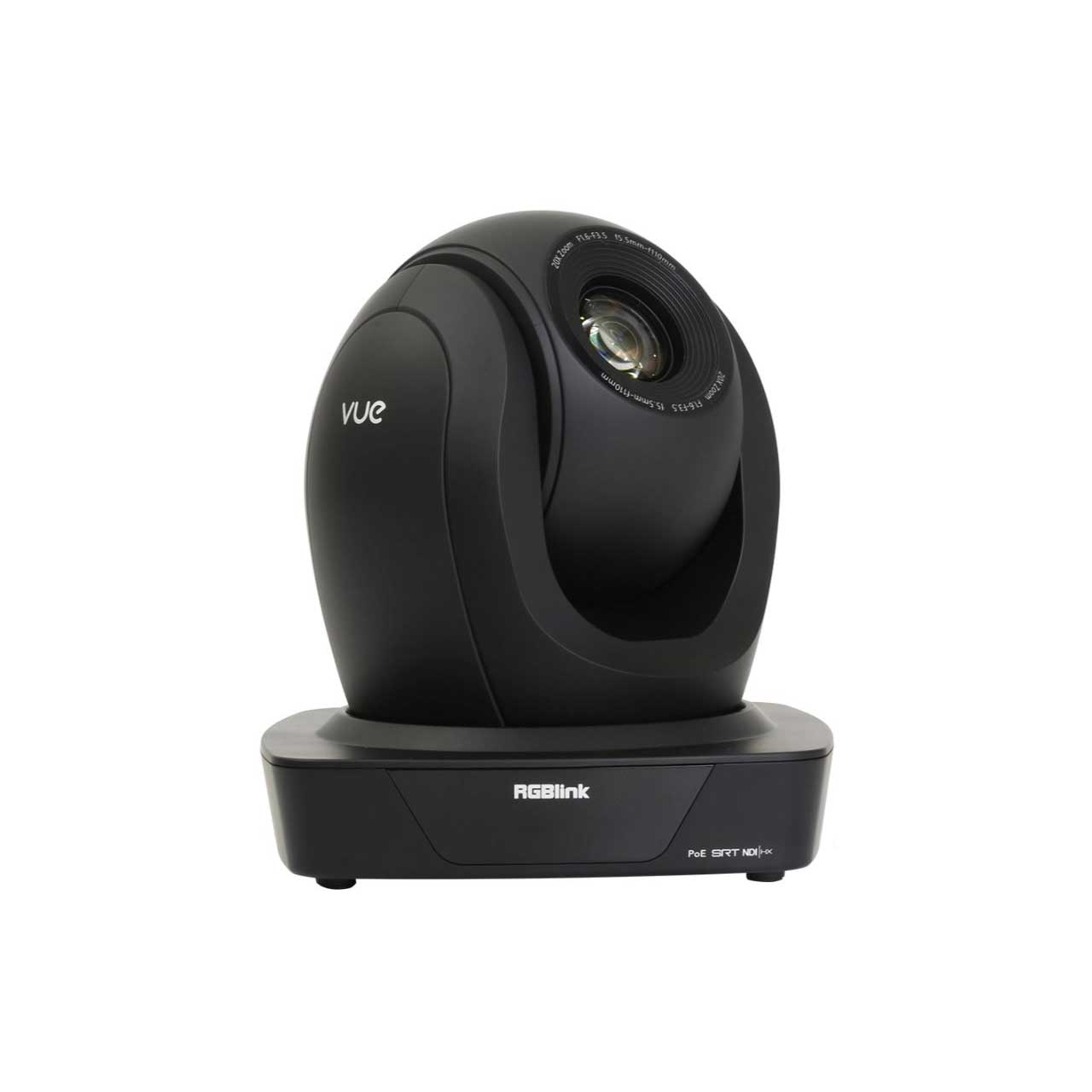

RGBlink PTZ VUE 20x PTZ Camera
Add whole new dimensions to capturing video presentations with RGBlink vue PTZ cameras. Featuring an advanced ISP image processor and a 2 mega pixel sensor, vue cameras are available in 20X optical zoom and with a range of output options from HDMI & SDI to H.264, H.265 & NDI.

Pan, Tilt, Zoom to capture all the action! You can get in even closer with the 10X digital zoom, grab the best video with auto focus, dynamic level adjustment (WDR) and 2D/3D Dynamic Noise Reduction (DNR) all at up to 60fps. All vue models feature the unique TALLY crown light indicator, integrated right into the housing for 360-degree viewing. The innovative and patented RGBlink vue camera design is at home in every environment.

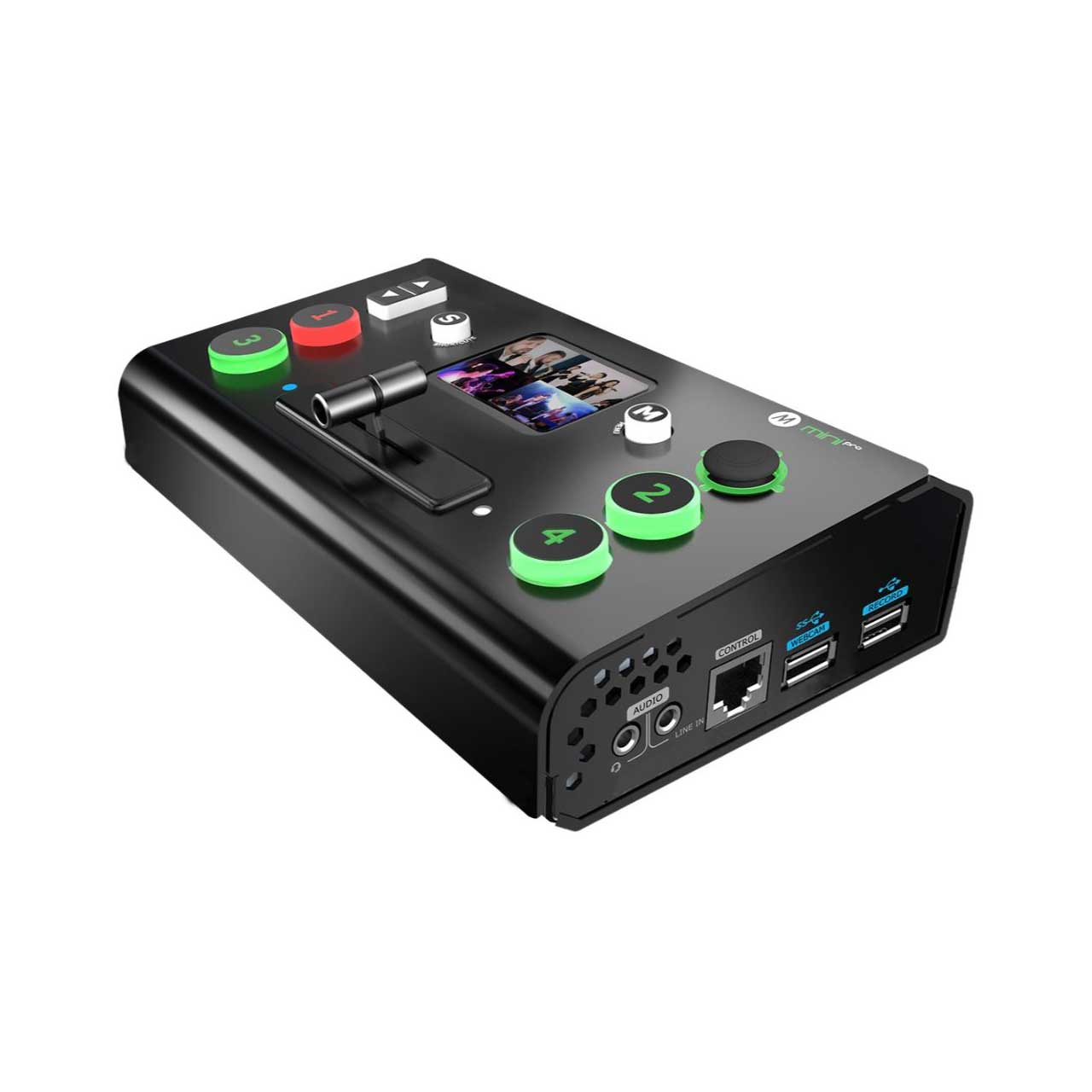

RGBlink mini-pro
With a dual channel video switcher mixer for the streaming generation the mini-pro features four resolution independent inputs - up to full 4K60! Take advantage of native high-performance sources, cameras or laptops amd more, without compromise. While presets for PIP and PBP are provided, mini-pro includes full pixel-to-pixel scaling capabilities for both the PIP and background video layers - truly unique in a streaming mixer of this size - features usually found only on larger professional video mixers.

The Audio output is selectable between embedded sources or an external source. Both Line and Mic level audio are supported with variable delay controls to bring audio into sync if
needed.

In addition to HDMI and USB3.0 streaming outputs, mini-pro includes a dedicated USB recording port. Simply connect a portable drive and record directly from mini-pro.

The exclusive integral display not only shows video preview, but is touch enabled for natural operation of features and settings. Remote control is available via free companion apps for laptops and mobile devices too. The mini-pro is packed with features including dynamic output control, preview multi-view, picture in picture, Chroma Key, video transitions, on board PTZ camera controls and more.

  • Features:

    • 4K HDMI Inputs
    • Embedded & Insert Audio with Sync
    • Mix audio from multiple inputs
    • USB Streaming Output
    • Record to USB
    • Joystick Camera Control
    • Assignable Preview Multi-View
    • Onboard video preview
    • Chroma Key
    • Configurable PIP video overlay
    • Broadcast style TBAR
    • Control remotely from XPOSE mini software for computers
    • Control remotely from the XPOSE mini app for mobiles & tablets
    • Support for third party apps including OBS Studio

  • Specifications:

    • PTZ VUE 20x PTZ Camera

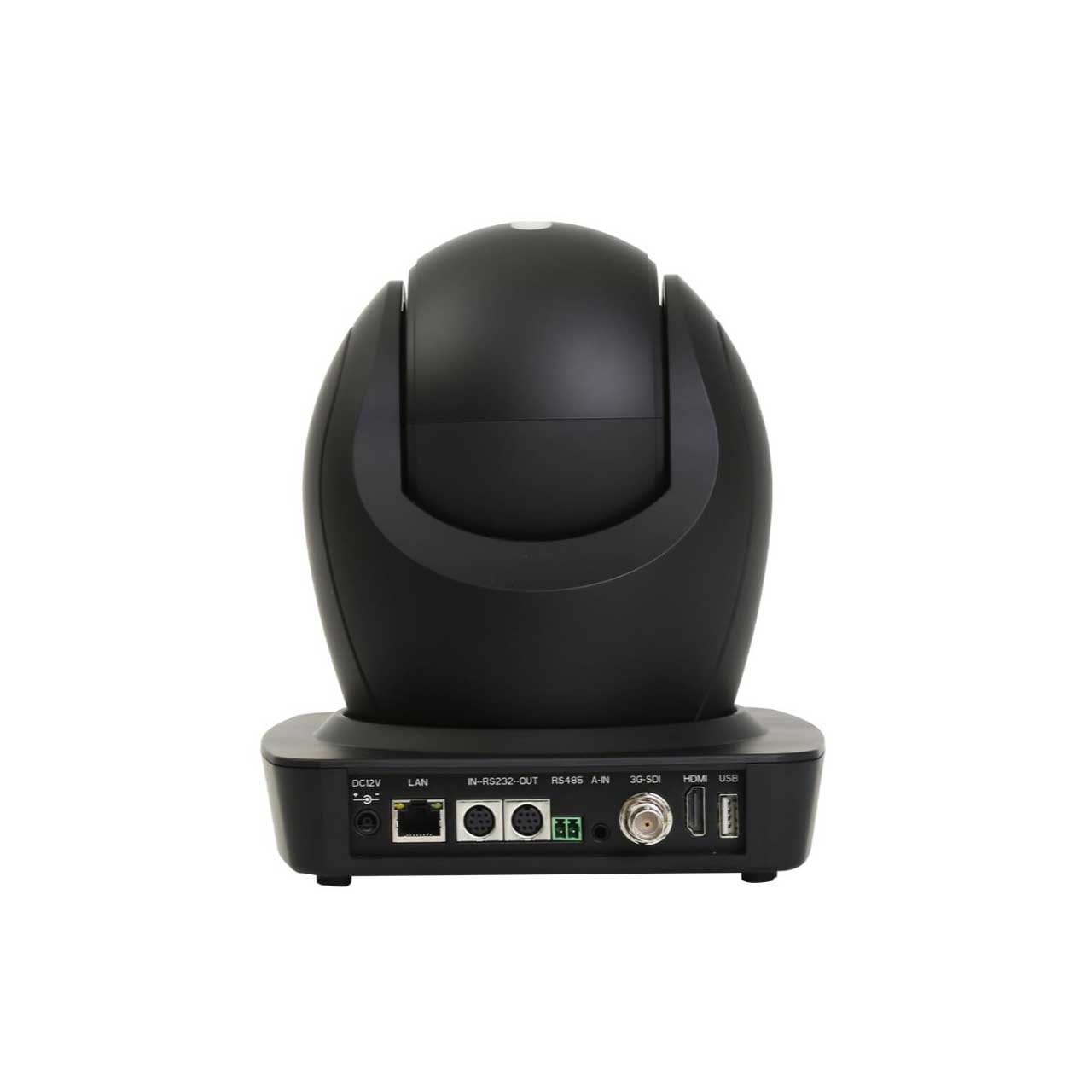

      Interface
    • Output: 3G SDI: 1x BNC
    • HDMI: 1x HDMI-A
    • USB: 1x USB-A
    • LAN: 1x RJ45
    • Audio IN: 1x 3.5mm Stereo Jack
    • Control: RS232 IN/OUT2xDIN8, RS485: 1x4pin Terminal
    • Power: 1x DC12V Jack

      Performance
    • Camera: 12X: 20X: 30X
    • Optical Zoom: f=4.1~49.2mm: f=4.8~96mm: f=5.2~148.4mm
    • View Angle: 6.57°~ 70.28°: 3.45°~ 60.04°: 2.14°~58.1°
    • AV: F1.8 ~ F2.68: F1.8 ~ F2.9: F1.3 ~ F4.8
    • Digital Zoom: 10X
    • Minimum Illumination: 0.5Lux (F1.8, AGC ON)
    • DNR: 2D & 3D DNR
    • White Balance: Auto/Manual/One Push/3000K/3500K/4000K/4500K/5000K/5500K/6000K/6500K/7000K
    • Focus: Auto/Manual
    • Aperture/Electronic Shutter: Auto/Manual
    • BLC: ON/OFF
    • WDR: OFF/Dynamic Level Adjustment
    • Video Adjustment: Brightness/Color/Saturation/Contrast/Sharpness/B/W mode/Gamma curve
    • SNR: >55dB
    • Effective Pixels: 2.07m,16:9
    • Audio Compression Format: AAC / MP3 / G.711A
    • Video Compression Format: H.264 / H.265 / Dual Streaming Output
    • Output Resolutions: 720p50/59.94/60 / 1080p25/29.97/30/50/59.94/60 / 1080i50/59.94/60
    • Control Protocol: VISCA / Pelco-D / Pelco-P / ONVIF
    • Baud Rate(bps): 115200 / 9600 / 4800 / 2400bps
    • Network Protocol: RTSP / RTMP / SRT / ONVIF
    • Supported Standards: SDI: SMPTE 425M (Level A & B) / SMPTE 424M / SMPTE 292M / SMPTE 259M-C / DVB-ASI

      Power
    • Input Voltage: DC12V/1.5A
    • Max Power: 12W

      Environment
    • Temperature: -10°C~50°C
    • Humidity: 20%~80%

      Physical
    • Weight: Net - 1.7kg
    • Dimension: Net - 180mm (front) x188mm (side) x 198mm (height)

    • mini-pro Controller
    • Connectors
    • Input: HDMI 4K: 4x HDMI-A
    • Output: HDMI 2K: 1x HDMI-A
    • Streaming: 1x USB TypeA
    • Recording: 1x USB TypeA
    • Audio: In: 1x 3.5mm Stereo Jack
    • Out: 1x 3.5mm Stereo Jack
    • Communication: LAN: 1x RJ45
    • Power: 1x USB-C

      Performance
    • Input Resolutions: HDMI
    • SMPTE: 720p@50/60 |1080i@50/1080p@24/30/50/60 |2160p@60

      VESA:
    • 1024x768@60/1280x720@60/1280x768@60/1280x800@60 /1280x1024@60
    • 1360x768@60/1366x768@60/1440x900@60/1600x1200@60/1680x1050@60
    • 1920x1080@60/1920x1200@60/3840x2160@60/4096x2160@60

      Output Resolutions: HDMI
    • SMPTE: 720p@50/60/1080p@24/25/30/50/60

      VESA:
    • 1024x768@60/1280x720@50/60/1280x768@60/1280x1024@60/1360x768@60
    • 1920x1080@24/25/30/50/60

    • USB:
    • 1024x768@60/1280x720@50/60/1280x768@60/1280x1024@60/1360x768@60/1920x1080@24/25/30/50/60

      Supported Standards
    • HDMI: 2.0
    • USB: 3.0
    • H.265: ITU-T H.265/ ISO/IEC 23008-2
    • Supported Protocol: PTZ VISCA
    • Video Formats: HDMI 2.0/HDCP 2.2
    • Streaming Formats: ITU-T H.265/ISO/IEC 23008-2
    • Disk Formats: FAT32(=32 GB)/exFAT(64GB~2T)
    • Recording Formats: MP4/WAV
    • Color Space: RGB
    • Video Sampling: 4:4:4 YUV
    • Latency: <4 frames
    • Line In Delay: up to 8 frames

  • Item Includes:

    • 1x RGBlink PTZ VUE 20x PTZ Camera
    • 1x RGBlink mini-pro
    • 1x RGBlink mini-pro carrying bag
