RGBLink Tao 1tiny2 UVC to HDMI / NDI Smart Converter with Webcam Signal Transcoding

ITEM #: RGL-TAO-1TINY2 MFG #: TAO 1TINY 2

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$295.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


TAO 1TINY 2 - Overview

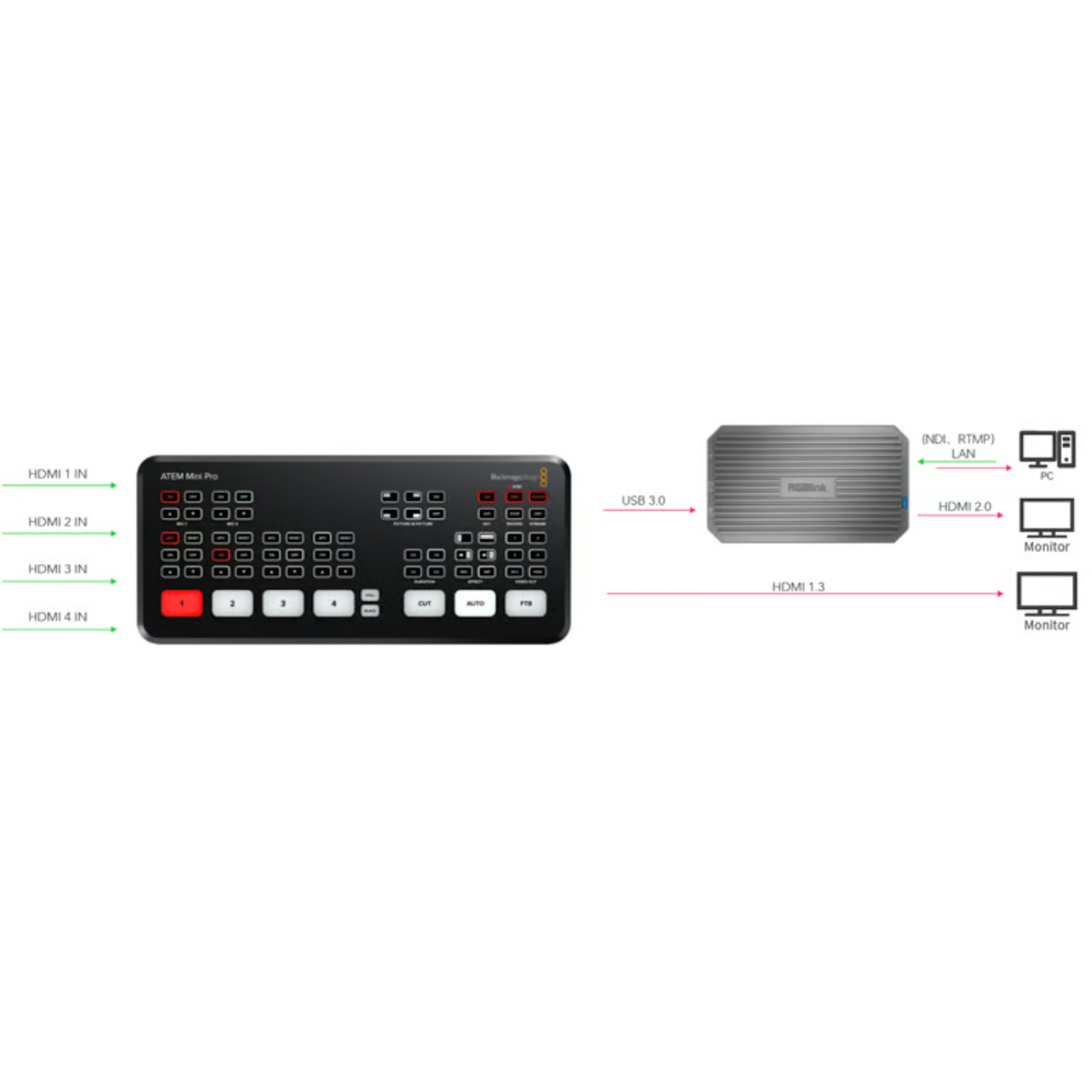

The RGBLink TAO 1tiny 2 is a UVC to HDMI smart converter that keeps all the great features of the first version while adding important improvements. The upgraded model features a stylish silver-gray metal body with better cooling for more reliable performance, plus a new Gigabit Ethernet port for sending high-quality video over networks (with NDI support). Its easy-to-use web interface lets you control settings and switch signals remotely. It works perfectly with RGBlink mini devices and supports popular UVC cameras - ideal for professional streaming and video production. The TAO 1tiny converts USB 3.0 (UVC compatible) video to HDMI 2.0 and also handles NDI encoding. It can change video from USB cameras or mini devices into HDMI output or NDI streams, as well as turn NDI signals into HDMI 2.0 output. This means you can use regular USB cameras as professional NDI sources, or show NDI streams on monitors - a flexible solution for live production, meetings, and more.

  • Features:

    • 4K UVC camera to HDMI conversion
    • Webcam signal transcoding
    • Low Power consumption
    • Ethernet port for NDI encoding/decoding (requires web-configuration)
    • Power from standard USB-C PD PSU's

  • Specifications:

    • Connectors
    • Input: Type-C 1x USB-C
    • Output: HDMI 2.0 1x HDMI-A
    • Power: Type-C 1x USB-C
    • Ethernet: LAN 1x RJ45

      Performance
    • Input Resolutions:
      - SMPTE: 720p@25/30/50/60, 1080p@30/50/60, 2160p@30
      - VESA 1280 x 720@30/50/60, 1280 x 768@60, 1920 x 1080@25/30/50/60, 3840 x 2160@30
    • Output Resolutions: HDMI SMPTE 1080p@30/50/60 | 2160p@30 VESA 1280 x 720@30/50/60 | 1280 x 768@60 | 1920 x 1080@25/30/50/60 | 3840 x 2160@60
    • Supported Standard:
      - HDMI 2.0
      - USB 3.0
    • Video Encoding: MJPEG, H.264, H.265
    • Streaming Protocols: RTMP/RTMPs/RTSP/NDI
    • NDI Features:
      - NDI Encoding: NDI | HX
      - NDI Decoding NDI | HX, NDI | HX2, NDI | HX3
    • Compatibility: Camera with UVC1.1/UVC1.5 protocol
    • Compatibility Tested:
      - RGBlink mini, mini-pro, mini-edge, mini-mx, vue PTZ 2K
      - Blackmagic Design ATEM mini
      - DJI Osmo Action 5, Osmo Action 4, POCKET 3
      - Insta 360 X3, link UHD 4K AI
      - OBSBOT tiny 2K, tiny 4K, meet 2K, meet 4K Power

      Power
    • Input Voltage: 9V/2A or 5V/2A(depends on adapter)
    • Max Power: 18W

      Environment
    • Temperature: 32°F (0°C) - ~131°F (~55°C)
    • Humidity: 20%~55%

      Physical
    • Weight: 0.45lbs (0.2kg)
    • Dimensions: 10" (254mm) x 5.7" (144.8mm) x 3.34" (84.8m)

  • Item Includes:

    • 1x RGBLink TAO 1tiny 2

  • Warranty:

    • 1 Year Limited Warranty
