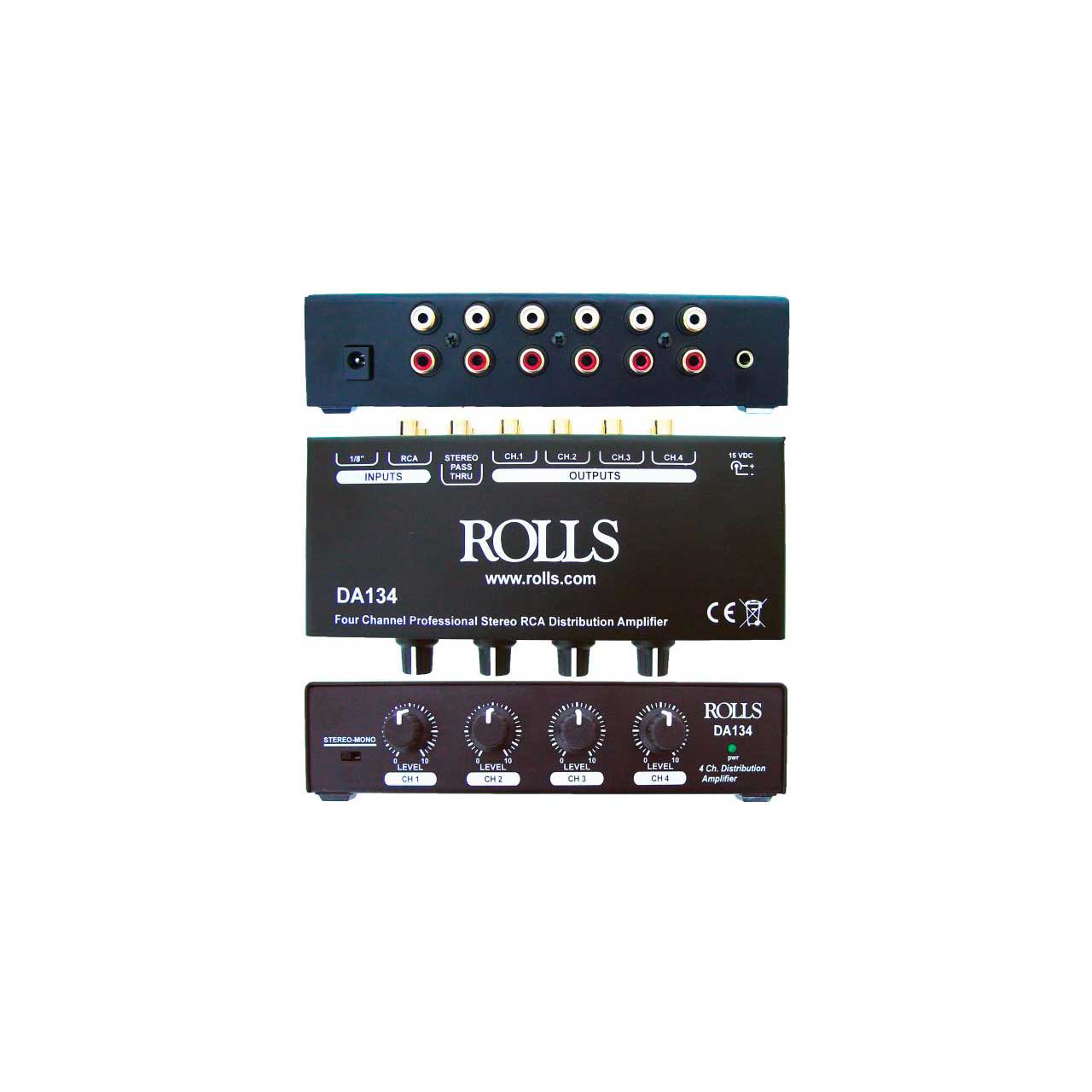

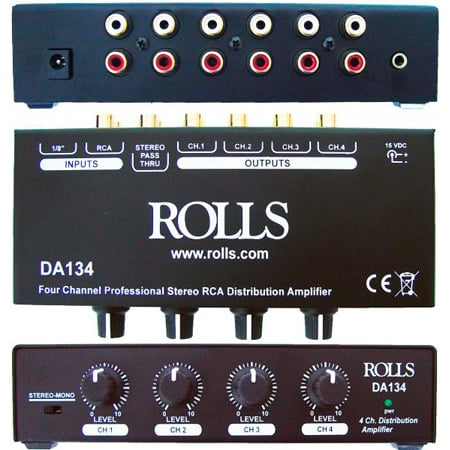

Rolls DA134 4 Channel RCA Distribution Amp

ITEM #: RLS-DA134 MFG #: DA134

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$139.00

Our Price:

$119.00

Availability: In Stock
iAvailability Description Popup


    DA134 - Overview

    Designed for high end RCA audio distribution the Rolls DA134 is a four channel distribution amplifier. RCA and 1/8” inputs that can be switched from mono or stereo. The DA134 will distribute a mono signal to eight outputs, or a stereo signal to four stereo outputs. The outputs are designed to drive line level signals. The DA134 is the perfect distribution amp anywhere high quality sound distribution is required.

    • Features:

      • Expands the output of a stereo device to multiple outputs
      • Can raise the output level to true line level for any output
      • Stereo 4 channel distribution amplifier
      • Front panel volume controls
      • Mono or Stereo operation
      • DC low end frequency for audiophile frequency response
      • Small compact design
      • Accepts inputs directly from I-pad / I-pod or laptop
      • Included Rolls PS27s power supply.
      • Stereo pass thru: For connection to another DA134

    • Specifications:

      • Input Impedance: 10 KΩ
      • Max Input Level: +12 dBV
      • Output Impedance: 470 Ω
      • Max Output Level: +12 dB
      • Max Gain: 20 dB
      • S/N Ratio: >90 dB
      • Cross Talk: -70 dB (stereo)
      • Frequency Response: DC - 60 kHz, +/- 1 dB
      • THD: <.008%
      • Power: 15 VDC
      • Size: 6.5” x 3.5” x 1.5”
      • Weight: 1 lbs. 3 oz.

    • GTIN:

      0675889013405
