Rolls RA63b 8-Channel Mono 4 Channel Stereo Distribution Amplifier

ITEM #: RLS-RA63B MFG #: RA63B

free ship

List Price:

$309.00

Our Price:

$239.00

Availability: In Stock
iAvailability Description Popup


    RA63B - Overview

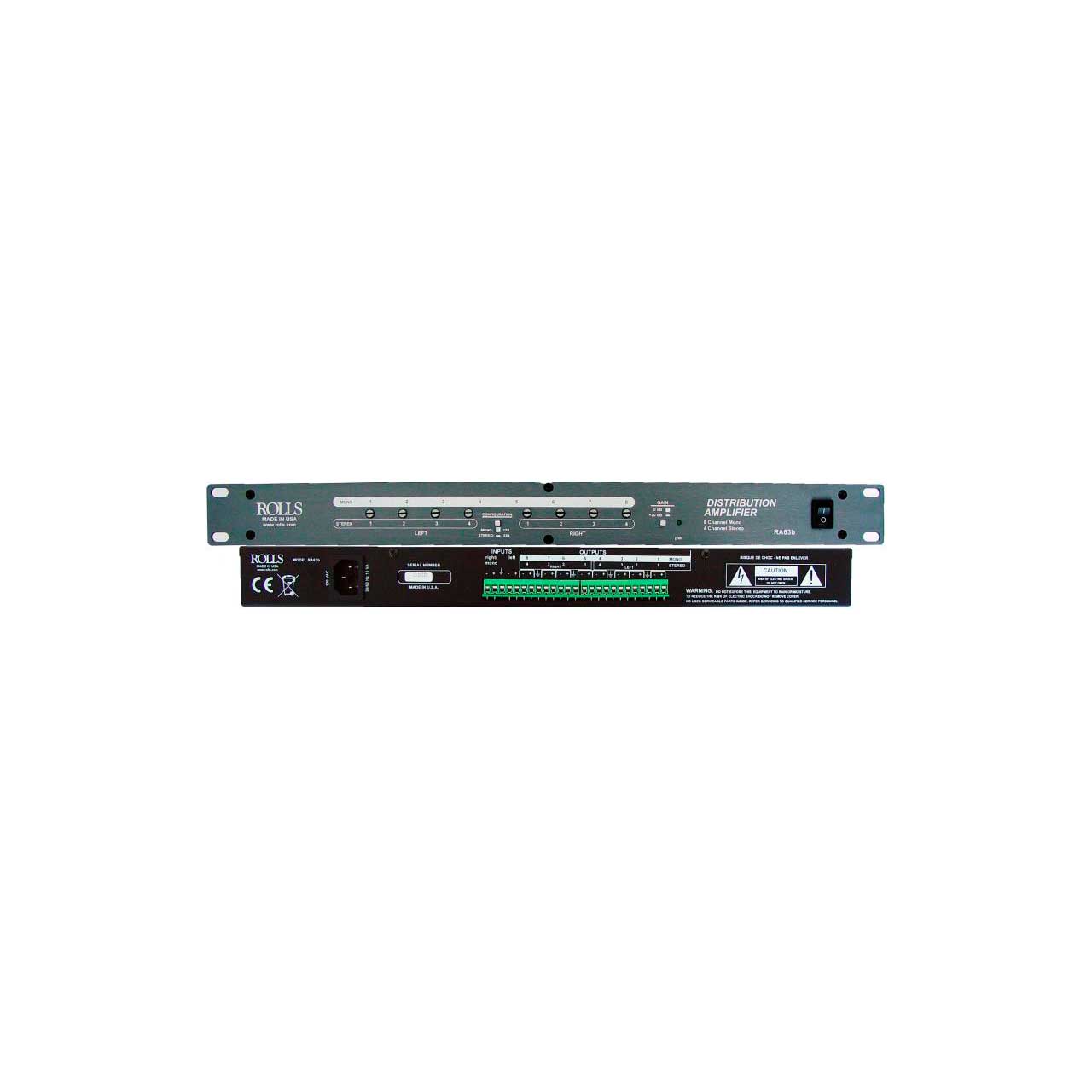

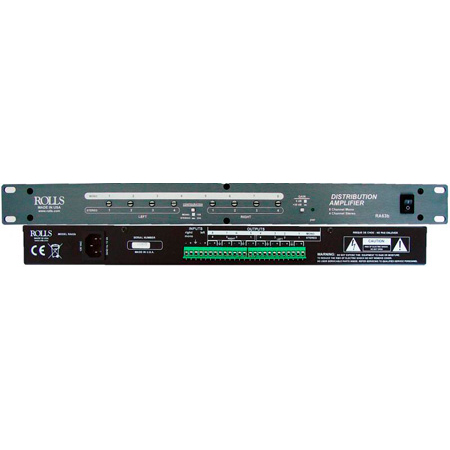

    The Rolls RA63b is an eight channel mono, or four channel stereo distribution amplifier designed for the contractor / install market. The outputs are designed to drive high-level balanced lines in a sound distribution system. The screw terminals on the rear panel are for input and output, and each output may power more than one line.

    • Features:

      • Mono or Stereo Operation - mono input to eight outputs, or stereo inputs to four stereo outputs.
      • +20 dB Gain switch.
      • Screw Terminal inputs and outputs.
      • The RA63b replaces the old RA63s. The new ra63b has all the same features, but has an easy access stereo mono switch.

    • Specifications:

      • Input Impedance: 100 K Ohms balanced
      • Max Input Level: +22 dBV
      • I/O Connectors: Screw terminal; + -, and ground
      • Output Impedance: 50 Ohms balanced
      • Max Output Level: +24 dB
      • Max Gain: 20 dB
      • S/N Ratio: >90 dB
      • Frequency Response: 10 Hz - 40 kHz, +/- 1 dB
      • THD: <.008%
      • Power: 120 VAC 50-60 Hz, 15VA
      • Size: 19" x 1.75" x 6.5" (48 x 4.5 x 17 cm)
      • Weight: 7 lbs. (3 kg)

    • GTIN:

      0675889006315
