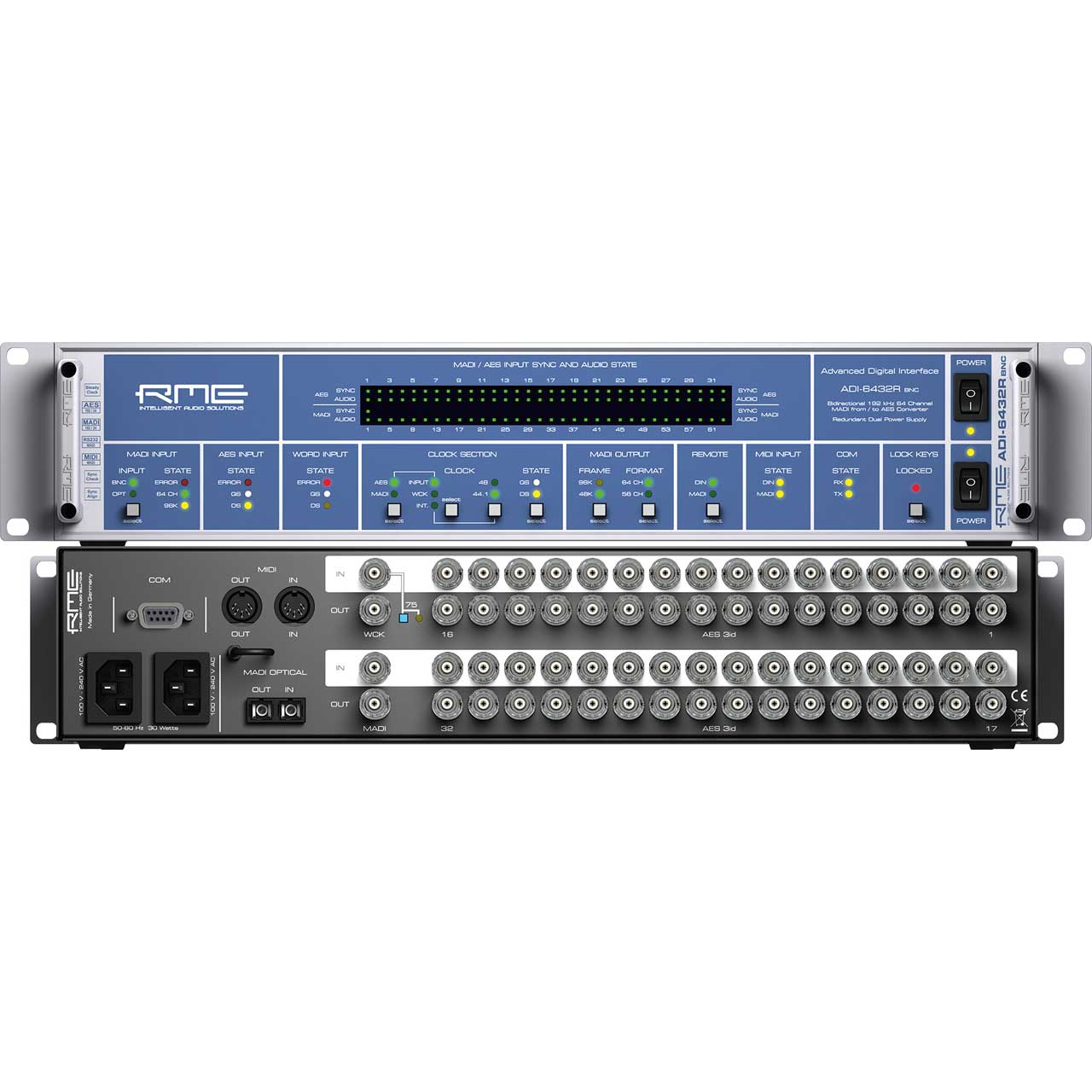

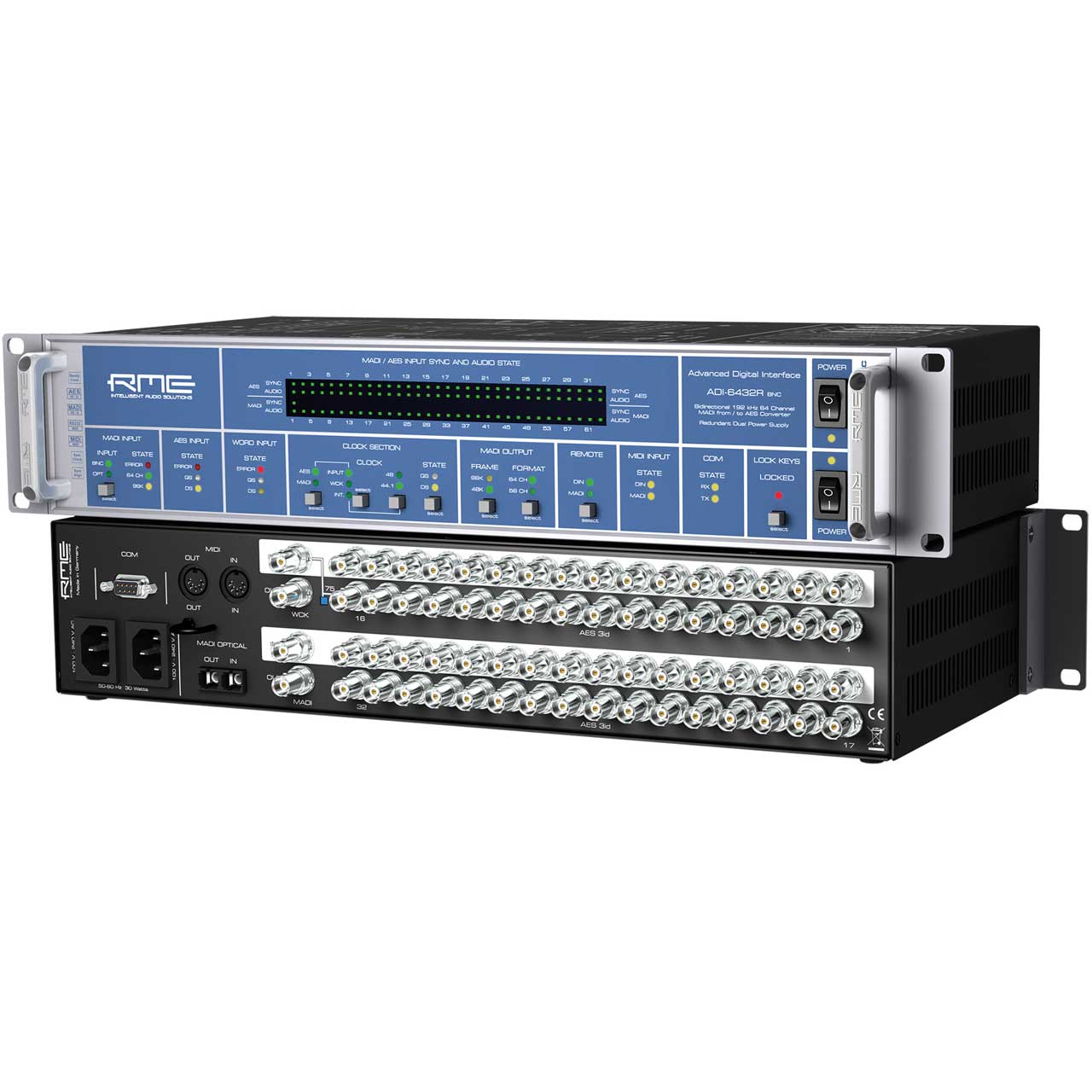

RME ADI6432 R BNC 19 Inch 2RU 24 Bit / 192kHz 1x 64-channel MADI AES Converter with Redundant PSU (Single-Mode)

ADI6432RBNCS - Overview

• Features:

  • Support for up to 192 kHz with MADI and AES
  • Unique status displays for MADI and AES
  • SteadyClock for maximum jitter reduction and clock regeneration
  • Completely remote controllable via MIDI
  • Transfer of MIDI data via MADI
  • Transfer of RS232 data via MADI
  • Redundant power supply


• Specifications:

  • MADI Inputs
  • Coaxial via BNC, 75Ohm, according to AES10-1991
  • High-sensitivity input stage (<0.2Vpp)
  • Optical via FDDI duplex SC conn
  • 62.5/125 and 50/125 compatible
  • Accepts 56ch and 64ch mode, and 96k frame
  • Single Wire: up to 64ch 24bit 48kHz
  • Double Wire: up to 32ch 24bit 96kHz
  • Lock range: 28kHz - 54kHz
  • Jitter when synced to input signal: <1ns
  • Jitter suppression: >30dB (2.4kHz)

    AES-3id
  • 32x, transformer-coupled, grounded, according to AES3-4-2009
  • High sensitivity input stage (<0.3Vpp)
  • SPDIF compatible (IEC 60958)
  • Accepts Consumer and Professional format, copy protection will be ignored
  • Single Wire: 32x 2ch 24bit, up to 192kHz
  • Lock range: 28kHz - 104kHz, 162kHz - 204kHz
  • Jitter when synced to input signal: <1ns
  • Jitter suppression: >30dB (2.4kHz)

    Word Clock
  • BNC, not terminated (10kOhm)
  • Switch for internal termination 75Ohm
  • Automatic Double/Quad Speed detection and internal conversion to Single Speed
  • SteadyClock guarantees super low jitter synchronization even in varispeed operation
  • Not affected by DC-offsets within the network
  • Signal Adaptation Circuit: signal refresh by auto-center and hysteresis
  • Overvoltage protection
  • Level range: 1.0Vpp - 5.6Vpp
  • Lock range: 28kHz - 220kHz
  • Jitter when synced to input signal: <1ns
  • Jitter suppression: >30dB (2.4kHz)

    MADI Outputs
  • Coaxial via BNC, 75Ohm, according to AES10-1991
  • Output voltage 600mVpp
  • Cable length coaxial: up to 100m
  • Optical via FDDI duplex SC conn
  • 62.5/125 and 50/125 compatible
  • Cable length optical: more than 500m
  • Generates 56ch and 64ch mode, and 96k frame
  • Single Wire: up to 64ch 24bit 48kHz
  • Double Wire/96k Frame: up to 32ch 24bit 96kHz
  • User's Guide ADI-6432R BNC © RME 31

    AES-3id
  • 32 x, transformer-coupled, grounded, according to AES3-4-2009
  • Output voltage Professional 4.5 Vpp
  • Format Professional according to AES3-1992 Amendment 4
  • Single Wire: 32 x 2 ch 24 bit, up to 192 kHz

    Word Clock
  • BNC
  • Max. output voltage: 5Vpp
  • Output voltage @ 75Ohm: 4.0Vpp
  • Impedance: 10Ohm
  • Frequency range: 28kHz - 220kHz

    MIDI RS-232
  • 16ch MIDI
  • 5-pin DIN jacks
  • Optocoupled, ground-free input
  • Invisible transmission via User bit of ch 56 (48k frame)
  • Invisible transmission via User bit of ch 28 (96k frame)
  • RS-232
  • 9-pin D-sub
  • Invisible transmission via User bit of ch 1 to 9
  • Digital Clocks: Internal, AES In, MADI In, Word clock In
  • Low Jitter Design: <1ns in PLL mode, all inputs
  • Internal clock: 800ps Jitter, Random Spread Spectrum
  • Jitter suppression of external clocks: > 30dB (2.4kHz)
  • PLL ensures zero dropout, even at more than 100 ns jitter
  • Group delay: typically 3 samples

    General
  • Power supply: Double internal switching PSU, 100 - 240V AC, 2x 20W
  • Typical power consumption: 15W
  • Dimensions including rack ears (WxHxD): 19 x 3.46 x 9.5" (483 x 88 x 242mm)
  • Dimensions without (WxHxD): 17.2 x 3.46 x 9.3" (436 x 88 x 235mm)
  • Weight: 4.4lbs (2kg)
  • Temperature range: 41 to 122°F (5° to 50°C)
  • Relative humidity: <75%, non-condensing


• Warranty:

  • 2 years


• GTIN:

  0720189177026
