RME 12MIC 12 Channel Digitally Controlled Microphone Preamplifier with AVB and MADI
  • RME 12MIC 12 Channel Digitally Controlled Microphone Preamplifier with AVB and MADI
  • RME 12MIC 12 Channel Digitally Controlled Microphone Preamplifier with AVB and MADI

Questions? Ask a Markertek Expert:
800-522-2025 Email

RME 12MIC 12 Channel Digitally Controlled Microphone Preamplifier with AVB and MADI

Manufacturer: RME Audio

Item #: RME-12MIC   •   MFG #: 12MIC



List Price:$3,049.00
Our Price:$2,890.00

free ship


Availability:
More on the way, usually ships in 3-10 business days
i
This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.



    California Residents:
    8pt-triangleWARNING:
    Cancer and Reproductive Harm - www.P65Warnings.ca.gov

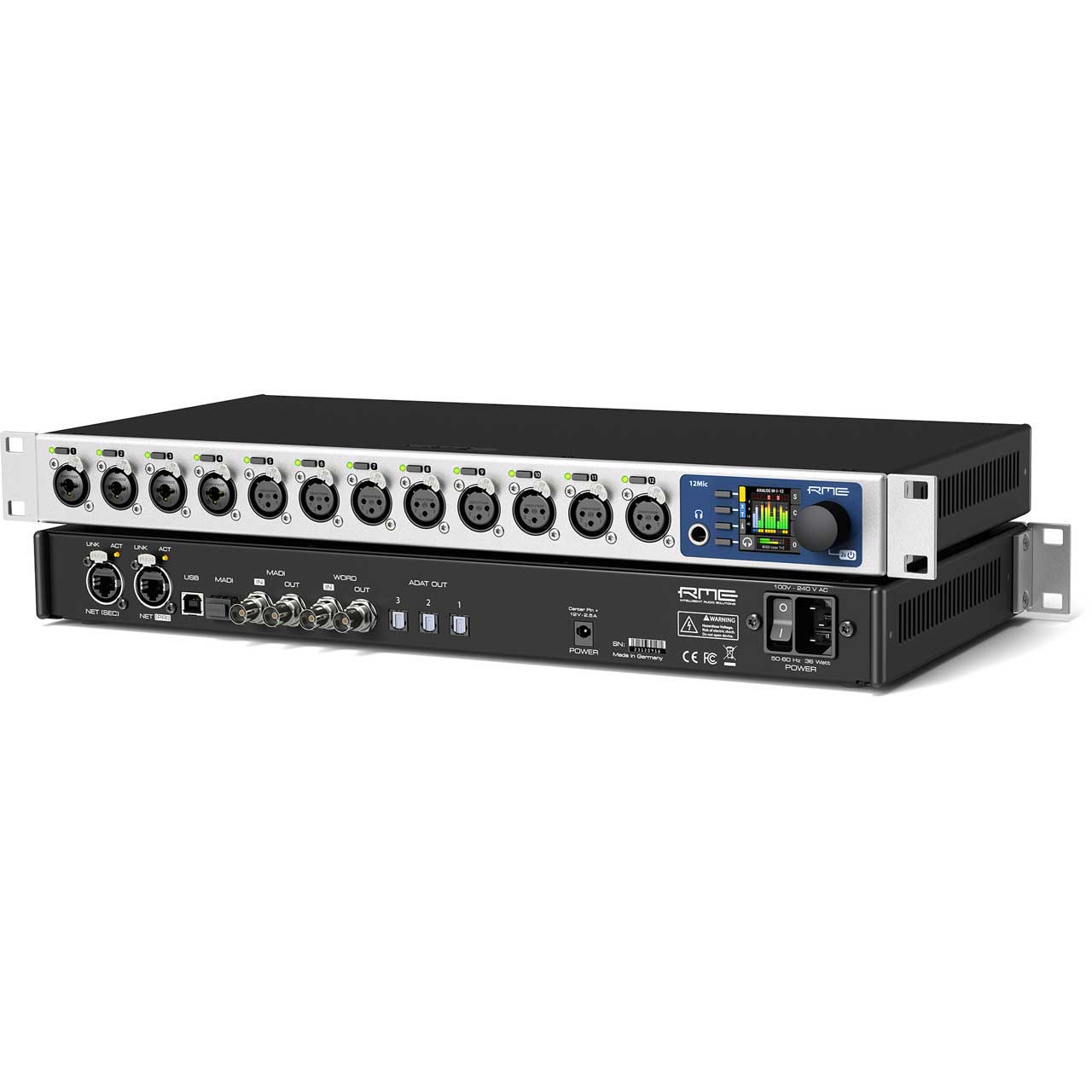

    Designed to provide professional audio over digital networks, the RME 12Mic offers 12 channels of high-quality audio microphone preamps with MADI and ABV connections. You get preamps for mic, line-level, and instrument sources; preamps that can output digitally through a variety of different connections. It does this in a compact 1 RU housing and with the ability to control all of its routing capabilities wirelessly when configured into a wireless network.

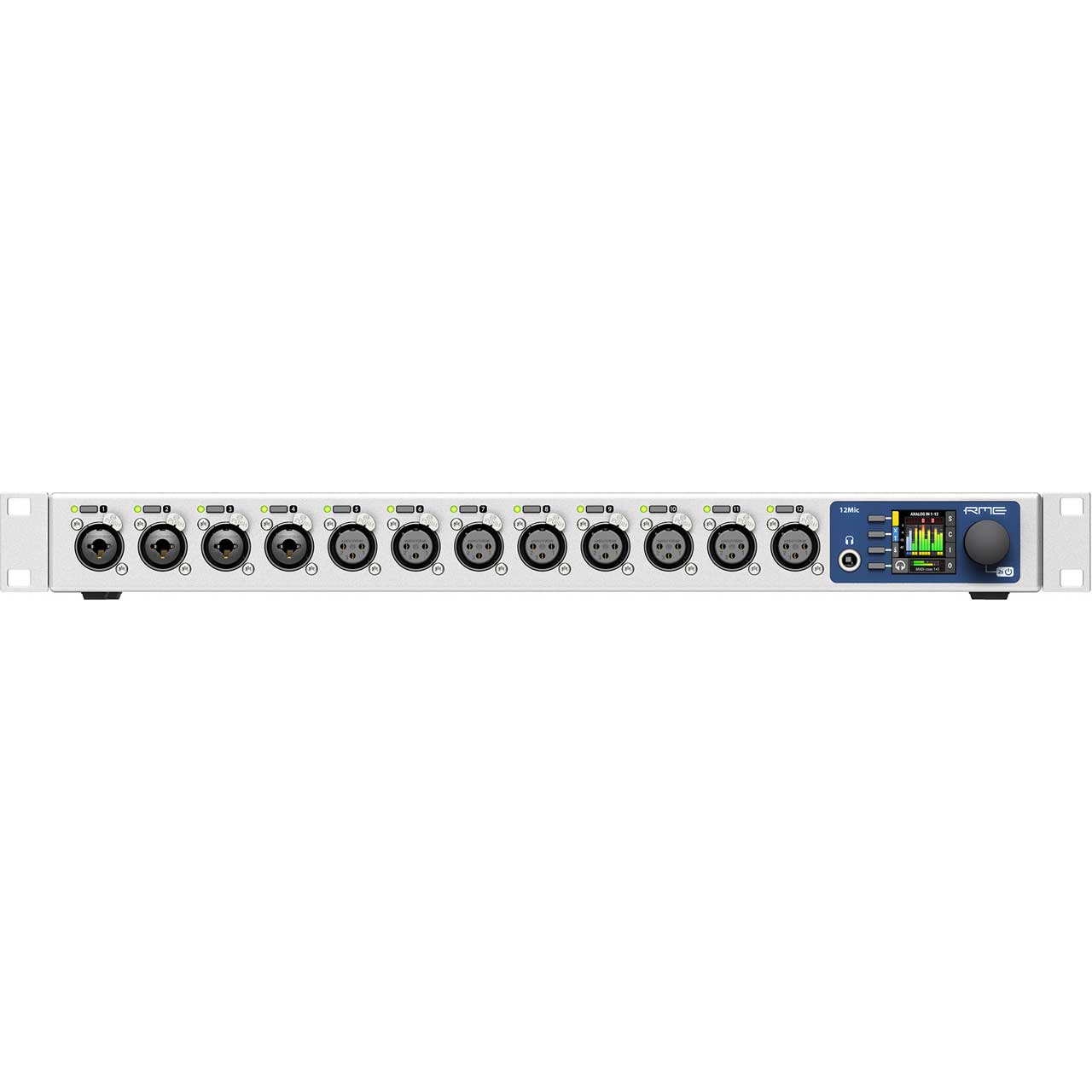

    Each of its 12 pad-free input stages offer a 75 dB range of transparent gain. You'll find four combination XLR-1/4" inputs and eight XLR inputs. Selecting among line level, mic level, or instrument level is made possible by the front-panel control menu or can be done wirelessly on any network link via the web interface.

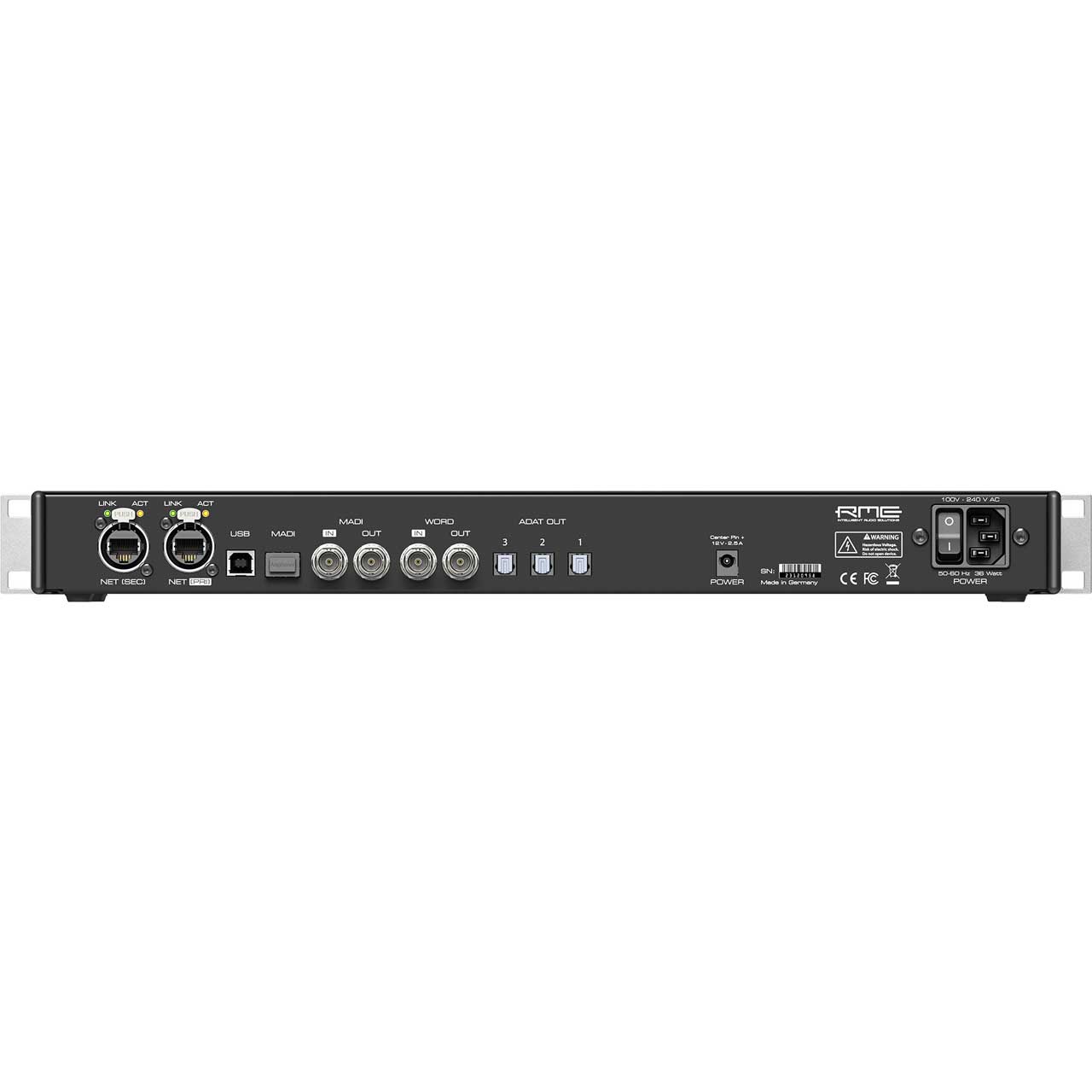

    On the digital side, you'll find BNC MADI I/O, three ADAT ports, MADI via an integrated SFP module, USB connectivity, and two Ethernet ports for AVB networking. MADI can be implemented for independent or redundant operation. The Ethernet ports are fully redundant.

    Any signal can be routed over a network with a fixed latency to ensure steady playback. RME's SteadyClock FS also ensures precise synchronization among elements, giving you a performance free from jitter so your audio is as clear as it can be. The unit also features a redundant power supplies: use the DC input and the IEC VAC input, ensuring that accidental disconnection of either won't cause the 12Mic to shut off.


    • Features

      • 12 Transparent Mic Pres
      • Preamp for Audio Networks
      • MADI & ADAT
      • Redundant Network Ports
      • Remote Controlled

    • Specifications

      • Interface
      • Channels of I/O:
      • Analog: 12 Inputs / 2 Output
      • Digital: 0 Input / 24 Outputs at 48 kHz
      • MADI: 128 Inputs / 128 Outputs at 48 kHz
      • Digital: 128 Inputs / 128 Outputs at 48 kHz
      • Max Sample Rate/Resolution: 96 kHz / 24-Bit

        Connectivity
      • Host Connection: 1 x USB Type-B (USB 2.0)
      • Analog I/O:
      • 8 x XLR Balanced Mic/Line Input
      • 4 x Combo XLR-1/4" Balanced/Unbalanced Mic/Line/Hi-Z Output
      • 1 x 1/4" TRS Unbalanced Headphone Output
      • Phantom Power: +48 V (Selectable on Individual Inputs)
      • Digital I/O:
      • 3 x TOSLINK / ADAT (I/O) In/Out
      • 1 x BNC / Coaxial MADI (I/O) Input
      • 1 x BNC / Coaxial MADI (I/O) Output
      • 1 x SC-Plug / Optical MADI (I/O) In/Out
      • 2 x etherCON / AVB (I/O) In/Out
      • MIDI I/O: None

        Performance
      • Gain Range: Inputs: 75 dB
      • Max Input Level: +18 dBu
      • SNR Outputs: 121.2 dBA

        Digital Audio
      • Sample Rates: Up to 192 kHz (A/D Conversion)
      • Bit Depth: Up to 24-Bit (A/D Conversion)
      • Sync Sources: Internal, Word Clock

        Power
      • Power Requirements: AC Input, AC/DC Power Adapter (Not Included)
      • AC Input Power: 100 to 240 VAC at 50/60 Hz
      • AC/DC Power Adapter: 12 VAC at 2.5 A (Not Included)

        Physical:
      • Rackmount Size: 1 RU (with Included Hardware)
