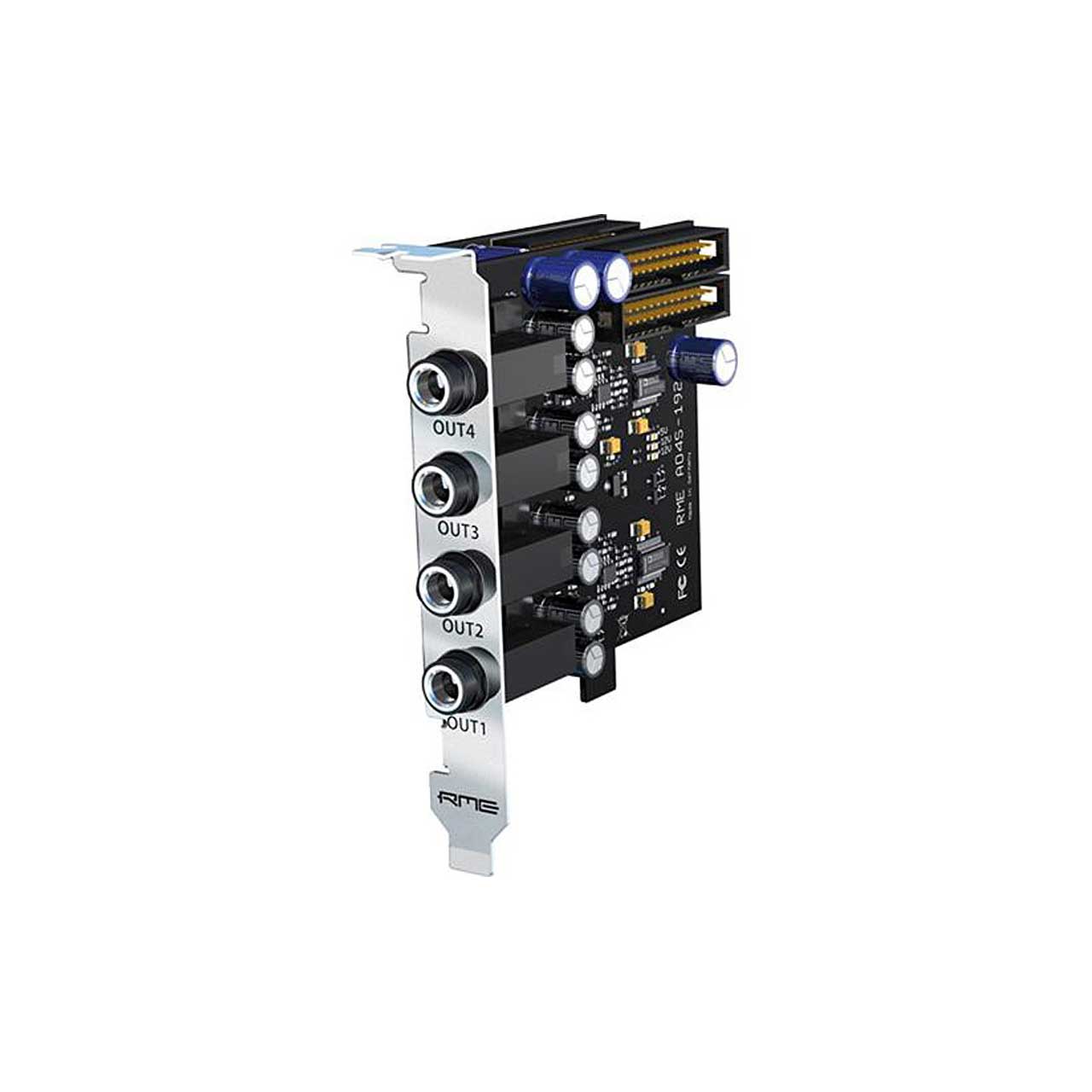

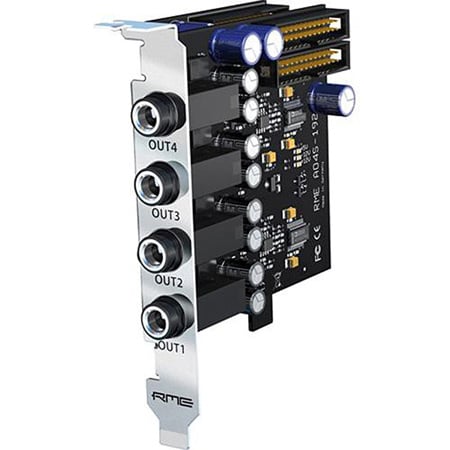

RME AO4S-192-AIO 4-Channel Analog Output Expansion Board for HDSPe AIO

    Questions? Ask a Markertek Expert:
    800-522-2025 Email

    RME AO4S-192-AIO 4-Channel Analog Output Expansion Board for HDSPe AIO

    Manufacturer: RME Audio

    Item #: RME-AO4S-192-AIO   •   MFG #: AO4S-192-AIO



    List Price:$399.00
    Our Price:$349.00

    free ship


    Availability:
    Direct Ship from manufacturer, contact us for availability
    i
    Item ships directly from the manufacturer and is subject to manufacturer availability. We will contact you with expected availability. You can also email [email protected], chat or call customer service (800)-522-2025 for expedited delivery options.



      California Residents:
      8pt-triangleWARNING:
      Cancer and Reproductive Harm - www.P65Warnings.ca.gov





      RME offers several Expansion Boards, that add more or other I/O ports to the internal cards of the Hammerfall, HDSP, HDSPe and DIGI96 series. The AO4S-192 AIO adds additional analog inputs and outputs of true studio quality to the HDSP 9632 and the HDSPe AIO.

      These options for the HDSP 9632 and HDSPe AIO are analog expansion boards, designed as bracket with 4 stereo TRS jacks each. AI4S-192 AIO provides four servo-balanced inputs, AO4S-192 AIO provides four servo-balanced outputs. With this a maximum of 6 (including the stereo I/O of the card) inputs and/or outputs can be achieved.

      The converters offer the same performance as the on-board stereo analog I/O of the HDSPe AIO: up to 192 kHz, balanced connection and the choice of three different reference levels, selected in the Settings dialog. The AO4S-192 AIO can be used single or in combination. The display of the channels in TotalMix changes accordingly.

      Please note: AI4S-192 and AO4S-192 (without the suffix AIO) do work only with the HDSP 9632. The current Expansion Boards with the suffix AIO work with both cards.


      • Specifications

        • Resolution DA: 24 Bit
        • Signal to Noise ratio (SNR): 114 dB RMS unweighted, 118 dBA @ 44.1 kHz (unmuted)
        • THD: < - 104 dB, < 0.00063 %
        • THD+N: < -102 dB, < 0.0008 %
        • Crosstalk: > 110 dB
        • Maximum output level: +19 dBu
        • Frequency response @ 44.1 kHz, -0.5 dB: 1 Hz – 22 kHz
        • Frequency response @ 96 kHz, -0.5 dB: 1 Hz – 34 kHz
        • Frequency response @ 192 kHz, -0.5 dB: 1 Hz – 50 kHz
        • Output: 4 x 1/4" TRS jack, servo balanced
        • Output impedance: 50 Ohm
        • Output level: Hi Gain, +4 dBu, -10 dBV
        • Output level at 0 dBFS @ Hi Gain: +19 dBu
        • Output level at 0 dBFS @ +4 dBu: +13 dBu
        • Output level at 0 dBFS @ -10 dBV: +2 dBV
        • Power supply: via flat cable
        • Standard bracket, board dimensions: 3.54 x 3.74 In

      • Item Includes

        • Analog Expansion Board
        • 1 flat ribbon cable, 26 pins
        • 1 set of nuts
        • Manual, drill template

      • GTIN:

        0874792002302
